Product Overview
The HB11555-002B is a high-performance solenoid-operated directional control valve engineered for precise hydraulic circuit management in demanding industrial environments. As a standard directional control valve, it functions by directing or halting hydraulic fluid flow through the actuation of an electrical solenoid, which shifts an internal spool to connect or block specific ports. This valve is a critical component in hydraulic systems requiring reliable, repeatable control of actuator movement, offering dependable switching performance for cylinders, motors, and other hydraulic consumers. Its robust construction and standardized interface make it an ideal direct-fit replacement for OEM systems, ensuring minimal downtime and consistent operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | HB11555-002B |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate or Manifold Mounting) |
| Actuation Type | Electrical Solenoid (Wet Armature, Continuous Duty) |
| Spool Configuration | 4-Way, 3-Position (Closed Center) – Typical for Model Series |
| Flow Rating | Up to 80 L/min (Nominal, dependent on spool type) |
| Voltage Options | 12 VDC, 24 VDC, 110 VAC, 220 VAC (Standard Coil Options) |
Engineering Features & Advantages
- Precision Spool & Sleeve: Hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, low hysteresis, and accurate flow metering for precise actuator control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust solenoid design that withstands high cycling rates and contaminated environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard ISO 4401 mounting patterns and connector interfaces, allowing for drop-in replacement without system modification.
- Fast Response: Optimized solenoid and spring return mechanism delivers rapid shifting times, enhancing machine cycle efficiency and dynamic performance.
- Versatile Control: Available in multiple spool configurations (e.g., open center, closed center, tandem) to suit a wide range of circuit requirements.
Typical Industrial Applications
This solenoid directional control valve is widely used in heavy industrial scenarios such as plastic injection molding machines for mold clamping and injection control, metallurgical presses for precise ram positioning, construction and marine hydraulics for boom and steering circuits, and CNC machine tools for tool changing and clamping operations. Its robust design also suits automated assembly lines, material handling equipment, and hydraulic power units requiring reliable directional flow control.
PRODUCT IMAGES

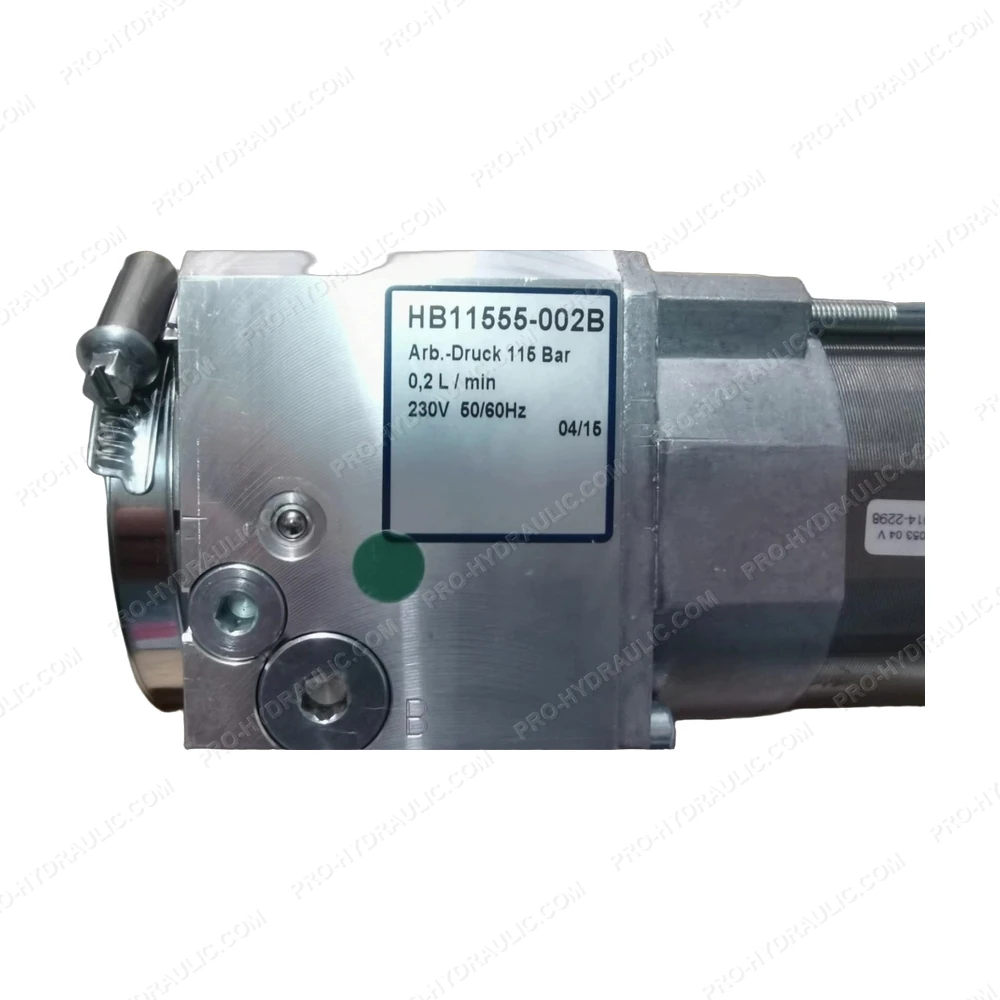

Hydraulic Brand HB11555-002B Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Hydraulic Brand HB11555-002B Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
