The HYDROPA WE6AHG-F4M/G 24V / 15740700 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This solenoid-operated, spring-centered 4-way valve features a wet-pin armature design and a robust spool mechanism, ensuring reliable shifting and long service life under continuous operation. With a CETOP 3 / NG6 interface, it integrates seamlessly into standard manifold and subplate mounting systems.
HYDROPA WE6AHG-F4M/G 24V / 15740700 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 4/3-way directional control valve, solenoid actuated, spring return |
| Mounting Interface | CETOP 3 / NG6 (ISO 4401-03) |
| Coil Voltage | 24 V DC |
| Spool Configuration | Closed center (F4M) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 60 L/min (15.8 gpm) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Hydraulic Fluid | Mineral oil based, DIN 51524 |
| Protection Class | IP65 (with suitable connector) |
| Weight | Approx. 1.5 kg |
Key Engineering Features
- Wet-pin armature design for efficient magnetic flux and reduced wear
- Spring-centered spool ensures fail-safe return to neutral position
- High-strength cast iron body for durability and pressure integrity
- Precision-ground spool and bore for minimal internal leakage
- 24 V DC coil with high cycle rate capability
- Standard CETOP 3 mounting for easy integration and replacement
Industrial Applications
- Machine tool hydraulic systems
- Presses and forming equipment
- Material handling and lifting systems
- Mobile and industrial hydraulic power units
- Automated production lines
For technical inquiries, dimensional drawings, or replacement support for HYDROPA WE6AHG-F4M/G 24V / 15740700, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

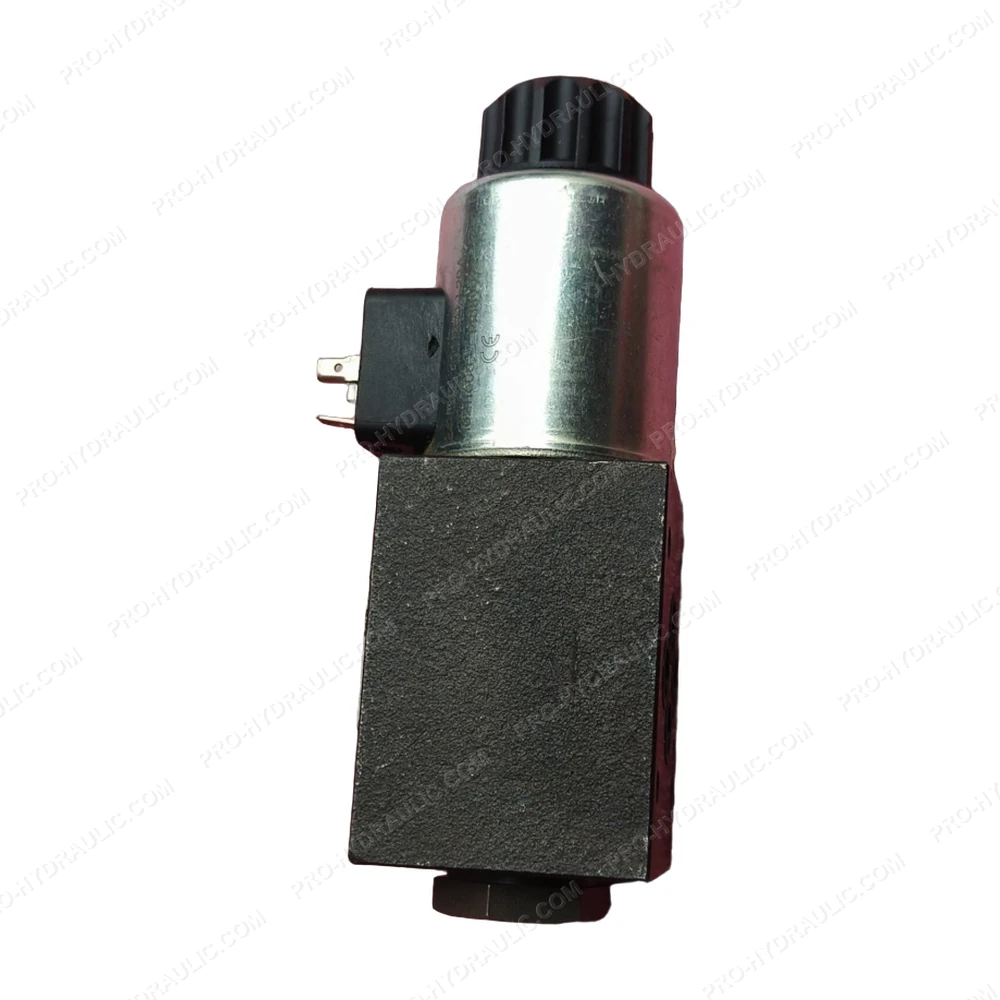

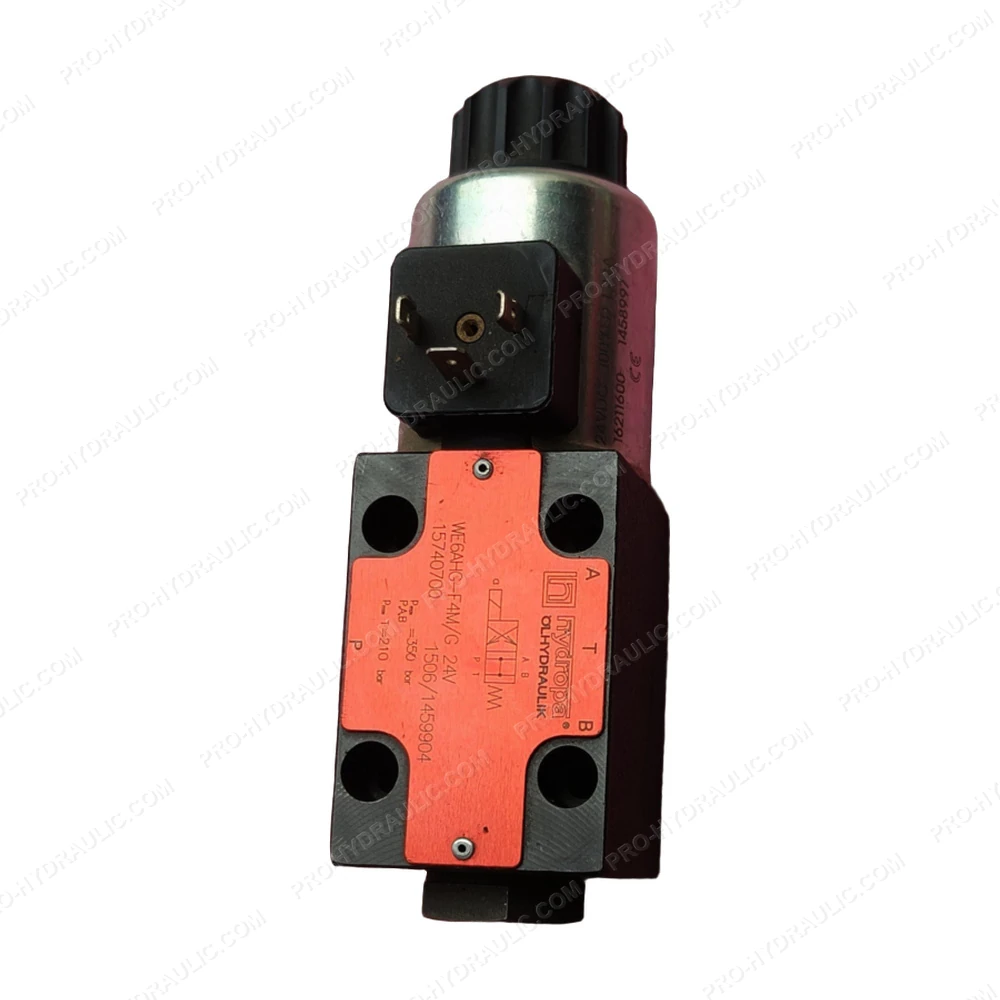

HYDROPA WE6AHG-F4M/G 24V Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HYDROPA WE6AHG-F4M/G 24V / 15740700 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
