Product Overview
The IDEX MHP9904-602-1 is a high-performance solenoid-operated directional control valve engineered for precise hydraulic circuit management in demanding industrial environments. Manufactured by IDEX Corporation, a globally recognized leader in fluid handling and precision hydraulic technologies, this valve utilizes a robust solenoid actuation mechanism to shift an internal spool, thereby directing, stopping, or diverting hydraulic fluid flow within a system. Its design prioritizes rapid response times, leak-free operation, and long-term durability, making it an essential component for controlling actuator movement, pressure sequencing, and flow direction in complex hydraulic power units and process control loops.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | MHP9904-602-1 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP Interface |
| Actuation Method | Electrical Solenoid (Wet Armature Design) |
| Spool Configuration | 4-Way, 3-Position (Closed Center) |
| Flow Capacity | Up to 60 L/min (Nominal) |
| Seal Material | NBR / FKM (High-Performance Hydraulic Seals) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool ensures minimal internal leakage and accurate flow control, enabling precise actuator positioning and smooth directional transitions.
- Rapid Solenoid Response: High-force solenoid coils provide fast shifting times, reducing cycle times and improving overall system productivity in automated processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust housing and wear-resistant internal components that withstand high-pressure spikes and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in installation without modification to manifolds or piping.
- Leak-Free Design: Advanced sealing technology and precision machining prevent external leakage and minimize internal bypass, maintaining system efficiency and safety.
Typical Industrial Applications
This solenoid directional control valve is ideally suited for a wide range of heavy industrial scenarios, including plastic injection molding machines where precise mold clamping and injection pressure control are critical; metallurgical presses requiring reliable directional control under extreme loads; construction and marine hydraulics for boom, bucket, and steering circuits; and CNC machine tools where accurate tool positioning and rapid response are essential for high-precision machining operations.
PRODUCT IMAGES

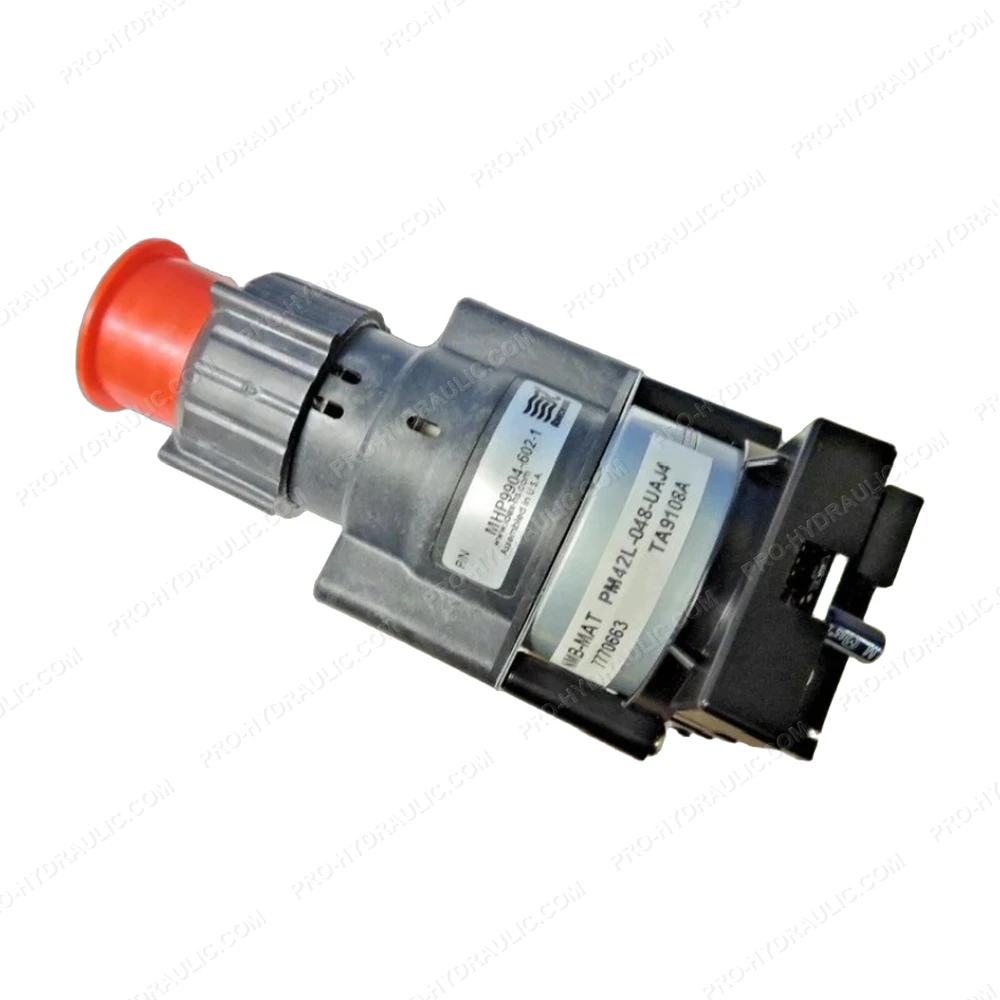

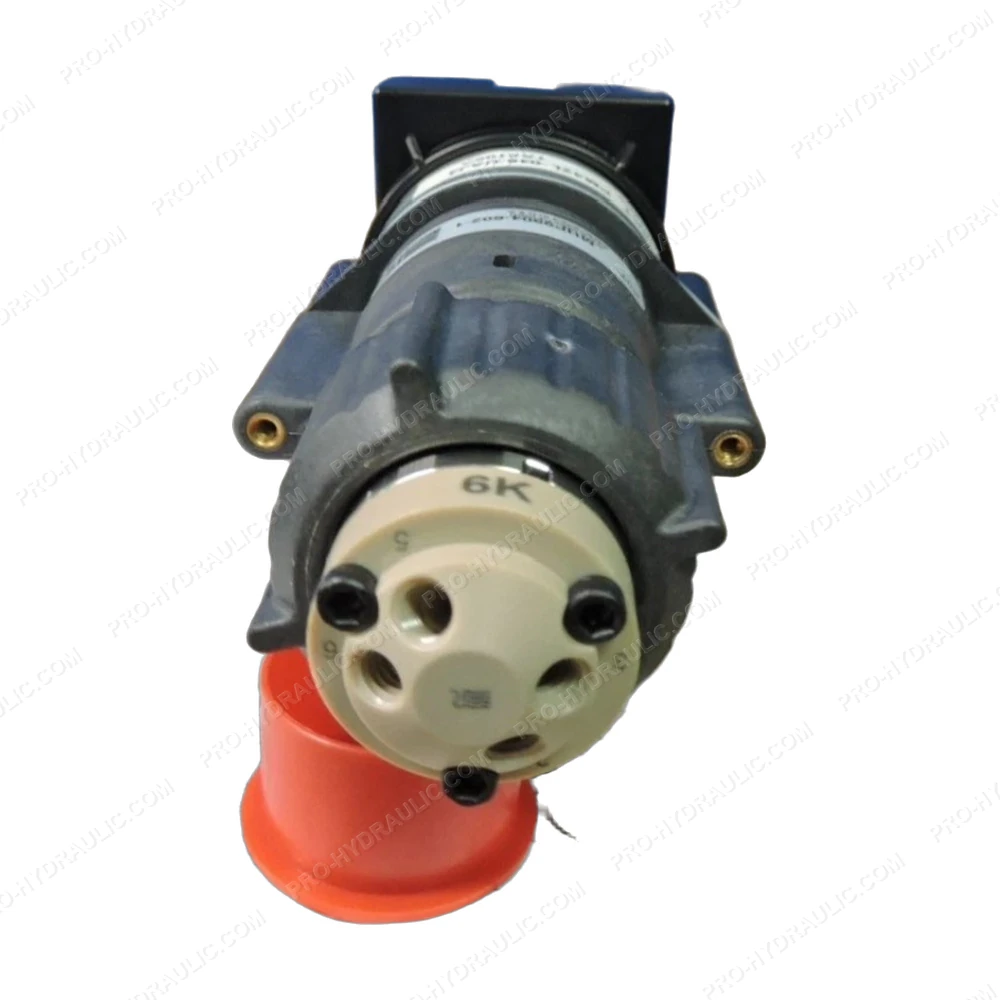

IDEX MHP9904-602-1 Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine IDEX MHP9904-602-1 Solenoid Directional Control Valve. This USA-made 24 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
