The IMF D366LG83NNL1798 is a heavy-duty industrial proportional pneumatic valve engineered for continuous, infinitely variable regulation of air and inert gas flow in closed-loop control systems. It converts an analog electrical command signal into a proportional pneumatic output, enabling precise pressure, flow, or force control without discrete step switching.
IMF D366LG83NNL1798 Technical Specifications
| Manufacturer | IMF |
| Model | D366LG83NNL1798 |
| Product Type | Proportional Pneumatic Valve |
| Actuation | Proportional solenoid, analog command signal |
| Function | Continuous flow / pressure modulation |
| Media | Compressed air, inert gases (filtered, dry) |
| Mounting | Inline / manifold, threaded process ports |
| Control Input | Analog voltage or current reference |
| Hysteresis | Low, for repeatable positioning |
| Body Material | Industrial-grade metal alloy |
Key Engineering Features
- Proportional solenoid actuator with analog command input for stepless flow and pressure regulation
- Low hysteresis and high repeatability for stable closed-loop process control
- Compact inline body with threaded process ports for direct manifold or line integration
- Rugged industrial construction rated for continuous duty in demanding pneumatic circuits
- Compatible with standard analog controllers, amplifiers, and position feedback systems
Industrial Applications
- Closed-loop pressure and flow control in pneumatic automation systems
- Force and tension regulation on web, film, and converting machinery
- Proportional actuation in packaging, assembly, and material handling equipment
- Process gas dosing and variable air delivery in industrial control loops
- Retrofit and replacement of proportional pneumatic valves in OEM machinery
For technical inquiries, dimensional drawings, or replacement support for IMF D366LG83NNL1798, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

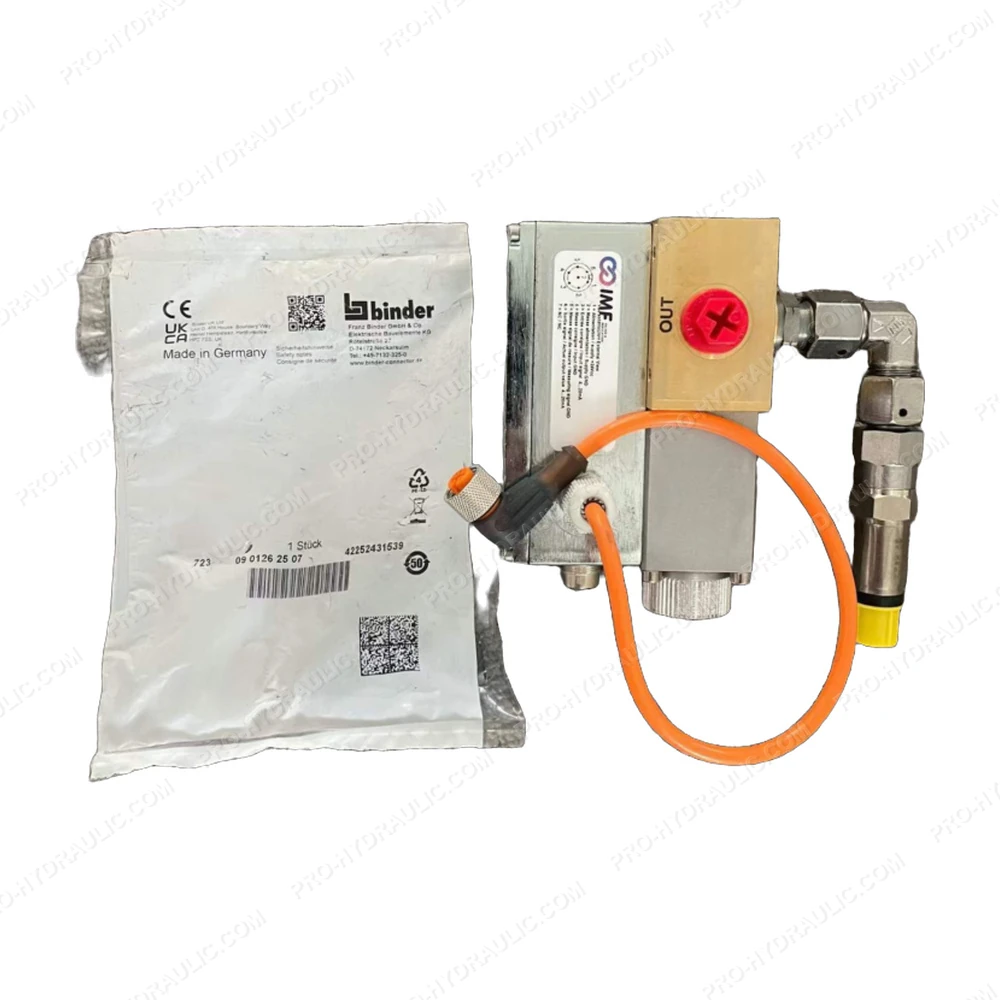

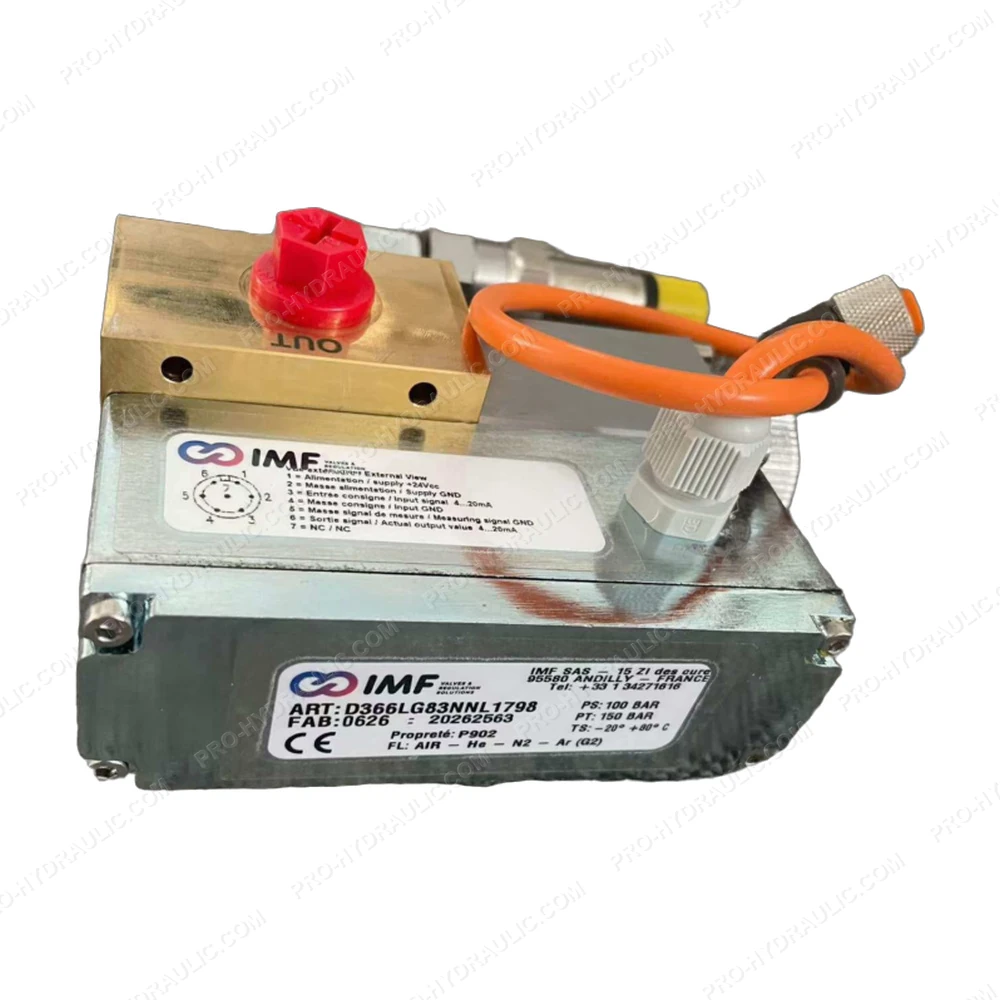

IMF D366LG83NNL1798 Proportional Pneumatic Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the IMF D366LG83NNL1798 Proportional Pneumatic Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
