Product Overview
The IMI HERION 6313MR3000-02400-01 is a high-performance solenoid-operated directional control valve engineered for precise fluid power management in demanding industrial process environments. Manufactured by IMI HERION, a globally recognized brand in precision fluid control technology, this valve utilizes a robust spool-and-sleeve design actuated by a reliable solenoid pilot mechanism. It serves as a critical control component in hydraulic and pneumatic circuits, directing the flow of media to actuators, cylinders, and motors with high repeatability. Its construction is optimized for long service life and minimal pressure drop, ensuring efficient system operation and reduced energy consumption in continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | 6313MR3000-02400-01 |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Actuation Type | Solenoid Pilot Operated |
| Voltage Rating | 24V DC (Standard Industrial Coil) |
| Flow Capacity | High Flow Rate (Optimized Spool Geometry) |
| Seal Material | NBR / FKM (Compatible with Mineral Oil & Synthetic Fluids) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened and ground spool ensures minimal internal leakage and precise flow control, enabling accurate actuator positioning and smooth motion control in complex hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a robust solenoid coil designed for high cycle rates and resistance to voltage fluctuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in installation without modification to existing manifolds or piping.
- Fast Response Time: Optimized solenoid design provides rapid shifting times, reducing cycle times in automated manufacturing processes.
- Leakage Containment: High-quality sealing technology prevents external leakage and contamination ingress, maintaining system integrity in dirty industrial environments.
Typical Industrial Applications
This solenoid directional control valve is ideally suited for a wide range of heavy industrial scenarios, including plastic injection molding machines where precise shot control is critical, metallurgical presses requiring high-pressure directional control, construction and marine hydraulic systems for reliable actuation of heavy booms and winches, and CNC machine tools where accurate tool clamping and pallet changing are essential. Its robust design also makes it suitable for general process automation and pneumatic control loops in chemical and food processing plants.
PRODUCT IMAGES

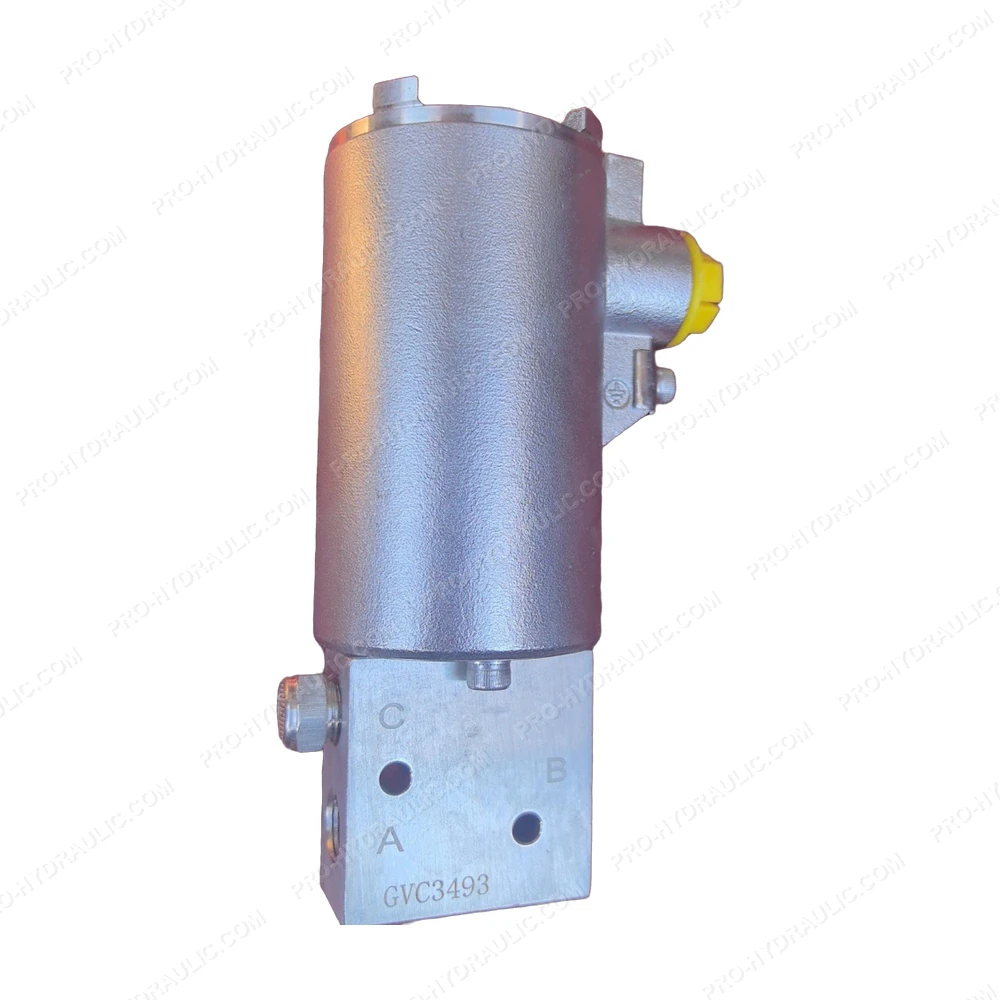

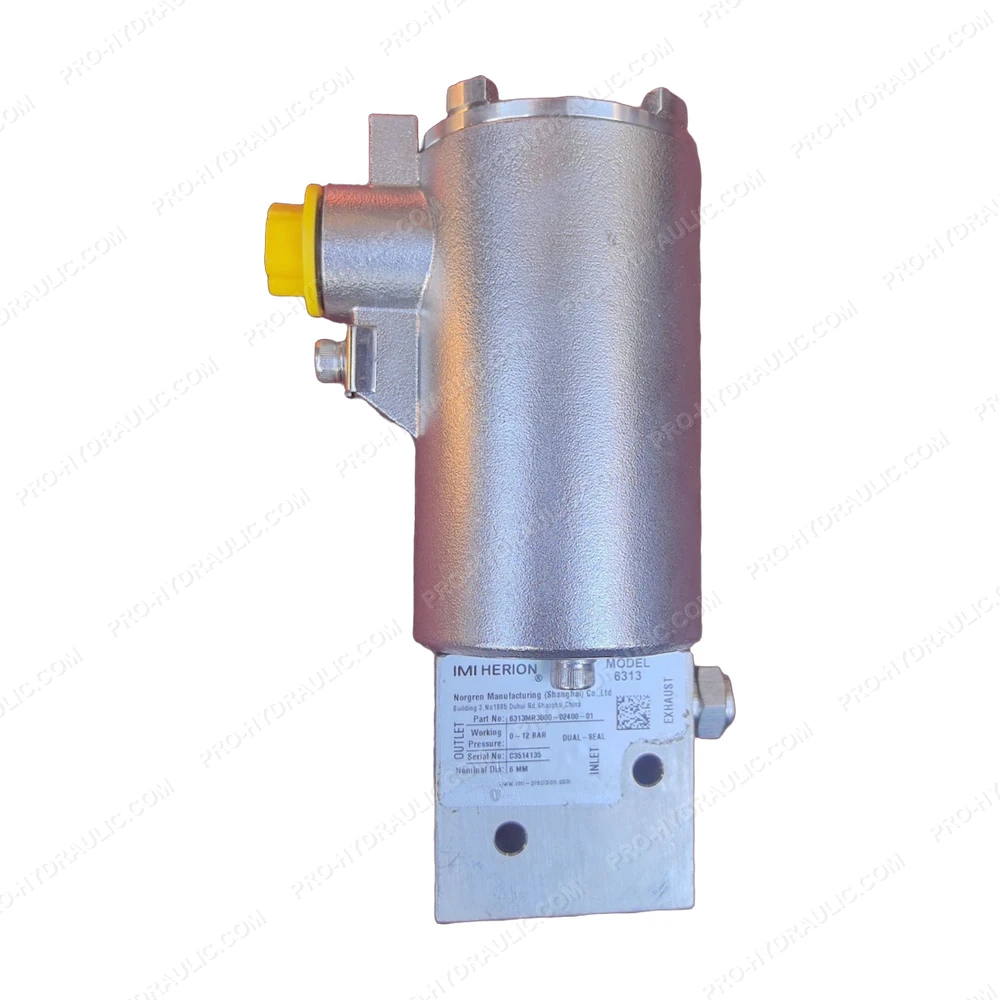

IMI HERION 6313MR3000-02400-01 Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine IMI HERION 6313MR3000-02400-01 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type directional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
