Product Overview
The IMI NORGREN SXE9573-170-00 is a high-performance pneumatic directional control valve from the renowned Norgren SXE series, engineered for precise air flow management in demanding industrial automation and process environments. Utilizing a robust spool-and-sleeve actuation principle, this 5/2-way solenoid pilot-operated valve delivers reliable switching, fast response times, and consistent sealing performance. As a core component in pneumatic control circuits, it directs compressed air to cylinders, actuators, and other downstream devices, enabling accurate motion sequencing and safe system operation across a wide range of manufacturing and processing applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (Solenoid Pilot Operated, Spool Type) |
| Model Designation | SXE9573-170-00 |
| Valve Function | 5/2-Way (Five ports, two positions) |
| Operating Pressure | Standard Industrial Grade (typically 2 to 10 bar, depending on pilot supply) |
| Actuation Type | Solenoid / Pilot Air Actuated |
| Mounting & Connection | Standard ISO / Norgren Interface (Sub-base or Manifold Mounted) |
| Seal Material | Nitrile (NBR) / Polyurethane – compatible with filtered, lubricated or non-lubricated air |
| Body Material | Die-cast aluminum alloy with corrosion-resistant finish |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool and sleeve assembly ensures minimal leakage, low friction, and highly repeatable shifting, delivering accurate flow control and long service life even under high cycle rates.
- Fast Solenoid Response: The pilot-operated solenoid mechanism provides rapid opening and closing times, enabling precise timing and synchronization in high-speed automated processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that resists vibration, contamination, and temperature fluctuations commonly found in factory environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original IMI Norgren SXE series valves, ensuring drop-in replacement without modification to manifolds or piping.
- Versatile Air Compatibility: Suitable for use with filtered compressed air (lubricated or non-lubricated), reducing maintenance complexity and extending seal life.
Typical Industrial Applications
The IMI NORGREN SXE9573-170-00 is widely deployed in heavy industrial scenarios requiring reliable pneumatic directional control. Typical applications include: plastic injection molding machines for mold opening/closing and ejection sequences; packaging and assembly lines for actuator and gripper control; metallurgical and steel processing equipment for air-operated clamping and positioning; CNC machine tools and automated workstations for tool
PRODUCT IMAGES

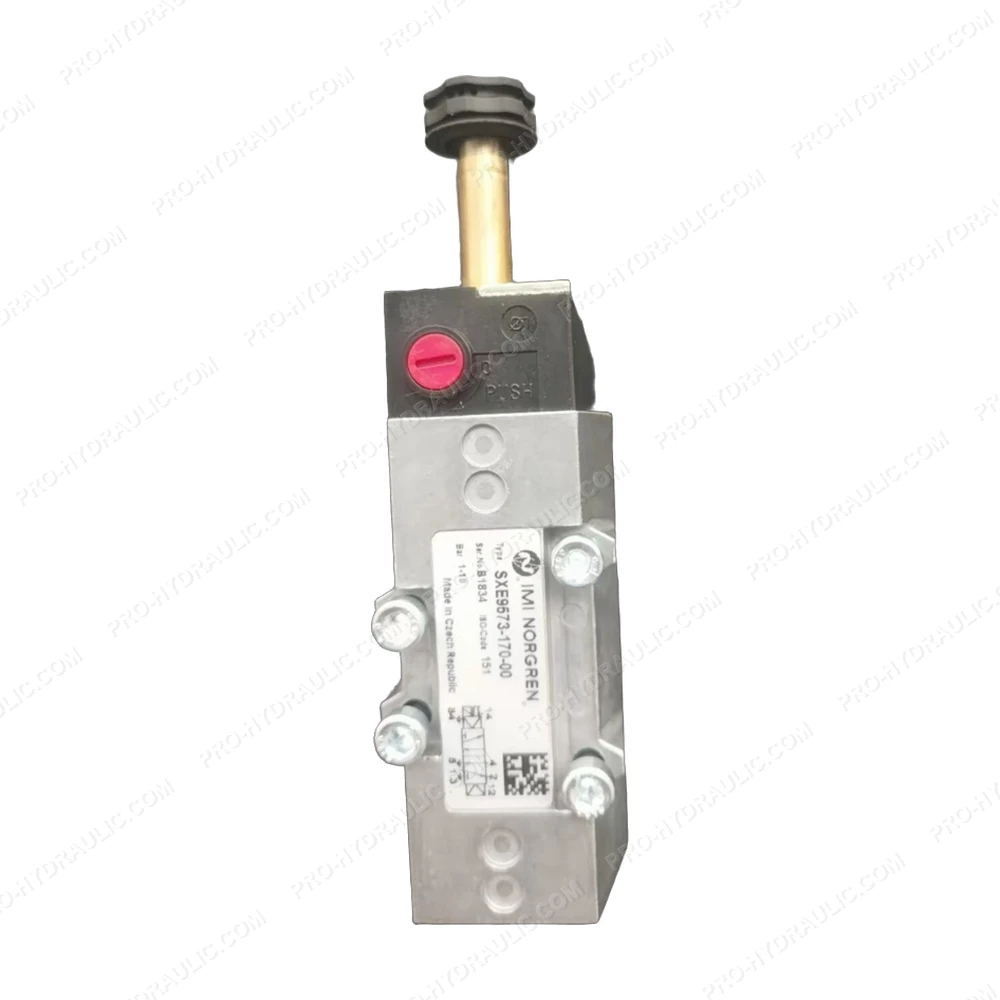

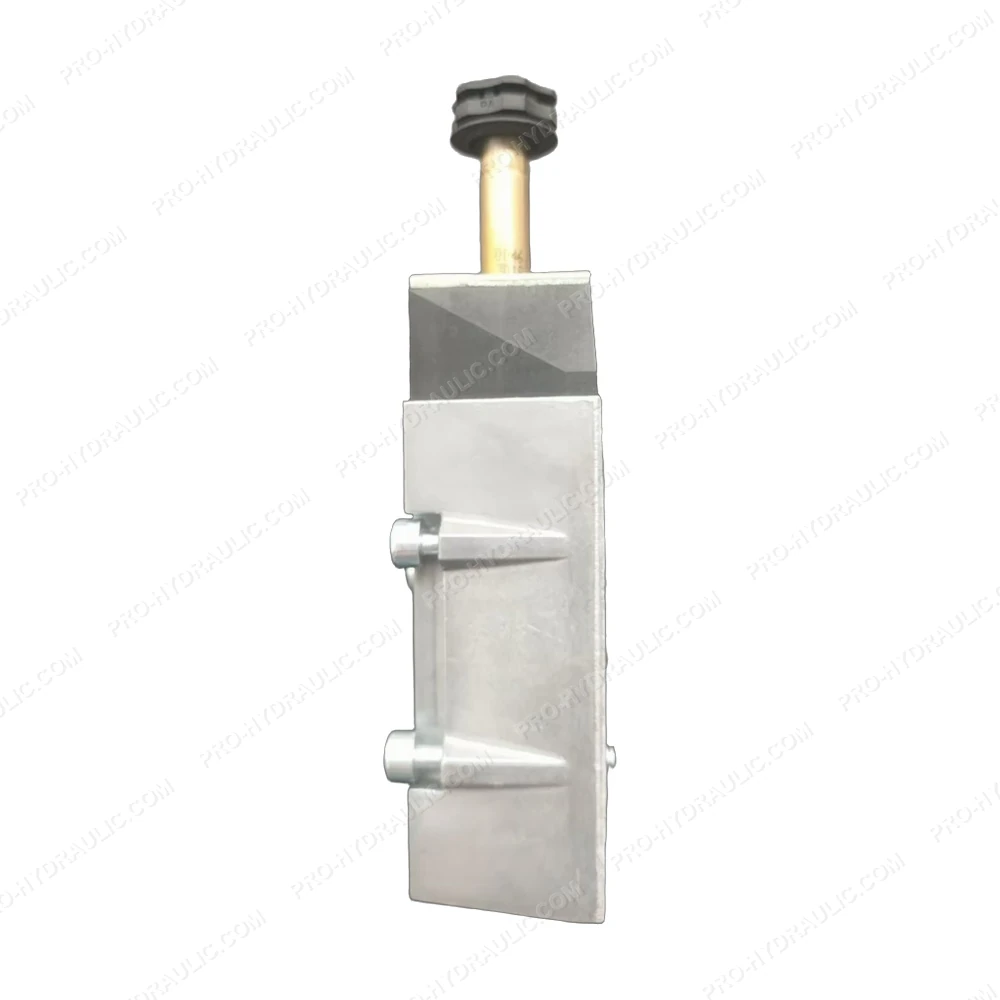

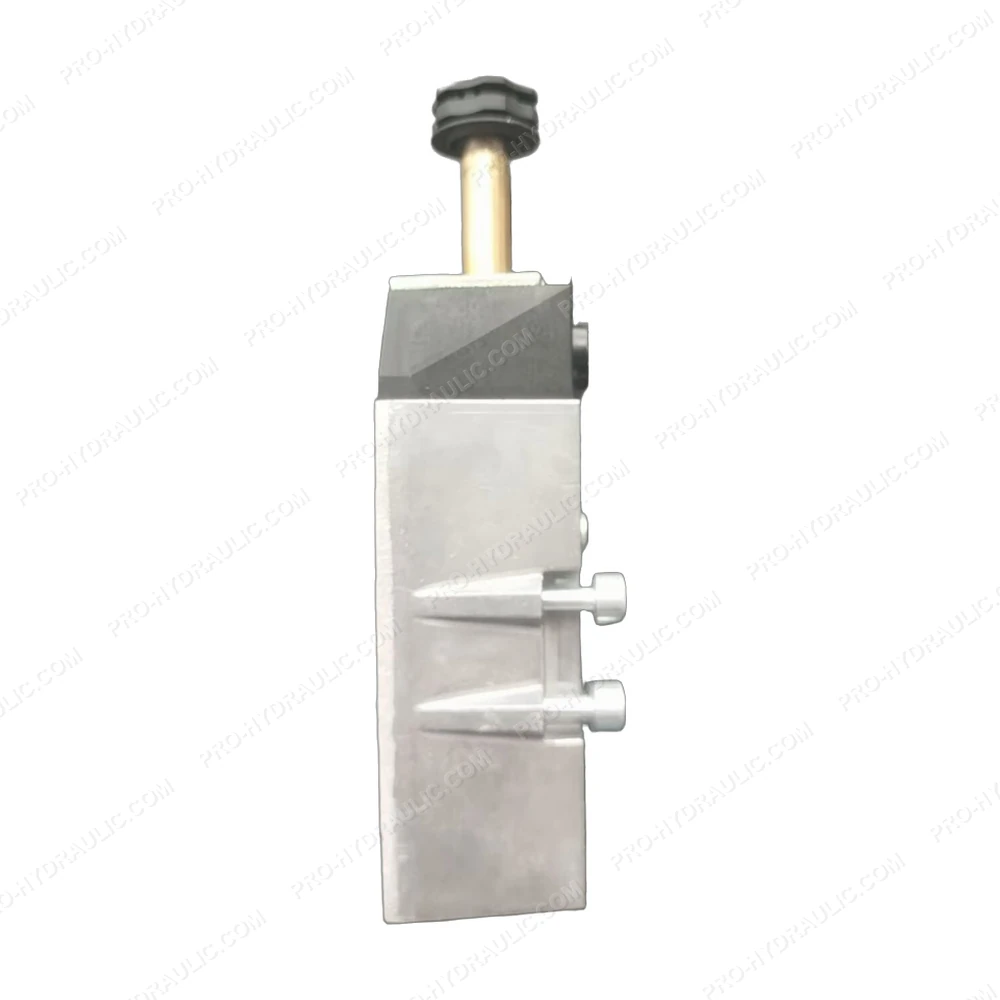

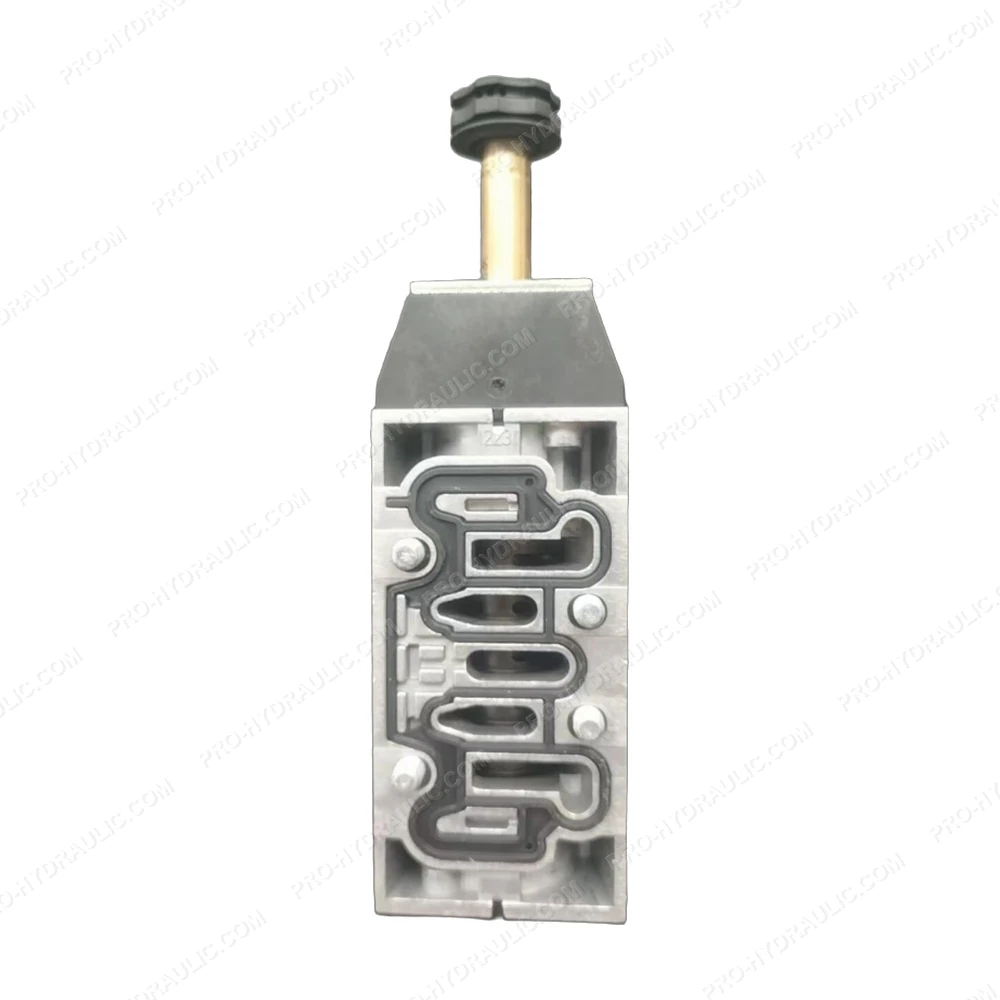

IMI NORGREN SXE9573-170-00 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine IMI NORGREN SXE9573-170-00 Solenoid Operated Spool Valve. This UK-made 24V DC hydraulic component features a 5/2 way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
