Product Overview
The IMI NORGREN SXE9573-A75-00 is a high-performance pneumatic directional control valve from the renowned Norgren SXE series, engineered for precise actuation and reliable switching of compressed air circuits in demanding industrial environments. This solenoid-operated spool valve features a robust, wear-resistant design that ensures fast response times, high flow capacity, and long service life. As a critical component in pneumatic automation systems, it directs and controls the flow of compressed air to cylinders, actuators, and other pneumatic devices, enabling accurate motion control and sequencing in complex machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (Solenoid Spool Valve) |
| Model Designation | SXE9573-A75-00 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Norgren Interface (Sub-base or Manifold Mounting) |
| Valve Function | 5/2-way, Solenoid/Pilot Actuated, Spring Return |
| Port Size | G1/4 (Standard Industrial Thread) |
| Operating Temperature | -10°C to +50°C (Standard Ambient Range) |
| Body Material | Die-cast Aluminum Alloy |
Engineering Features & Advantages
- Precision Performance: The SXE9573-A75-00 utilizes a precision-ground spool and sleeve assembly that ensures minimal leakage, consistent shifting, and precise metering of compressed air for accurate actuator control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the valve features a robust solenoid pilot mechanism and durable seals that resist wear and contamination, ensuring millions of reliable cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
- Fast Response Time: Optimized pilot flow paths and low-friction spool design deliver rapid actuation and de-actuation, improving machine cycle times and overall productivity.
- Versatile Configuration: The 5/2-way function with spring return provides fail-safe operation and is suitable for double-acting cylinders and other pneumatic logic circuits.
Typical Industrial Applications
This pneumatic directional control valve is widely used in plastic injection molding machines for mold opening/closing and ejection control, packaging machinery for precise actuator sequencing, CNC machine tools for tool clamping and part handling, and general industrial automation systems requiring reliable directional control of compressed air. It is also suitable for metallurgical presses, marine hydraulics, and construction equipment where robust pneumatic control is essential.
PRODUCT IMAGES

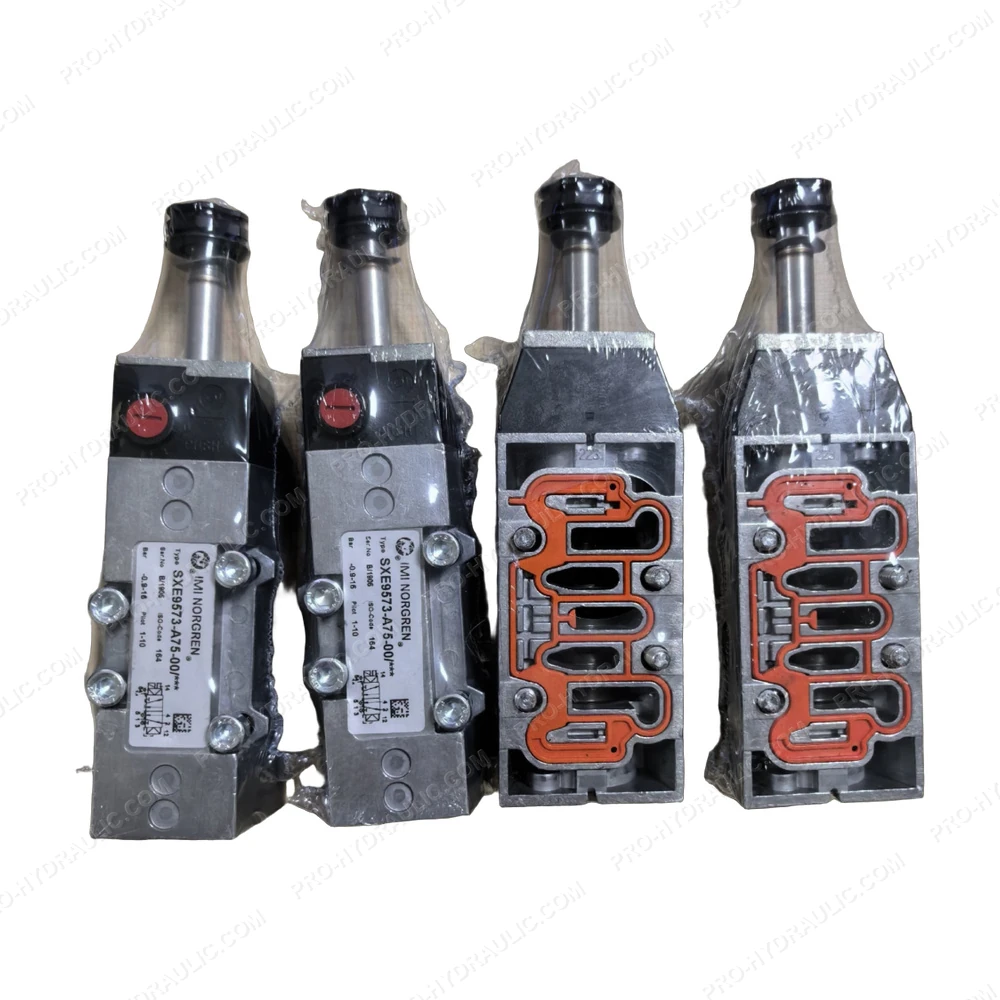

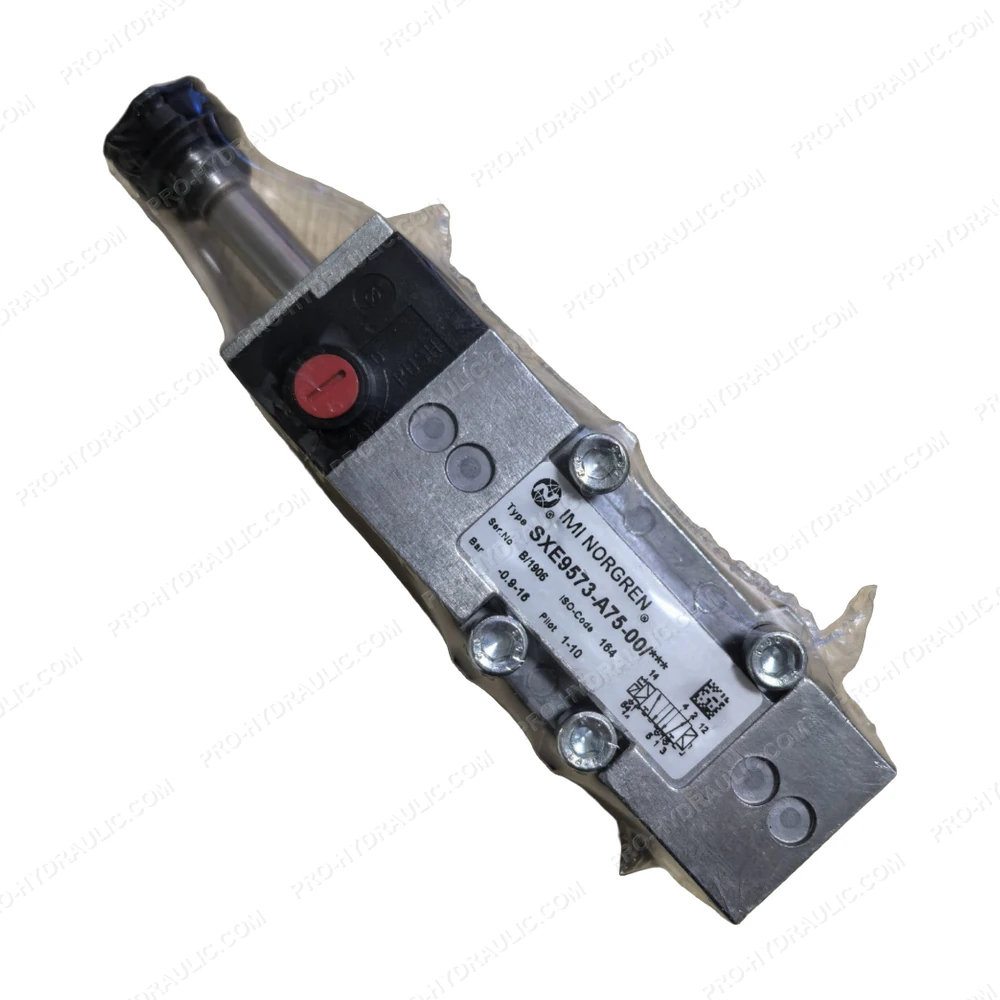

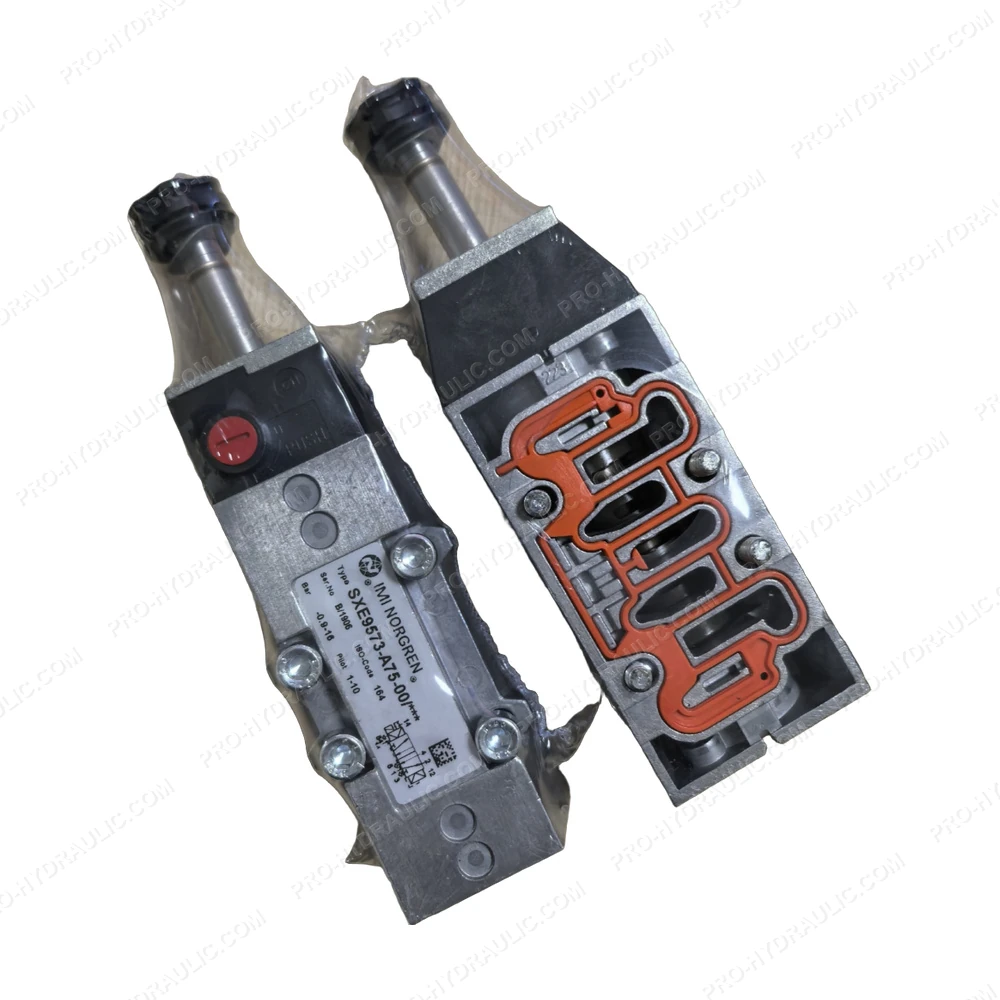

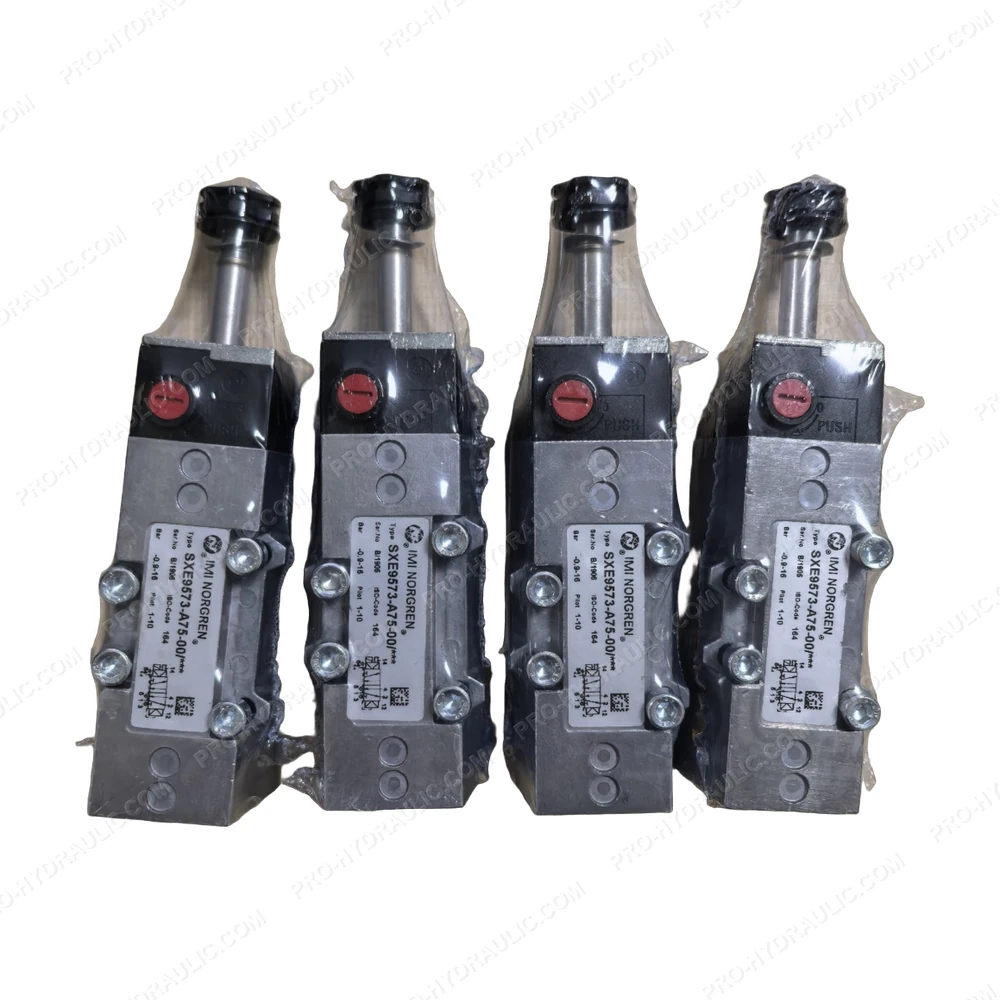

IMI NORGREN SXE9573-A75-00 Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine IMI NORGREN SXE9573-A75-00 Solenoid Operated Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
