Product Overview
The JGH 4WE-6-HB/E-G24-20 is a direct-operated, four-way solenoid directional control valve engineered for precise control of start, stop, and direction of hydraulic fluid flow in industrial hydraulic systems. Manufactured to the 4WE-6 (NG6 / CETOP 3 / ISO 4401-03) size standard, this valve features a spring-centered spool with a single AC/DC solenoid actuator (G24 = 24V DC coil) and a “HB” spool configuration. When de-energized, the spring returns the spool to its neutral center position, blocking flow as defined by the HB spool type. This valve is a direct-fit, drop-in replacement for standard NG6 directional valves used across a wide range of industrial machinery, offering reliable switching performance, low pressure drop, and long service life in continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Standard Directional Control Valve (Solenoid Operated, 4-Way, 3-Position) |
| Model Designation | JGH 4WE-6-HB/E-G24-20 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03 / DIN 24340-A6) |
| Spool Type | HB Configuration (Spring-Centered, Closed Center) |
| Actuation | Single Solenoid, Spring Return |
| Coil Voltage | 24V DC (G24 Designation) |
| Operating Pressure | Up to 315 bar (P, A, B ports); 160 bar max on T port |
| Rated Flow | Up to 60 L/min (nominal at Δp = 5 bar) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03-02-0-05 Interface, 4 x M5 Bolt Holes |
| Hydraulic Fluid | Mineral Oil (HL, HLP) per DIN 51524; Viscosity 10–500 mm²/s |
| Fluid Temperature Range | -20°C to +70°C |
Engineering Features & Advantages
- Precision Performance: The integrated single Solenoid, Spring Return ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original JGH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a direct-fit, drop-in replacement for standard NG6 directional valves used across a wide range of industrial machinery, offering reliable switching performance, low pressure drop, and long service life in continuous-duty applications.
PRODUCT IMAGES

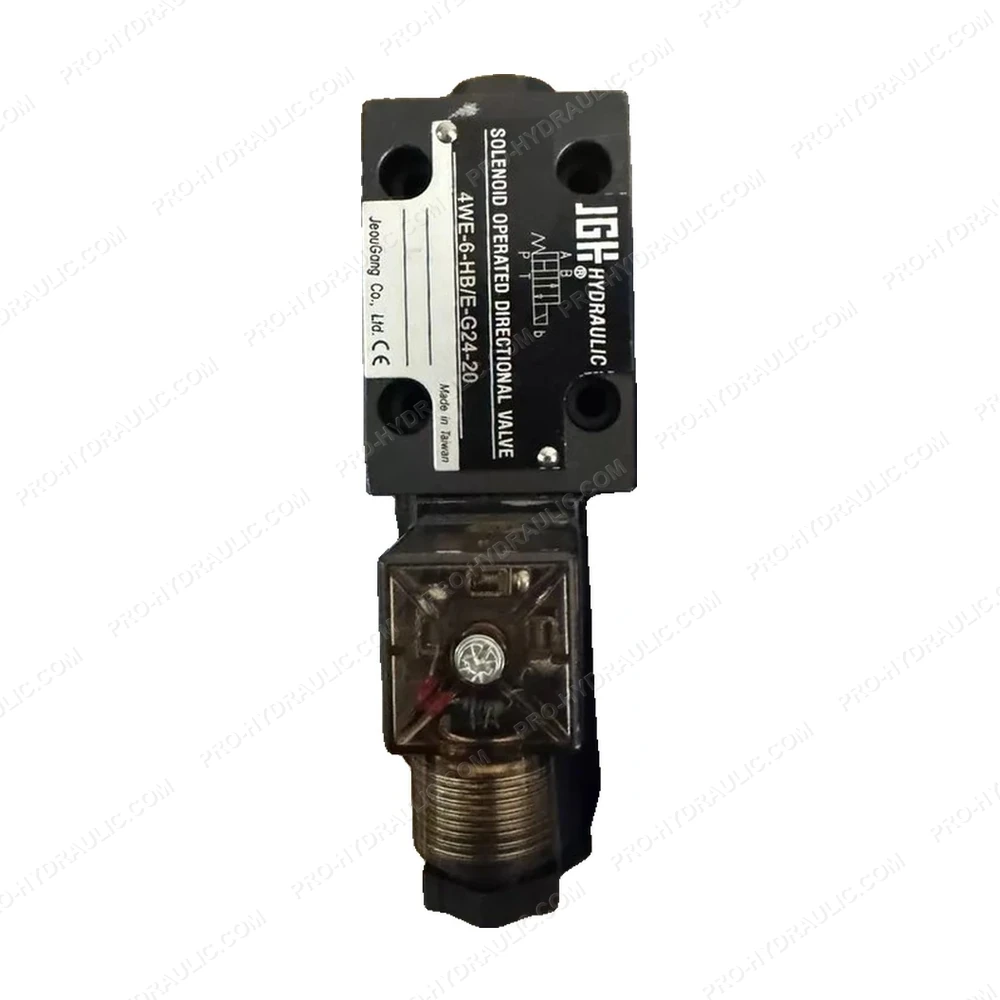

JGH 4WE-6-HB/E-G24-20 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine JGH 4WE-6-HB/E-G24-20 Solenoid Directional Spool Valve. This German-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, precise fluid control for heavy-duty industrial systems.
