Product Overview
The Johnson Controls VG1205GT-C / VA9320-HGA-3 is a factory-matched motorized globe valve assembly engineered for precise modulating and two-position control of hot water, chilled water, and low-pressure steam in commercial and industrial HVAC and process systems. The VG1205GT-C valve body is a two-way, normally open globe valve with a bronze construction and a replaceable composition disc, providing tight shutoff and characterized flow for stable temperature and pressure regulation. It is driven by the VA9320-HGA-3 electric actuator, a non-spring-return, proportional (0–10 VDC / 4–20 mA) motorized actuator featuring a synchronous motor, magnetic clutch, and manual override for commissioning and fail-safe positioning. Together, the assembly delivers accurate valve positioning, low hysteresis, and long service life in hydronic balancing, coil control, and process fluid regulation applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Motorized Globe Valve (Two-Way, Normally Open) |
| Model Designation | VG1205GT-C (Valve Body) / VA9320-HGA-3 (Actuator) |
| Valve Body Material | Bronze (ASTM B584) |
| Valve Size | 1/2 in. to 2 in. (DN15–DN50) — confirm at order |
| End Connections | NPT Threaded (standard); sweat or flanged available |
| Flow Characteristic | Equal Percentage (modulating service) |
| Operating Pressure | Up to 250 psig (17 bar) for water; 15 psig (1 bar) for steam |
| Media Temperature Range | -20 °F to 250 °F (-29 °C to 121 °C) |
| Actuator Type | Electric, non-spring-return, proportional |
| Control Signal | 0–10 VDC or 4–20 mA (selectable) |
| Supply Voltage | 24 VAC, 50/60 Hz |
Engineering Features & Advantages
- Precision Performance: The motorized globe valve (two-way, normally open) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Johnson specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 250 psi, supporting stable operation across the full working range.
Typical Industrial Applications
Together, the assembly delivers accurate valve positioning, low hysteresis, and long service life in hydronic balancing, coil control, and process fluid regulation applications.
PRODUCT IMAGES

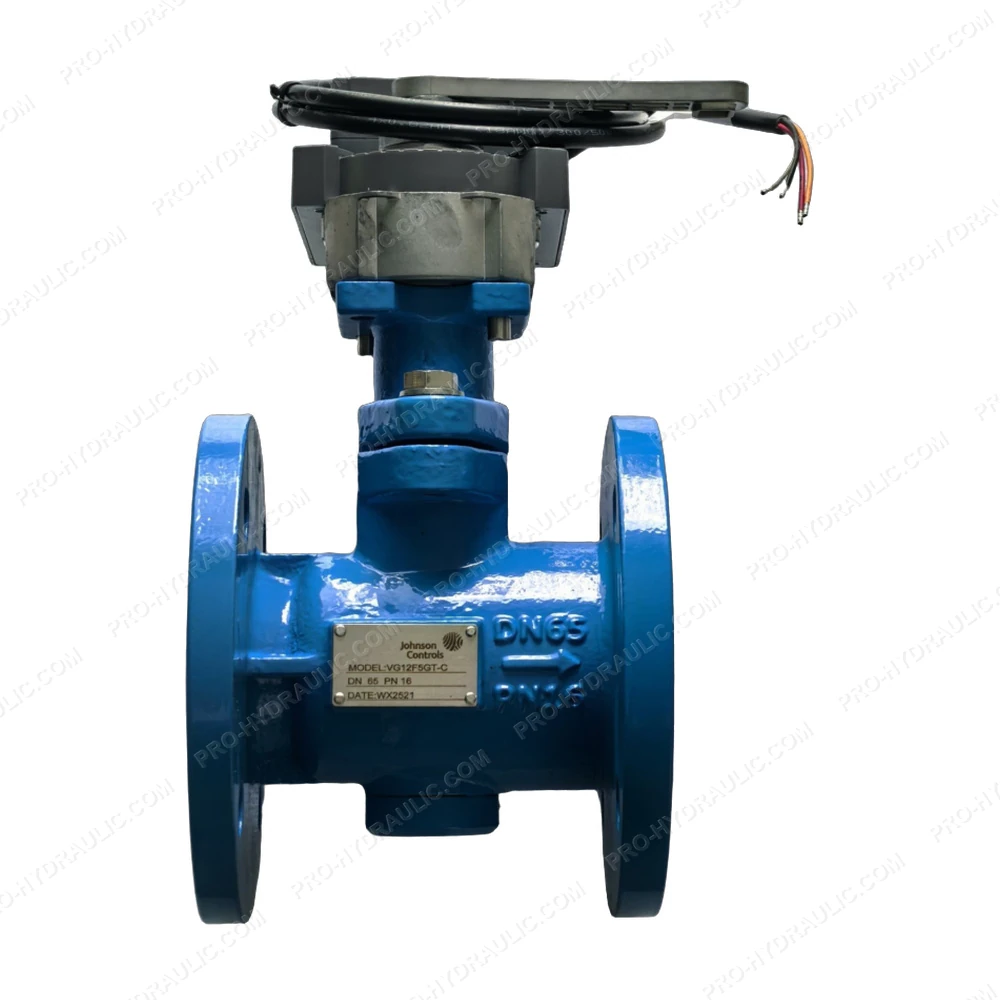

Johnson Controls VG1205GT-C / VA9320-HGA-3 Motorized Globe Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Johnson Controls VG1205GT-C / VA9320-HGA-3 2-Way Normally Closed Globe Valve with Electric Actuator. This US-made 24V AC/DC hydraulic component features a spring-return globe valve design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
