Product Overview
The Johnson Controls VG12F5GT-C is a two-way, normally closed globe valve engineered for precise regulation of hot water, chilled water, and low-pressure steam in commercial and industrial HVAC and process control systems. As part of the Johnson Controls VG12 Series, this valve features a rugged cast bronze body and a balanced plug design that delivers accurate modulating control with minimal actuator force requirements. The VG12F5GT-C is designed to interface directly with Johnson Controls electric or pneumatic actuators, making it a reliable final control element for building automation, district heating, and industrial process loops where dependable flow modulation is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Two-Way Globe Valve (General Process & Pneumatic Valve) |
| Model Designation | VG12F5GT-C |
| Body Material | Cast Bronze |
| Valve Action | Normally Closed, Stem Up to Open |
| Flow Characteristic | Equal Percentage Modulating |
| Operating Pressure | Standard Industrial Grade (Up to rated bar for HVAC/process service) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Threaded or Flanged per Model Configuration) |
| Actuator Compatibility | Johnson Controls Electric and Pneumatic Actuators |
Engineering Features & Advantages
- Precision Performance: The equal percentage flow characteristic and balanced plug design ensure accurate, stable modulation of fluid flow across the full stroke range, minimizing hunting and improving process stability.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with a cast bronze body and corrosion-resistant trim suitable for hot water, chilled water, and low-pressure steam service.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing piping or actuator assemblies.
- Low Actuator Force Requirement: Balanced plug construction reduces the force needed to position the valve, extending actuator service life and enabling use of compact electric or pneumatic actuators.
- Leakage Control: Precision-machined seat and plug provide tight shutoff in the normally closed position, supporting energy-efficient system operation.
Typical Industrial Applications
The Johnson Controls VG12F5GT-C globe valve is widely deployed in HVAC and industrial process control systems, including: commercial building heating and cooling loops, district heating and chilled water distribution networks, industrial process temperature and flow control skids, and steam-to-water heat exchanger stations. Its robust construction and precise modulating capability make it suitable for plastic injection molding machine temperature control, metallurgical cooling circuits, and marine HVAC systems where reliable flow regulation is essential.
PRODUCT IMAGES

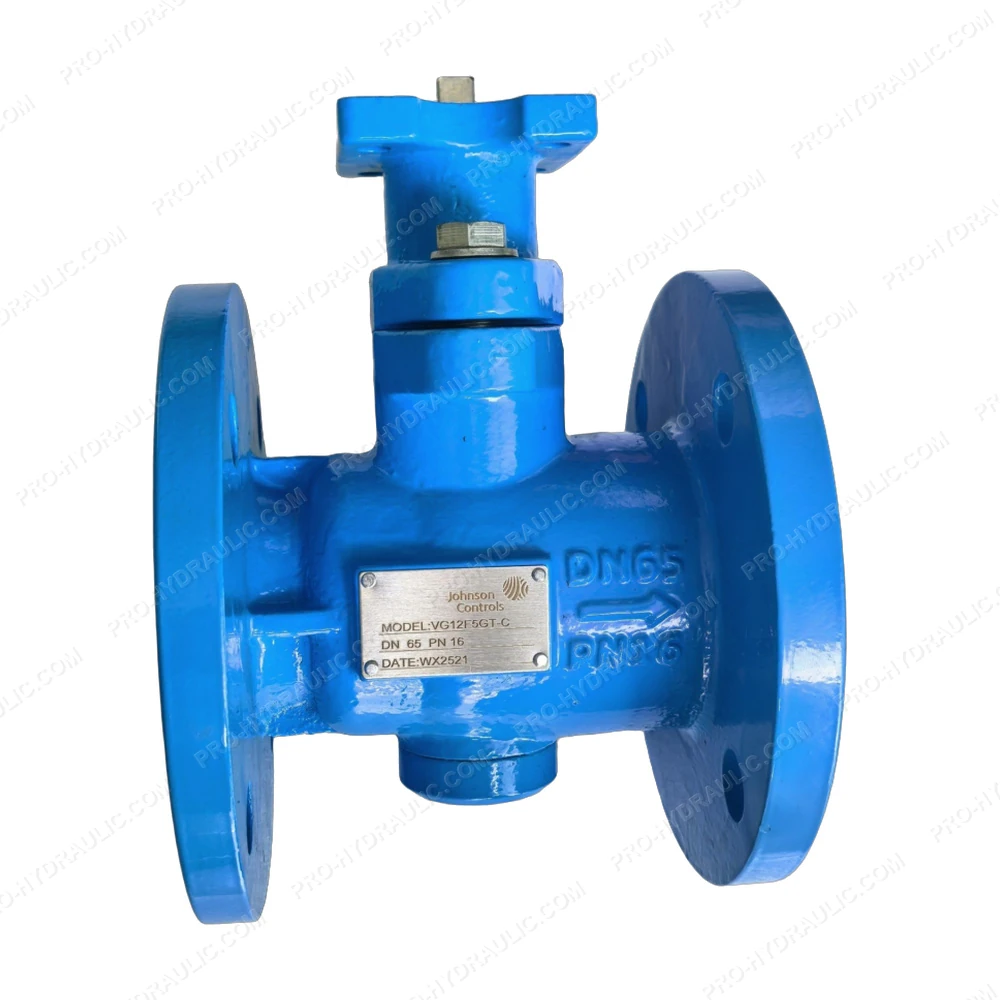

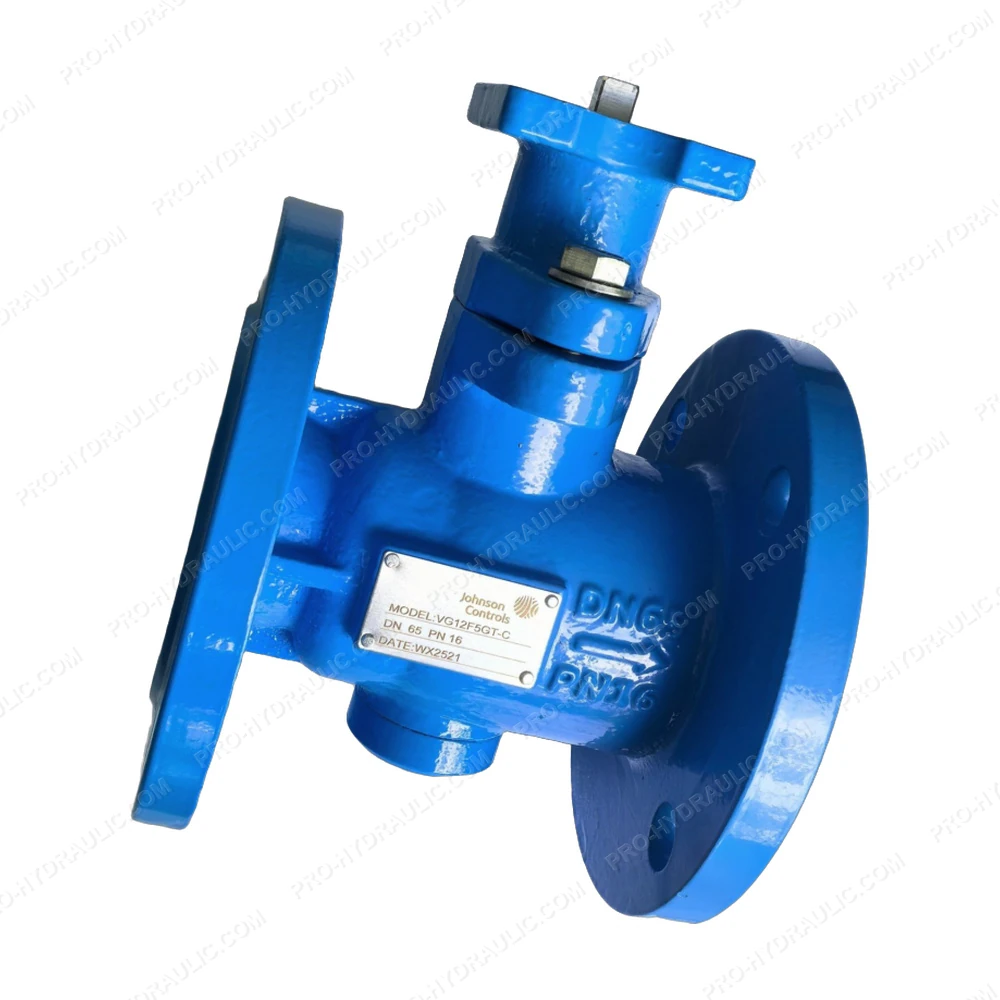

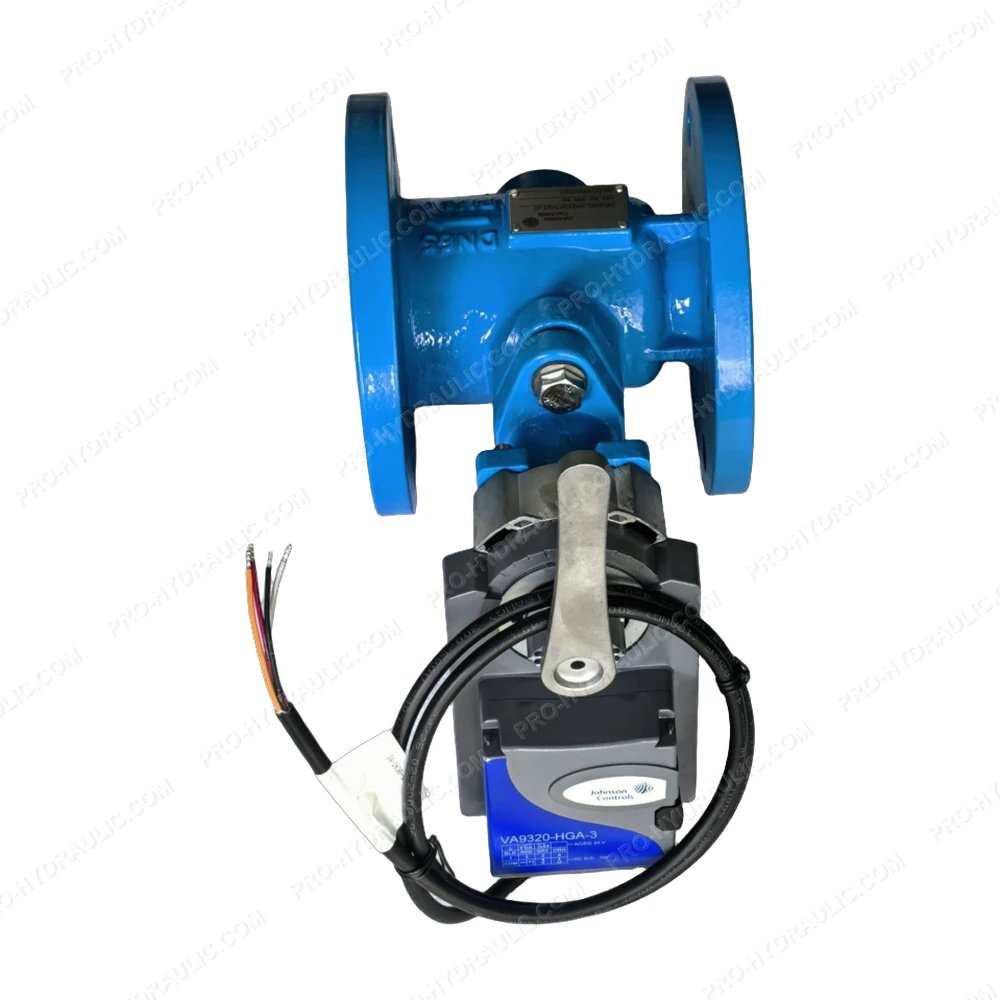

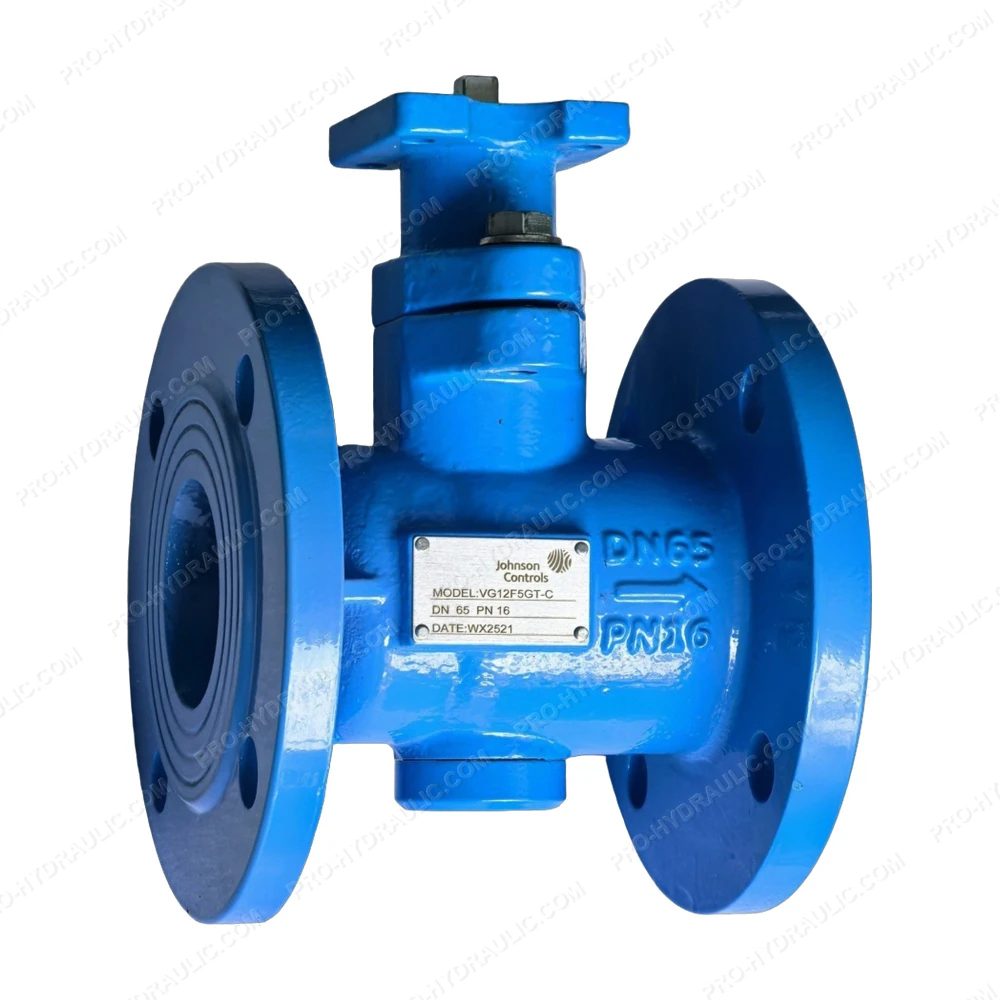

Johnson Controls VG12F5GT-C Globe Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Johnson Controls VG12F5GT-C 2-Way Solenoid Valve. This USA-made 24V DC hydraulic component features a normally closed poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
