Product Overview
The JORC MIC-A Electronic Timer Drain Valve is a precision-engineered condensate management solution designed for compressed air systems, pneumatic networks, and general industrial process lines. Manufactured by JORC, a recognized name in industrial valve technology, this electronically controlled automatic drain valve utilizes a solid-state timer circuit to actuate a solenoid-driven pilot mechanism at user-adjustable intervals. Unlike manual drain valves that require operator intervention or mechanical float-type drains prone to clogging, the MIC-A delivers reliable, repeatable condensate evacuation from receiver tanks, filters, dryers, and drip legs. Its compact direct-acting design ensures positive sealing between cycles, minimizing costly compressed air loss while protecting downstream pneumatic equipment from moisture contamination.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electronic Timer Drain Valve (Process & Pneumatic Valve) |
| Model Designation | MIC-A |
| Operating Pressure | Standard Industrial Grade (Up to 16 bar / 232 psi) |
| Mounting & Connection | Standard ISO Threaded Port Interface (1/2″ or 3/4″ BSP/NPT) |
| Valve Actuation | Solenoid Pilot with Electronic Solid-State Timer |
| Timer Adjustment Range | Adjustable ON (0.5–10 sec) / OFF (0.5–45 min) Cycles |
| Supply Voltage | AC/DC Coil Options (110V, 220V AC / 24V DC) |
| Body Material | Corrosion-Resistant Brass or Stainless Steel |
Engineering Features & Advantages
- Precision Timer Control: The solid-state electronic timer allows independent adjustment of both drain (ON) and interval (OFF) durations, ensuring optimal condensate removal without excessive air loss — a critical efficiency factor in high-duty pneumatic systems.
- Direct-Acting Solenoid Pilot: Provides positive, snap-action opening and closing of the drain orifice, eliminating the sluggish response and partial-seal issues common in mechanical float or thermostatic drain designs.
- Clog-Resistant Orifice Design: The straight-through flow path and generous pilot orifice minimize blockage from rust, scale, and particulate matter carried in compressed air condensate.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust coil insulation class and corrosion-resistant wetted components suitable for non-hazardous plant environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM JORC MIC-A units and equivalent timer drain valve footprints, allowing drop-in retrofit without piping modification.
- Low Air Loss: Tight elastomeric seat sealing between cycles conserves compressed air, reducing energy costs compared to continuously weeping or manually cracked drain valves.
Typical Industrial Applications
The J
PRODUCT IMAGES

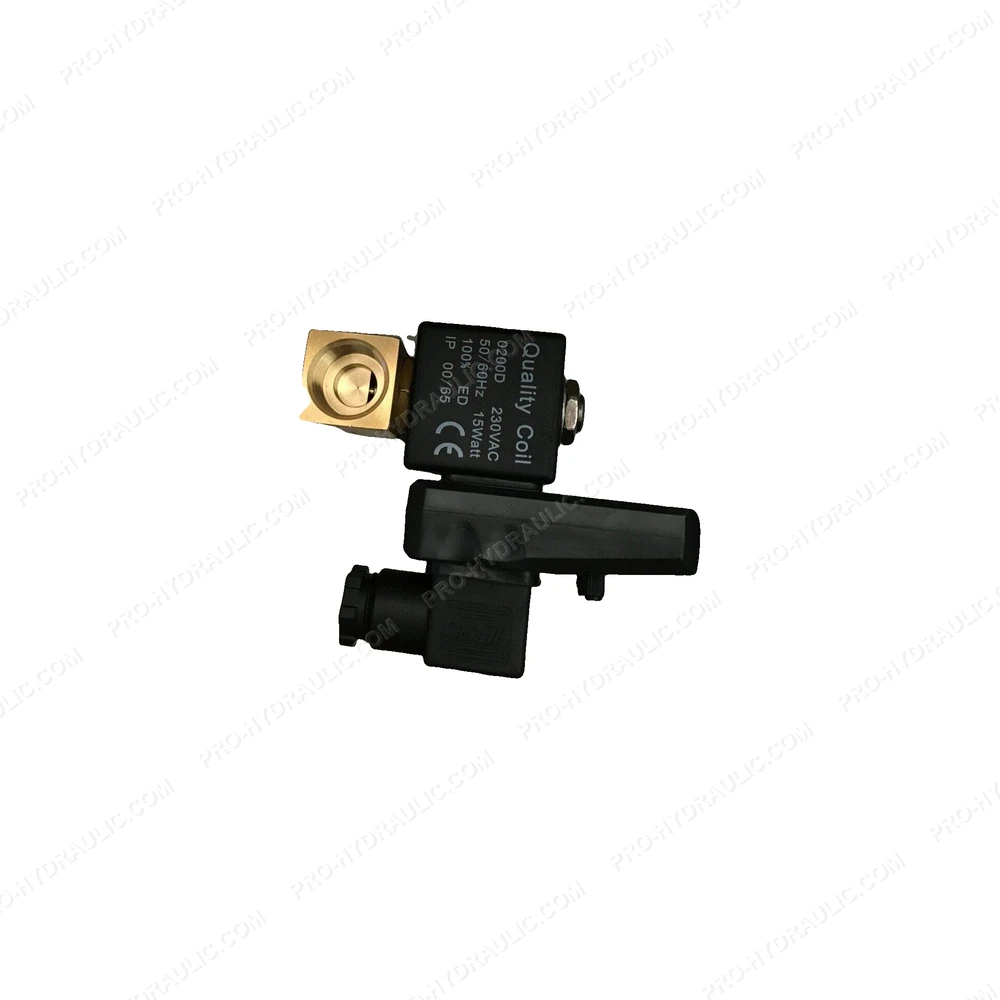

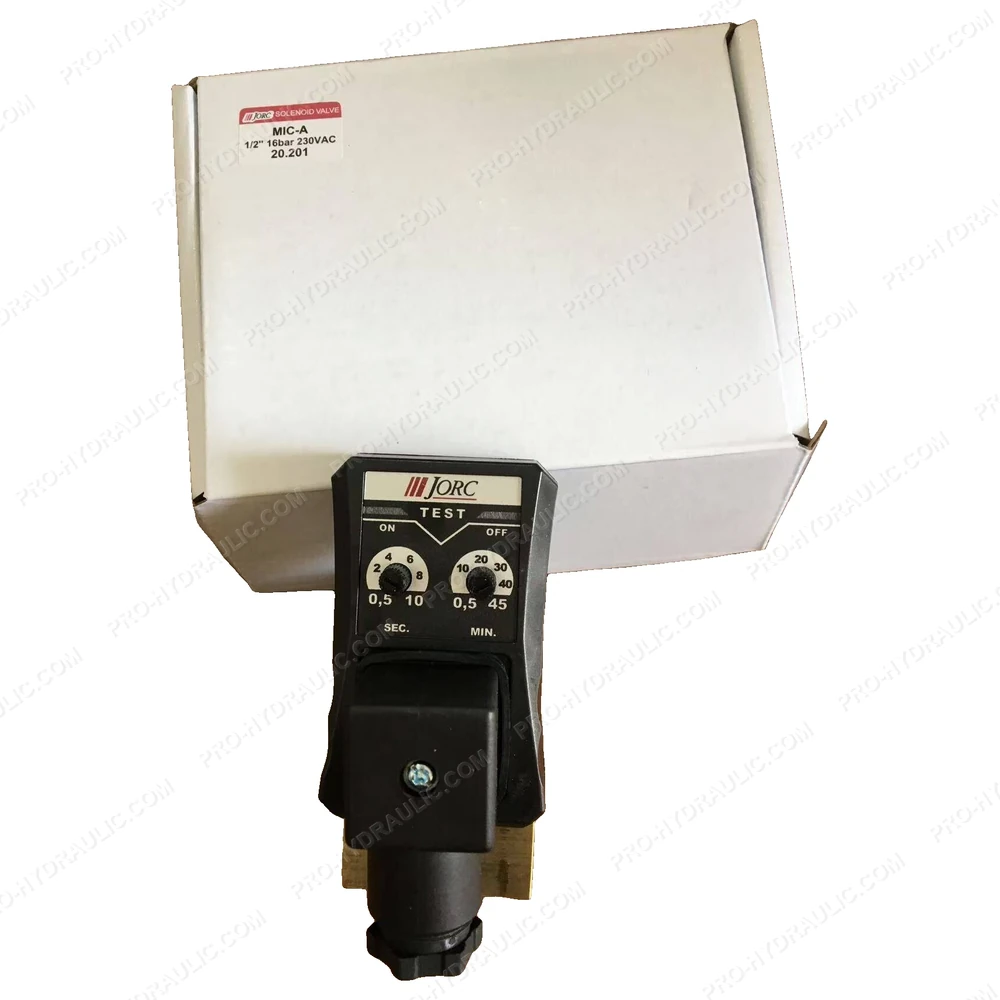

JORC MIC-A Electronic Timer Drain Valve
