The JPE C-NV110F-S6-03J-T is a heavy-duty industrial high pressure needle valve engineered for precise flow regulation in instrumentation and process systems. Its non-rotating stem tip and metal-to-metal seat provide tight shutoff and repeatable control at elevated pressures.
JPE C-NV110F-S6-03J-T Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | High Pressure Needle Valve |
| Body Material | 316L Stainless Steel |
| Connection Size | 3/8 in. |
| Connection Type | JPE Tube Fitting |
| Maximum Working Pressure | 10,000 psi (689 bar) |
| Temperature Range | -65°F to 450°F (-54°C to 232°C) |
| Orifice Size | 0.125 in. (3.2 mm) |
| Flow Coefficient (Cv) | 0.25 |
| Stem Type | Non-rotating, back-seated |
| Packing | PTFE |
| Handle | Bar Handle |
Key Engineering Features
- Non-rotating stem tip prevents galling and extends seat life
- Metal-to-metal seat for tight shutoff and repeatable flow control
- Back-seated stem design allows safe packing adjustment under pressure
- 316L stainless steel body for corrosion resistance in aggressive media
- JPE tube fitting connections ensure leak-tight installation
- Panel-mount capable for secure system integration
Industrial Applications
- Oil and gas instrumentation and sampling systems
- Chemical and petrochemical process lines
- High-pressure hydraulic test stands
- Power generation and steam service
- Analytical and research laboratory setups
For technical inquiries, dimensional drawings, or replacement support for JPE C-NV110F-S6-03J-T, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

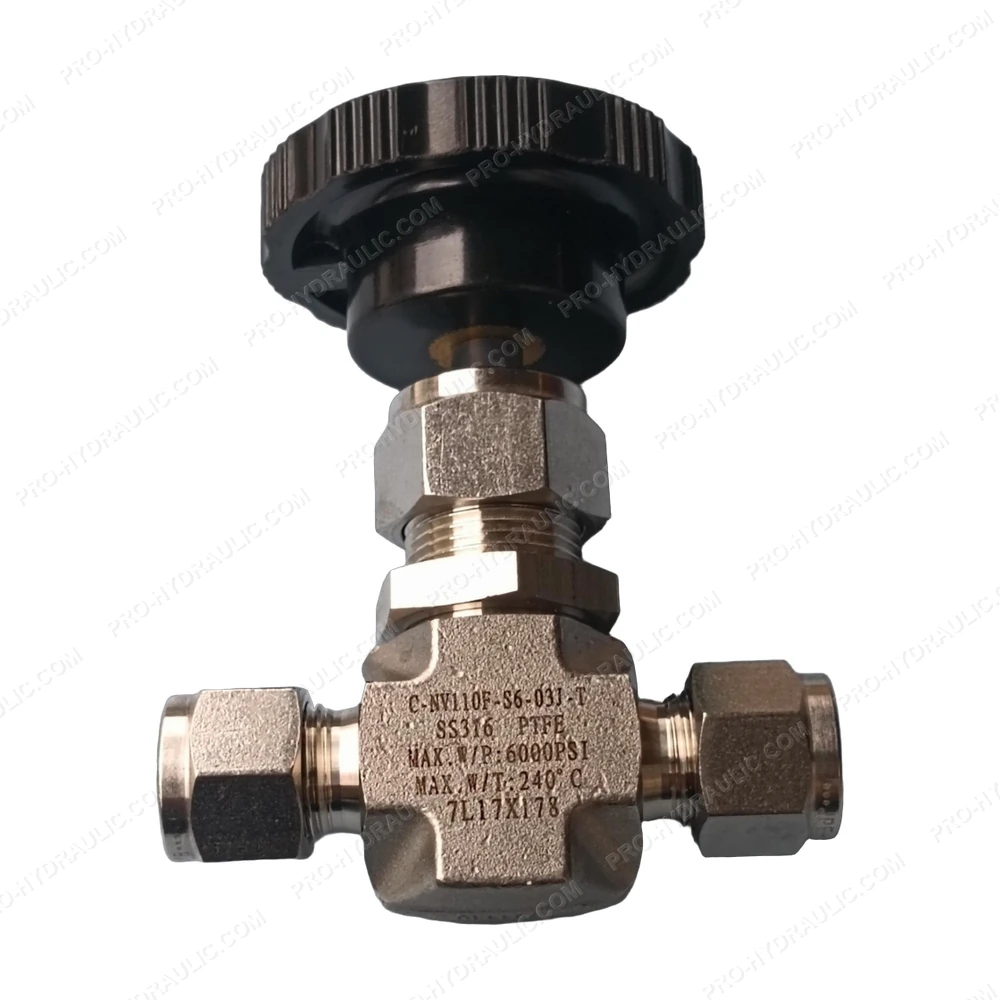

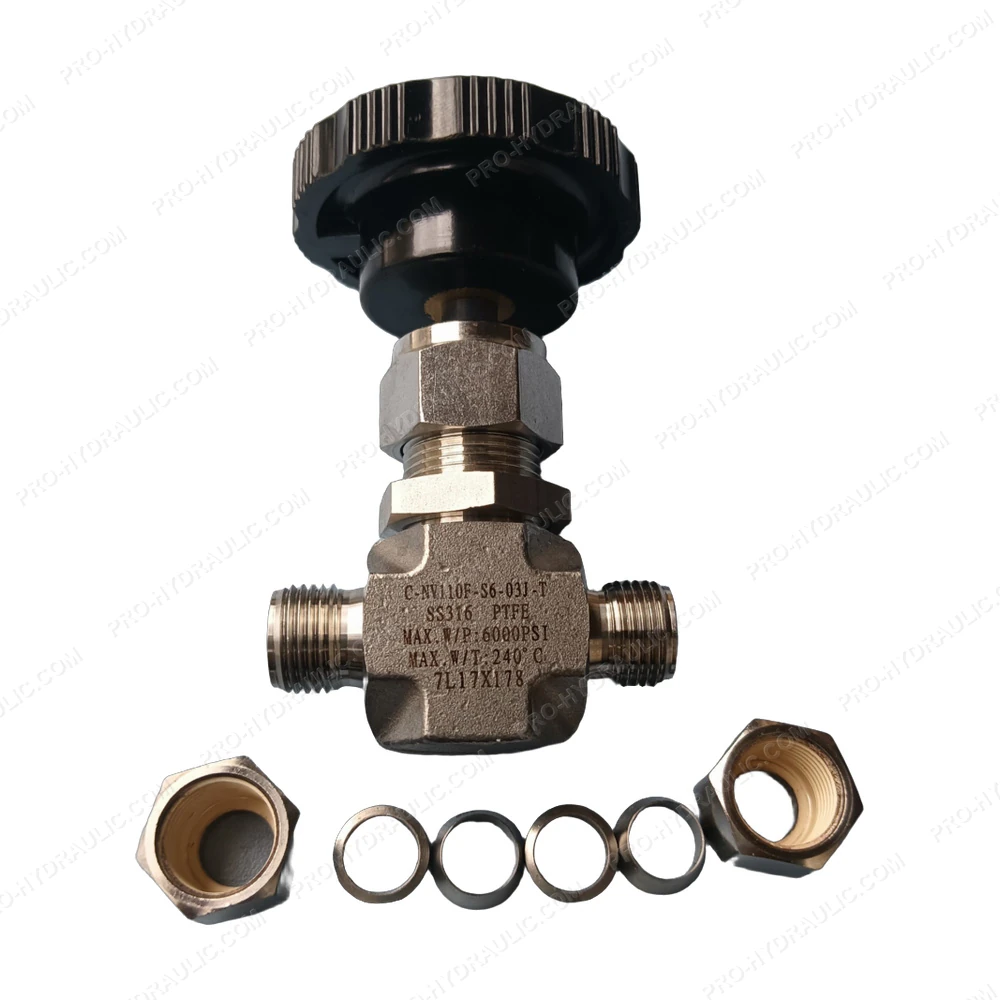

JPE C-NV110F-S6-03J-T High Pressure Needle Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the JPE C-NV110F-S6-03J-T High Pressure Needle Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
