Product Overview
The KAWASAKI DE10P-10-204-DA100A is a high-performance solenoid-operated directional control valve engineered by Kawasaki Heavy Industries for precise control of hydraulic fluid flow direction in industrial power systems. This direct-acting, spring-centered spool valve utilizes a wet-armature solenoid design to shift the valve spool between positions, directing pressurized flow to the selected actuator port while returning the opposite port to tank. The DE10P series is recognized for its fast response, minimal pressure drop, and exceptional spool-to-bore fit, making it a preferred choice for demanding industrial circuits requiring reliable directional control, load holding, and rapid cycle actuation. The valve is designed for manifold or subplate mounting in accordance with ISO 4401 / CETOP standards, ensuring drop-in compatibility with existing hydraulic power units and OEM machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | KAWASAKI DE10P-10-204-DA100A |
| Nominal Size | NG10 / CETOP 5 (ISO 4401-05) |
| Actuation Type | Solenoid Actuated, Spring Centered / Spring Offset |
| Spool Configuration | 4-Way, 3-Position (4/3) — closed-center spool per model code |
| Operating Pressure | Up to 315 bar (working), 350 bar peak — standard industrial grade |
| Rated Flow | Approx. 100 L/min at ΔP 10 bar (NG10 class) |
| Solenoid Voltage | 100 VAC / 100 VDC class (per DA100A designation) |
| Mounting & Connection | Subplate / Manifold Mounting, ISO 4401-05 interface |
| Seal Material | NBR (Buna-N) standard; FKM available for high-temperature service |
| Fluid Compatibility | Mineral-based hydraulic oil, ISO VG 32–68, viscosity 10–400 cSt |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (standard directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KAWASAKI standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The DE10P series is recognized for its fast response, minimal pressure drop, and exceptional spool-to-bore fit, making it a preferred choice for demanding industrial circuits requiring reliable directional control, load holding, and rapid cycle actuation.
PRODUCT IMAGES

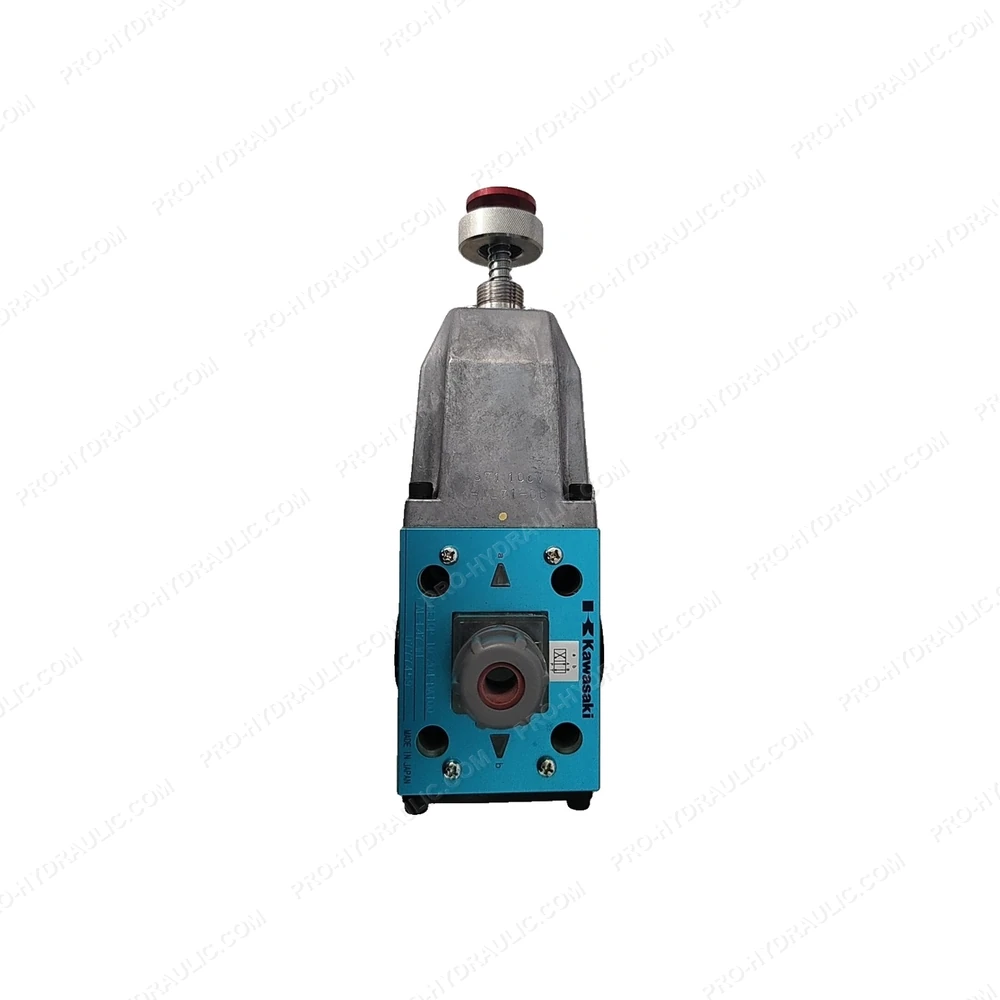

KAWASAKI DE10P-10-204-DA100A Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KAWASAKI DE10P-10-204-DA100A Solenoid Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
