Product Overview
The KAWASAKI DE10P-10-204-DA100AL-L93 is a high-performance solenoid-operated directional control valve from Kawasaki’s DE series, engineered for precise control of hydraulic fluid flow direction in demanding industrial circuits. Utilizing a robust spool-and-sleeve design, this valve directs pressurized fluid to actuator ports based on electrical signals applied to its solenoid operators, enabling forward, reverse, and neutral functions within a hydraulic system. The DE10P series is recognized for its fast response, low pressure drop, and exceptional leakage integrity, making it a preferred choice for applications requiring accurate motion control and reliable cycle repeatability. As a direct-fit component, it serves as a critical control element in manifold-mounted or subplate-mounted hydraulic power units across a wide range of heavy-duty machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | DE10P-10-204-DA100AL-L93 |
| Series / Size | DE10P Series (NG10 / CETOP 5 / ISO 4401 Size 05 Interface) |
| Actuation Type | Solenoid Actuated (Spring Centered / Spring Offset Configuration) |
| Spool Configuration | Four-Way, Three-Position Directional Spool |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow Capacity | Up to 100 L/min (Nominal at rated pressure drop) |
| Solenoid Voltage | 24V DC (DA100 Series Solenoid Coil) |
| Electrical Connection | DIN 43650 / ISO 4400 Standard Connector |
| Mounting & Connection | Subplate / Manifold Mounted, ISO 4401-05 Standard Interface |
| Seal Material | NBR (Nitrile) Standard, Optional FKM Available |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original KAWASAKI specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The DE10P series is recognized for its fast response, low pressure drop, and exceptional leakage integrity, making it a preferred choice for applications requiring accurate motion control and reliable cycle repeatability.
PRODUCT IMAGES

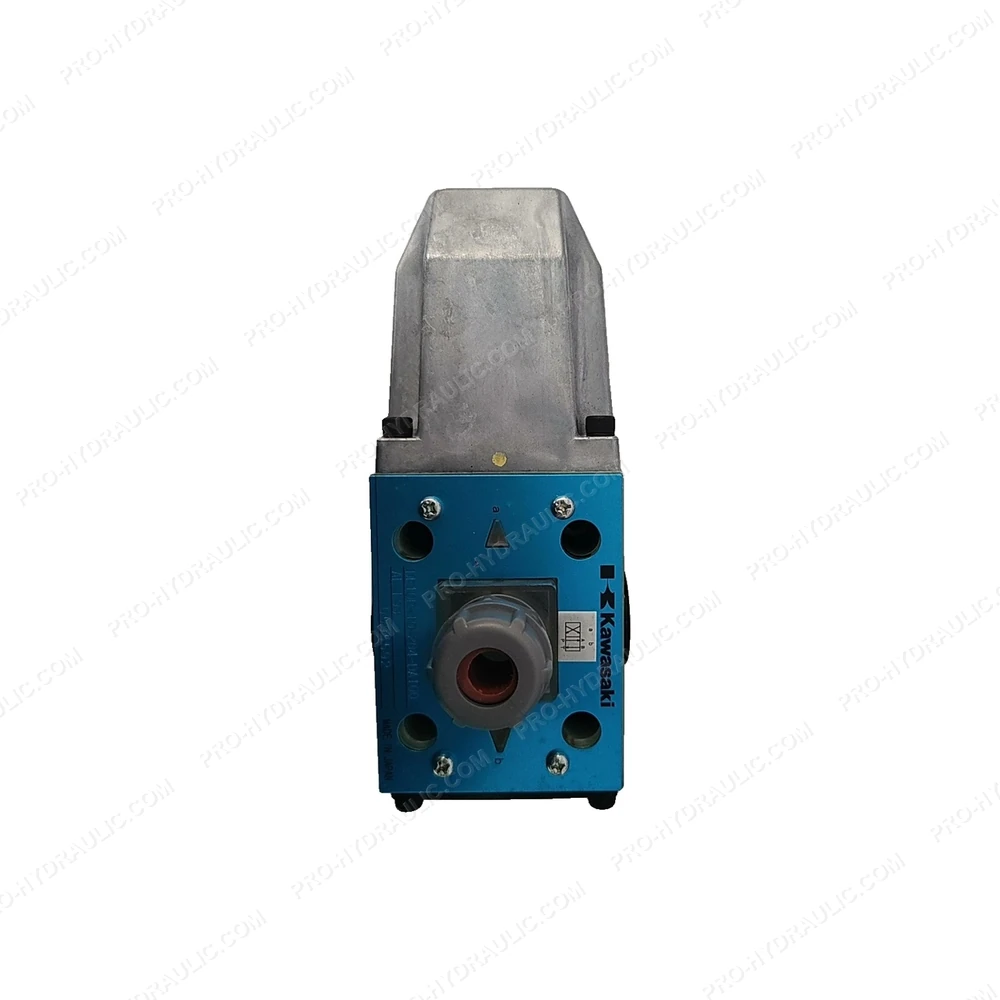

KAWASAKI DE10P-10-204-DA100AL-L93 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KAWASAKI DE10P-10-204-DA100AL-L93 Solenoid Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
