Product Overview
The KEYTO 22-22-FHB/5N is a miniature direct-acting solenoid valve engineered for precise control of neutral media in compact industrial circuits. Manufactured by KEYTO, a recognized name in miniature fluid control technology, this 2-way normally closed valve utilizes a balanced poppet and encapsulated solenoid coil to deliver fast, repeatable switching in space-constrained manifolds and analytical equipment. Its 5N coil designation indicates a low-power 5-watt solenoid, making it suitable for continuous duty and multi-valve bank configurations where thermal management and power density are critical. The valve is designed for direct interface with process and pneumatic control systems, offering leak-tight sealing and consistent response across millions of cycles.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Miniature Solenoid Valve (2/2-Way, Direct-Acting) |
| Model Designation | 22-22-FHB/5N |
| Operating Pressure | 0 to 10 bar (standard industrial grade, media-dependent) |
| Coil Power Rating | 5 W (5N encapsulated solenoid, continuous duty) |
| Mounting & Connection | Manifold / Sub-base mount with standard cartridge interface |
| Body Material | Corrosion-resistant stainless steel / engineering polymer |
| Seal Material | FKM / EPDM (media compatibility dependent) |
| Response Time | < 10 ms (typical opening/closing) |
Engineering Features & Advantages
- Precision Performance: Direct-acting poppet design ensures reliable operation from zero pressure differential, with fast and repeatable response times for precise process control.
- Compact & Lightweight: Miniature form factor enables high-density manifold integration, reducing overall system footprint and installation complexity.
- Low Power Consumption: The 5N (5 W) coil allows continuous duty operation with minimal heat generation, ideal for multi-valve clusters and sensitive analytical environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and corrosion-resistant wetted materials.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KEYTO 22-22-FHB/5N specifications, ensuring drop-in replacement without modification.
Typical Industrial Applications
The KEYTO 22-22-FHB/5N miniature solenoid valve is widely deployed in analytical instrumentation, medical and laboratory equipment, pneumatic automation systems, and compact hydraulic pilot circuits. It is particularly suited for gas and liquid dosing, sample handling, and low-flow process control where space and power are limited. Common installations include chromatography systems, blood analysis machines, packaging machinery, and manifold assemblies in industrial process skids.
PRODUCT IMAGES

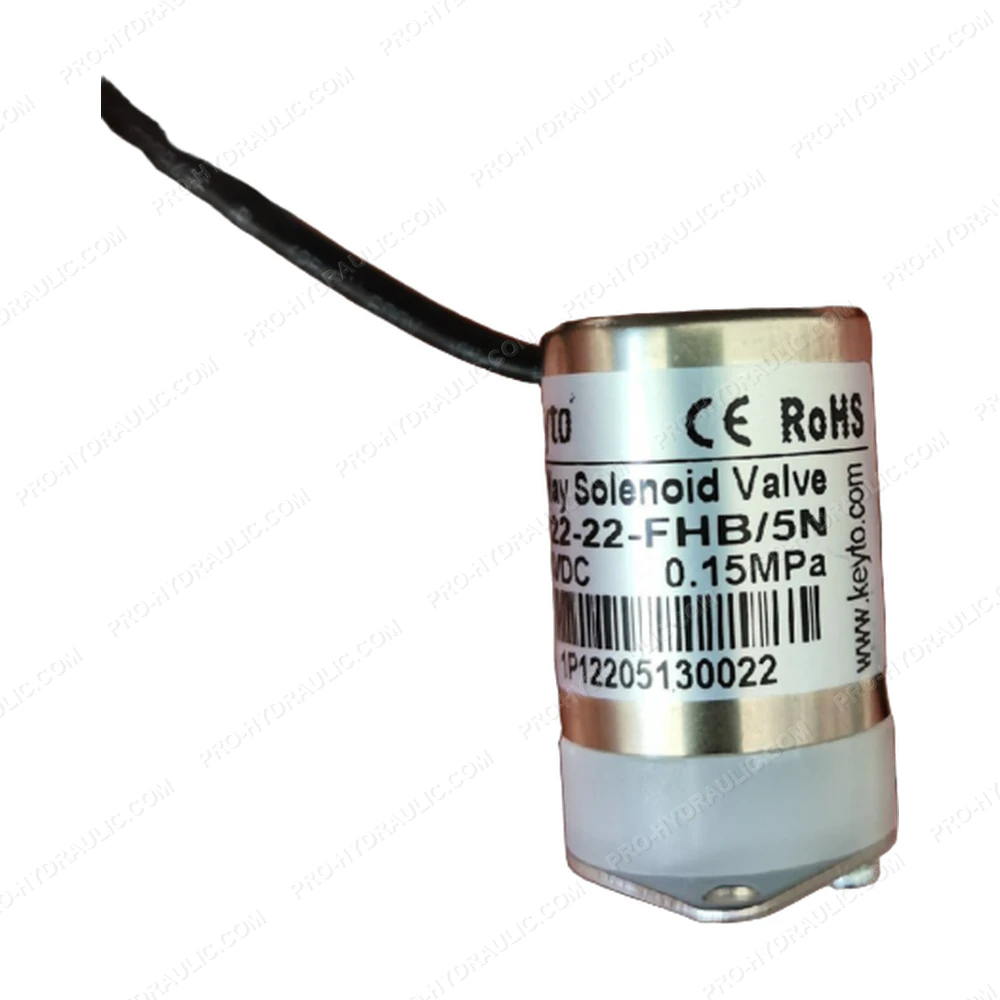

KEYTO 22-22-FHB/5N Miniature Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KEYTO 22-22-FHB/5N Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
