Product Overview
The KINETROL 05AF120 is a quarter-turn pneumatic rotary actuator from the Kinetrol 05 series, engineered for precise 90° valve operation and damper control in industrial process systems. Utilizing a double-opposed vane mechanism, the 05AF120 converts compressed air pressure into smooth, high-torque rotary motion through a single moving vane assembly, delivering reliable actuation without the backlash or wear associated with rack-and-pinion designs. The “AF” designation indicates a spring-return (fail-safe) configuration, ensuring the valve or damper returns to its defined safe position upon loss of air supply. This actuator is a direct-fit component for ball, butterfly, and plug valves, and is widely deployed in process control loops where dependable quarter-turn positioning is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Rotary Actuator (Quarter-Turn Valve Actuator) |
| Model Designation | KINETROL 05AF120 |
| Actuation Principle | Double-opposed vane, spring-return (fail-safe) configuration |
| Rotation | 90° quarter-turn (adjustable travel stops) |
| Operating Pressure | Standard Industrial Grade (typically 3–7 bar / 40–100 psi) |
| Control Medium | Filtered dry compressed air or inert gas |
| Mounting & Connection | Standard ISO 5211 valve mounting interface with female drive coupling |
| Body Construction | Die-cast aluminium alloy housing with corrosion-resistant finish |
Engineering Features & Advantages
- Precision Vane Actuation: The double-opposed vane design delivers high torque output with minimal air consumption and near-zero backlash, ensuring accurate and repeatable 90° valve positioning.
- Fail-Safe Spring Return: The AF spring-return mechanism automatically drives the valve to its safe position on air failure, meeting critical process safety requirements.
- Compact & Lightweight: The vane construction provides an excellent torque-to-weight ratio, reducing mounting stress and simplifying installation on existing valve assemblies.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust aluminium housing and long service life even in high-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Kinetrol 05 series actuators and standard ISO 5211 valve interfaces.
Typical Industrial Applications
The KINETROL 05AF120 pneumatic actuator is widely used for automated quarter-turn valve and damper control across heavy industry, including chemical and petrochemical process plants, water and wastewater treatment systems, oil and gas pipeline valve automation, power generation and steam distribution, and general industrial process control loops requiring reliable fail-safe operation.
PRODUCT IMAGES

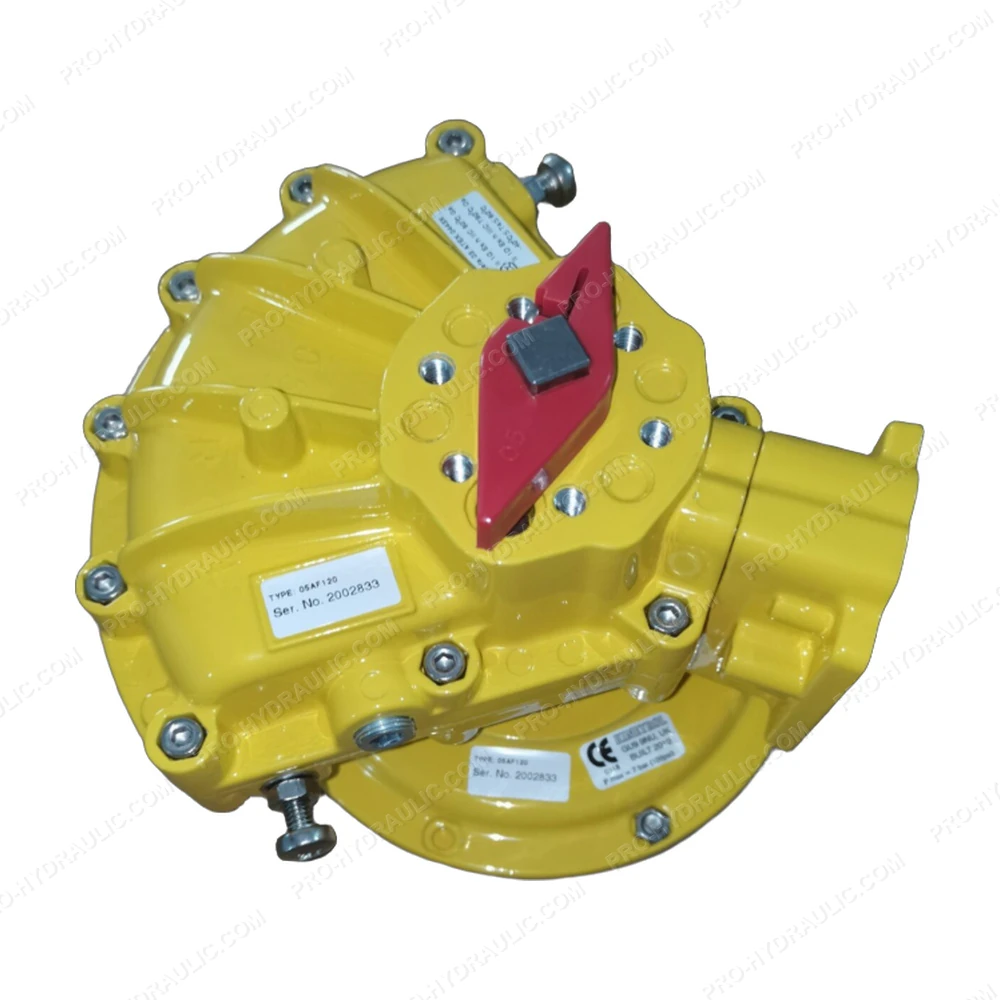

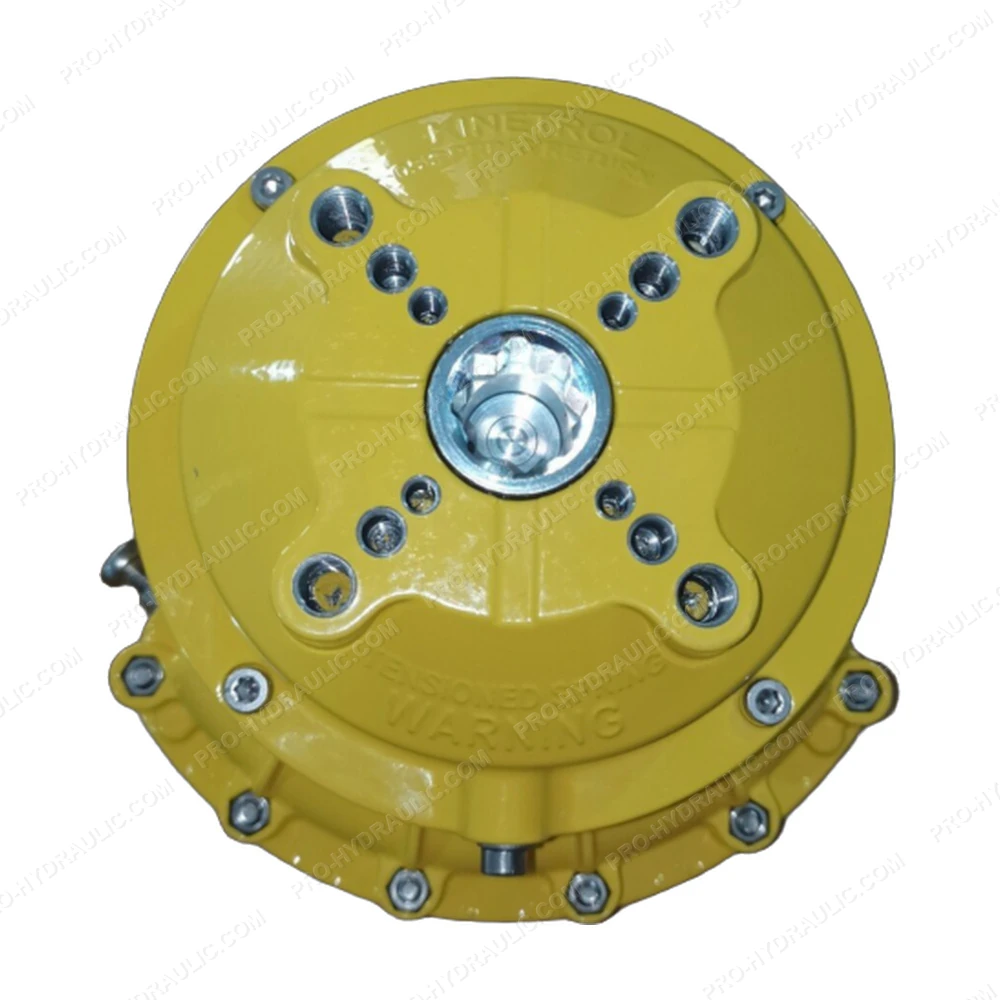

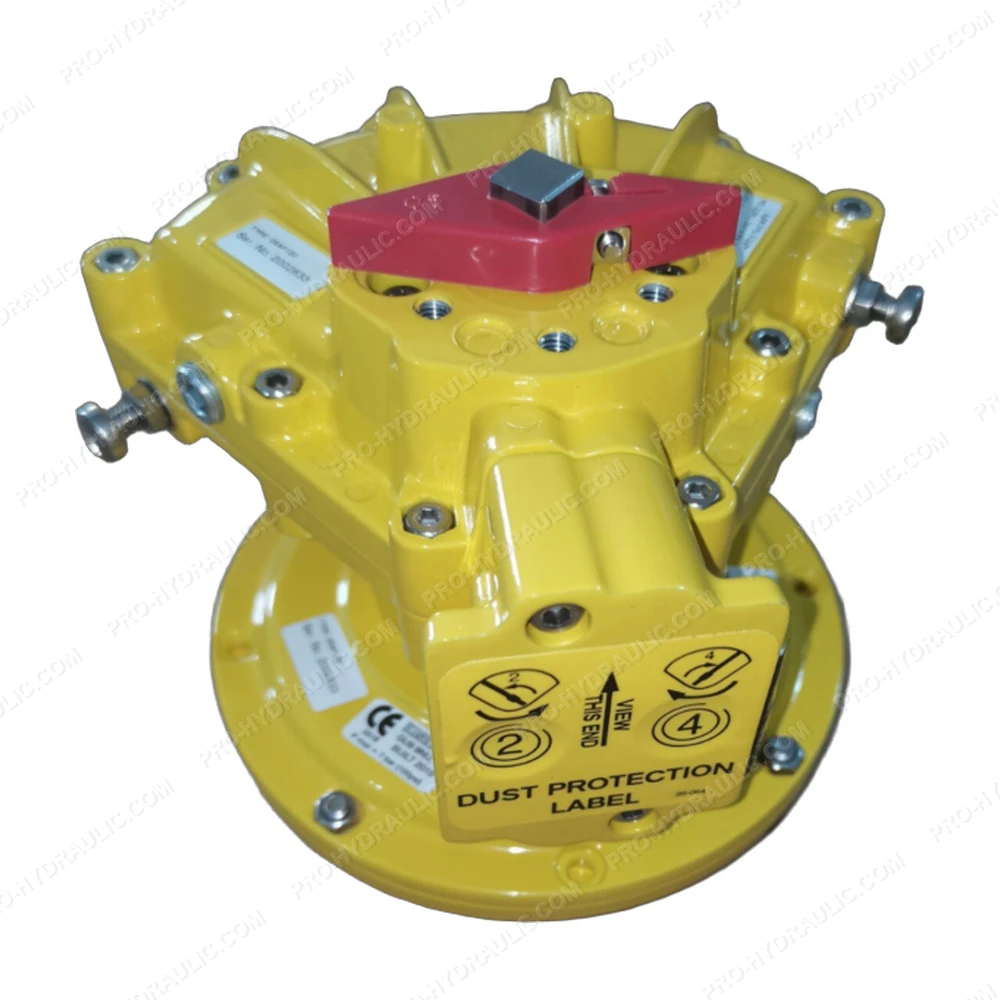

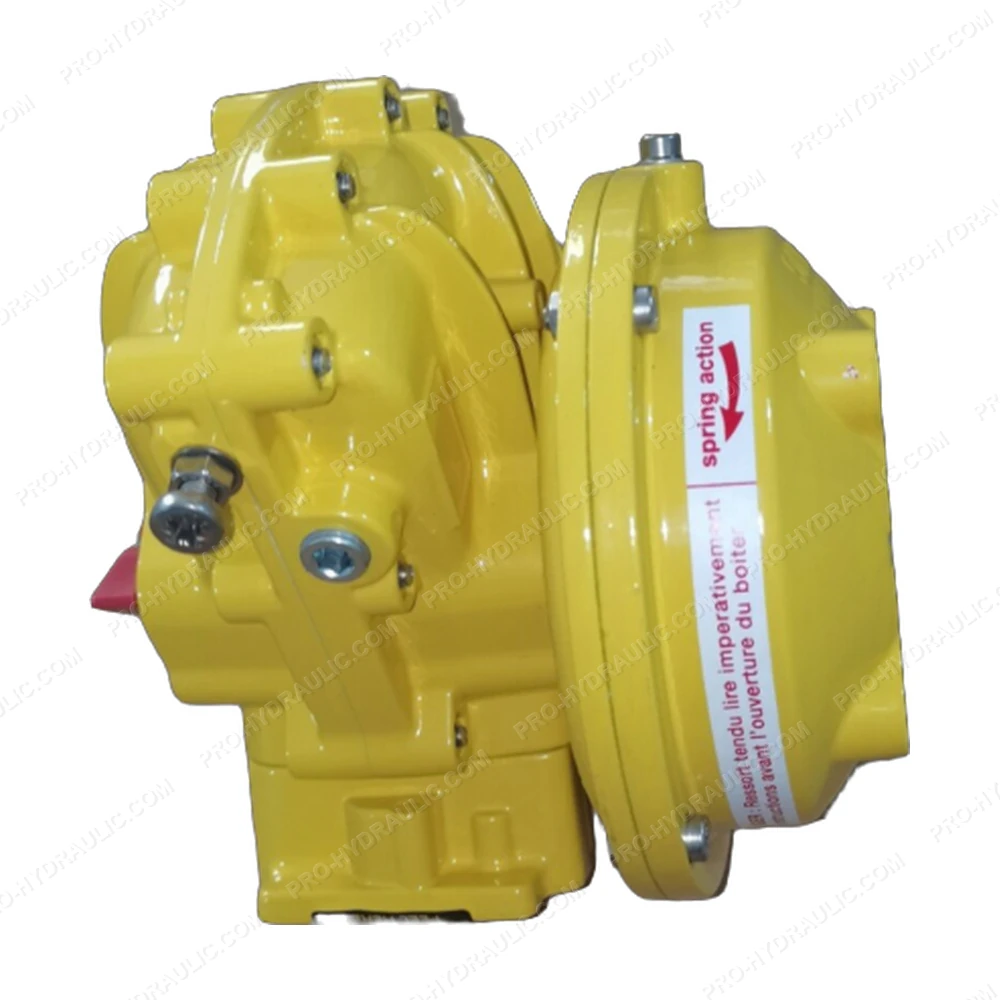

KINETROL 05AF120 Pneumatic Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KINETROL 05AF120 Pneumatic Valve Positioner. This UK-made pneumatic component features a precision feedback mechanism, delivering accurate, reliable valve positioning for heavy-duty industrial systems.
