Product Overview
The KITZ C-1 Pneumatic Actuator is a quarter-turn rack-and-pinion pneumatic valve actuator engineered by KITZ Corporation for automated on/off and modulating control of industrial process valves. As a general process and pneumatic valve accessory, the C-1 converts compressed air energy into precise 90-degree rotary torque, enabling remote actuation of ball valves, butterfly valves, and plug valves across demanding process environments. Its compact, symmetrical body design allows direct mounting to ISO 5211 valve top flanges, delivering reliable torque transmission and rapid response for automated fluid control loops in chemical, water treatment, and general industrial piping systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Actuator (General Process & Pneumatic Valve) |
| Model Designation | KITZ C-1 |
| Actuation Principle | Rack-and-Pinion, Double-Acting / Spring-Return Configuration |
| Rotation | 90° Quarter-Turn (Standard), Adjustable Travel Stops ±5° |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, typical 2–8 bar air supply) |
| Mounting & Connection | ISO 5211 Valve Flange Interface / Namur Solenoid & Accessory Mounting |
| Body Material | Anodized Aluminum Alloy Housing with Corrosion-Resistant Finish |
| Sealing | NBR / Viton O-Ring Seals for Leak-Free Pneumatic Operation |
Engineering Features & Advantages
- Precision Performance: Rack-and-pinion mechanism delivers smooth, accurate 90-degree rotary actuation with minimal backlash, ensuring precise valve positioning and reliable on/off control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a hard-anodized aluminum body and corrosion-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with ISO 5211 mounting standards and Namur interfaces, allowing straightforward integration with KITZ valves and third-party process valves.
- Flexible Configuration: Available in double-acting and spring-return versions, with adjustable travel stops for precise open/close positioning and fail-safe operation options.
- Compact & Lightweight: Space-saving symmetrical design reduces installation footprint and piping load, simplifying mounting in dense process skids and manifolds.
Typical Industrial Applications
The KITZ C-1 Pneumatic Actuator is widely deployed in chemical processing plants, water and wastewater treatment facilities, pharmaceutical and food-grade piping systems, and general industrial fluid handling networks. It is commonly used to automate ball valves, butterfly valves, and plug valves in process control loops, providing dependable quarter-turn actuation for remote and
PRODUCT IMAGES

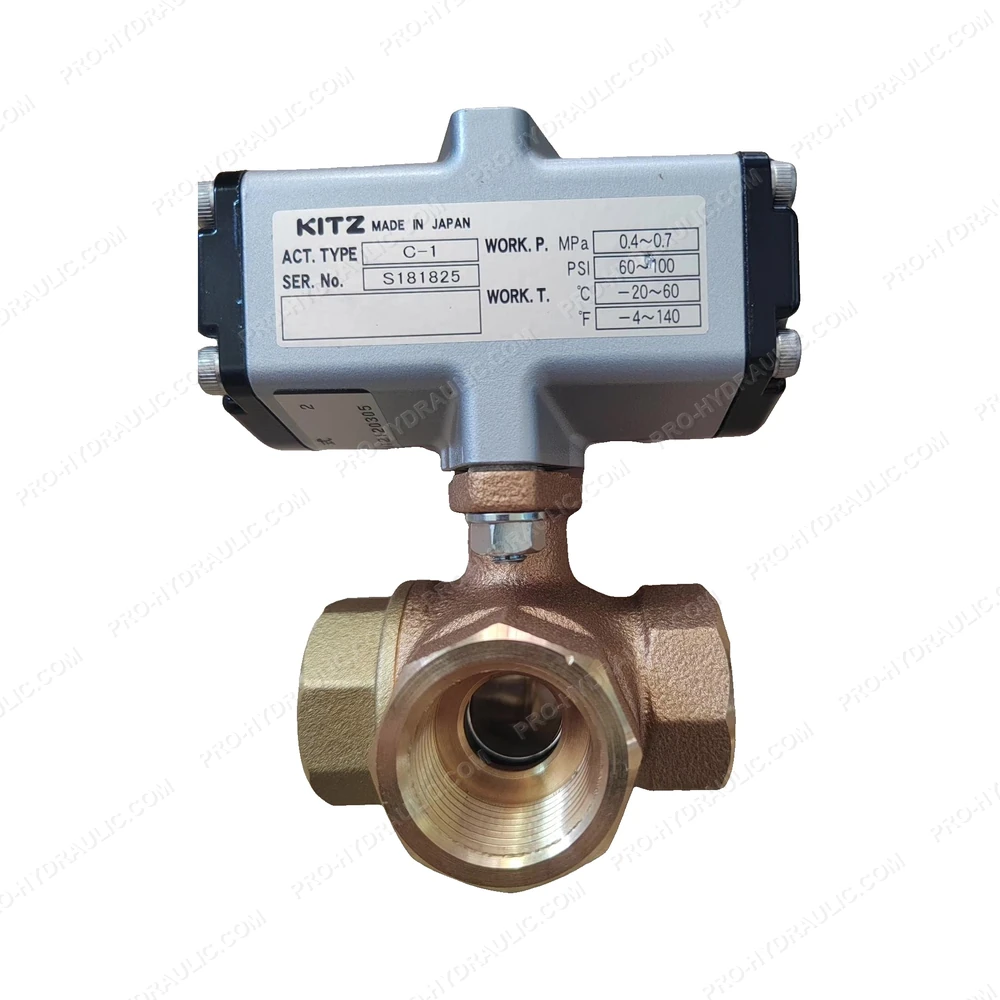

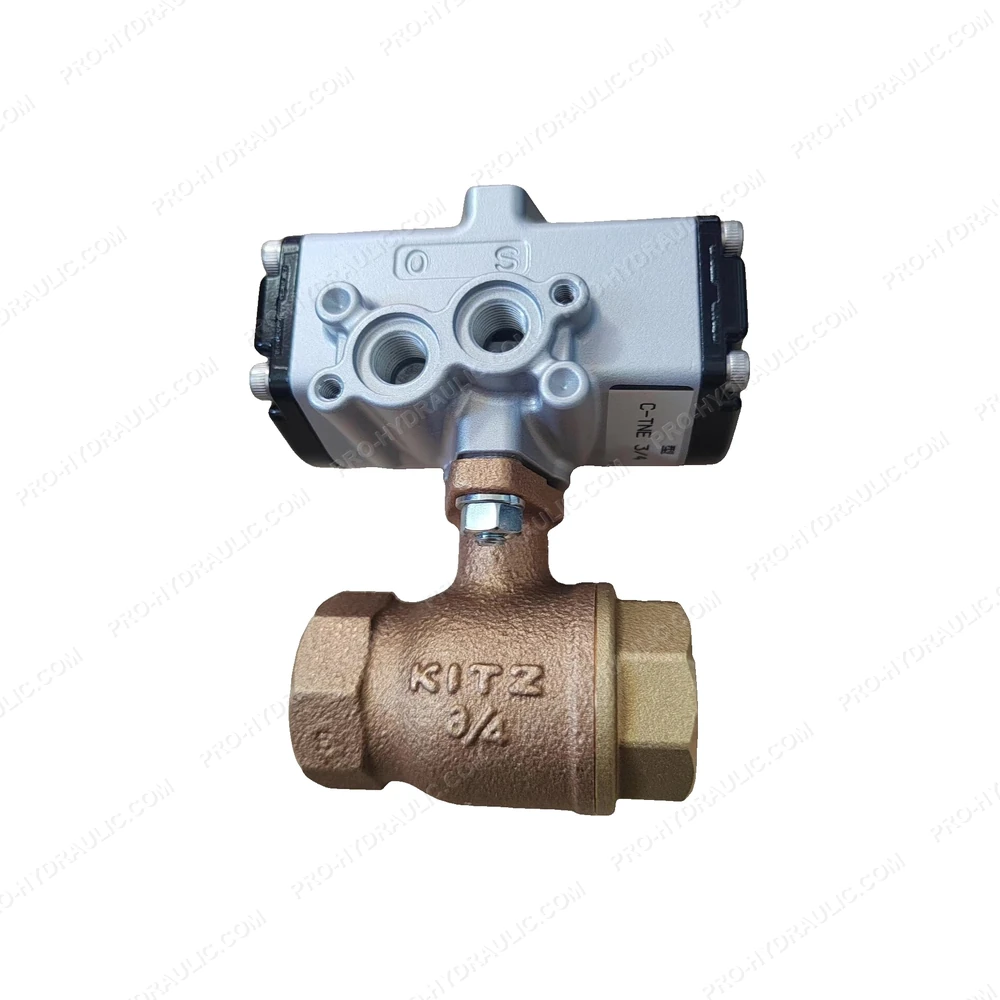

KITZ C-1 Pneumatic Actuator
