The KITZ SCT 10K-1/2 VLD EP 316L PFA-SEAT is a heavy-duty industrial diaphragm valve engineered for high-purity fluid handling in semiconductor and cleanroom environments. Its 316L stainless steel body and PFA seat provide excellent corrosion resistance and contamination-free operation.
KITZ SCT 10K-1/2 VLD EP 316L PFA-SEAT Technical Specifications
| Body Material | 316L Stainless Steel |
| Seat Material | PFA |
| Nominal Size | 1/2 inch |
| Pressure Rating | 10K (approx. 1.0 MPa) |
| Connection Type | VLD (VCR-compatible) |
| Actuation | Manual / Pneumatic (depending on configuration) |
| Flow Path | Straight-through diaphragm |
Key Engineering Features
- High-purity 316L stainless steel construction for ultra-clean service
- PFA seat ensures chemical compatibility and minimal particle generation
- Diaphragm design isolates fluid from actuation mechanism
- VLD end connections for leak-tight, high-purity plumbing
- Compact and robust for space-constrained semiconductor tools
Industrial Applications
- Semiconductor manufacturing equipment
- Cleanroom fluid delivery systems
- High-purity chemical and gas lines
- Pharmaceutical and biotech process systems
- Ultrapure water and solvent handling
For technical inquiries, dimensional drawings, or replacement support for KITZ SCT 10K-1/2 VLD EP 316L PFA-SEAT, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

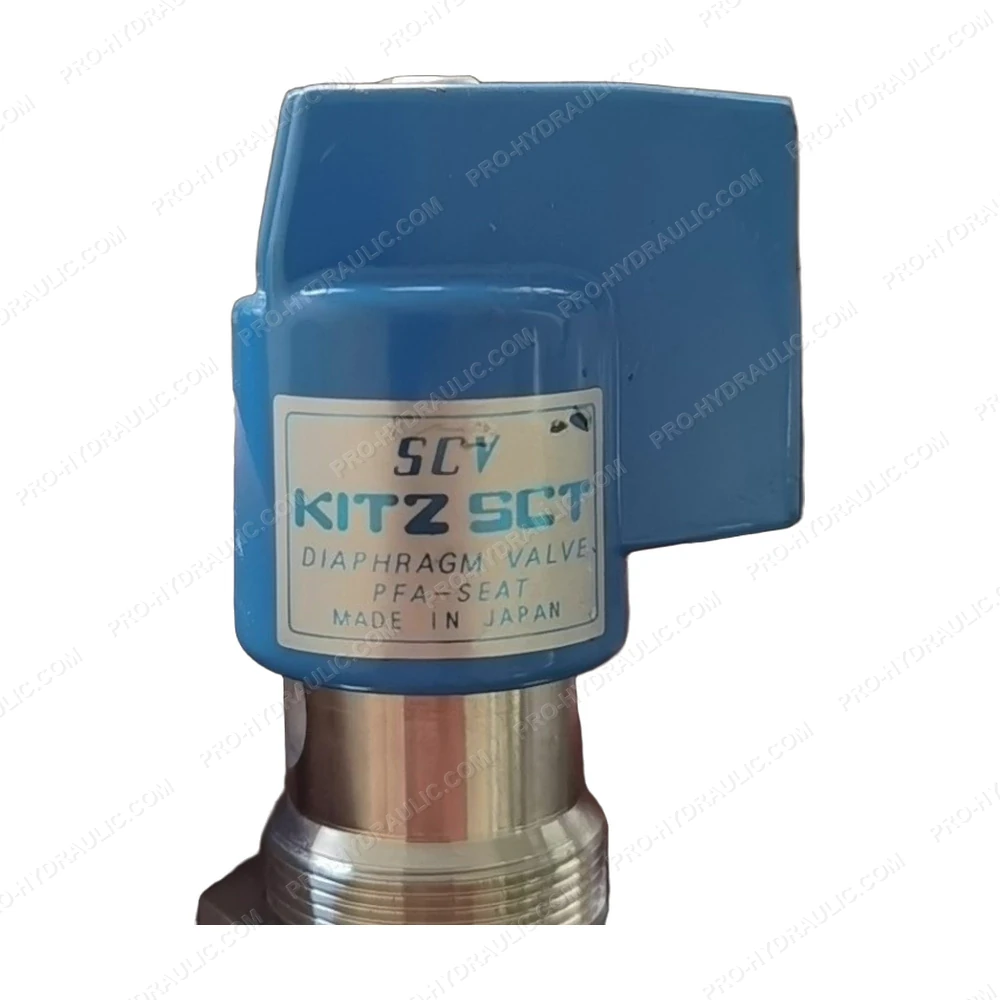

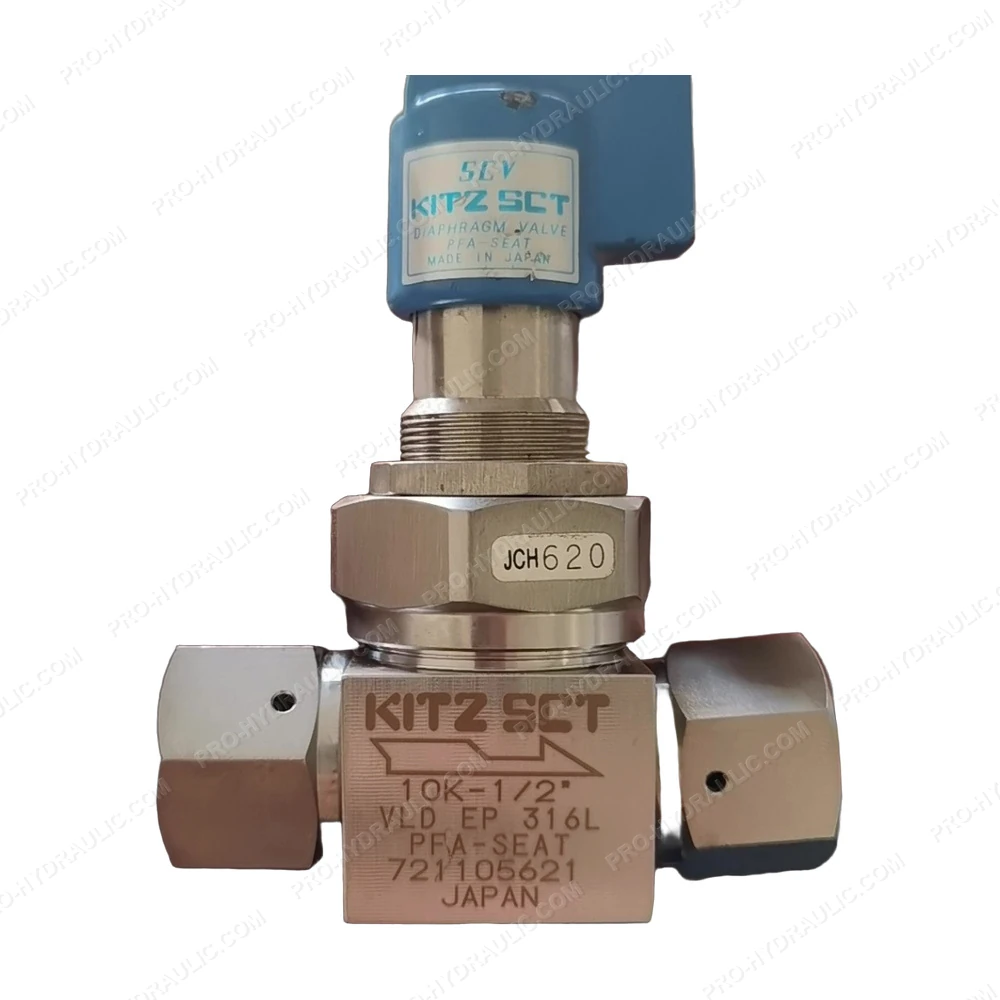

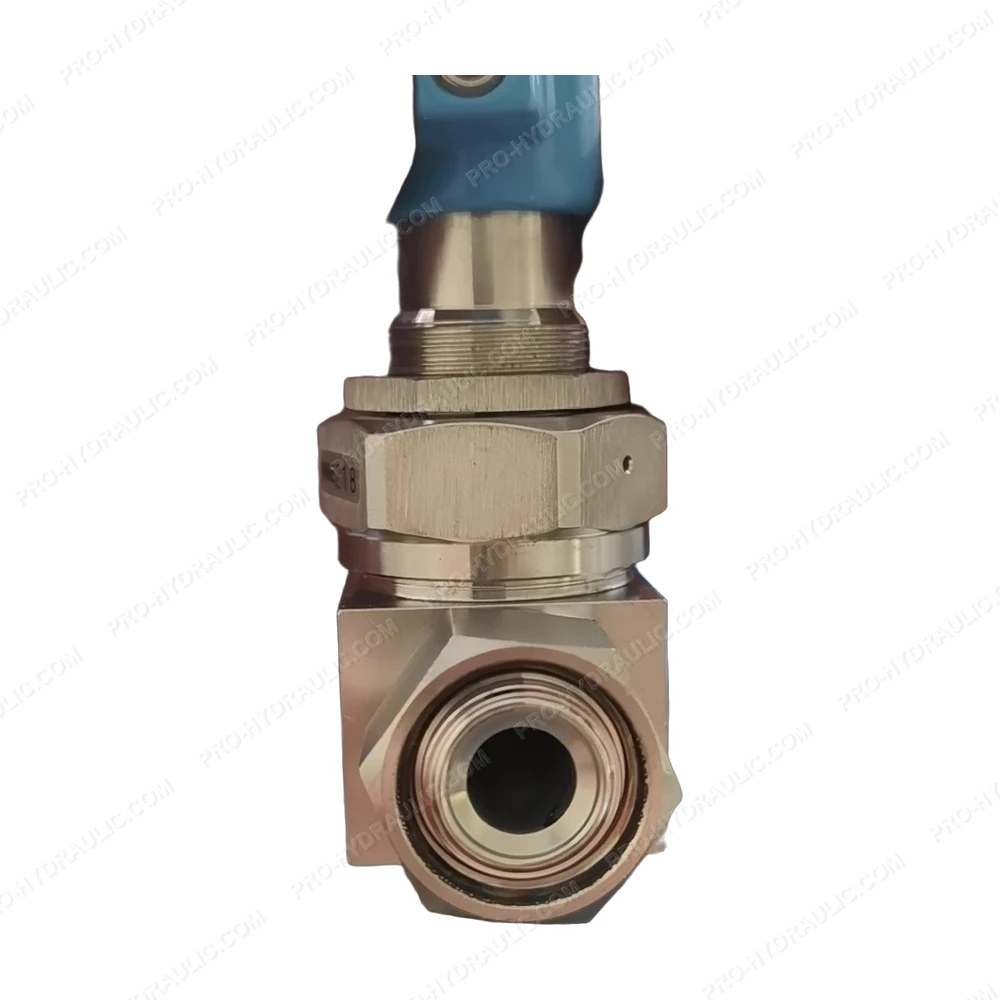

KITZ SCT 10K-1/2 VLD EP 316L PFA-SEAT Diaphragm Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the KITZ SCT 10K-1/2 VLD EP 316L PFA-SEAT Diaphragm Valve. This precision-engineered high-purity component delivers reliable performance and tight fluid control for semiconductor and cleanroom systems.
