The KITZ SCT 10K-1/4 VLD EP 316L is a heavy-duty industrial diaphragm valve engineered for high-purity and corrosive fluid handling in semiconductor and cleanroom environments. Its 316L stainless steel body and PTFE diaphragm ensure minimal particle generation and excellent chemical resistance.
KITZ SCT 10K-1/4 VLD EP 316L Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | 316L Stainless Steel |
| Diaphragm Material | PTFE (EP grade) |
| Port Size | 1/4 inch |
| Pressure Rating | 10K (approx. 1.0 MPa) |
| Actuation | Manual (handwheel) |
| Connection Type | VLD (VCR compatible) |
| Flow Path | Straight-through, zero dead volume |
Key Engineering Features
- High-purity 316L stainless steel construction for ultra-clean service
- PTFE diaphragm ensures chemical inertness and long cycle life
- Zero dead volume design prevents fluid entrapment and contamination
- VLD connection compatible with VCR fittings for leak-tight sealing
- Compact manual actuation with visual position indication
Industrial Applications
- Semiconductor manufacturing: high-purity gas and chemical delivery
- Cleanroom environments: ultrapure water and solvent handling
- Pharmaceutical and biotech: sterile fluid transfer
- Analytical instrumentation: sample and reagent control
For technical inquiries, dimensional drawings, or replacement support for KITZ SCT 10K-1/4 VLD EP 316L, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

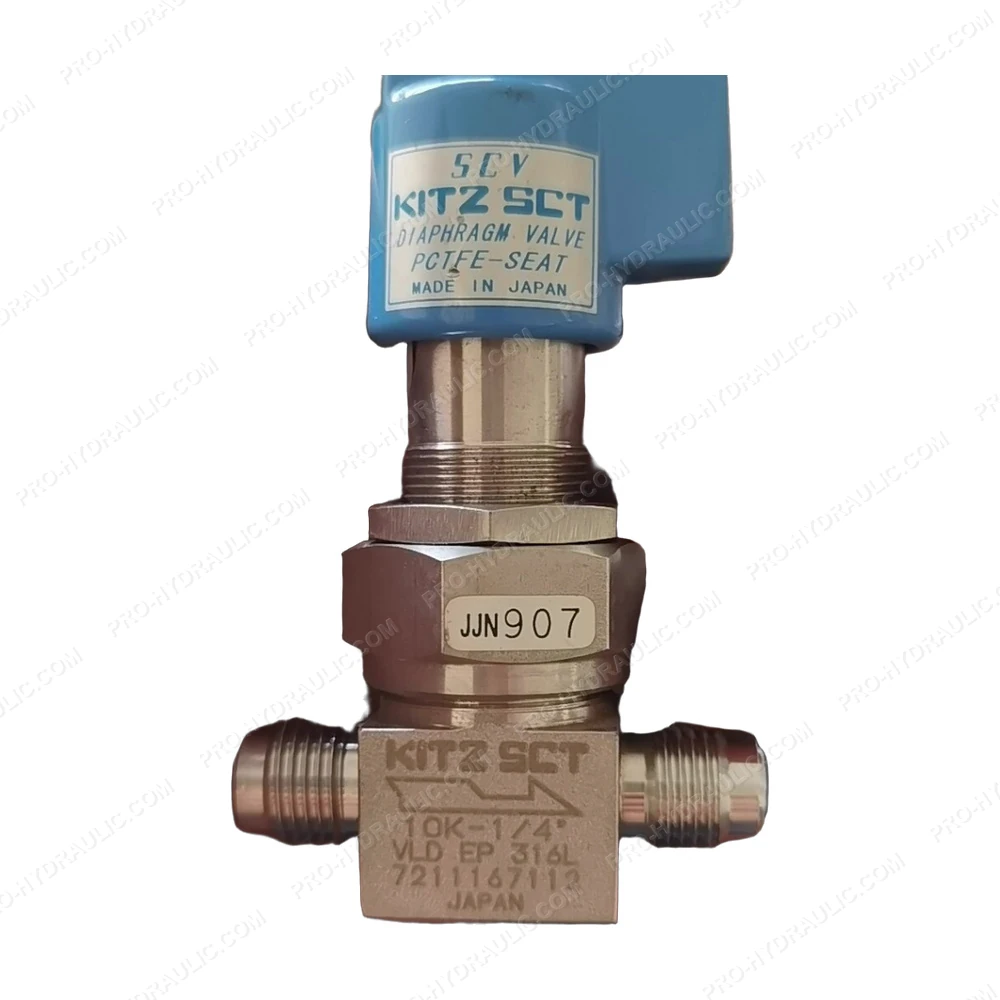

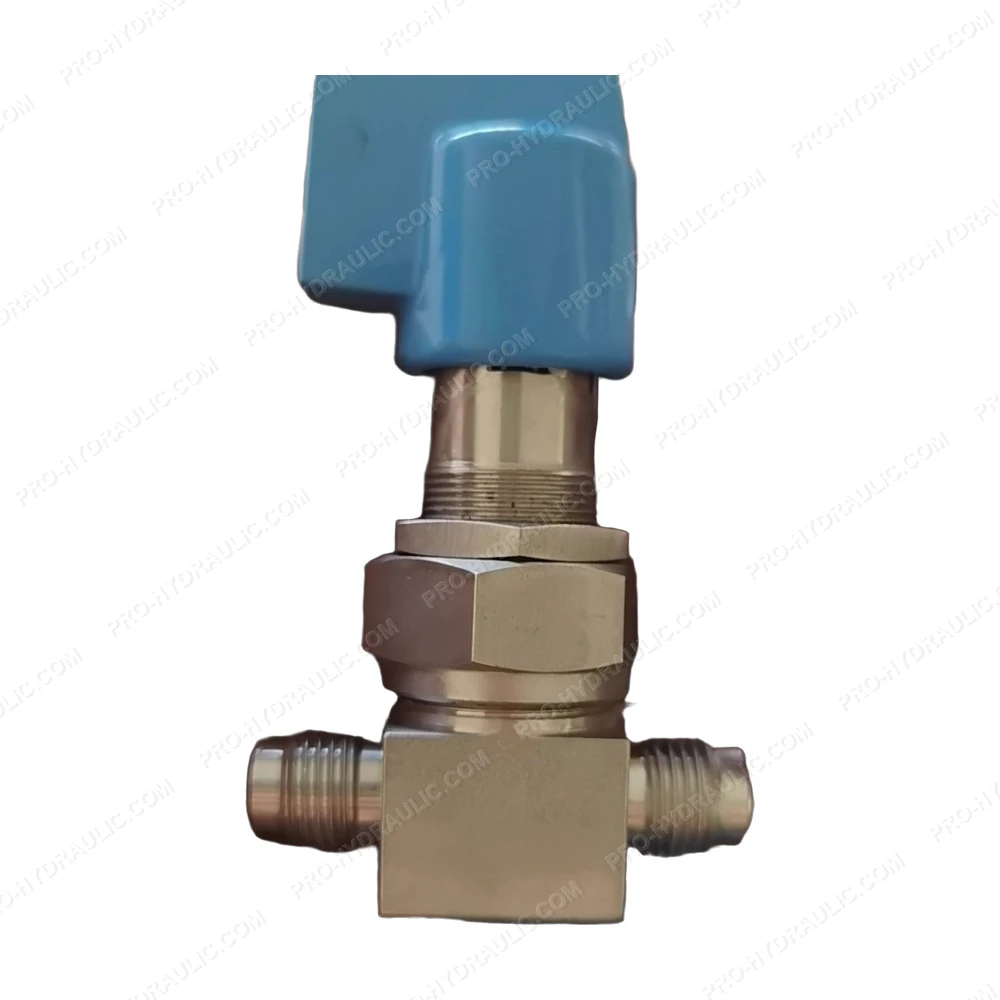

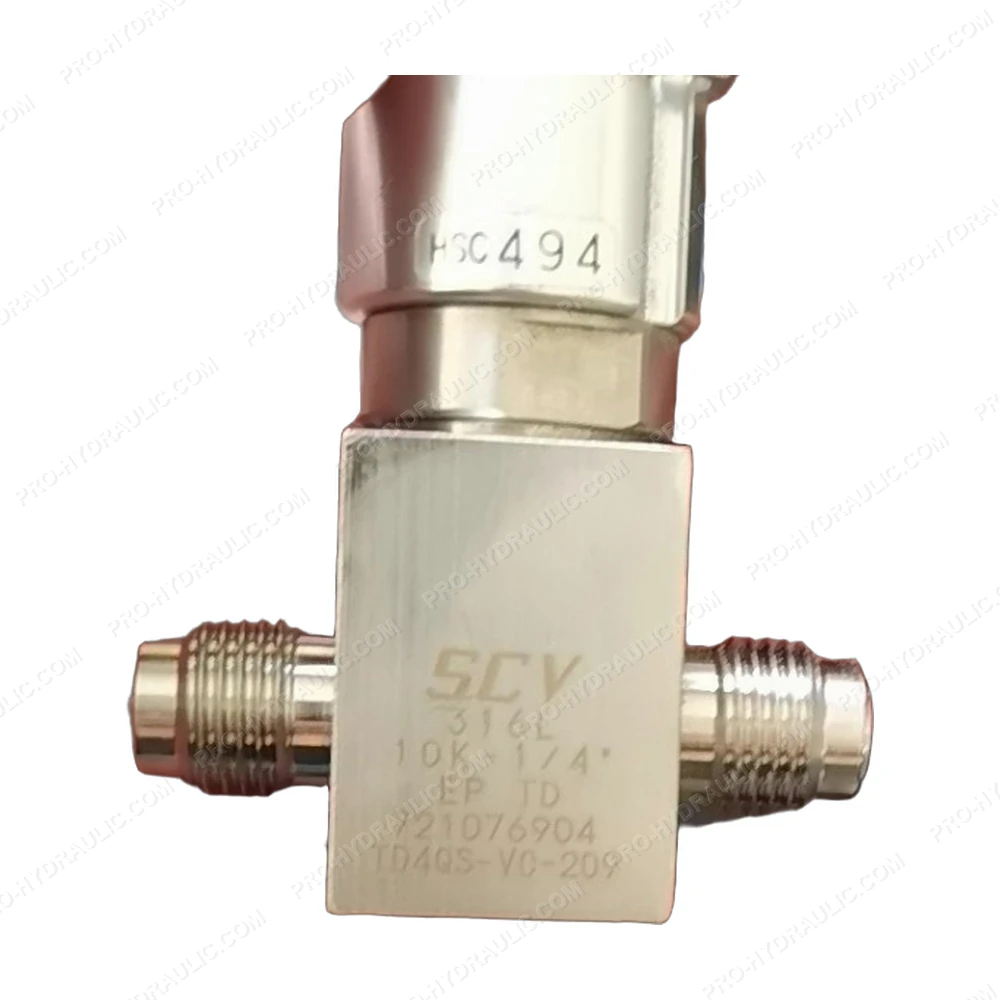

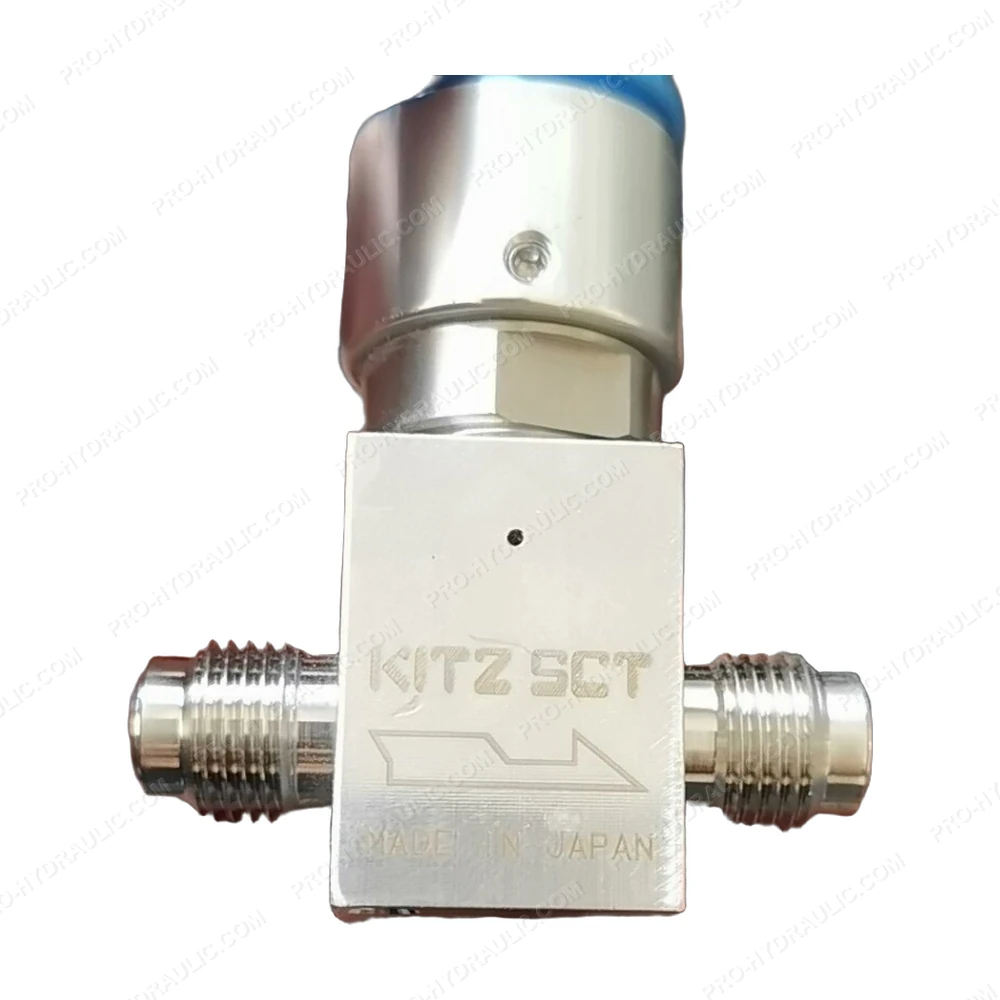

KITZ SCT 10K-1/4 VLD EP 316L Diaphragm Valve
