The KITZ SCT SCV S20Y is a heavy-duty industrial diaphragm valve engineered for high-purity fluid handling in semiconductor and cleanroom environments. Its pneumatically actuated design ensures contamination-free operation and precise flow control.
KITZ SCT SCV S20Y Technical Specifications
| Valve Type | Pneumatic Diaphragm Valve |
| Body Material | PTFE / PFA (High-Purity) |
| Diaphragm Material | PTFE |
| Port Size | 1/4 in, 3/8 in, 1/2 in |
| Actuation | Pneumatic (Air-to-Open / Air-to-Close) |
| Max Operating Pressure | 0.7 MPa (100 psi) |
| Temperature Range | -10°C to 150°C |
| Mounting | Panel or Inline |
Key Engineering Features
- Pneumatic actuation with minimal dead volume for high-purity media
- PTFE diaphragm ensures chemical inertness and zero contamination
- Compact design suitable for space-constrained cleanroom installations
- Leak-tight shutoff and high cycle life
- Compatible with corrosive and ultrapure fluids
Industrial Applications
- Semiconductor manufacturing (CVD, etch, CMP)
- Cleanroom fluid delivery systems
- Pharmaceutical and biotech process lines
- Ultrapure water and chemical distribution
- Analytical instrumentation
For technical inquiries, dimensional drawings, or replacement support for KITZ SCT SCV S20Y, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

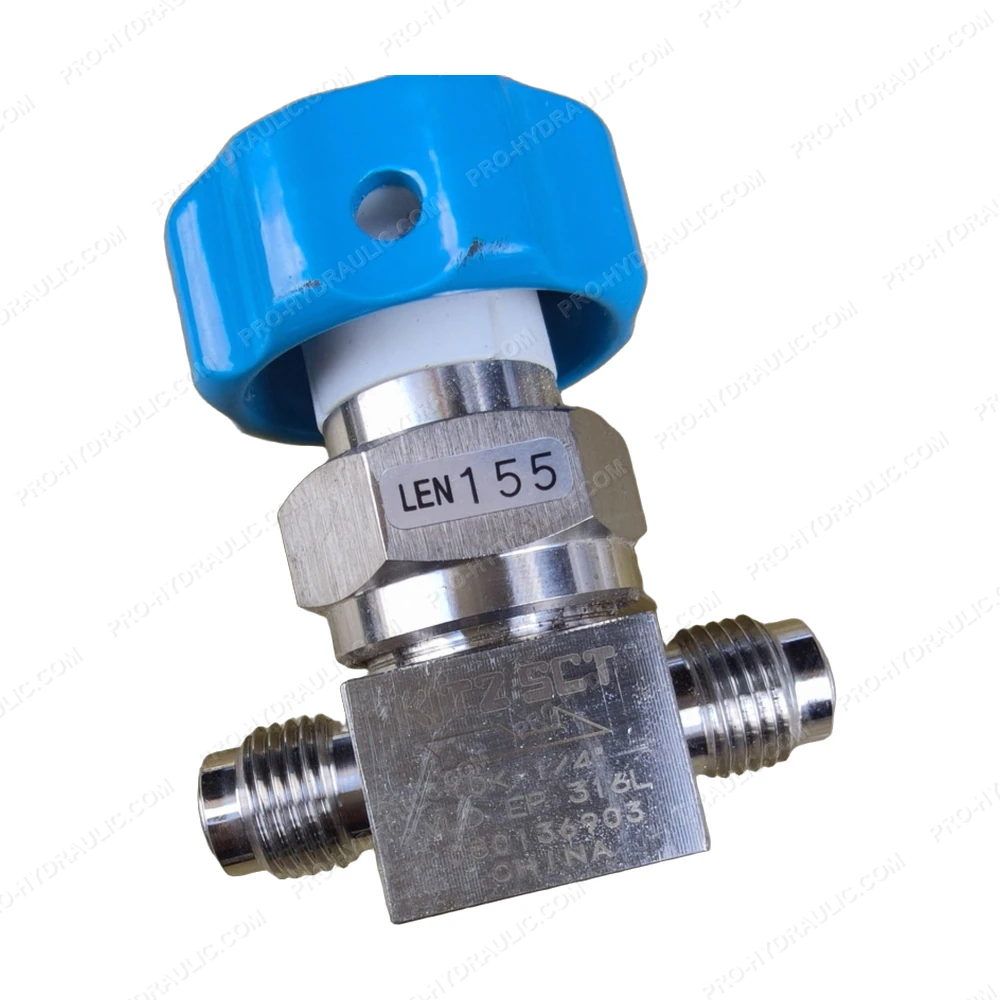

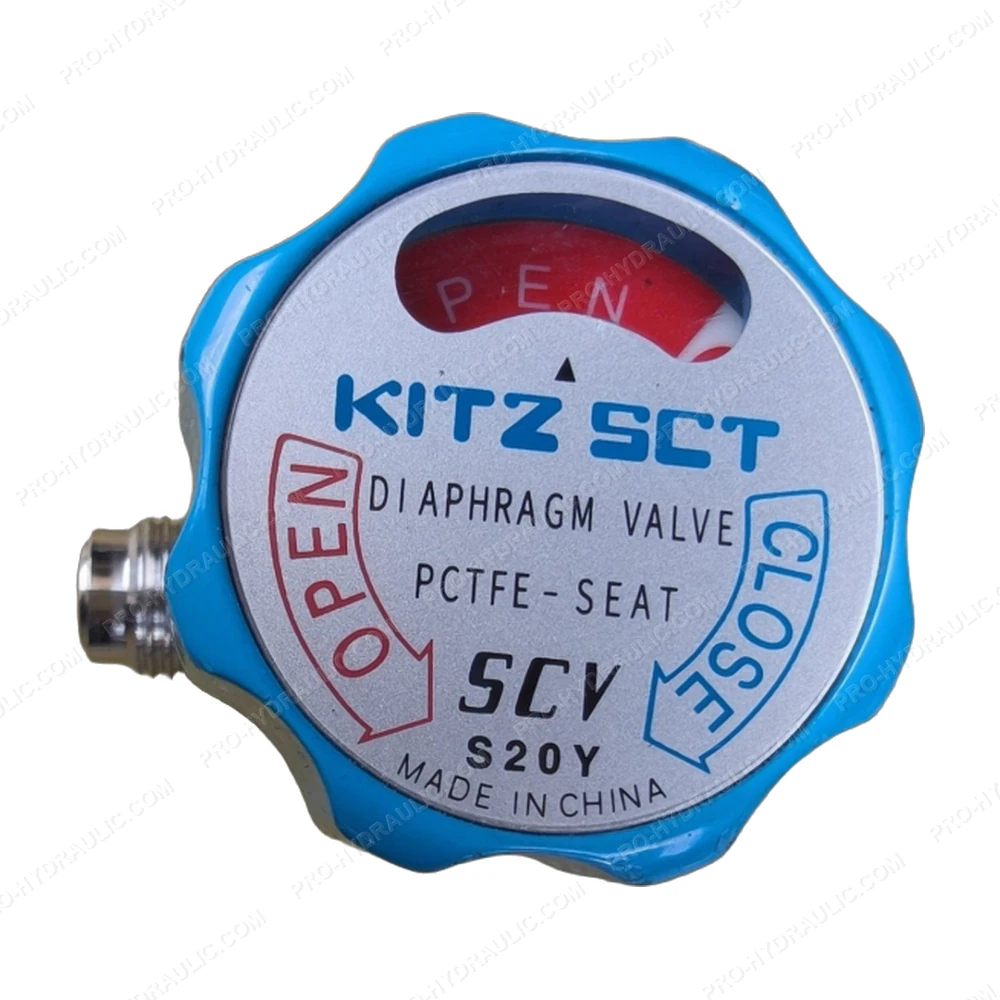

KITZ SCT SCV S20Y Diaphragm Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the KITZ SCT SCV S20Y Diaphragm Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
