Product Overview
The KOGANEI F-AVP070-CP-13W is a precision-engineered pneumatic solenoid valve from Koganei’s F Series, designed for reliable directional control of compressed air in automated industrial systems. This valve operates on a solenoid-actuated spool principle, utilizing an electromagnetic coil to shift an internal spool mechanism that directs and interrupts airflow through the valve body. The F-AVP070-CP-13W is configured as a compact, direct-acting or pilot-assisted solenoid valve suitable for manifold or inline mounting, providing fast response times and consistent switching performance. As a critical control component in pneumatic circuits, it serves as the interface between electronic control signals and pneumatic actuators, enabling precise sequencing, positioning, and motion control across a wide range of industrial automation applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | F-AVP070-CP-13W |
| Manufacturer | Koganei |
| Series | F Series (AVP Series) |
| Actuation Type | Solenoid Actuated (Electromagnetic Coil) |
| Valve Function | Directional Control (Spool Type) |
| Operating Pressure | Standard Pneumatic Grade (0.1 – 0.7 MPa typical) |
| Mounting & Connection | Manifold / Inline Mounting, Standard Koganei Interface |
| Response Time | Fast Switching (Millisecond Range) |
| Seal Material | NBR / FKM (Application Dependent) |
Engineering Features & Advantages
- Precision Spool Actuation: The solenoid-driven spool mechanism ensures accurate and repeatable directional control of compressed air, minimizing leakage and maintaining consistent flow characteristics across the operating range.
- Fast Response & High Cycle Rate: Designed for rapid switching in high-speed automated processes, enabling precise timing and synchronization of pneumatic actuators in complex control sequences.
- Compact & Modular Design: The F-AVP070-CP-13W features a space-efficient body suitable for dense manifold configurations, reducing installation footprint and simplifying pneumatic circuit integration.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with robust coil insulation and wear-resistant spool and seal materials ensuring long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KOGANEI OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
As a critical control component in pneumatic circuits, it serves as the interface between electronic control signals and pneumatic actuators, enabling precise sequencing, positioning, and motion control across a wide range of industrial automation applications.
PRODUCT IMAGES

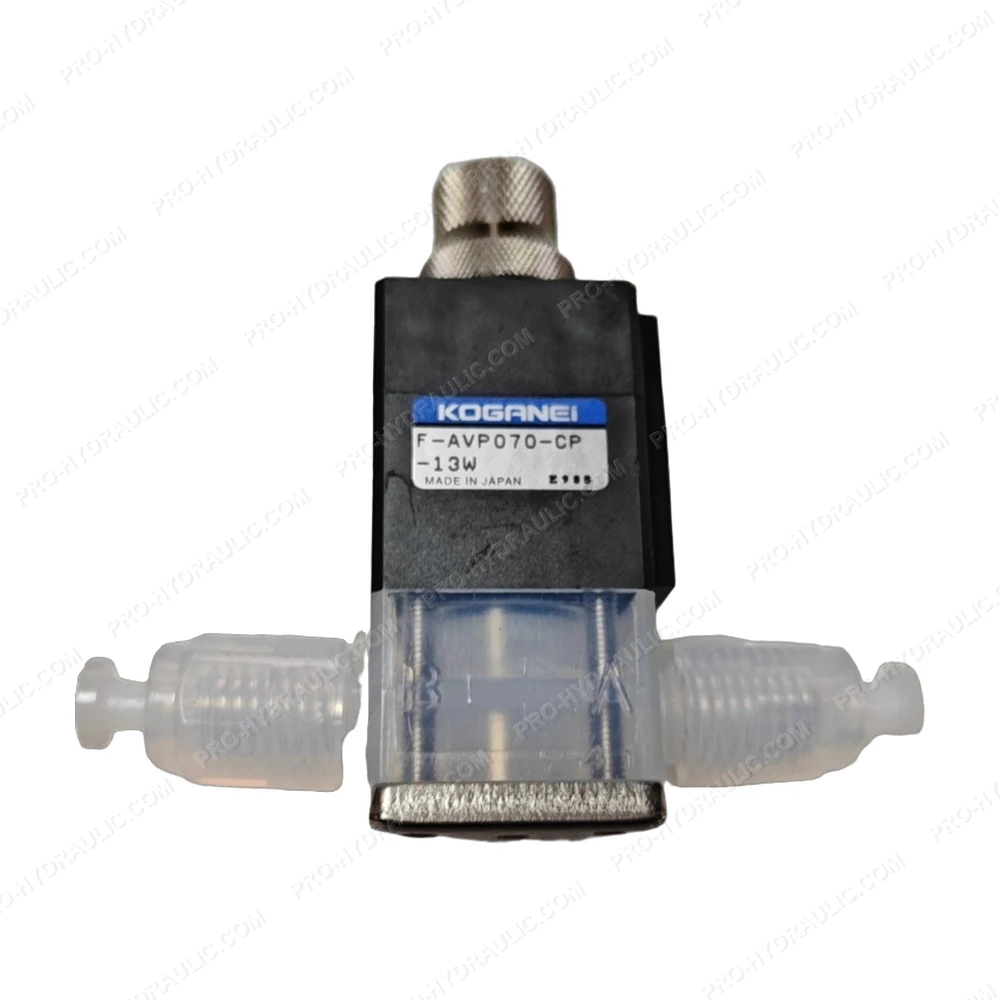

KOGANEI F-AVP070-CP-13W Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KOGANEI F-AVP070-CP-13W Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
