Product Overview
The KOGANEI F-SAVP070-13W is a high-precision pneumatic solenoid valve engineered by KOGANEI, a globally recognized Japanese manufacturer of advanced fluid control components. Operating on a direct-acting solenoid principle, this valve delivers reliable directional control of compressed air within industrial automation and process systems. Its compact body design and responsive electromagnetic actuation make it an ideal solution for precise cylinder control, actuator sequencing, and pneumatic circuit management in demanding manufacturing environments. The F-SAVP070-13W is designed for direct integration into manifold assemblies or standalone inline installation, offering fast response times and consistent sealing performance across its full service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | F-SAVP070-13W |
| Operating Pressure | Standard Industrial Grade (0.1 – 0.7 MPa / approx. 1 – 7 bar) |
| Mounting & Connection | Manifold / Sub-base Mounting, Standard KOGANEI Interface |
| Actuation Method | Direct-Acting Solenoid, Spring Return |
| Valve Function | 5-Port 2-Position / 3-Position Directional Control |
| Seal Material | NBR (Nitrile) / FKM (Fluorocarbon) depending on configuration |
| Body Material | Anodized Aluminum Alloy / Resin Composite |
| Response Time | Fast Switching (typically < 20 ms) |
| Media | Filtered Compressed Air (non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Performance: The direct-acting solenoid mechanism ensures rapid and repeatable valve actuation, enabling accurate directional control of pneumatic actuators with minimal response delay. The spool and seal design provides tight shut-off and consistent flow characteristics across the operating pressure range.
- Industrial Reliability: Constructed with robust anodized aluminum or high-strength resin bodies and premium NBR/FKM seals, the F-SAVP070-13W is built for continuous duty in severe industrial environments. The solenoid coil is engineered for high cycle life and thermal stability, reducing downtime and maintenance costs.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KOGANEI standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Operating on a direct-acting solenoid principle, this valve delivers reliable directional control of compressed air within industrial automation and process systems.
PRODUCT IMAGES

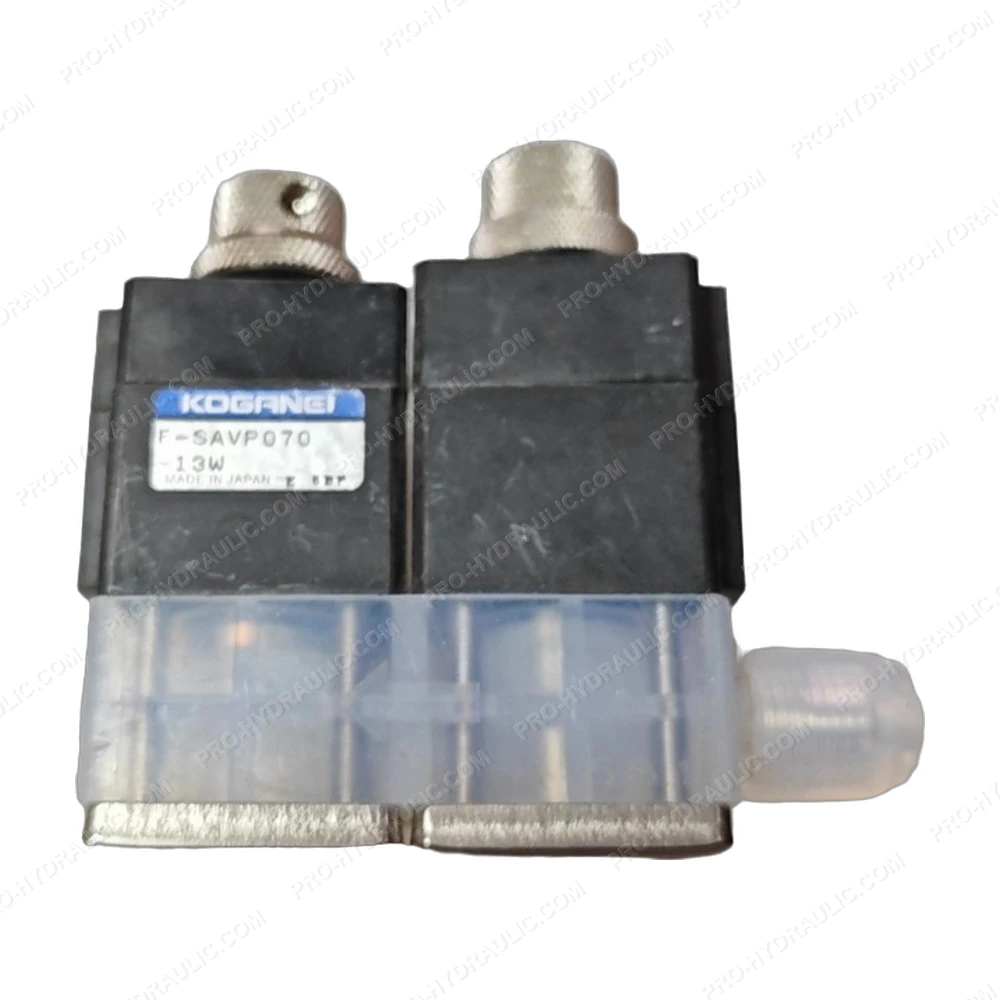

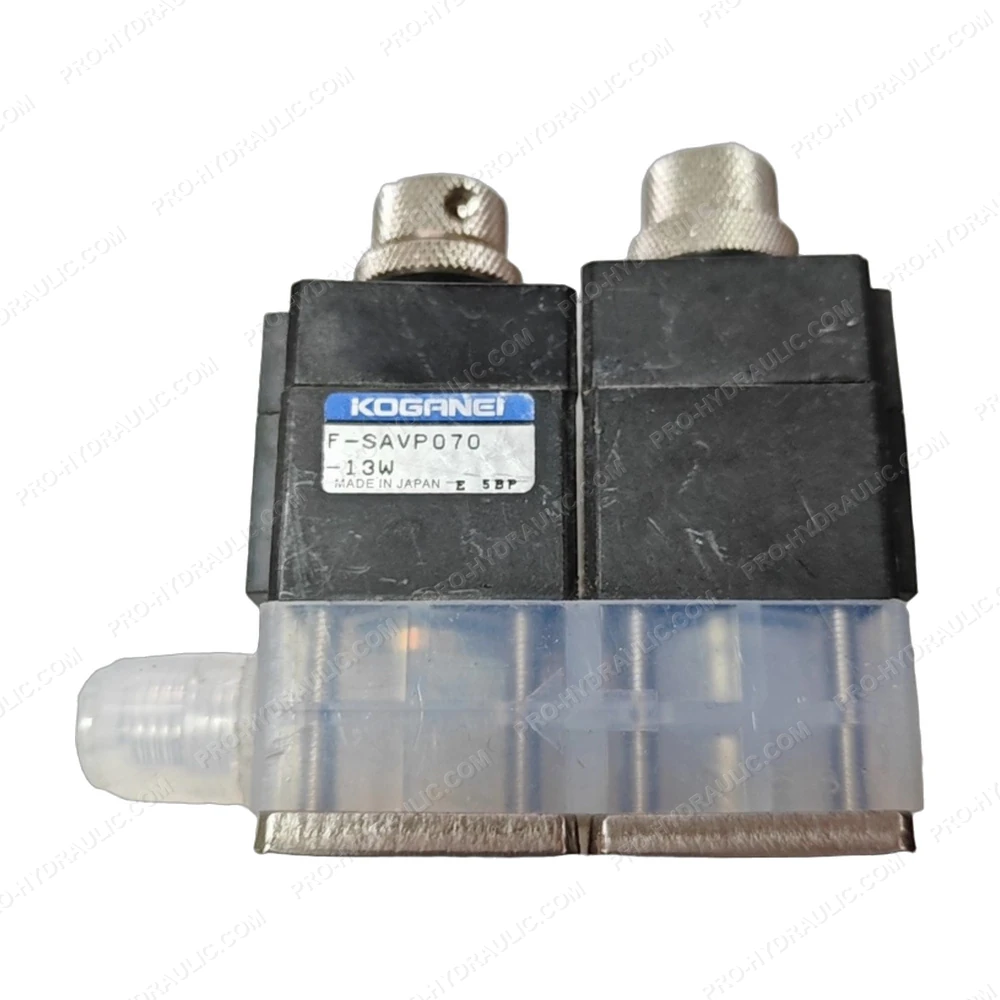

KOGANEI F-SAVP070-13W Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KOGANEI F-SAVP070-13W Solenoid Valve. This Japan-made 24V DC hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
