Product Overview
The KOMPASS D5-02-2B2 is a direct-acting solenoid-operated directional control valve engineered for precise flow routing in industrial hydraulic circuits. As a standard directional control valve within the KOMPASS D5 series, it utilizes a hardened, precision-ground spool housed in a high-strength cast iron body to shift flow paths between ports on command. The D5-02-2B2 designation indicates a 02 (NG6 / CETOP 3) size valve with a 2B2 spool configuration, providing a two-position, spring-offset function with a closed-center or tandem-center flow pattern depending on spool variant. This valve serves as a critical control element in hydraulic power units, machine tool circuits, and mobile equipment, enabling reliable start, stop, and direction change of actuators with fast solenoid response and minimal internal leakage.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Standard Solenoid Directional Control Valve |
| Model Designation | KOMPASS D5-02-2B2 |
| Valve Size / Interface | NG6 (CETOP 3 / ISO 4401-03) Subplate Mounting |
| Spool Configuration | 2B2 — Two-Position, Spring Offset, Closed/Tandem Center |
| Actuation Type | Single Solenoid, Spring Return |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow | Up to 40 L/min (Nominal at Δp 5 bar) |
| Solenoid Voltage | Standard AC/DC Coils (e.g., 24V DC, 110V AC, 220V AC) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Seal Material | NBR (Buna-N) Standard; FKM Optional |
Engineering Features & Advantages
- Precision Spool Metering: Hardened and ground spool with matched bore clearance ensures accurate flow control, minimal internal leakage, and consistent shift response across the full pressure range.
- Fast Solenoid Response: High-efficiency solenoid actuator delivers rapid energization and de-energization, enabling precise timing in automated cycling and sequencing operations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KOMPASS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a standard directional control valve within the KOMPASS D5 series, it utilizes a hardened, precision-ground spool housed in a high-strength cast iron body to shift flow paths between ports on command.
PRODUCT IMAGES

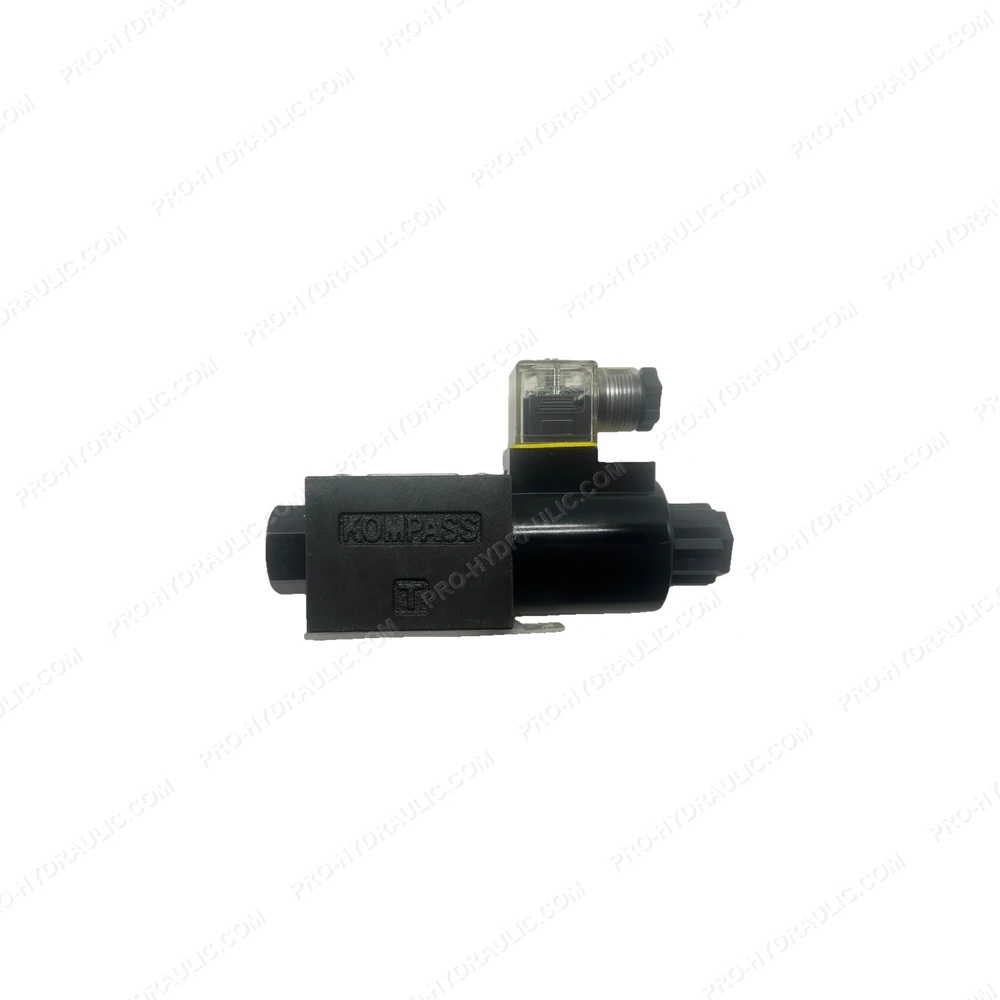

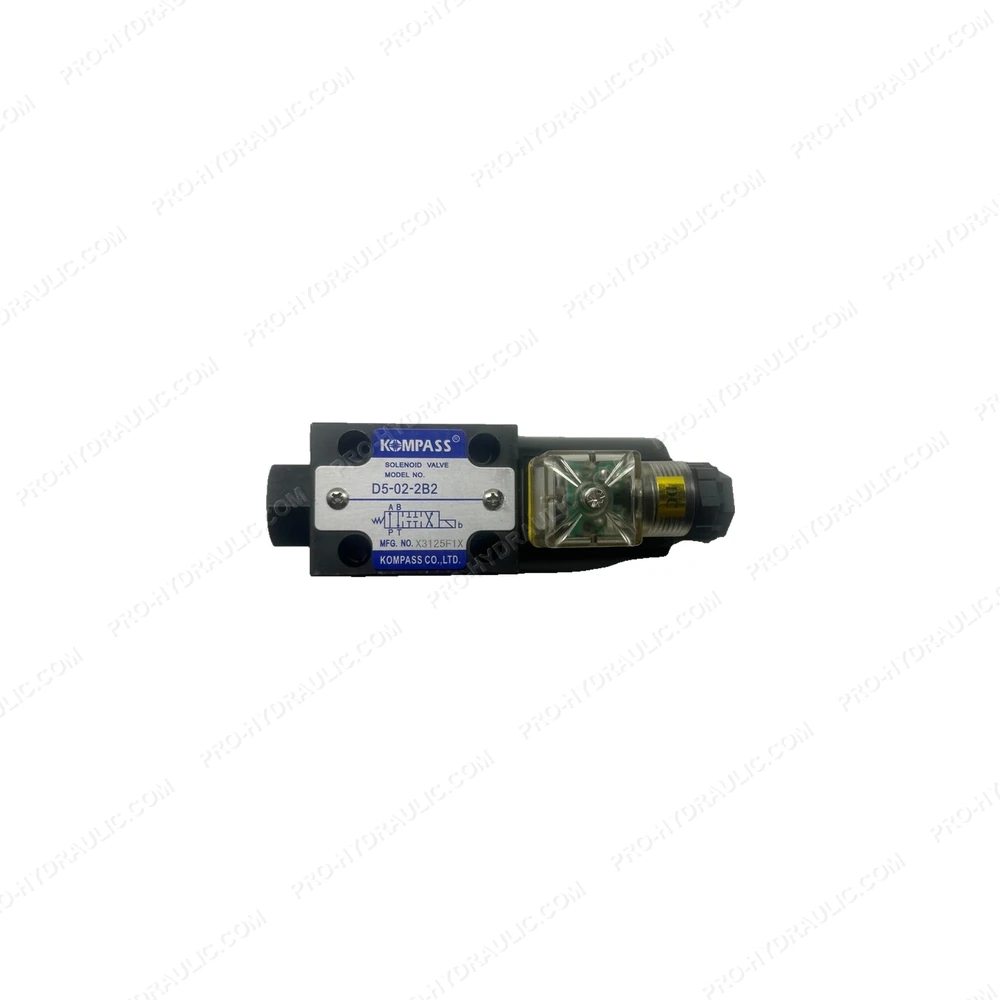

KOMPASS D5-02-2B2 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KOMPASS D5-02-2B2 Solenoid Directional Valve. This German-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
