Product Overview
The KOMPASS D5-02-3C4 is a solenoid-operated directional control valve engineered for precise flow routing in industrial hydraulic circuits. As a standard directional control valve within the KOMPASS D5 series, it utilizes a spring-centered, solenoid-actuated spool design to shift hydraulic flow between ports for extension, retraction, and neutral hold functions. The “3C4” spool configuration provides a closed-center, four-way, three-position operating characteristic, making it suitable for controlling double-acting cylinders and bidirectional hydraulic motors where load holding and precise directional control are required. This valve serves as a critical control element in manifold-mounted and subplate-mounted hydraulic power units, delivering dependable switching performance in continuous-duty industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Standard Directional Control Valve (Solenoid Operated) |
| Model Designation | D5-02-3C4 |
| Spool Configuration | 3-Position, 4-Way, Closed Center (3C4) |
| Actuation Type | Dual Solenoid with Spring Centering |
| Nominal Size | NG6 / CETOP 3 / ISO 4401-03 Subplate Mounting |
| Operating Pressure | Up to 315 bar (Port P, A, B) / 160 bar (Port T) |
| Rated Flow | Up to 60 L/min (dependent on spool and pressure drop) |
| Solenoid Voltage | Standard AC/DC Coils Available (e.g., 24V DC, 110V AC, 220V AC) |
| Mounting & Connection | Subplate Mounted per ISO 4401-03 / DIN 24340-A6 |
| Seal Material | NBR (Buna-N) Standard; FKM Optional for High-Temperature Service |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
| Operating Temperature | -20°C to +70°C |
Engineering Features & Advantages
- Precision Performance: The standard directional control valve (solenoid operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original KOMPASS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve serves as a critical control element in manifold-mounted and subplate-mounted hydraulic power units, delivering dependable switching performance in continuous-duty industrial environments.
PRODUCT IMAGES

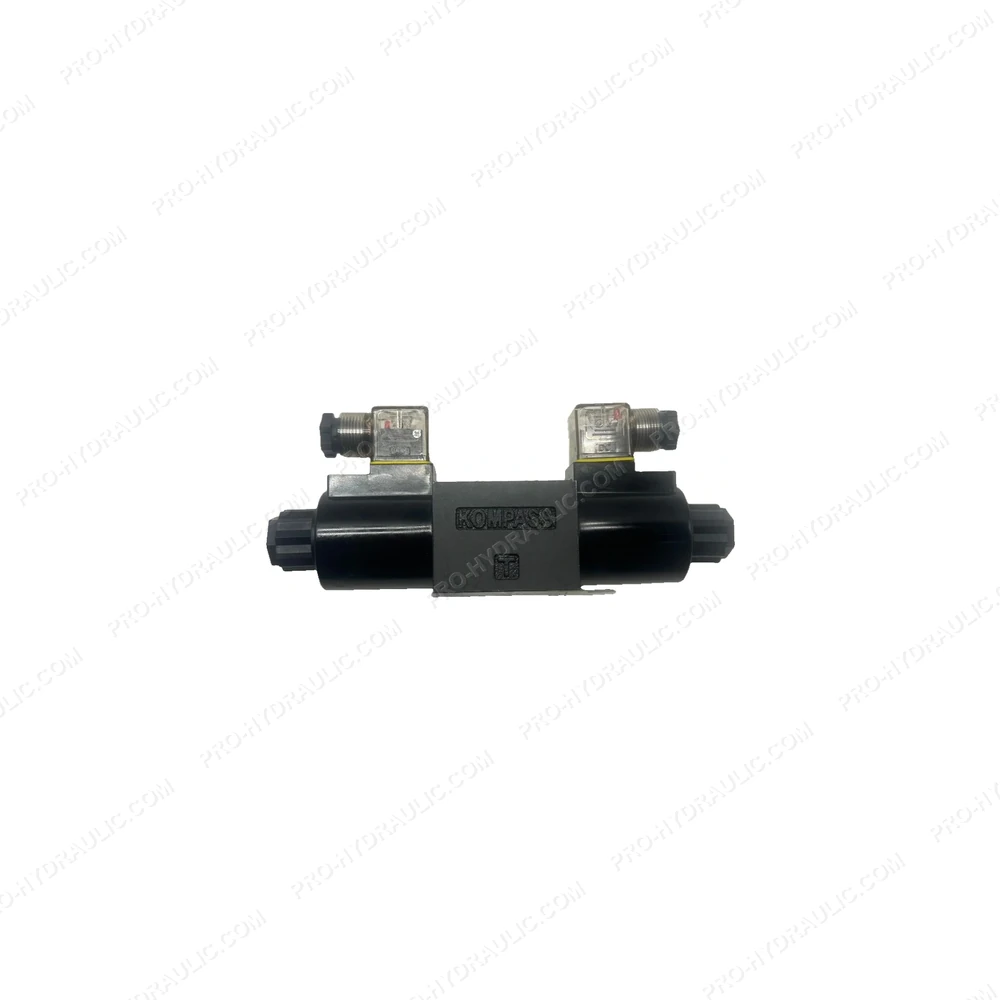

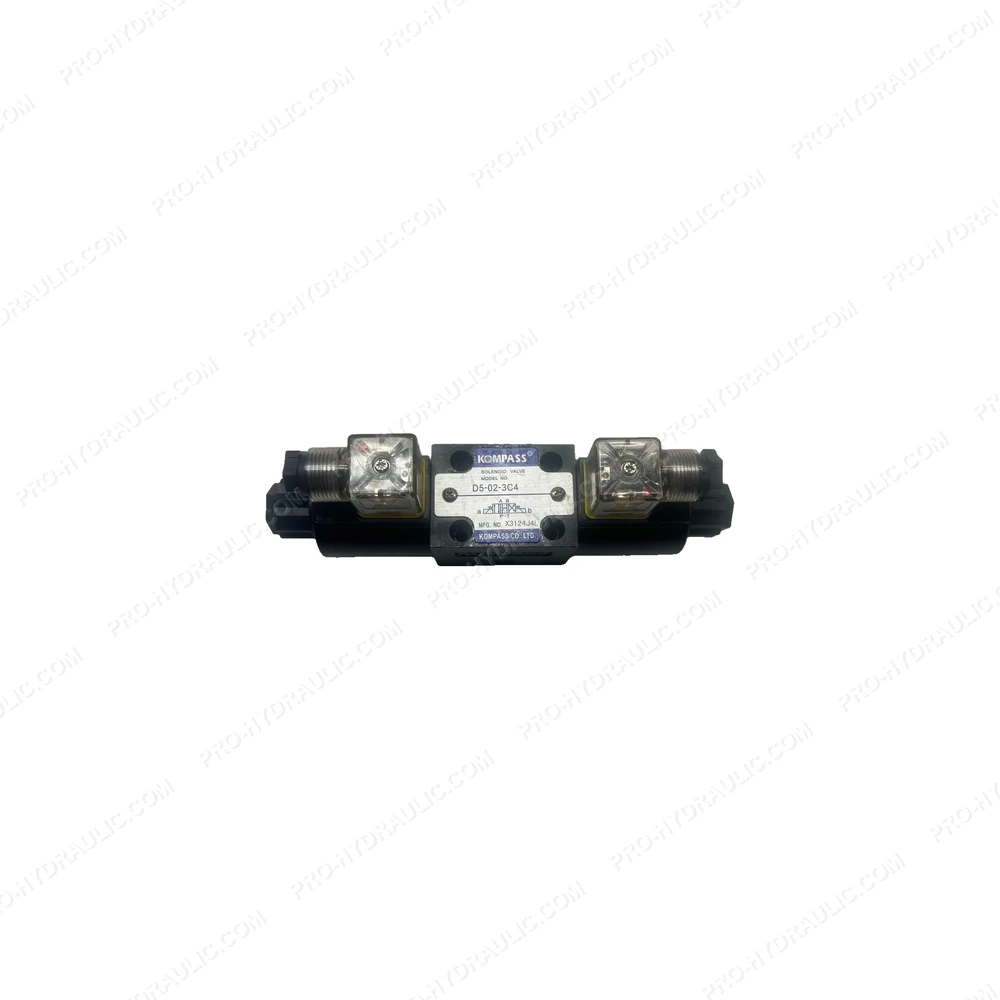

KOMPASS D5-02-3C4 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KOMPASS D5-02-3C4 Solenoid Directional Valve. This German-made 24V DC hydraulic component features a 4-way, 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
