The KONAN SC6-04-10A is a heavy-duty industrial pneumatic control valve engineered for precise directional control of compressed air in automated process systems. This 5-port, 2-position solenoid valve features a robust spool-and-sleeve design with a wet-pin armature, ensuring rapid response and long service life under continuous duty cycles.
KONAN SC6-04-10A Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 5/2-way solenoid valve, internally piloted |
| Port Size | 1/4″ NPT (or G1/4 depending on variant) |
| Operating Pressure | 0.15 to 0.8 MPa (1.5 to 8 bar) |
| Flow Rate (Cv) | 0.9 |
| Voltage | 24 VDC (standard), other voltages available |
| Power Consumption | 2.5 W |
| Body Material | Anodized aluminum |
| Seal Material | NBR (Buna-N) |
| Mounting | Manifold or inline, ISO 15407-1 / CETOP 3 |
| Operating Temperature | -5°C to +50°C |
Key Engineering Features
- Wet-pin armature design for high switching frequency and extended life
- Precision-ground spool for minimal leakage and consistent response
- Manual override (non-locking) for system diagnostics
- Compact, lightweight aluminum body reduces mounting stress
- Surge suppression diode integrated in DIN connector
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation in food and beverage processing
- Material handling and sorting systems
- Textile and printing equipment
- General factory automation and robotics
For technical inquiries, dimensional drawings, or replacement support for KONAN SC6-04-10A, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

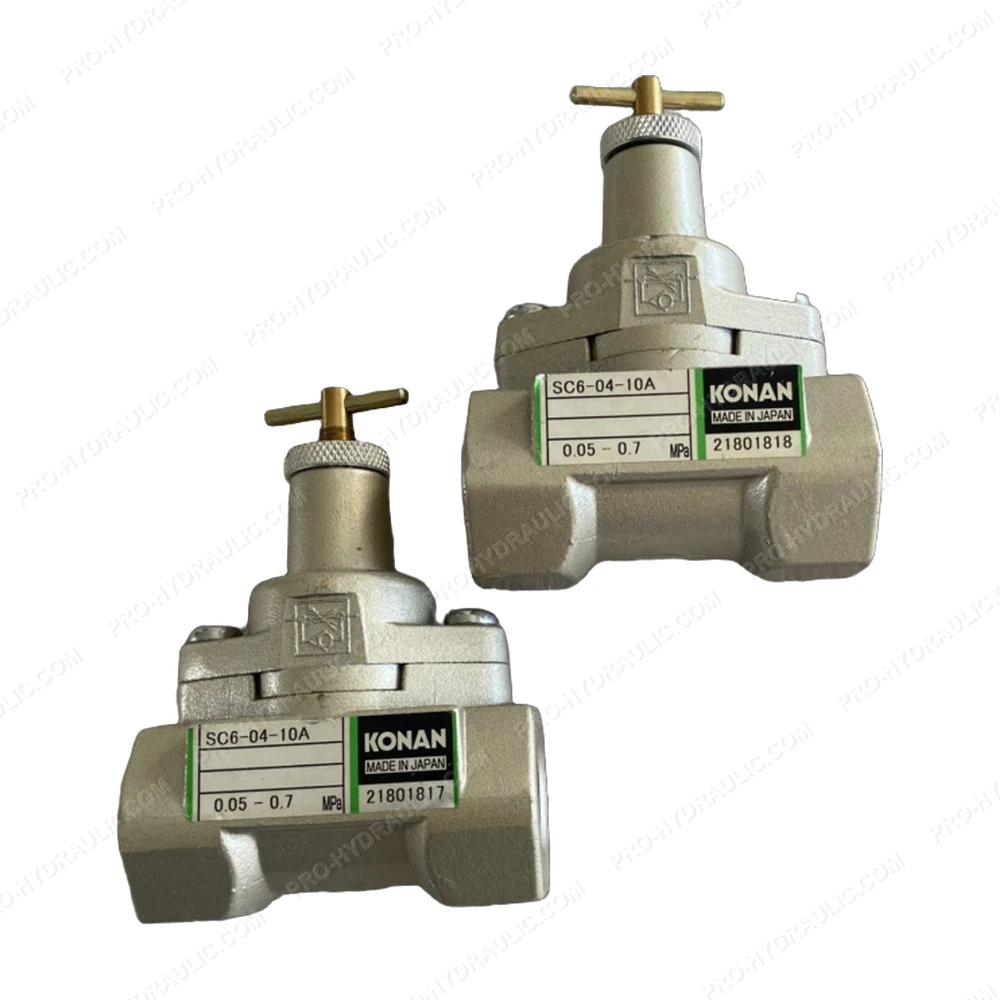

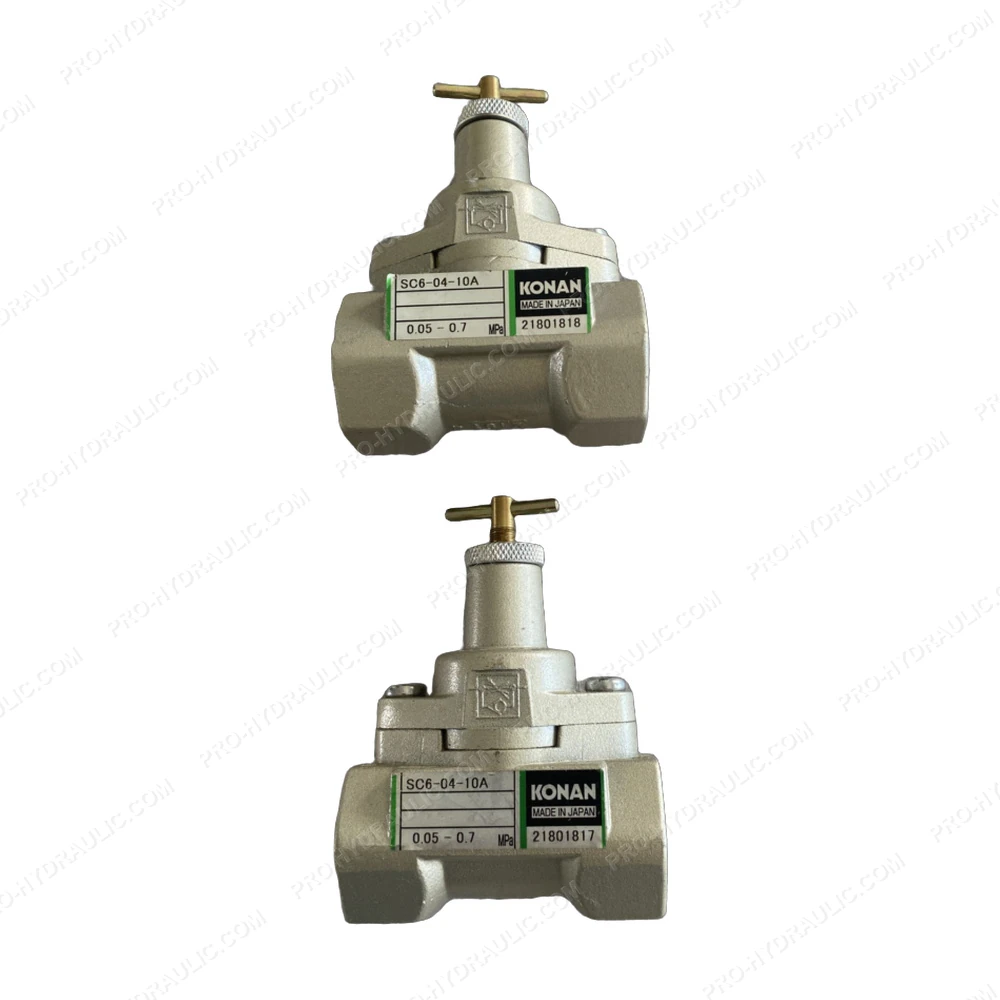

KONAN SC6-04-10A Pneumatic Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the KONAN SC6-04-10A Pneumatic Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
