Product Overview
The KPM KHU20EA20 / 345 is a high-performance standard directional control valve engineered by KPM for precise management of hydraulic fluid flow direction in demanding industrial circuits. This valve operates on a spool-type actuation principle, utilizing a precision-machined sliding spool within a hardened bore to direct pressurized oil to specific actuator ports. The KHU20EA20 / 345 is designed as a direct-acting, solenoid or manually actuated directional valve, providing reliable switching, holding, and unloading functions for single or double-acting cylinders and hydraulic motors. Its robust construction and standardized mounting interface make it a direct-fit replacement for OEM systems requiring dependable directional control in continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Standard Directional Control Valve |
| Model Designation | KHU20EA20 / 345 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate or Manifold Mounting) |
| Spool Configuration | Precision-ground sliding spool, multiple position options |
| Actuation Method | Solenoid / Manual Override (dependent on configuration) |
| Flow Capacity | Optimized for nominal industrial flow rates (up to 80 L/min class) |
| Seal Type | NBR / FKM high-pressure seals for mineral oil compatibility |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and bore assembly ensures minimal internal leakage, accurate flow metering, and repeatable directional switching for critical motion control sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a ductile iron or cast steel body that withstands high pressure spikes and mechanical shock.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standardized port patterns and solenoid voltage options, minimizing downtime during maintenance.
- Low Pressure Drop: Optimized internal flow passages reduce energy loss and heat generation, improving overall system efficiency and extending fluid life.
- Versatile Actuation: Available with multiple solenoid voltages, manual overrides, and spring return or detent configurations to suit diverse control logic requirements.
Typical Industrial Applications
The KPM KHU20EA20 / 345 directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold open/close and injection sequences, metallurgical presses for ram advance and retract control, construction and marine hydraulics for boom, bucket, and steering circuits, and CNC machine tools for tool clamping, pallet changing, and tailstock actuation. Its robust spool design also suits mobile equipment, agricultural machinery, and automated assembly lines where reliable directional control is essential.
PRODUCT IMAGES

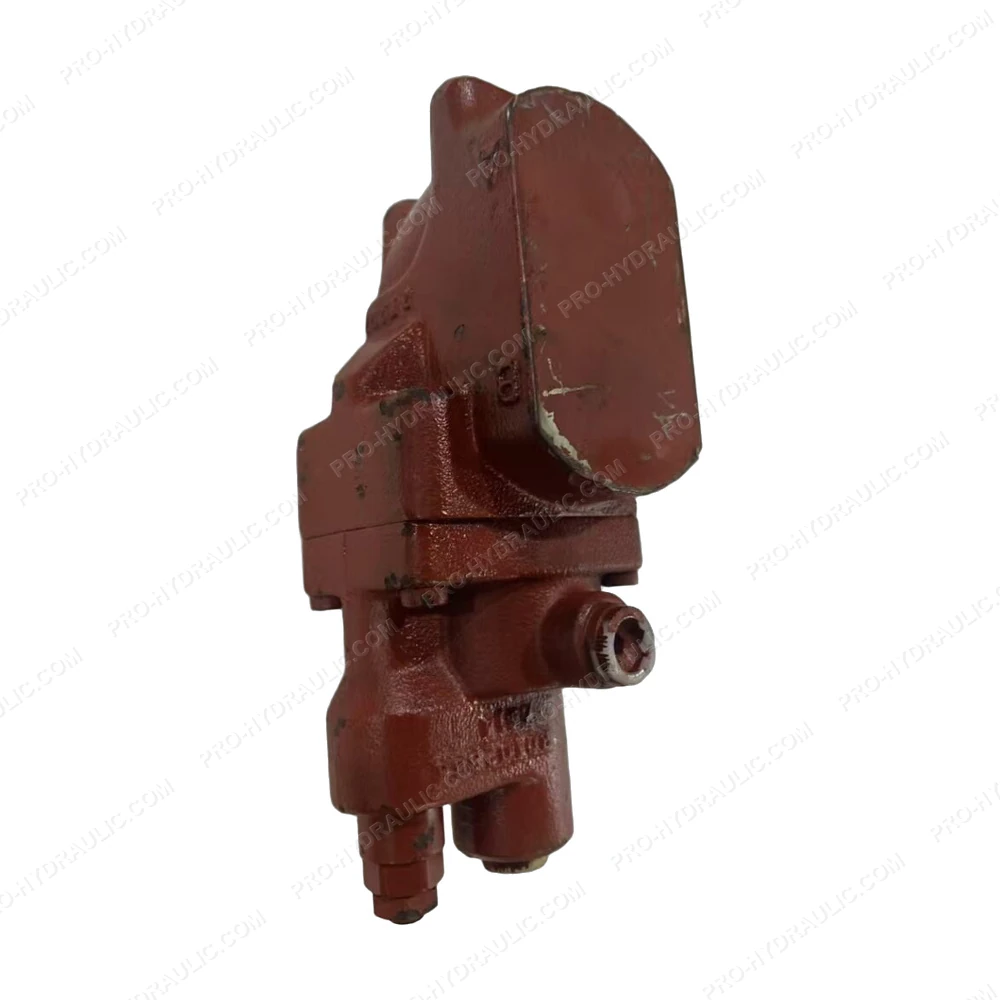

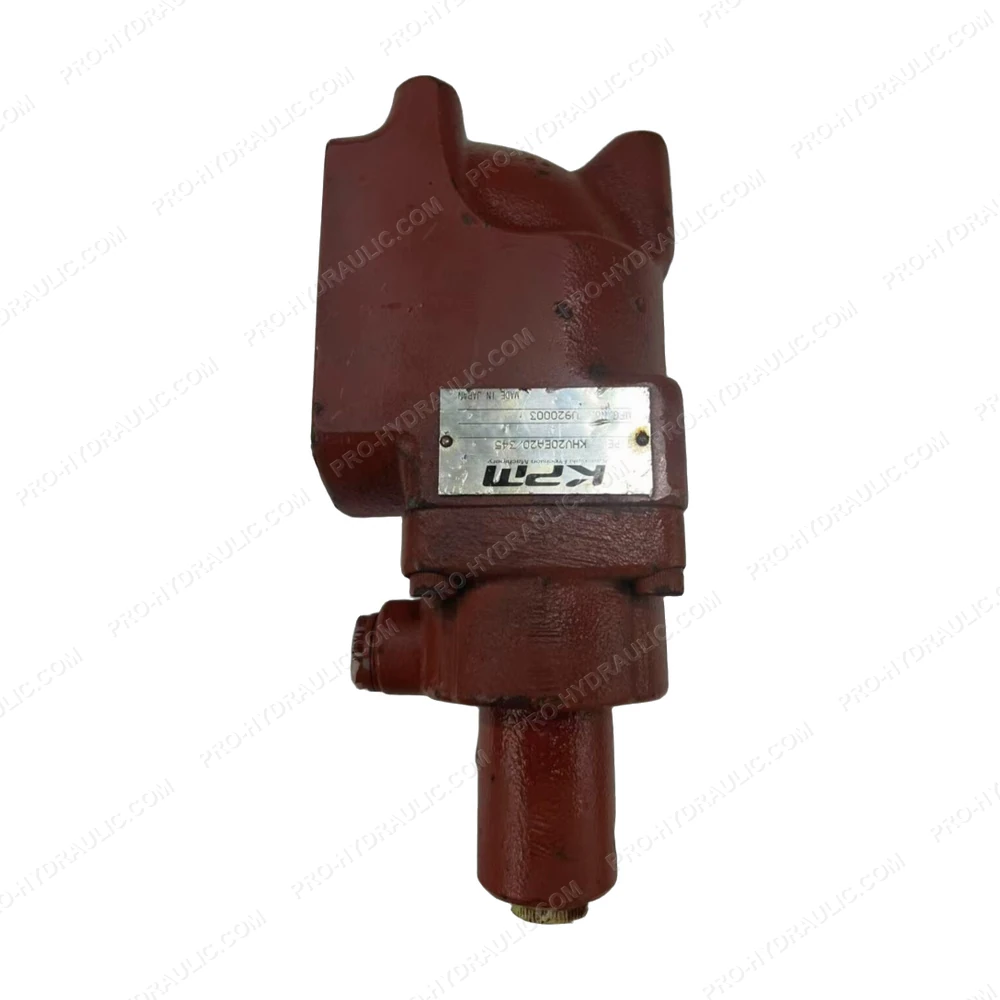

KPM KHU20EA20 / 345 Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KPM KHU20EA20 / 345 Solenoid Directional Control Valve. This German-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
