Product Overview
The KROM SCHRODER GIK 25R02-5 is a precision-engineered air/gas ratio control valve designed for industrial combustion systems. Manufactured by Krom Schroder (Honeywell), this valve maintains a constant air-to-gas ratio across the entire modulating range, ensuring optimal combustion efficiency and emissions control. The GIK series operates on a pneumatic proportional control principle, where the gas flow is mechanically linked to the air flow via a diaphragm actuator, providing accurate and repeatable ratio control without external power requirements. The model designation “25” indicates a nominal connection size of DN25 (1 inch), while “R02” specifies the ratio adjustment range and “5” denotes the spring range configuration. This valve is a critical component in industrial burner management systems, enabling precise fuel-air mixing for stable flame conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air/Gas Ratio Control Valve (Process & Pneumatic Valve) |
| Model Designation | GIK 25R02-5 |
| Nominal Size | DN25 (1″) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Ratio Adjustment Range | R02 Configuration (Factory Set, Field Adjustable) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Flanged or Threaded per DN25) |
| Actuation Type | Pneumatic Diaphragm Actuator (Air Signal Proportional) |
| Media Compatibility | Natural Gas, LPG, Air, and Neutral Gaseous Media |
Engineering Features & Advantages
- Precision Ratio Control: Maintains a constant air/gas ratio across the full modulating range, ensuring stable combustion and minimizing excess air or unburned fuel.
- Pneumatic Proportional Operation: Utilizes a diaphragm actuator that responds directly to air pressure signals, eliminating the need for external electrical power or complex control loops.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction materials resistant to corrosion and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without system modification.
- Adjustable Ratio Setting: The R02 configuration allows precise field adjustment of the air-to-gas ratio to match specific burner requirements and fuel properties.
- Compact & Maintenance-Friendly: Space-saving design with accessible components for easy inspection, cleaning, and diaphragm replacement.
Typical Industrial Applications
This air/gas ratio control valve is widely used in industrial combustion systems, including: industrial furnaces and kilns for precise temperature control and fuel efficiency; boiler systems in power plants and process industries requiring stable air-fuel ratios
PRODUCT IMAGES

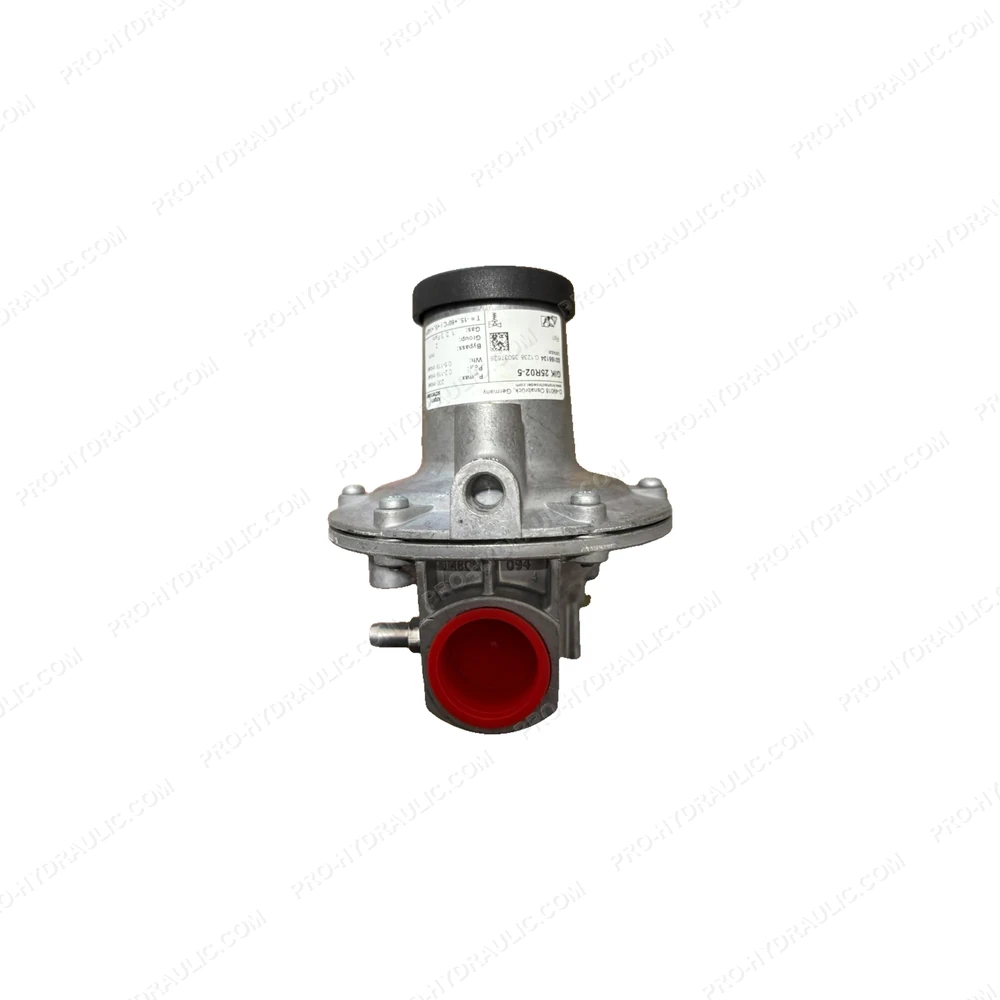

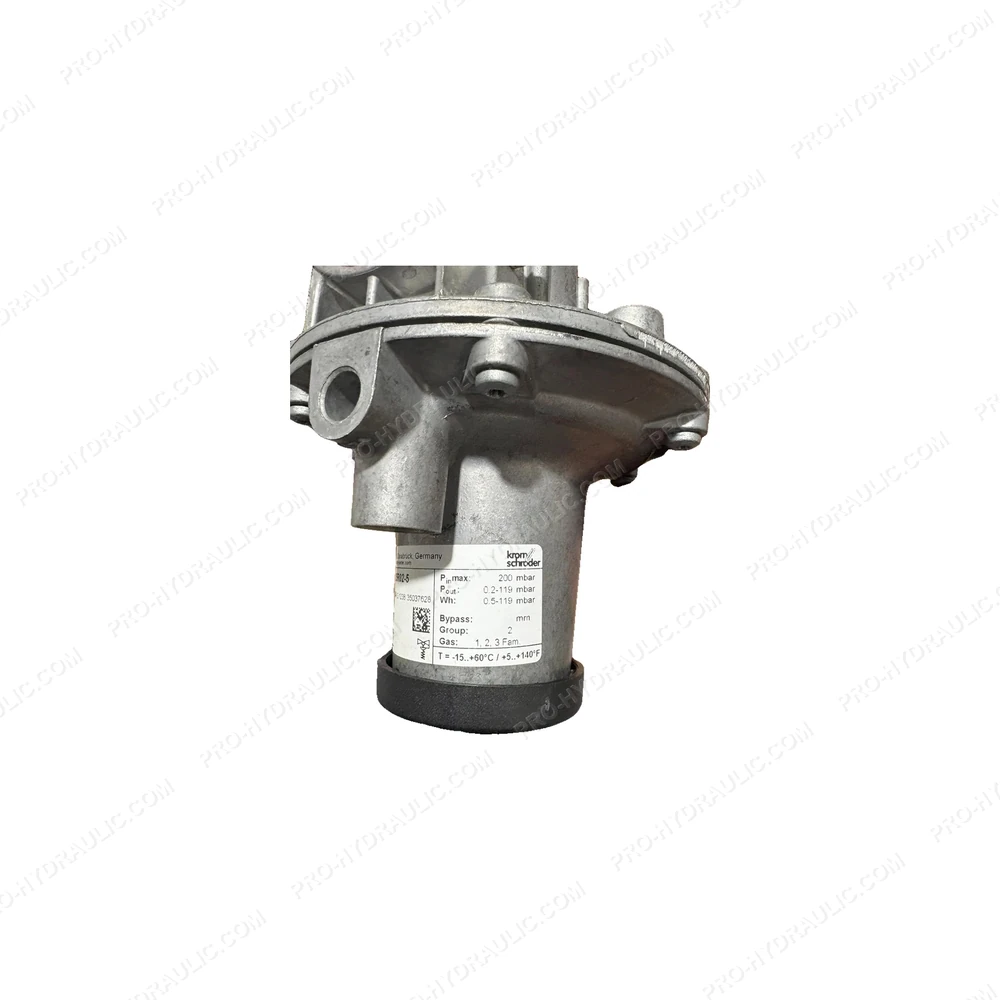

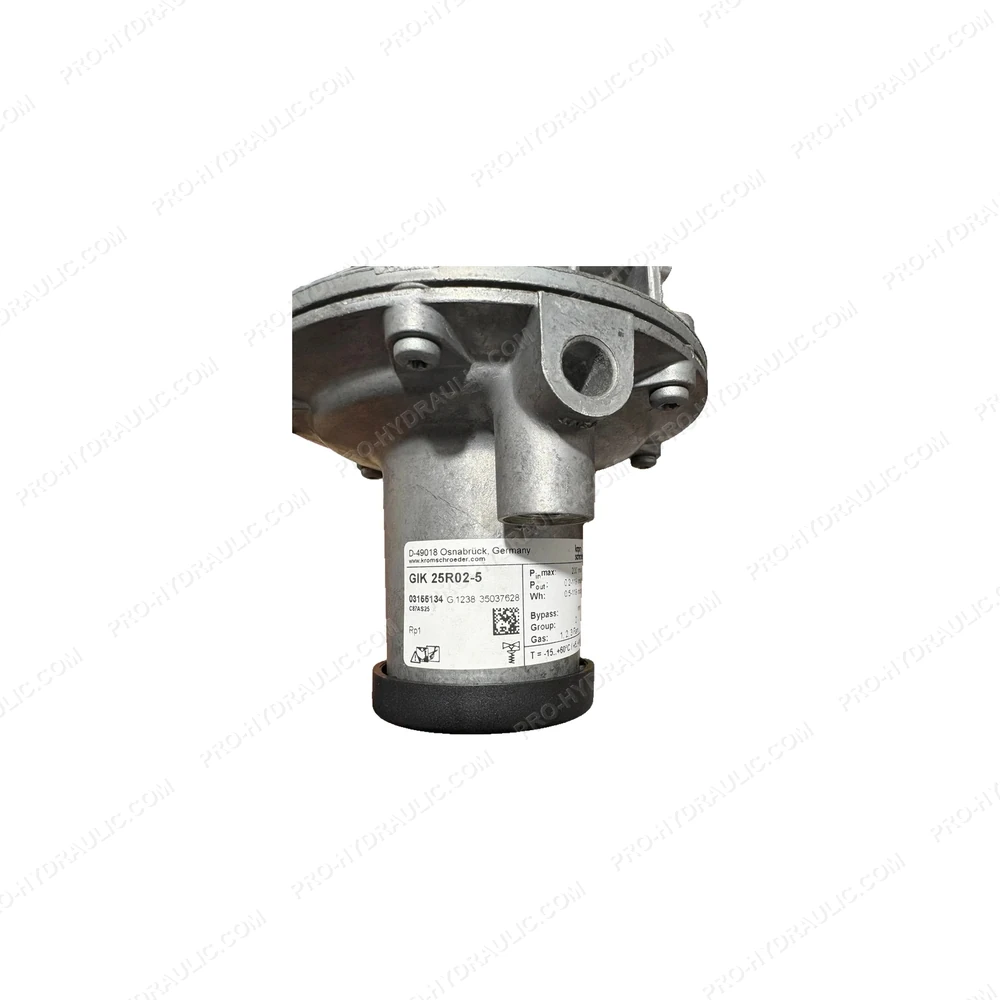

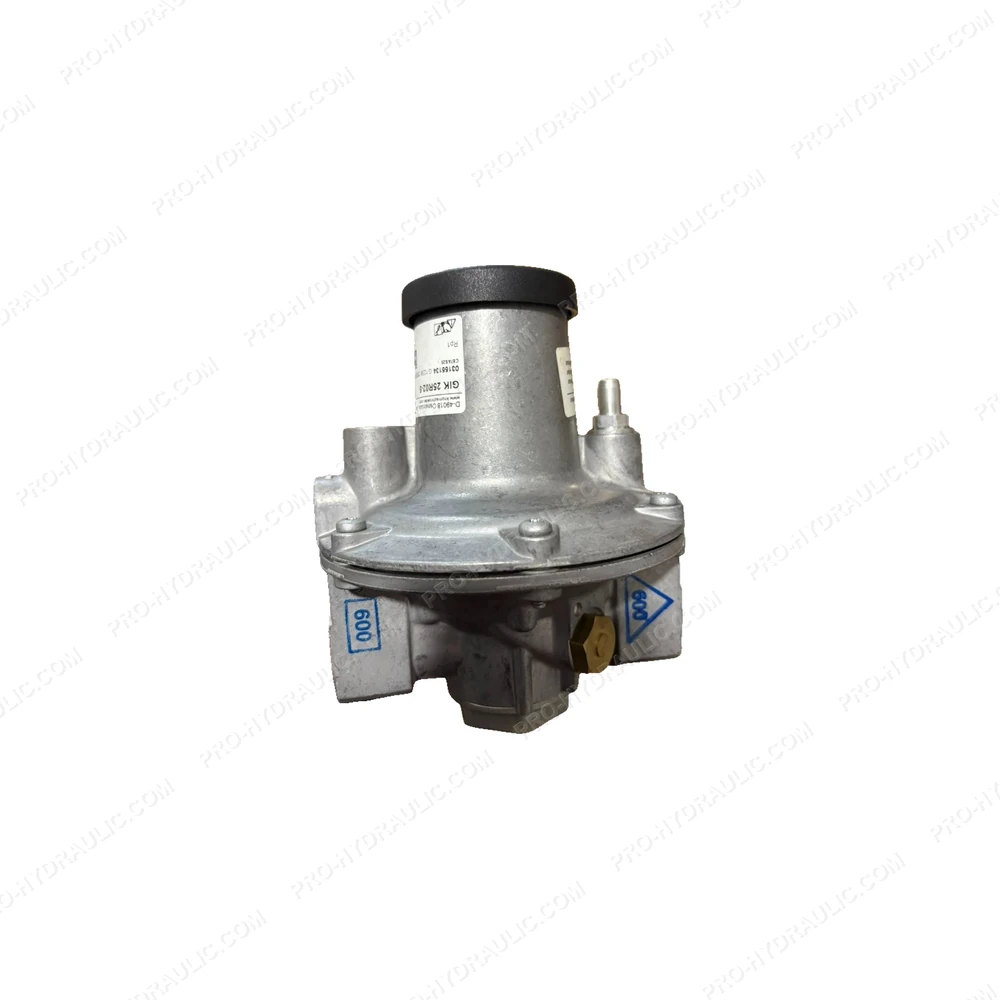

KROM SCHRODER GIK 25R02-5 Air/Gas Ratio Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine KROM SCHRODER GIK 25R02-5 Solenoid Directional Seat Valve. This German-made hydraulic component features a robust poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
