The LANNY GMBH E5B25ADM V3 is a heavy-duty industrial proportional control valve engineered for precise, continuous modulation of pneumatic flow and pressure in demanding process environments. It converts an electrical input signal into a proportional pneumatic output, enabling smooth, stepless control of actuators, cylinders, and other downstream equipment.
LANNY GMBH E5B25ADM V3 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Proportional Control Valve |
| Brand | LANNY GMBH |
| Model | E5B25ADM V3 |
| Actuation | Proportional solenoid, wet-pin armature |
| Mounting Standard | ISO 4401 / CETOP 3 (NG6) |
| Spool Type | Proportional, closed-center |
| Fluid | Compressed air, filtered and lubricated or non-lubricated |
| Port Size | 1/4″ BSPP (G1/4) |
| Operating Pressure | Up to 10 bar |
| Ambient Temperature | -10 °C to +60 °C |
| Coil Voltage | 24 V DC (standard) |
| Protection Class | IP65 |
Key Engineering Features
- Proportional solenoid with wet-pin armature for low hysteresis and high repeatability
- Closed-center spool design minimizes leakage and maintains actuator position on signal loss
- ISO 4401 / CETOP 3 mounting interface for direct integration into standard manifolds
- Rugged construction with IP65-rated coil for harsh industrial environments
- Compatible with common analog input signals (0–10 V, 4–20 mA) via external amplifier card
Industrial Applications
- Position and force control of pneumatic actuators and cylinders
- Flow and pressure regulation in process automation systems
- Web tension and dancer roll control in converting and packaging machinery
- Soft-start and emergency-stop functions in safety-related pneumatic circuits
- General industrial automation requiring stepless pneumatic modulation
For technical inquiries, dimensional drawings, or replacement support for LANNY GMBH E5B25ADM V3, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

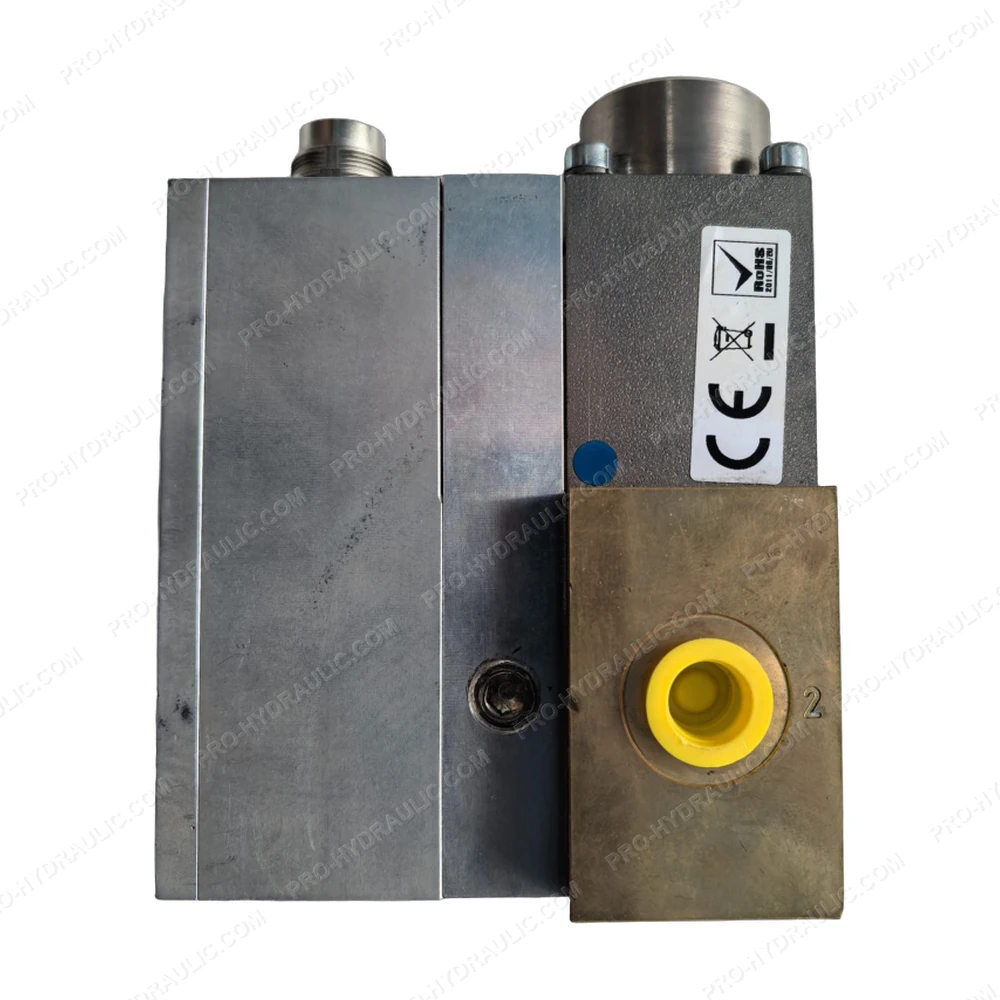

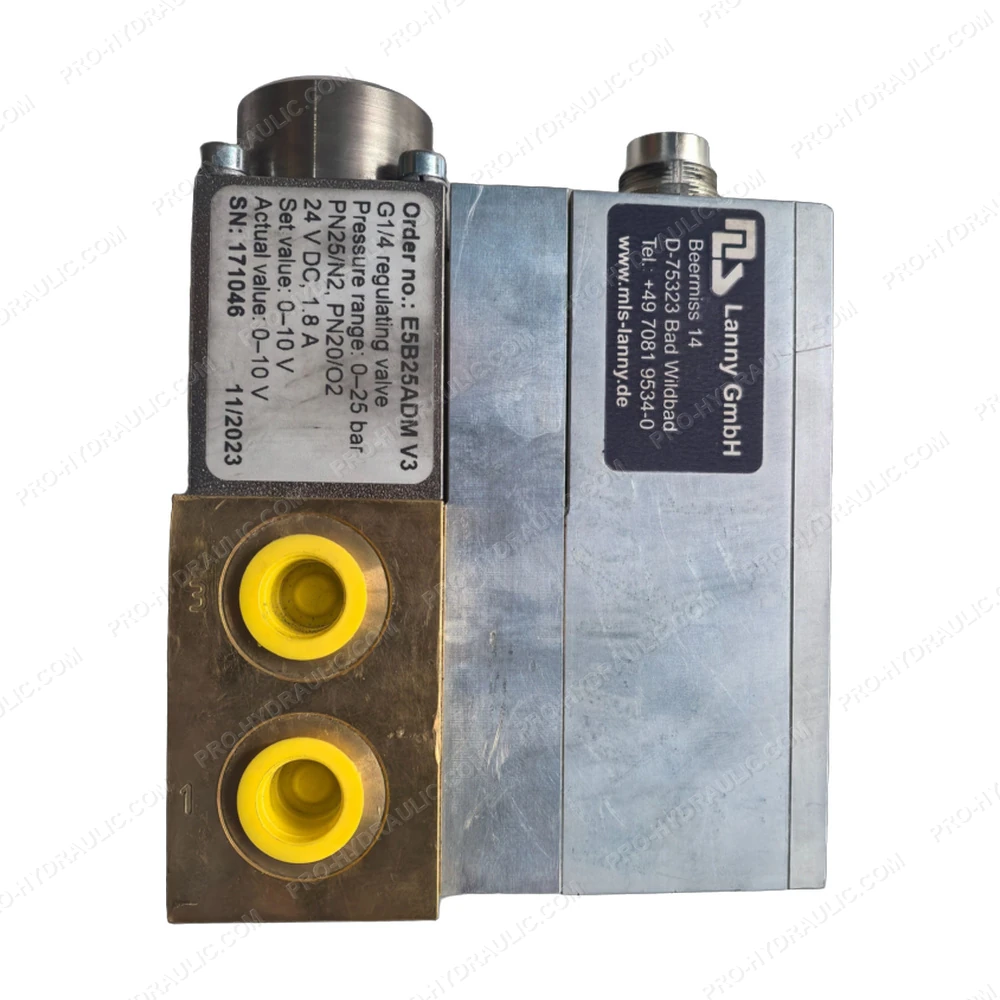

LANNY GMBH E5B25ADM V3 Proportional Control Valve
