Product Overview
The LEYBOLD TW 250/200/40 (Part No. 800160V0020) is a high-performance turbomolecular vacuum pump engineered for demanding industrial vacuum generation and process gas handling systems. Operating on a multi-stage turbomolecular rotor principle, this pump delivers exceptional compression ratios and ultra-high vacuum performance for critical industrial processes. As a precision-engineered component within the Pro-Hydraulic portfolio, the TW 250/200/40 serves as a primary or booster vacuum source in systems requiring stable, oil-free vacuum conditions. Its robust construction and advanced rotor dynamics make it a reliable choice for continuous-duty operation in semiconductor, coating, and metallurgical applications where vacuum integrity is paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Turbomolecular Vacuum Pump |
| Model Designation | TW 250/200/40 / 800160V0020 |
| Operating Pressure | Ultra-High Vacuum Range (Down to 10⁻⁸ mbar) |
| Mounting & Connection | Standard ISO-K / CF Flange Interface |
| Pumping Speed (N₂) | 250 L/s (High-Throughput Configuration) |
| Compression Ratio (N₂) | >10⁸ (Hydrogen >10⁴) |
| Rotor Design | Multi-Stage Turbomolecular Rotor with Precision Blades |
| Bearing System | Hybrid Ceramic / Magnetic Bearing Options |
| Cooling Method | Water or Air Cooling (Application Dependent) |
Engineering Features & Advantages
- Precision Performance: Advanced multi-stage rotor geometry delivers exceptional compression ratios and stable pumping speeds across the ultra-high vacuum range, ensuring process repeatability in critical industrial applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust bearing systems and thermal management designed to withstand demanding duty cycles in semiconductor, coating, and metallurgical environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original LEYBOLD OEM standards, including flange interfaces and electrical connections, ensuring seamless integration into existing vacuum systems.
- Oil-Free Operation: Eliminates hydrocarbon contamination risk, making it ideal for cleanroom-compatible and high-purity process applications.
- Optimized Rotor Dynamics: Precision-balanced rotor assembly minimizes vibration and acoustic noise, extending service life and reducing maintenance intervals.
Typical Industrial Applications
The LEYBOLD TW 250/200/40 turbomolecular vacuum pump is widely deployed in semiconductor manufacturing processes including physical vapor deposition (P
PRODUCT IMAGES

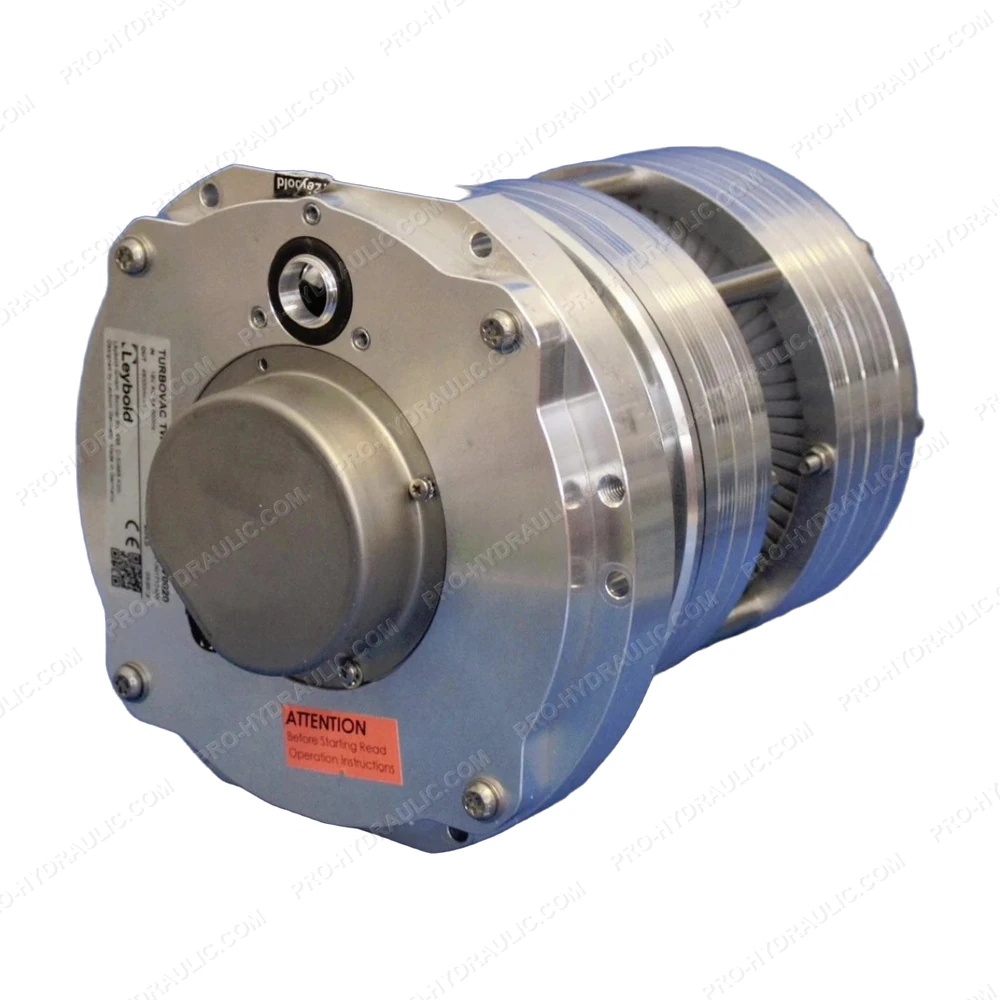

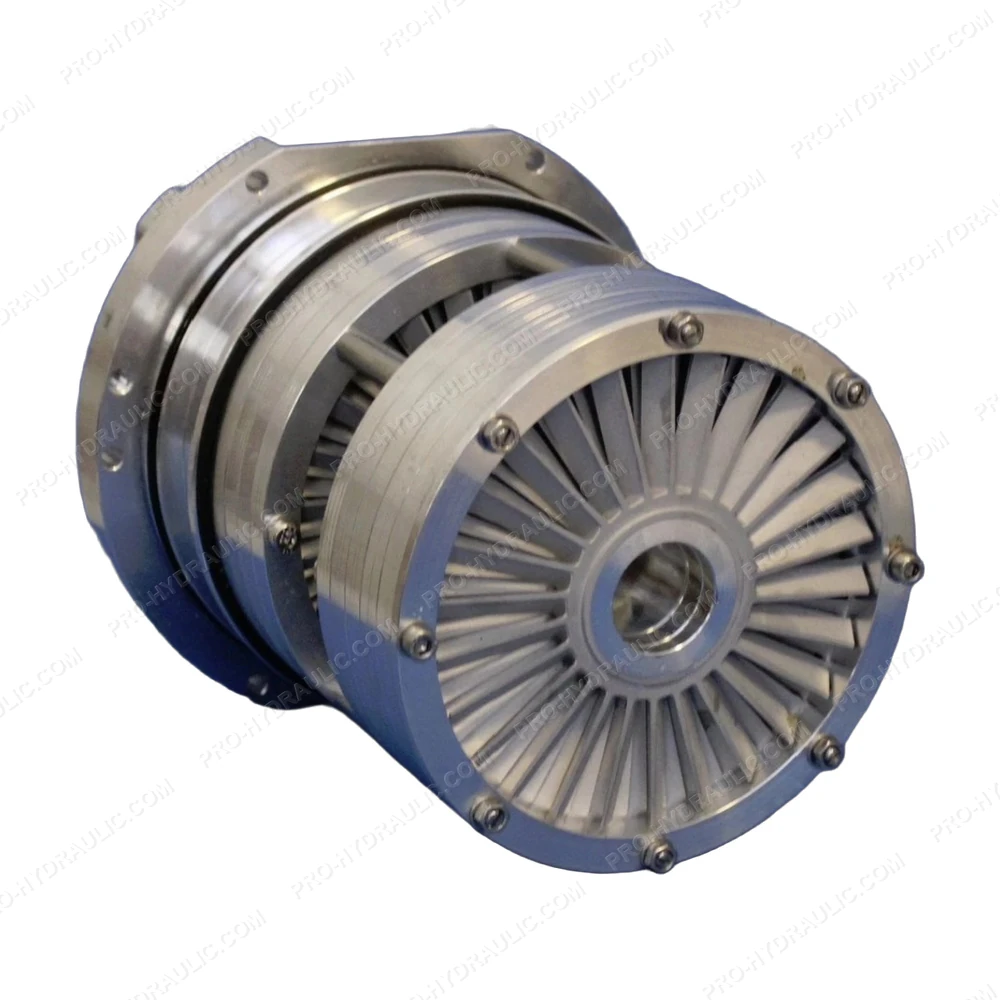

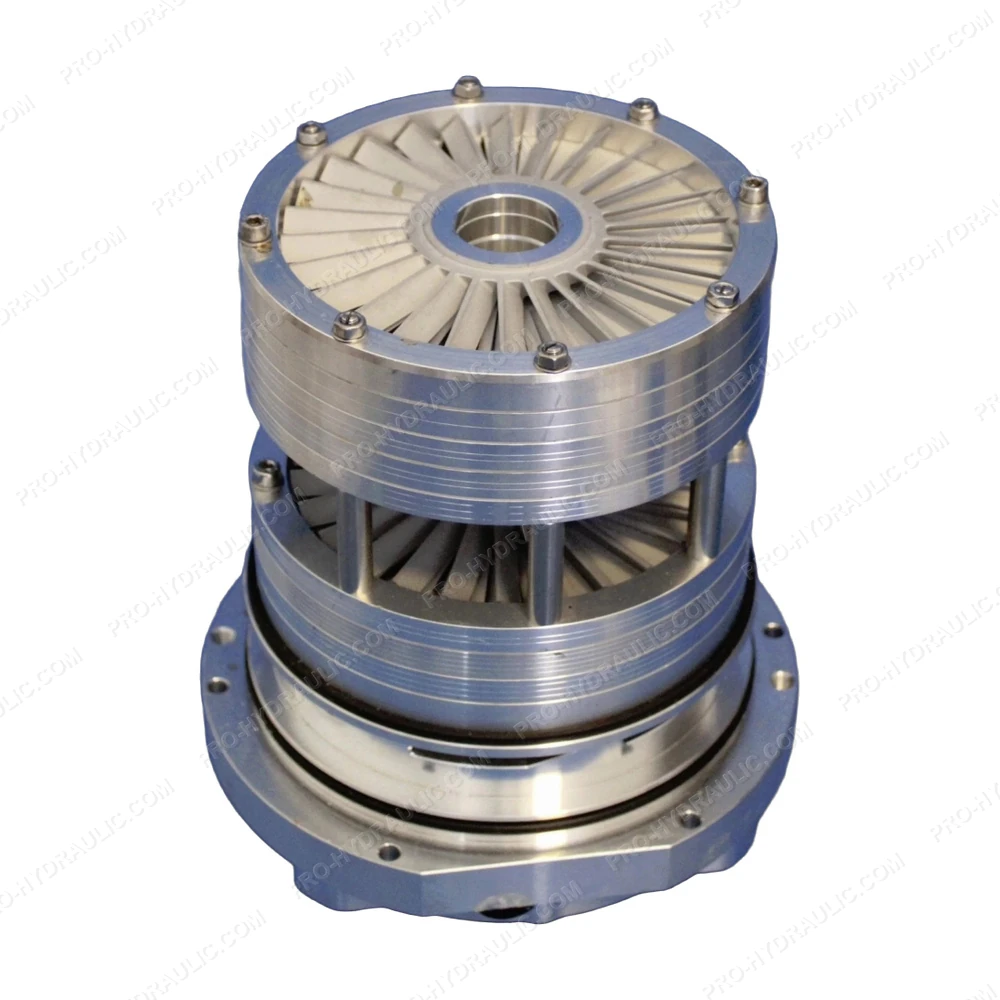

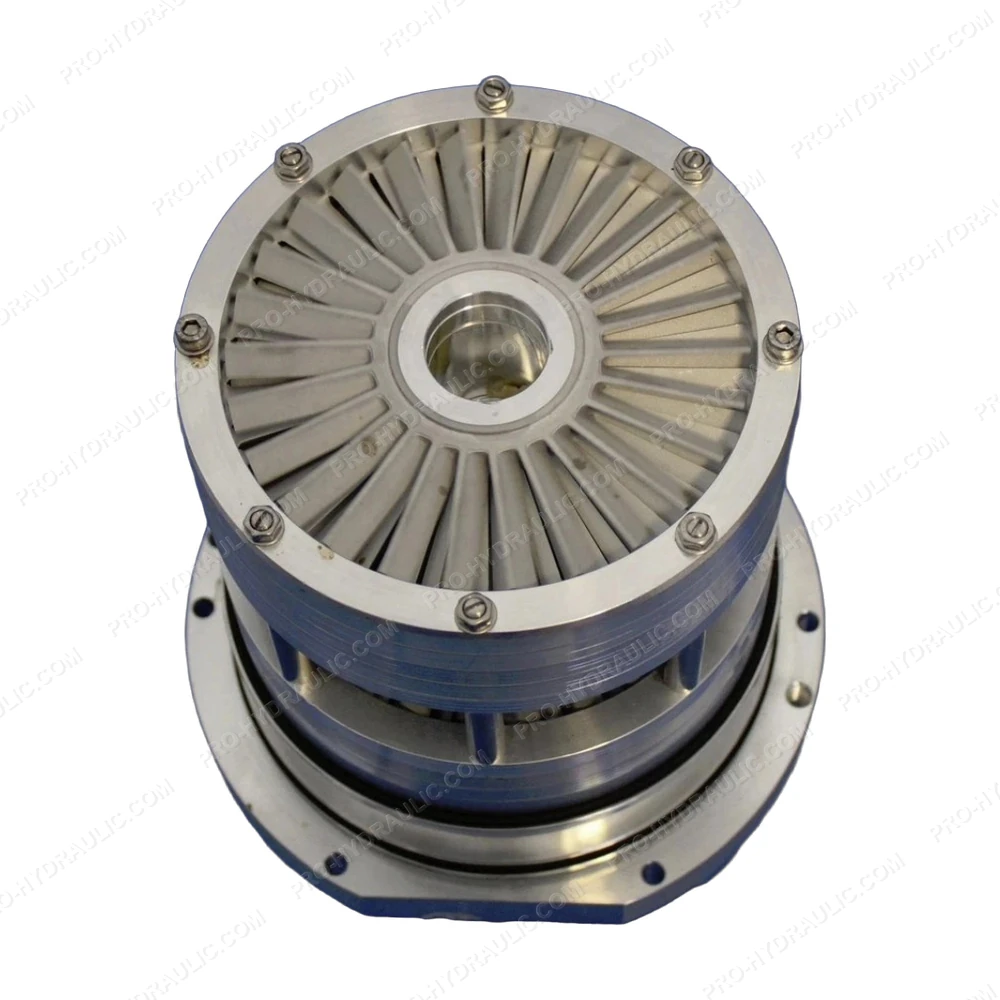

LEYBOLD TW 250/200/40 / 800160V0020 Turbomolecular Vacuum Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine LEYBOLD TW 250/200/40 / 800160V0020 Vacuum Pump. This Germany-made high-performance vacuum pump features a dual-stage rotary vane design, delivering oil-free, reliable vacuum for heavy-duty industrial processes.
