The MAC 34C-ABA-GDFA-1GA is a heavy-duty industrial micro solenoid valve engineered for high-cycle pneumatic control in compact manifold assemblies. It utilizes a balanced poppet design with a wet-pin armature and a 1/8″ NPT ported body, providing fast response and consistent shifting without dynamic seals in the air path.
MAC 34C-ABA-GDFA-1GA Technical Specifications
| Valve Type | 3-Way, 4-Port Micro Solenoid Valve |
|---|---|
| Actuation | Direct solenoid, wet-pin armature |
| Function | 3/2 normally closed, convertible to 3/2 normally open |
| Port Size | 1/8″ NPT |
| Flow Coefficient (Cv) | 0.10 |
| Operating Pressure Range | Vacuum to 150 psi |
| Coil Voltage | 24 VDC |
| Power Consumption | 1.8 W |
| Body Material | Anodized aluminum |
| Seal Material | Nitrile (Buna-N) |
| Mounting | Manifold or inline, sub-base |
| Operating Temperature | -18°C to 50°C (0°F to 122°F) |
Key Engineering Features
- Balanced poppet design eliminates seal wear and ensures consistent shifting
- Wet-pin armature construction for high cycle rates and long service life
- Compact 34C series body for high-density manifold mounting
- Convertible function without additional parts
- Low power consumption suitable for PLC and bus valve drivers
Industrial Applications
- Packaging and labeling machinery
- Automated assembly and pick-and-place systems
- Textile and printing equipment
- Food and beverage process control
- General pneumatic automation and actuator piloting
For technical inquiries, dimensional drawings, or replacement support for MAC 34C-ABA-GDFA-1GA, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

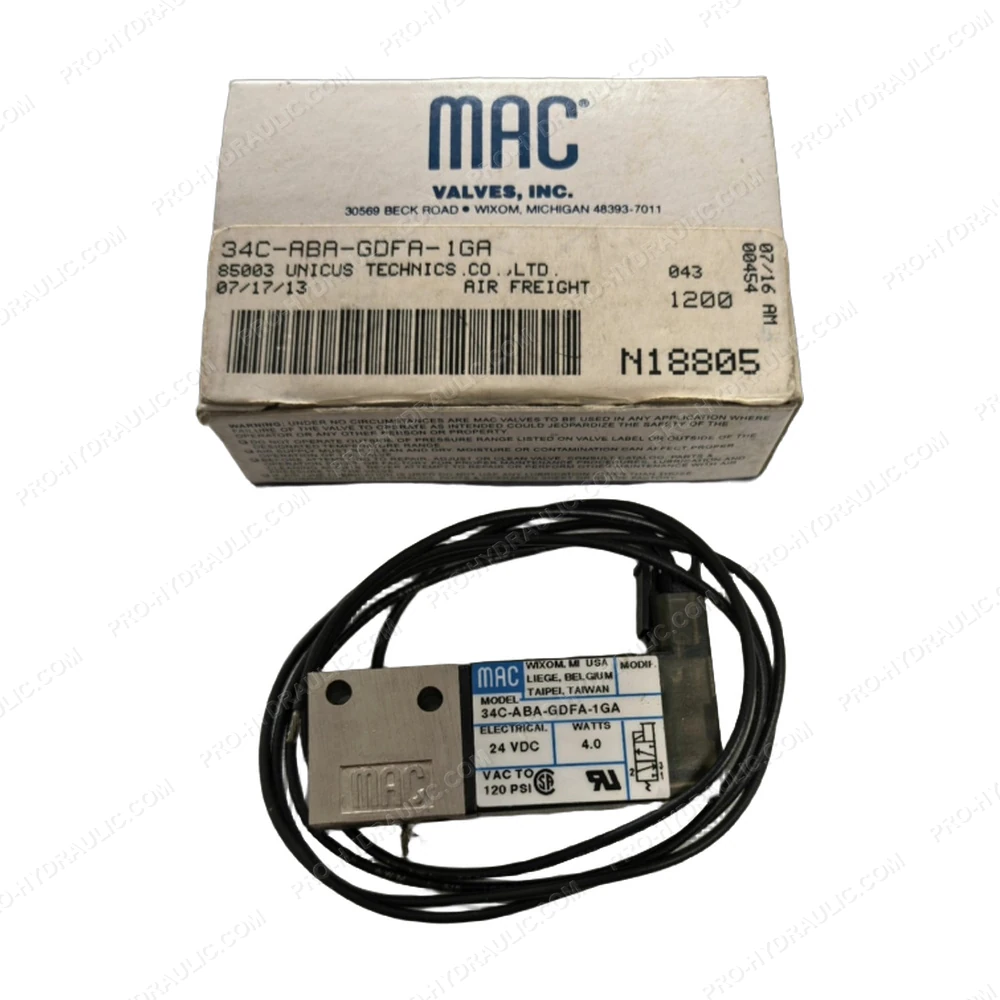

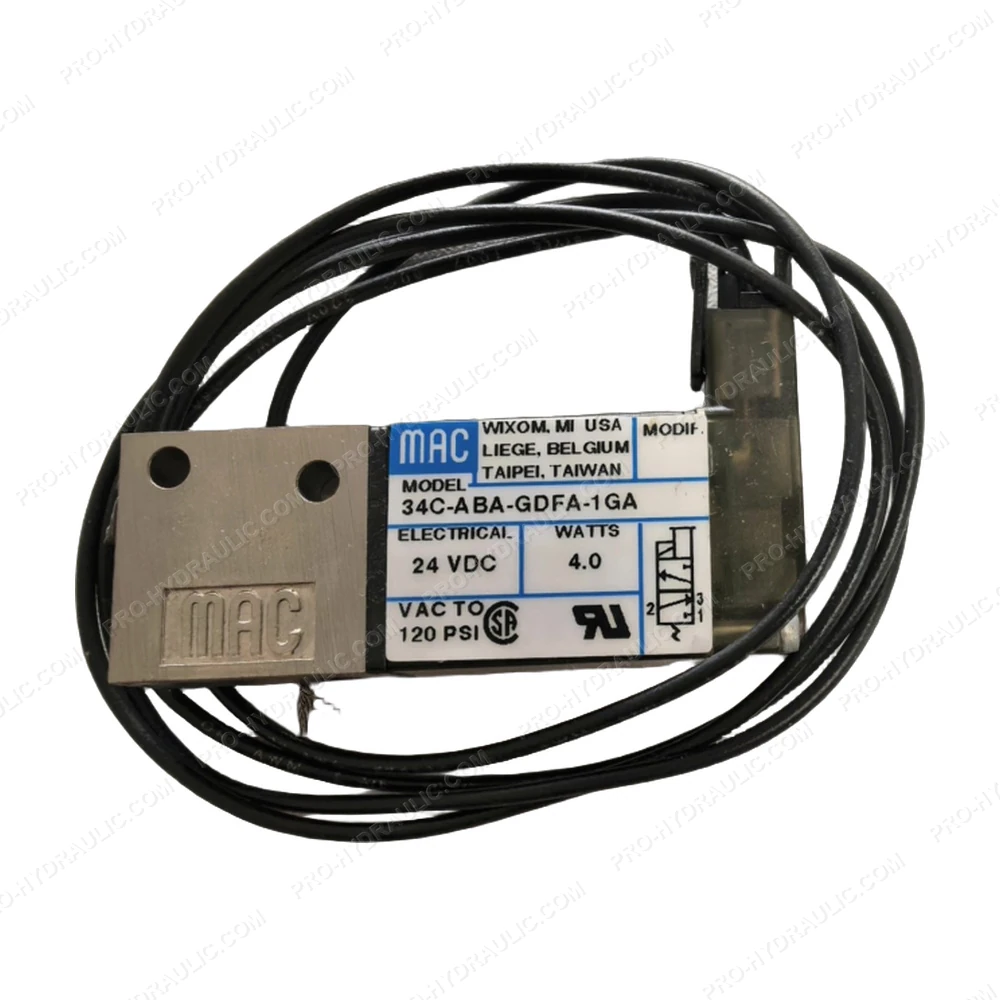

MAC 34C-ABA-GDFA-1GA Micro Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the MAC 34C-ABA-GDFA-1GA Micro Solenoid Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
