Product Overview
The MAC 35A-B00-DBCA-1BA is a high-performance pneumatic solenoid valve manufactured by MAC Valves, a globally recognized leader in air valve technology. This 4-way, 5-port directional control valve utilizes a balanced poppet design actuated by a single solenoid with spring return, delivering fast, repeatable shifting and reliable sealing in demanding industrial pneumatic circuits. Engineered for precision control of compressed air, the 35A series is widely deployed as a pilot or main control valve in automated machinery, packaging lines, and process equipment where consistent response time and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 35A-B00-DBCA-1BA |
| Valve Function | 4-Way, 5-Port, 2-Position, Single Solenoid, Spring Return |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, compressed air service) |
| Actuation Type | Solenoid Pilot Actuated, Balanced Poppet Design |
| Mounting & Connection | Standard ISO / Manufacturer Interface, Sub-base or Manifold Mounted |
Engineering Features & Advantages
- Precision Performance: Balanced poppet construction ensures consistent shifting force, minimal friction, and fast, repeatable response across the full operating pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid encapsulation and wear-resistant sealing for extended cycle life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Commonly used in plastic injection molding machines, packaging and labeling equipment, automated assembly lines, CNC machine tools, and general process automation systems requiring precise directional control of compressed air actuators and cylinders.
PRODUCT IMAGES

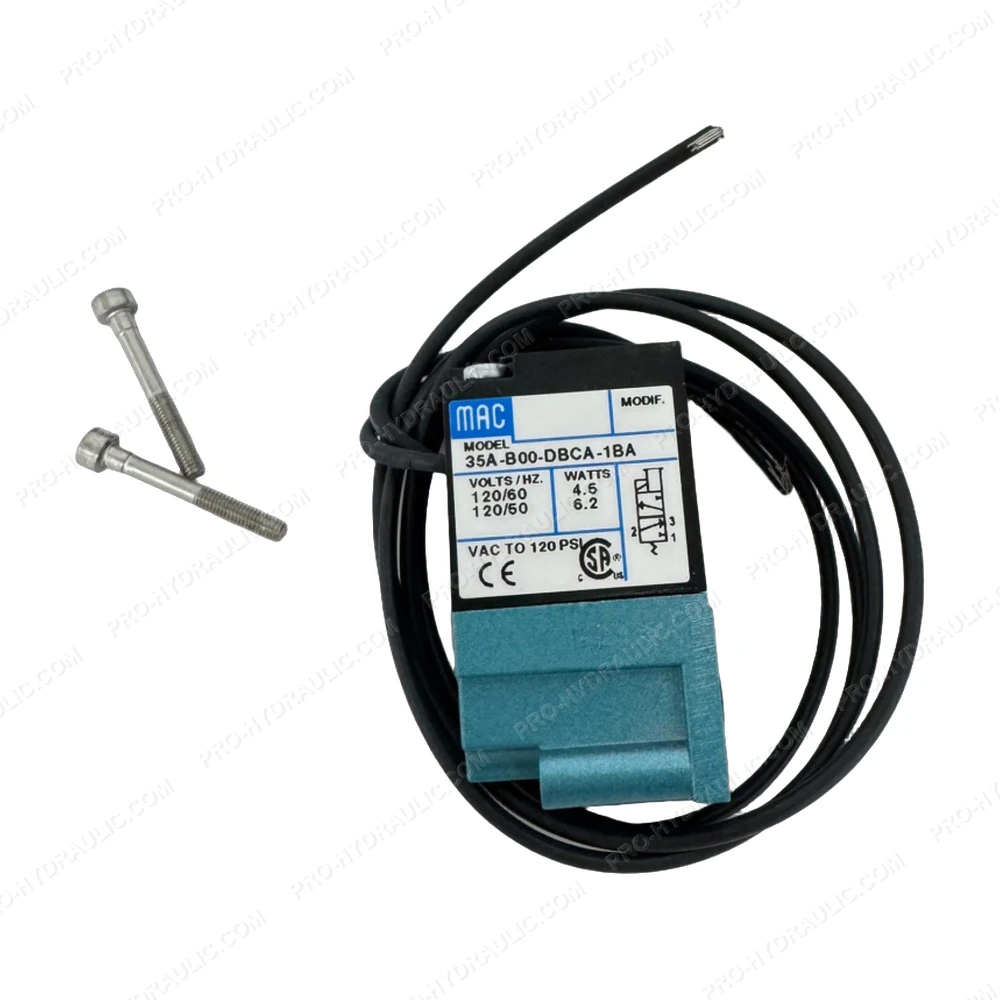

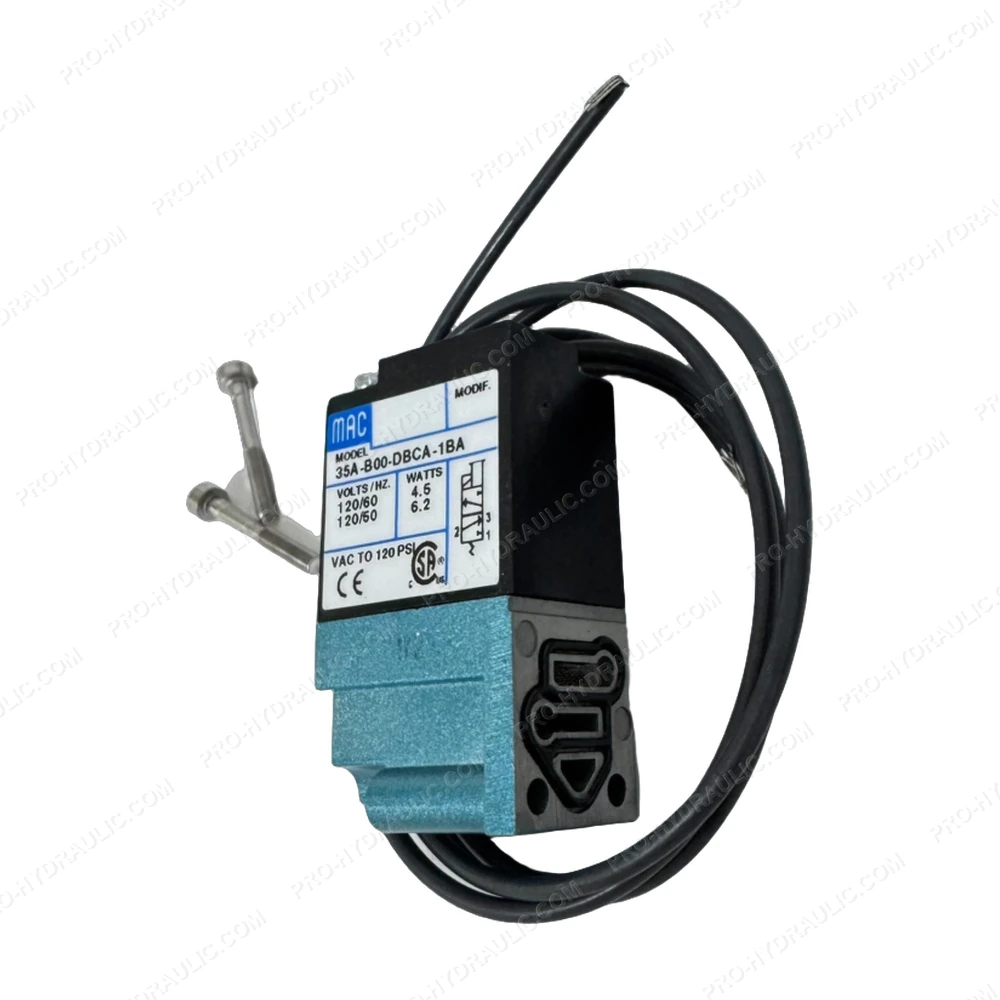

MAC 35A-B00-DBCA-1BA Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MAC 35A-B00-DBCA-1BA Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way, 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
