The MAC 42A-BME-000-GDDP-0GA is a heavy-duty industrial pneumatic solenoid valve engineered for high-cycle directional air control in automated machinery and process equipment. It utilizes a balanced spool design with a wet-pin armature and encapsulated coil, providing fast, consistent shifting without dynamic seals in the air path.
MAC 42A-BME-000-GDDP-0GA Technical Specifications
| Attribute | Specification |
|---|---|
| Valve Type | Pneumatic Solenoid Valve, 4-Way, 5-Port |
| Actuation | Electrical solenoid, wet-pin armature |
| Function | 4/2 or 5/2 directional control (spool type) |
| Mounting | Inline or manifold, ISO/CETOP interface |
| Port Size | 1/4 in NPTF (body ports) |
| Operating Pressure | Vacuum to 150 PSI (10.3 bar) |
| Coil Voltage | 24 VDC (encapsulated, continuous duty) |
| Flow Coefficient | Cv 1.0 nominal |
| Body Material | Anodized aluminum |
| Seal Material | Nitrile (Buna-N) |
| Media | Filtered dry air or inert gas, 40 micron |
| Temperature Range | -18 to 50 °C (0 to 122 °F) |
Key Engineering Features
- Balanced spool design eliminates shift force variation across the pressure range.
- Wet-pin armature construction reduces wear and extends solenoid life.
- Encapsulated coil resists moisture, contaminants, and mechanical shock.
- Compact body with ISO/CETOP mounting pattern for direct manifold integration.
- Fast response time suitable for high-cycle automation and process sequencing.
Industrial Applications
- Packaging and material handling machinery
- Automated assembly and pick-and-place systems
- Process valve piloting and actuator control
- Textile, printing, and converting equipment
- General factory automation pneumatic circuits
For technical inquiries, dimensional drawings, or replacement support for MAC 42A-BME-000-GDDP-0GA, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

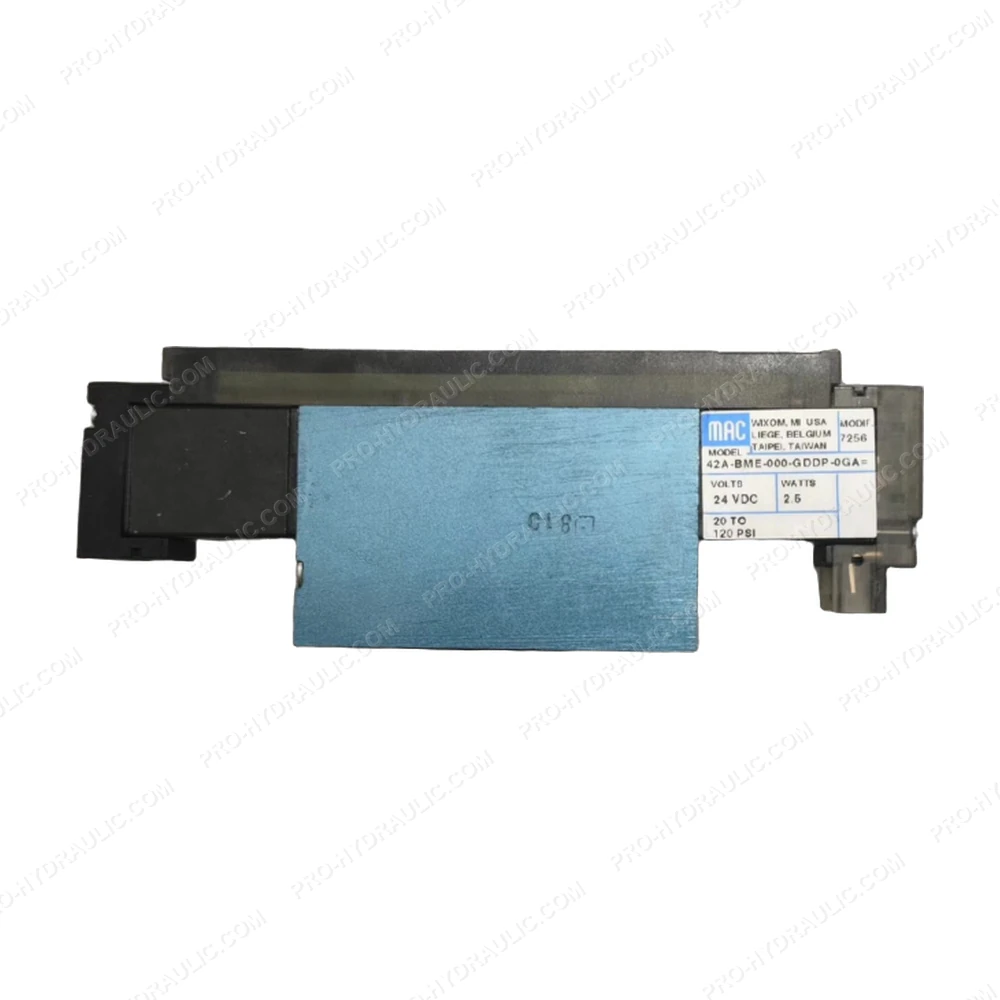

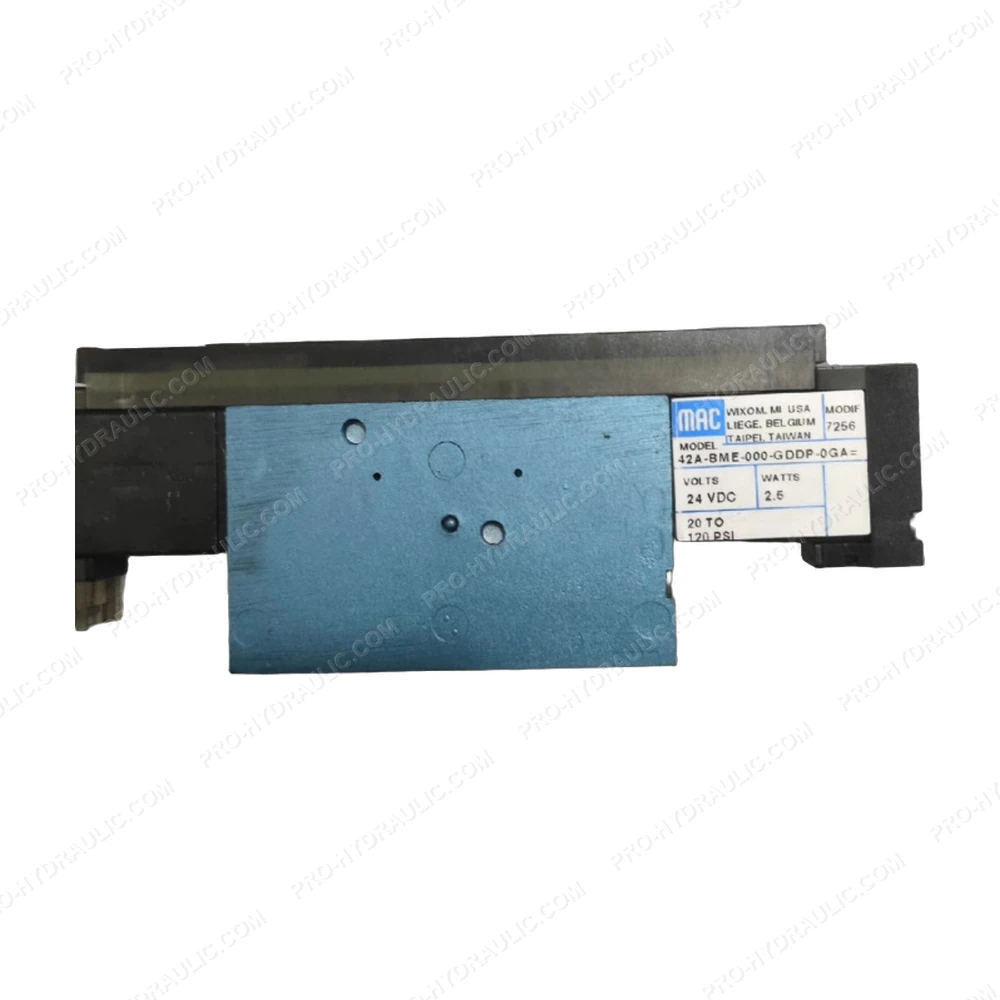

MAC 42A-BME-000-GDDP-0GA Pneumatic Solenoid Valve
