Product Overview
The MAC 52A-11-D0A-DM-DDAA-1BA is a high-performance pneumatic solenoid valve from MAC Valves, engineered for precise directional control of compressed air in demanding industrial automation and process systems. This 4-way, 5-port solenoid-operated directional control valve utilizes a balanced poppet design, delivering fast, repeatable shifting with minimal friction and no sticking, even after extended periods of inactivity. With a compact inline body and a robust solenoid operator, the 52A-11-D0A-DM-DDAA-1BA serves as a reliable interface between electronic control systems and pneumatic actuators, cylinders, and air-operated process equipment. Its modular construction and industry-standard mounting pattern make it a direct drop-in replacement for OEM-installed MAC 52-series valves.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 52A-11-D0A-DM-DDAA-1BA |
| Valve Function | 4-Way, 5-Port, 2-Position, Single Solenoid |
| Actuation Type | Solenoid / Air Return (Spring or Pilot Return per Configuration) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, compressed air service) |
| Mounting & Connection | Inline Body Mount, MAC 52-Series Standard Port Interface |
| Seal Material | Nitrile / Buna-N (Standard Pneumatic Service) |
| Body Construction | Balanced Poppet, Corrosion-Resistant Body |
Engineering Features & Advantages
- Precision Performance: Balanced poppet design ensures consistent, high-speed shifting with minimal friction and no spool sticking, delivering reliable directional control even in high-cycle automation applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust solenoid operator and durable seals rated for millions of maintenance-free cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM MAC 52-series valve standards, allowing drop-in installation without modification to manifolds or piping.
- Fast Response Time: Optimized solenoid and poppet geometry provide rapid actuation and release, improving cycle times in high-throughput production equipment.
- Versatile Circuit Integration: 4-way, 5-port configuration supports double-acting cylinder control, directional air logic, and multi-function pneumatic circuit requirements.
Typical Industrial Applications
The MAC 52A-11-D0A-DM-DDAA-1BA pneumatic solenoid valve is widely deployed across heavy industrial sectors, including plastic injection molding machines, packaging and assembly automation lines, metallurgical and metal-forming equipment, CNC machine tools, and general factory automation systems. It is equally suited to process industry applications
PRODUCT IMAGES

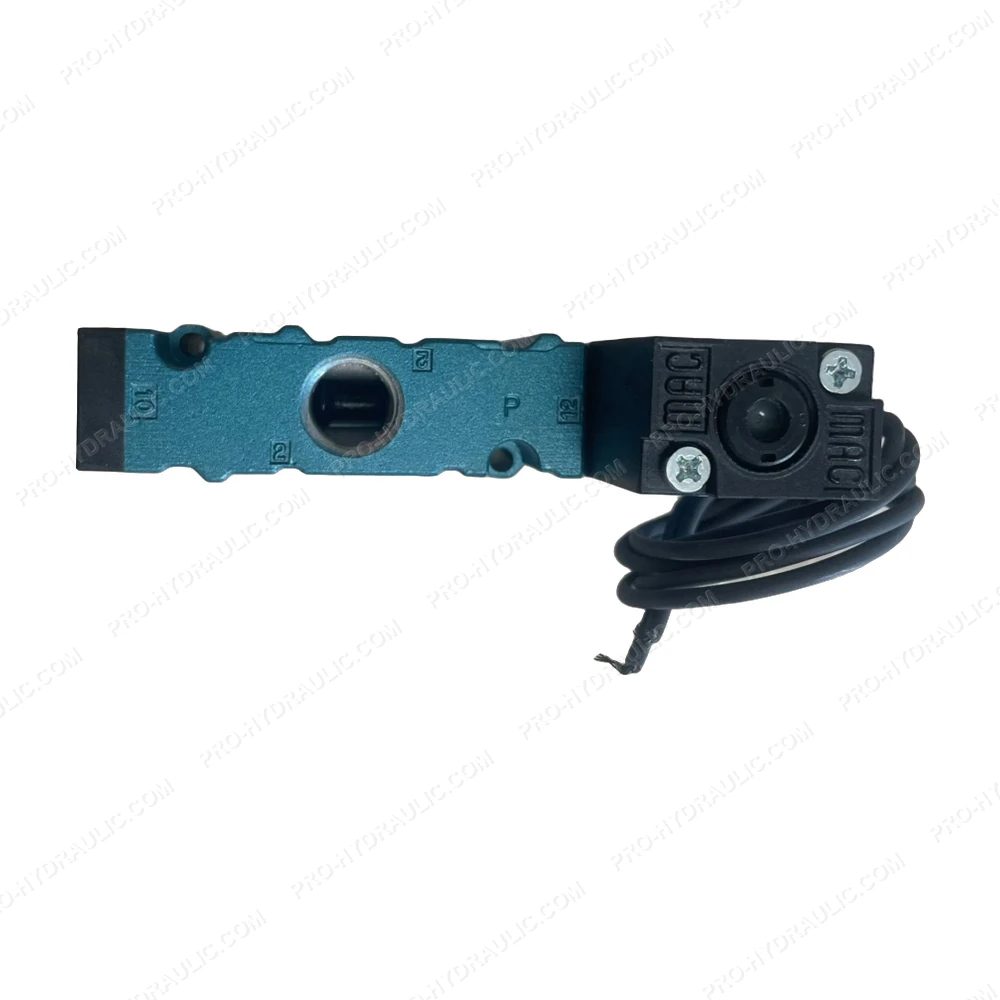

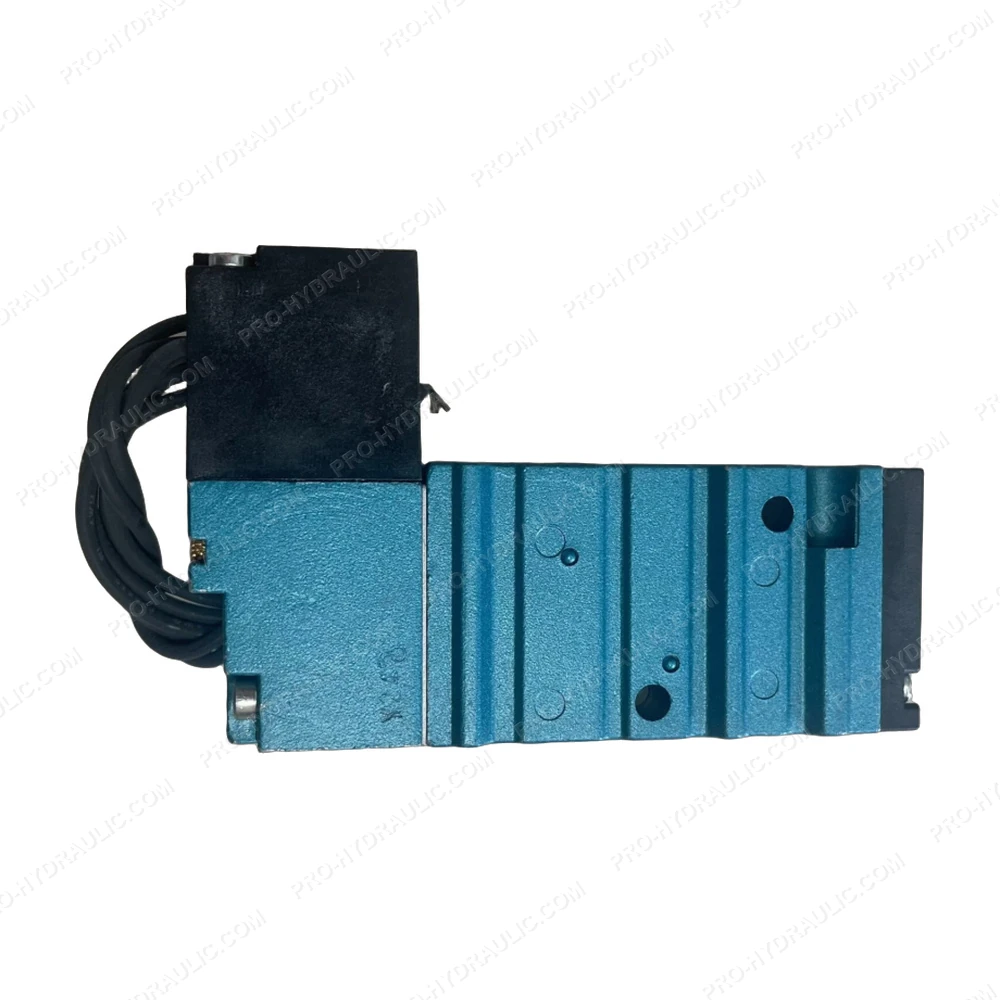

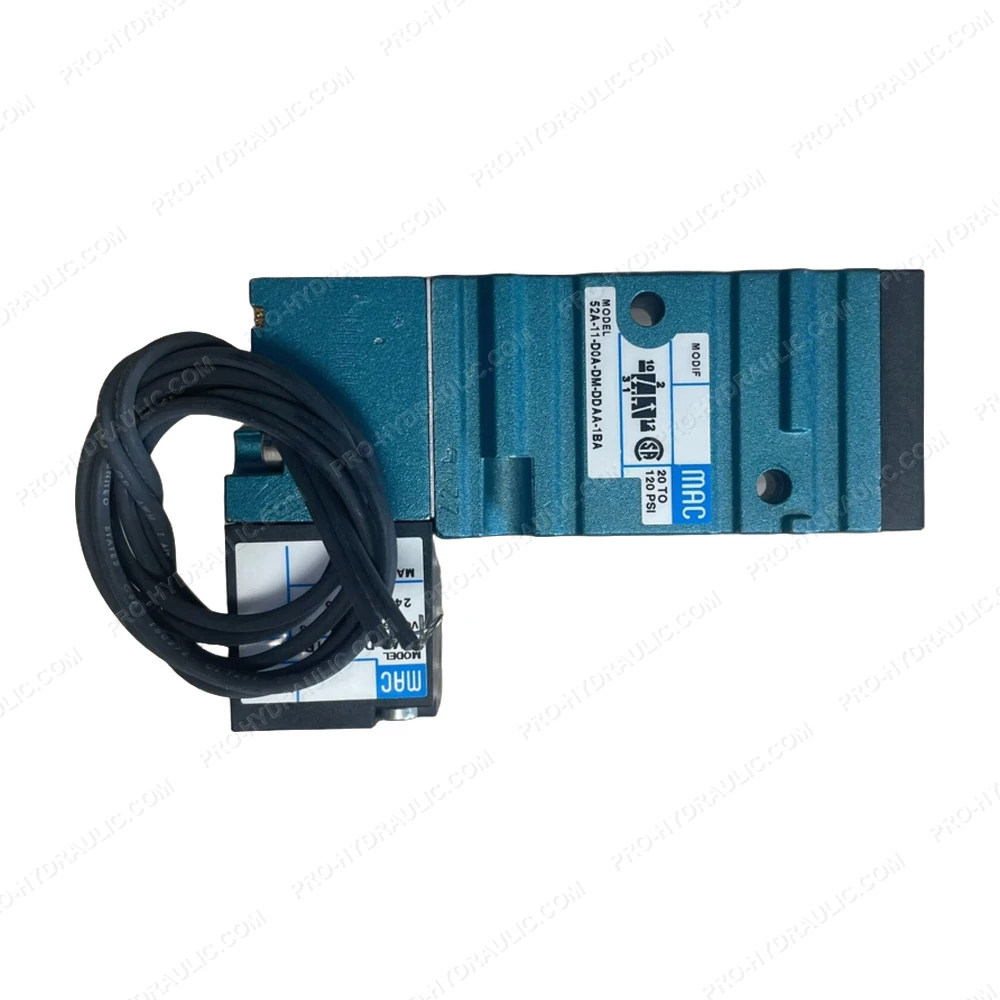

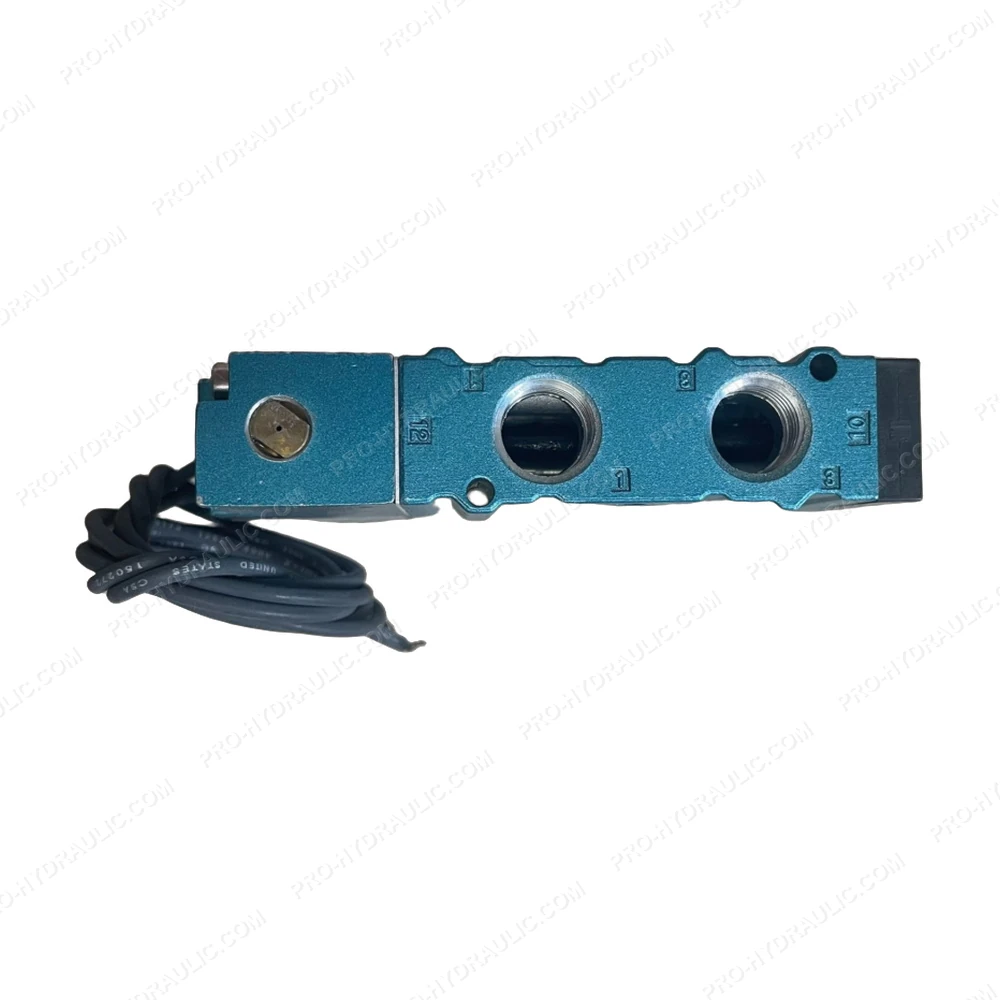

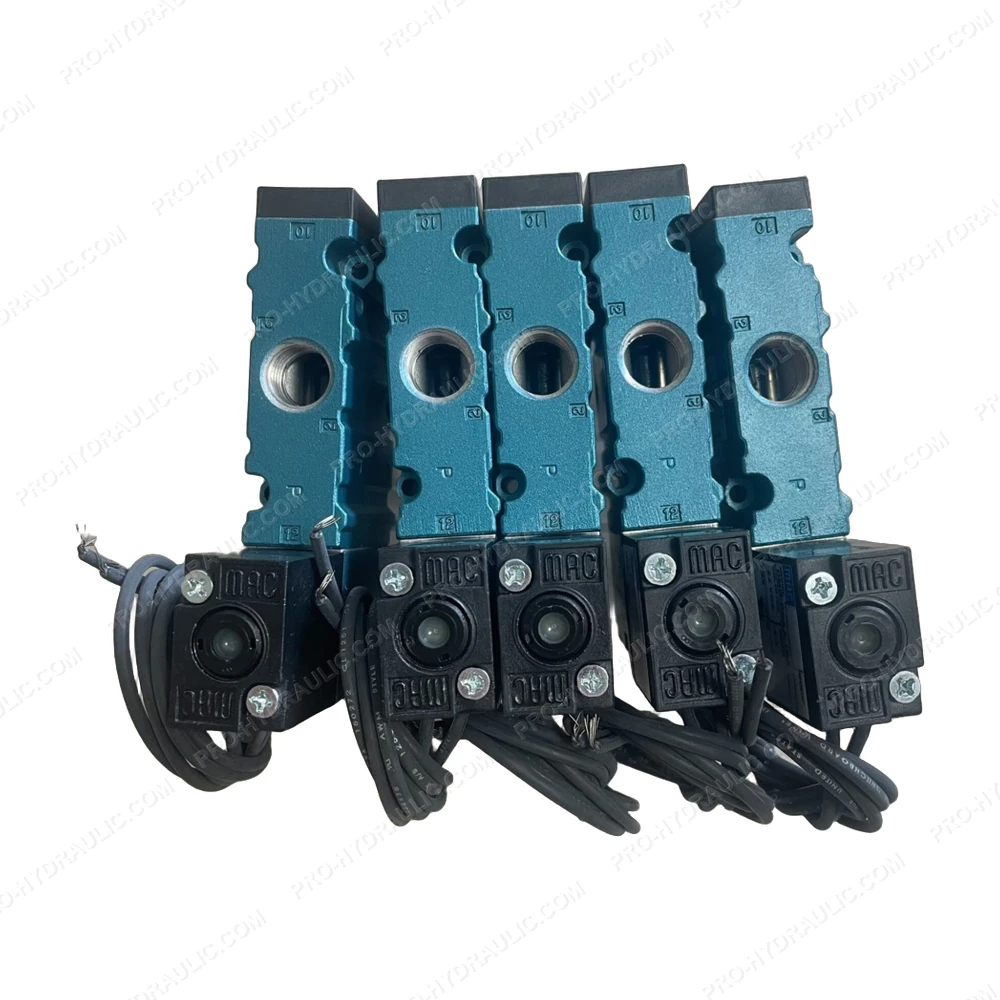

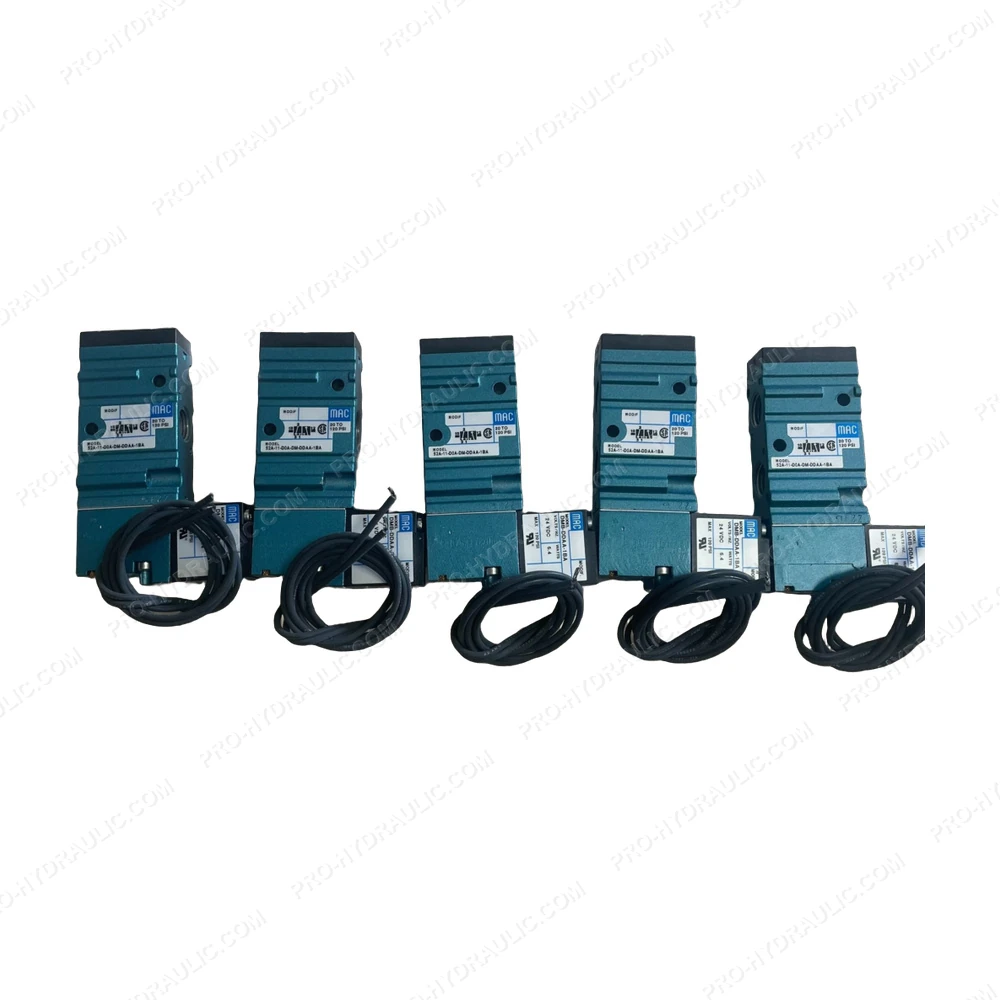

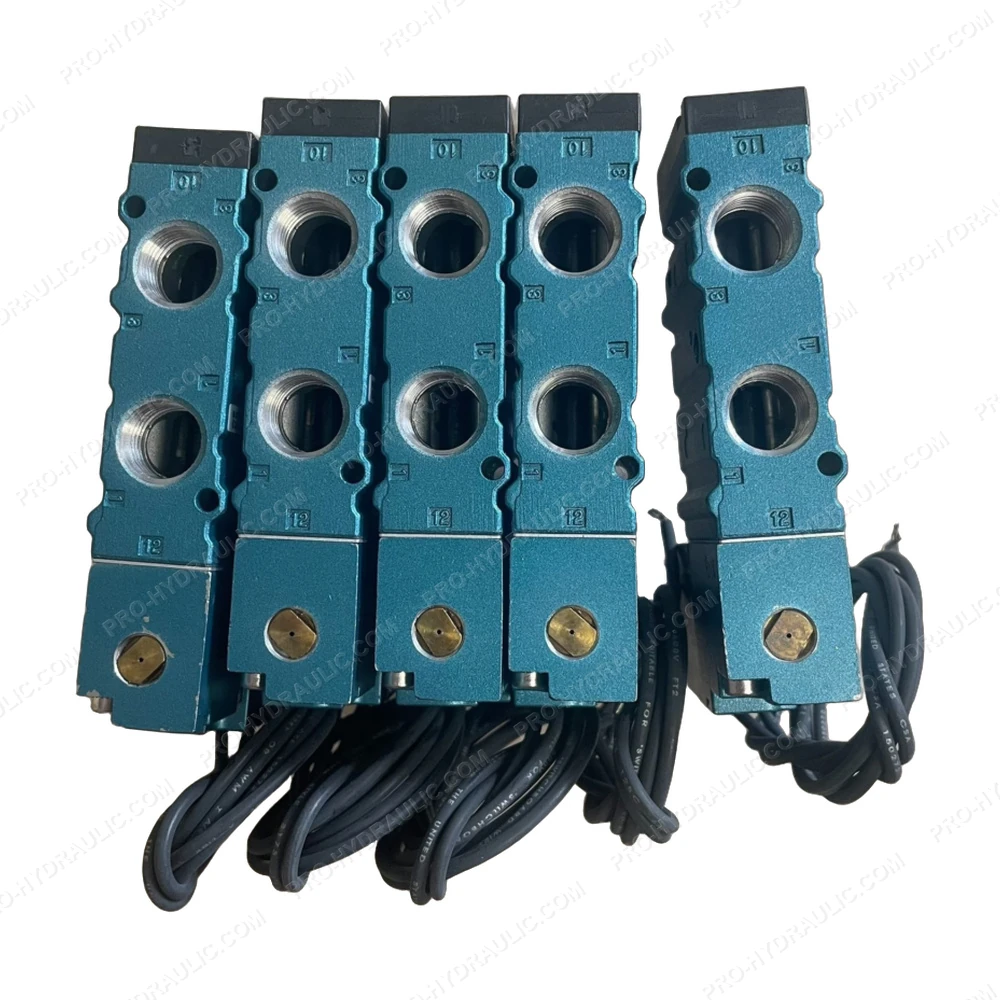

MAC 52A-11-D0A-DM-DDAA-1BA Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MAC 52A-11-D0A-DM-DDAA-1BA Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way, 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
