Product Overview
The MAC 56C-83-RA is a pneumatically piloted solenoid valve from MAC Valves’ renowned 56 Series, engineered for high-cycle industrial automation and process control. Operating on a balanced poppet design, this valve delivers fast, repeatable actuation with minimal shift force, making it ideal for demanding pneumatic circuits requiring precise directional control of compressed air. The 56C-83-RA features a 4-way, 5-port configuration with a single solenoid, spring-return actuator, providing reliable fail-safe operation. Its robust construction and seal technology ensure leak-free performance and long service life in continuous-duty applications across manufacturing, packaging, and process industries.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (4-Way, 5-Port, Single Solenoid, Spring Return) |
| Model Designation | MAC 56C-83-RA |
| Operating Pressure | Standard Industrial Grade (Up to 150 PSI / 10 bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or manifold mount) |
| Valve Function | 4-Way, 5-Port, 2-Position, Single Solenoid, Spring Return |
| Actuation Type | Solenoid Pilot Actuated (Poppet Design) |
| Solenoid Voltage | Standard AC/DC Coil Options Available |
| Port Size | 1/4″ NPTF (Standard Industrial) |
| Flow Rate (Cv) | High Flow Poppet Design (Cv ~1.0) |
| Seal Material | Nitrile (Buna-N) / Optional Viton for High-Temp |
| Body Material | Anodized Aluminum / Corrosion-Resistant Alloy |
| Response Time | Fast Actuation (Millisecond Range) |
Engineering Features & Advantages
- Precision Performance: The pneumatic solenoid valve (4-way, 5-port, single solenoid, spring return) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original MAC specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 150 PSI, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust construction and seal technology ensure leak-free performance and long service life in continuous-duty applications across manufacturing, packaging, and process industries.
PRODUCT IMAGES

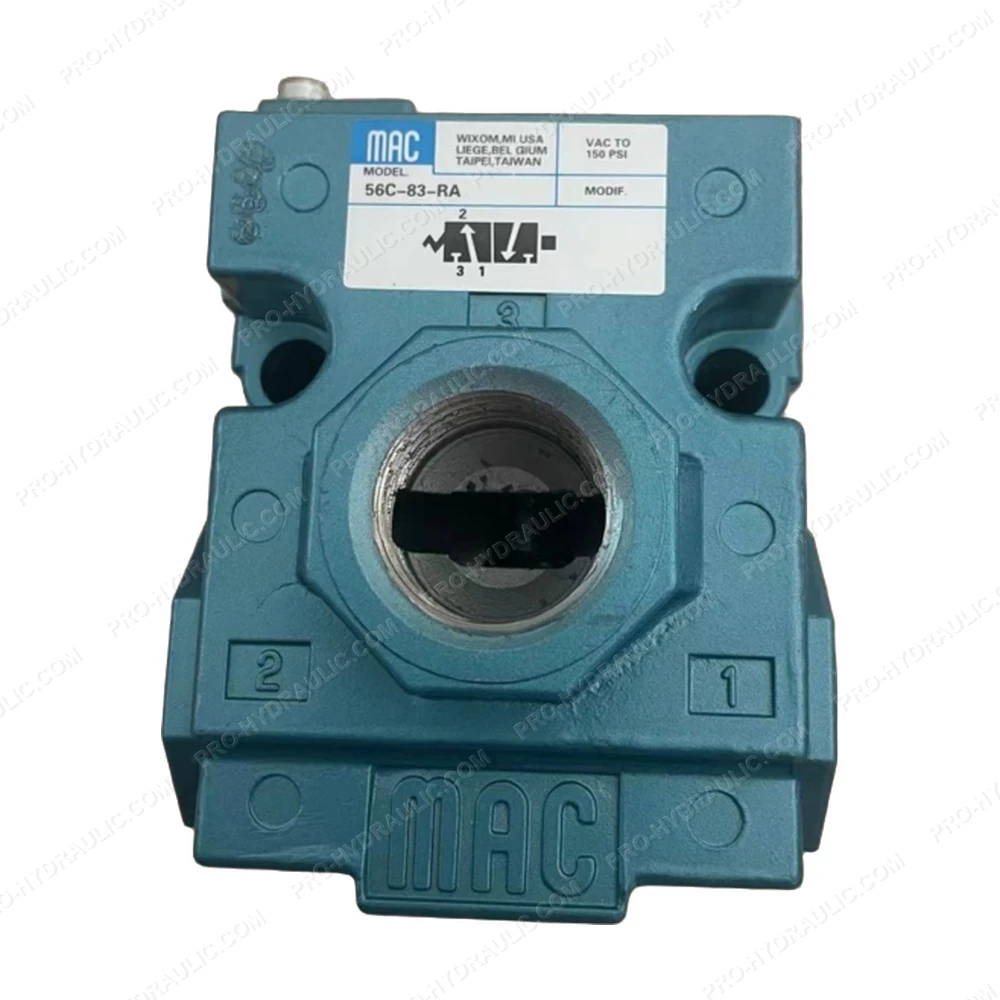

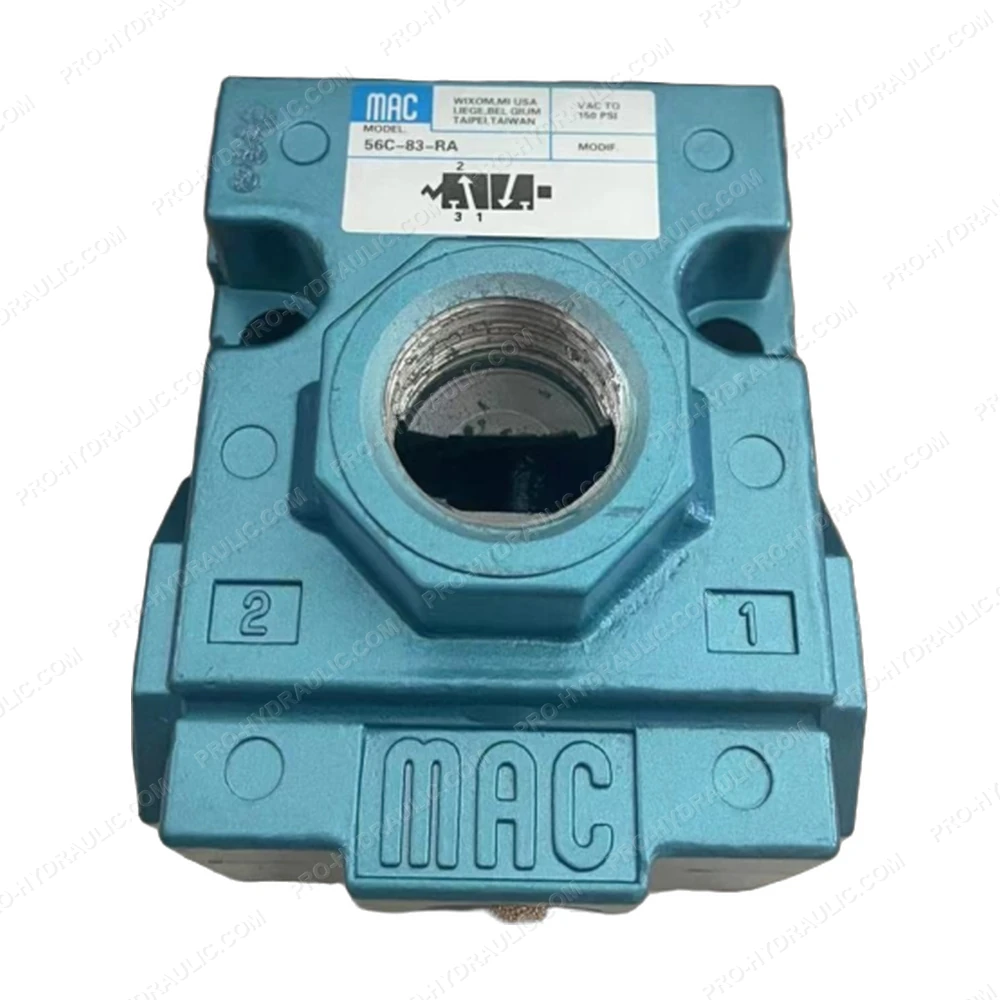

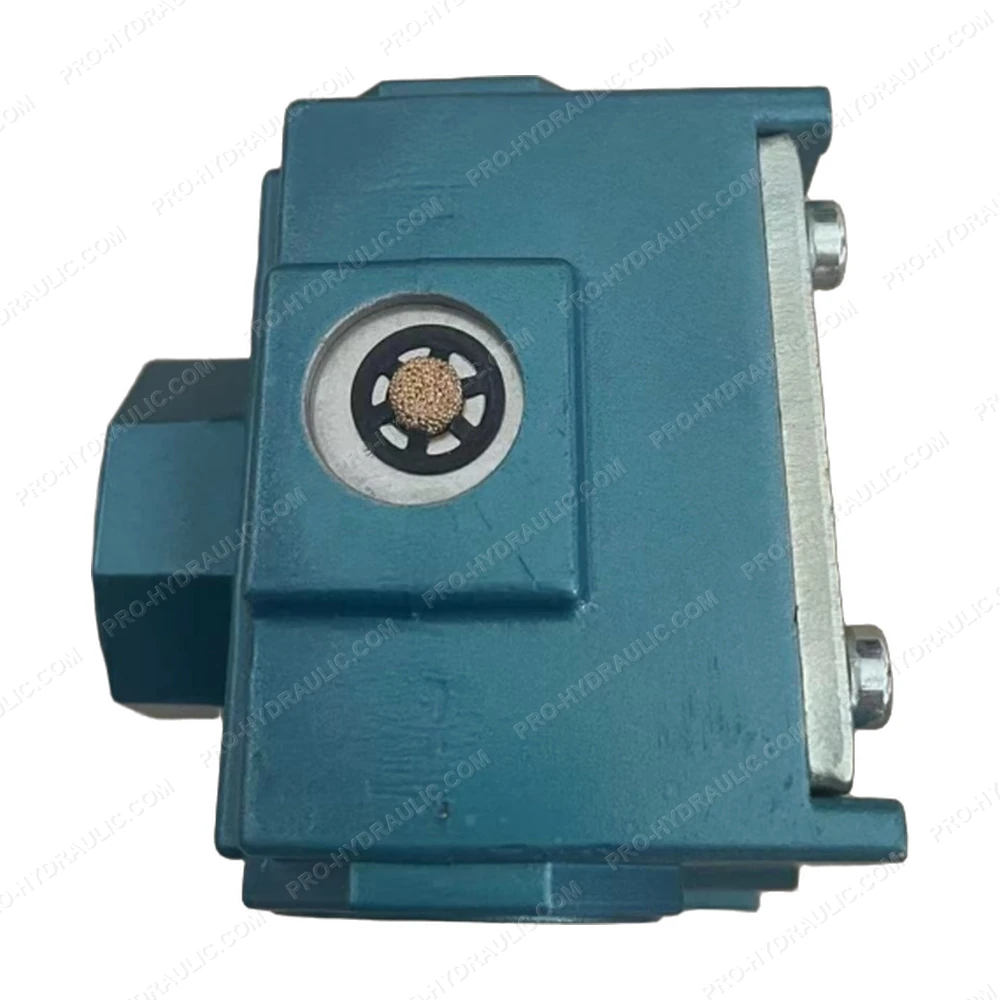

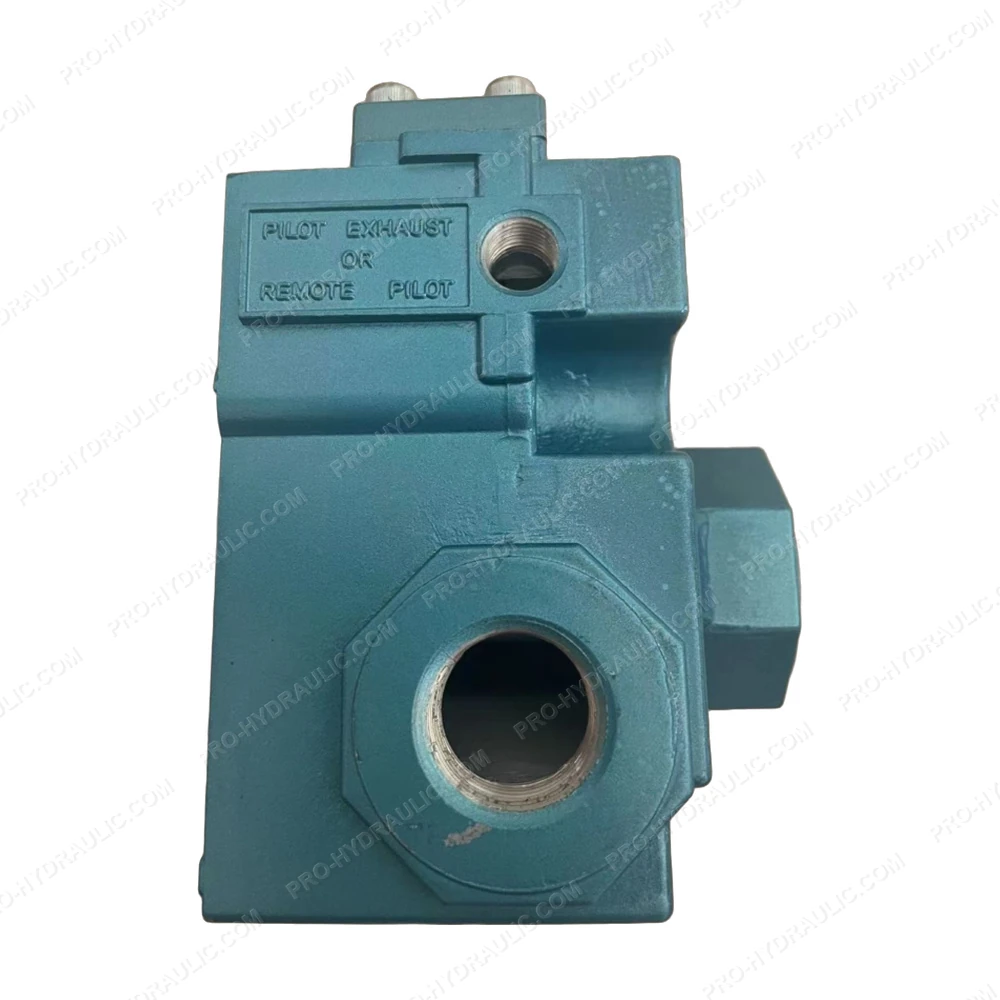

MAC 56C-83-RA Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MAC 56C-83-RA Solenoid Operated Directional Control Valve. This USA-made 120VAC hydraulic component features a balanced spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
