Product Overview
The MAC 82A-AC-000-TM-DFBP-2DK is a high-performance pneumatic solenoid valve from MAC Valves, engineered for precise directional control of compressed air in demanding industrial automation and process systems. Featuring a balanced poppet design, this valve delivers fast, repeatable actuation with minimal shift force, making it ideal for high-cycle applications where reliability and response time are critical. The 82A series is a robust inline-mount valve with a 4-way, 5-port configuration, designed to control double-acting cylinders, actuators, and other pneumatic components with exceptional flow characteristics and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 82A-AC-000-TM-DFBP-2DK |
| Valve Function | 4-Way, 5-Port, 2-Position (Single Solenoid, Spring Return) |
| Operating Pressure | Up to 150 PSI (10.3 bar) — standard industrial pneumatic range |
| Solenoid Voltage | AC Voltage (specific rating per model code configuration) |
| Mounting & Connection | Inline manifold mount with standard MAC 82A interface; threaded port connections |
| Seal Material | Nitrile (Buna-N) — compatible with standard compressed air systems |
| Body Material | Anodized aluminum alloy |
Engineering Features & Advantages
- Balanced Poppet Design: The MAC 82A series utilizes a balanced poppet mechanism that ensures consistent shifting regardless of pressure fluctuations, delivering reliable directional control with minimal wear on internal components.
- Fast Response & High Cycle Rate: Optimized solenoid and poppet geometry enable rapid actuation and high cycling frequencies, ideal for high-speed automated assembly and packaging lines.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust anodized aluminum body and durable nitrile seals that resist contamination and extend service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MAC 82A series valves, ensuring drop-in replacement without modification to manifolds or piping.
- Versatile Configuration: The 4-way, 5-port design supports double-acting cylinder control, with single solenoid spring-return operation for fail-safe positioning.
Typical Industrial Applications
This MAC 82A-AC-000-TM-DFBP-2DK pneumatic solenoid valve is widely used in heavy industrial scenarios including: plastic injection molding machines for mold opening/closing and ejector control; packaging and material handling systems for actuator and gripper sequencing; CNC machine tools for tool changer and clamping operations; and general factory automation lines requiring reliable, high-speed pneumatic directional control.
PRODUCT IMAGES

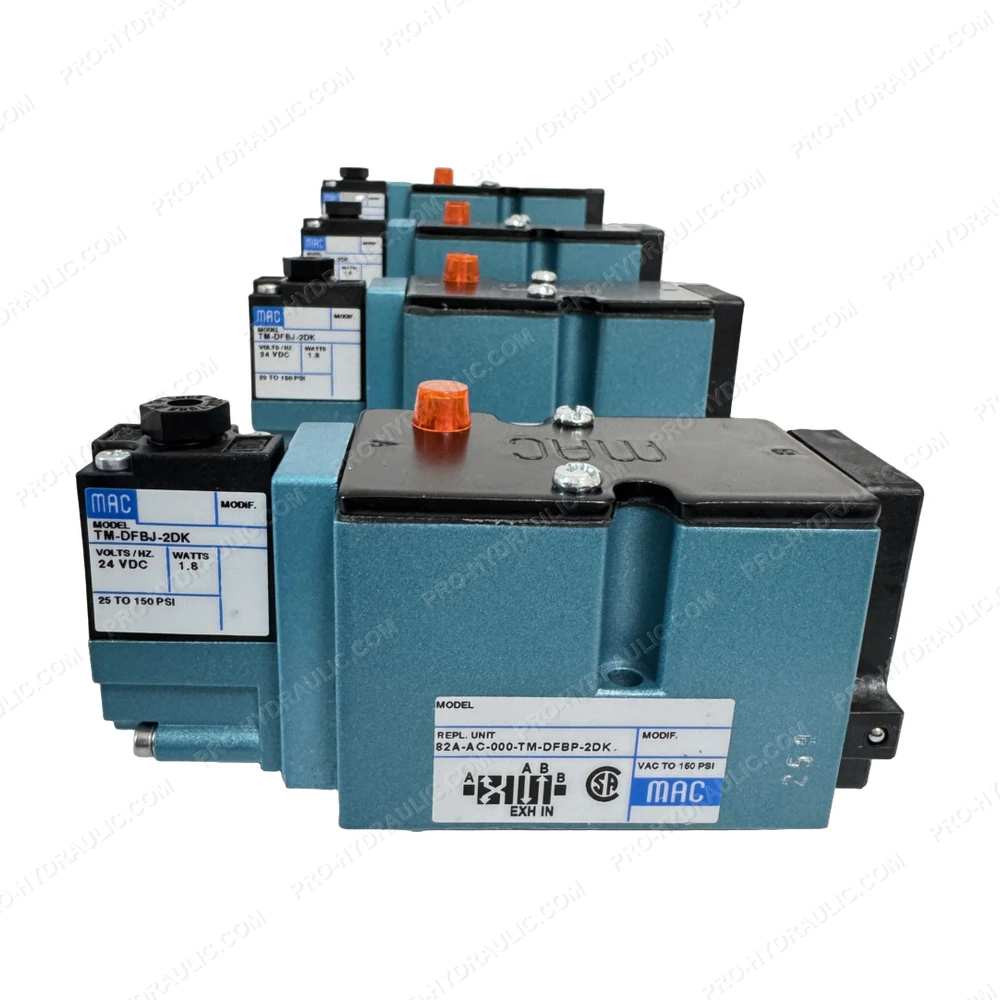

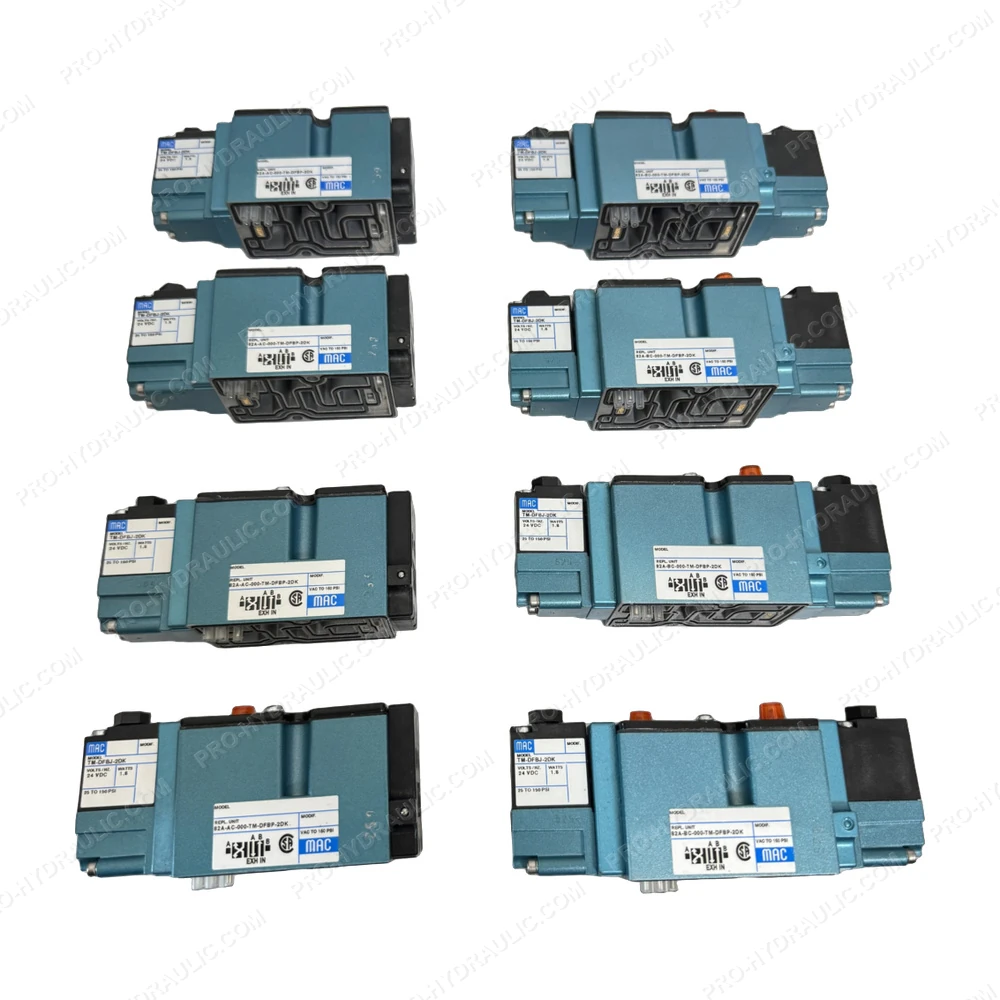

MAC 82A-AC-000-TM-DFBP-2DK Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MAC 82A-AC-000-TM-DFBP-2DK Solenoid Directional Valve. This USA-made 24V DC hydraulic component features a 4-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
