The MAC MV-P1A-AFDA-DM-DDAP-1DD is a heavy-duty industrial pneumatic solenoid valve engineered for high-cycle directional air control in automated machinery. This 4-way, 2-position valve utilizes a balanced spool design with a wet-pin armature and encapsulated coil, ensuring rapid response and consistent shifting under varying pressure conditions. The MV-P1A series is built for inline or manifold mounting, offering reliable operation in demanding pneumatic circuits.
MAC MV-P1A-AFDA-DM-DDAP-1DD Technical Specifications
| Valve Type | 4-Way, 2-Position Solenoid Valve |
| Actuation | Electrical Solenoid (wet-pin armature) |
| Return | Spring Return |
| Port Size | 1/4″ NPTF (typical) |
| Flow Coefficient (Cv) | 1.0 (approximate) |
| Operating Pressure Range | 0 to 150 PSI (pneumatic) |
| Voltage | 24 VDC (standard; other voltages available) |
| Power Consumption | 2.5 W (typical) |
| Body Material | Anodized Aluminum |
| Seal Material | Nitrile (Buna-N) |
| Mounting | Inline or Manifold |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
Key Engineering Features
- Balanced spool design minimizes shifting forces and extends seal life.
- Wet-pin armature construction reduces wear and ensures consistent solenoid performance.
- Encapsulated coil provides protection against moisture, dust, and vibration.
- Compact, modular design allows for easy integration into existing pneumatic systems.
- High cycle rate capability suitable for continuous industrial operation.
Industrial Applications
- Packaging and labeling machinery
- Assembly and pick-and-place automation
- Material handling and sorting systems
- Textile and printing equipment
- General pneumatic control panels
For technical inquiries, dimensional drawings, or replacement support for MAC MV-P1A-AFDA-DM-DDAP-1DD, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

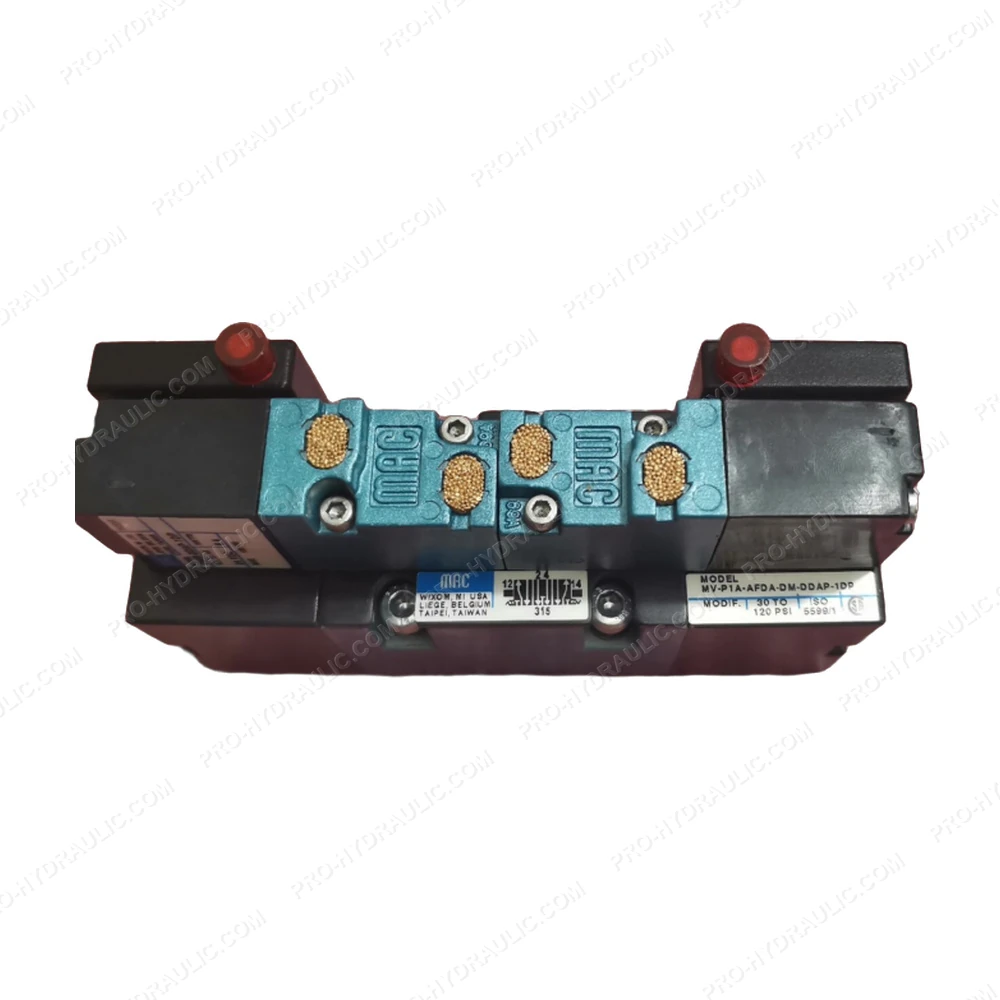

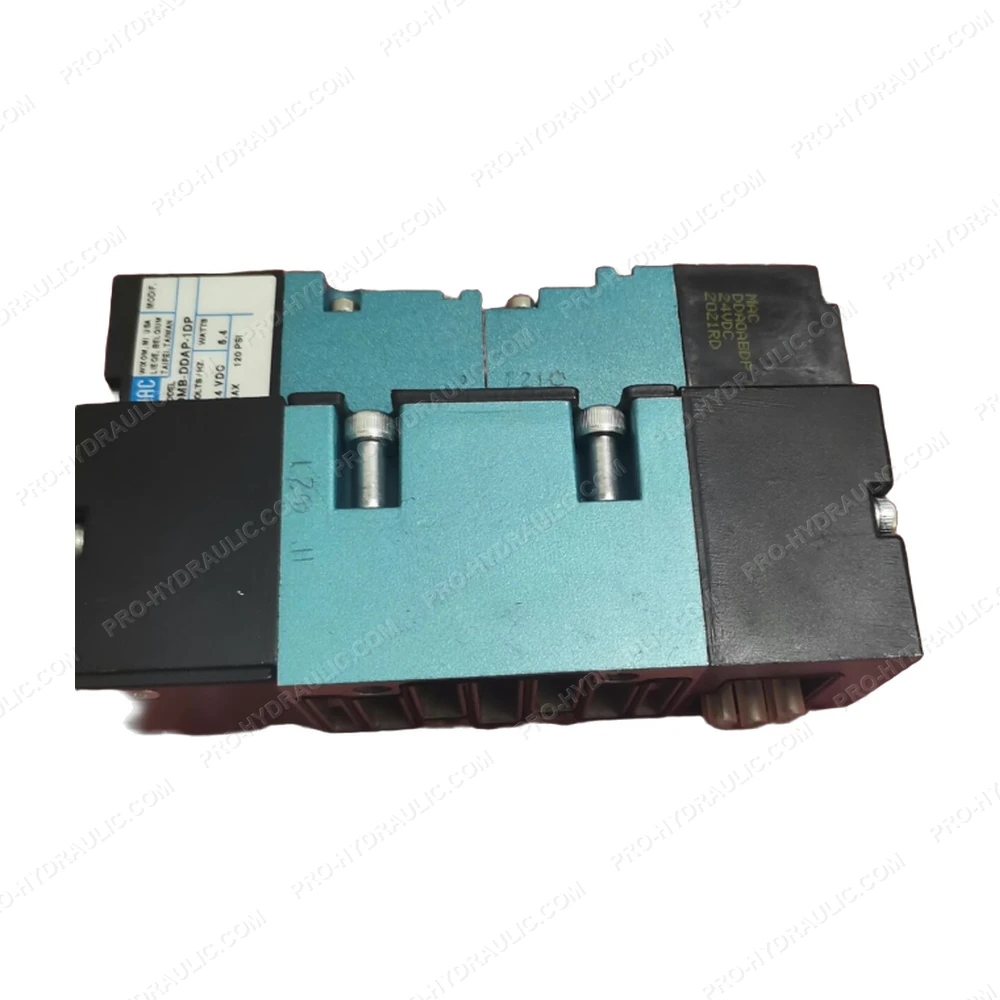

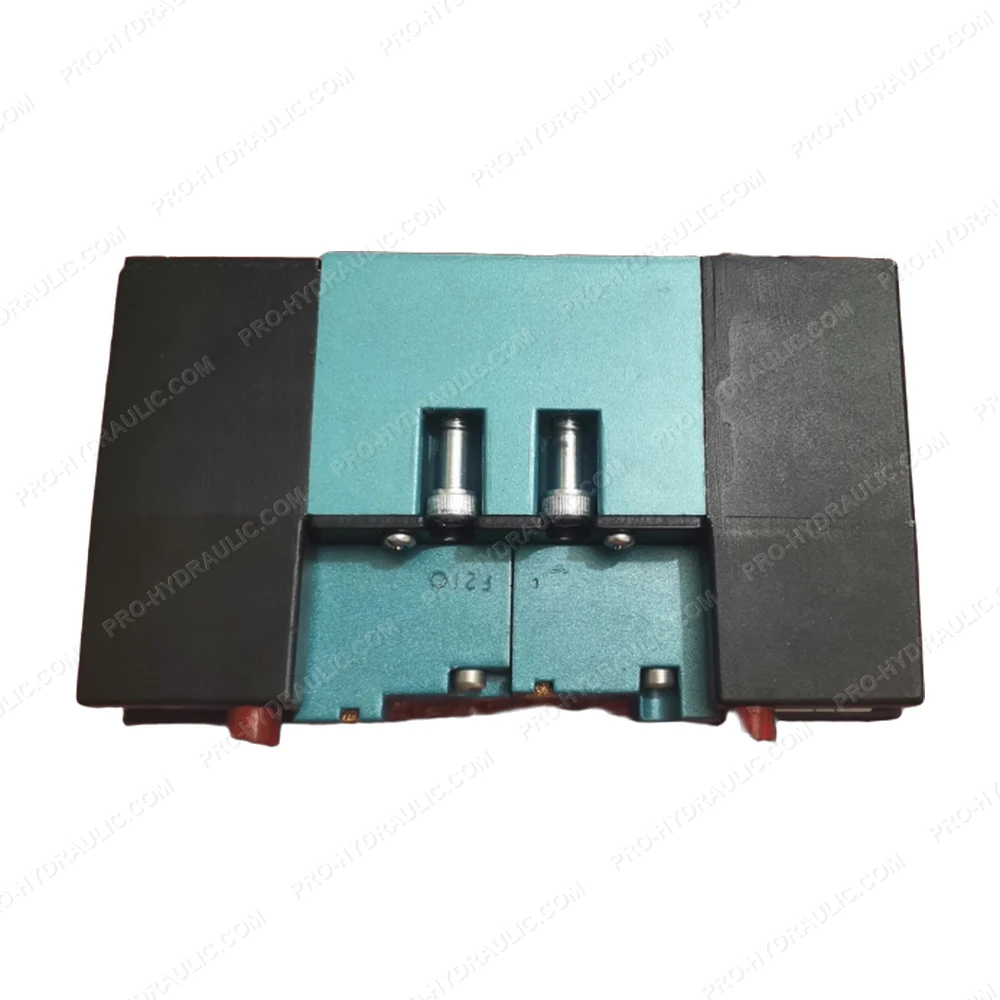

MAC MV-P1A-AFDA-DM-DDAP-1DD Pneumatic Solenoid Valve
