The MAN D1FPE50HB9NS0047XG267 / 5634426-0 is a heavy-duty industrial proportional valve engineered for precise electro-hydraulic flow and pressure control in demanding marine and industrial applications. This Parker proportional valve features a robust spool design, integrated position feedback, and a high-response solenoid coil for accurate, repeatable operation under continuous duty cycles.
MAN D1FPE50HB9NS0047XG267 / 5634426-0 Technical Specifications
| Manufacturer | Parker |
| Series | D1FP |
| Valve Type | Proportional Directional Control Valve |
| Mounting Pattern | ISO 4401 / CETOP 5 (NG10) |
| Actuation | Proportional Solenoid, Wet-Pin Armature |
| Maximum Operating Pressure | 350 bar (5075 psi) |
| Nominal Flow Rate | 50 L/min at 10 bar Δp |
| Electrical Supply | 24 VDC |
| Protection Class | IP65 |
| Fluid Temperature Range | -20 °C to +80 °C |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- High-resolution proportional solenoid with wet-pin armature for precise spool positioning
- Integrated inductive position transducer for closed-loop control
- Robust spool and sleeve assembly designed for high cycle life
- Low hysteresis and excellent repeatability
- Compact ISO 4401 mounting interface for easy integration
- Designed for continuous operation in harsh marine environments
Industrial Applications
- Marine steering and propulsion systems
- Deck machinery and winch control
- Industrial hydraulic presses and injection molding
- Offshore and shipboard fluid power systems
- Heavy-duty mobile equipment
For technical inquiries, dimensional drawings, or replacement support for MAN D1FPE50HB9NS0047XG267 / 5634426-0, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

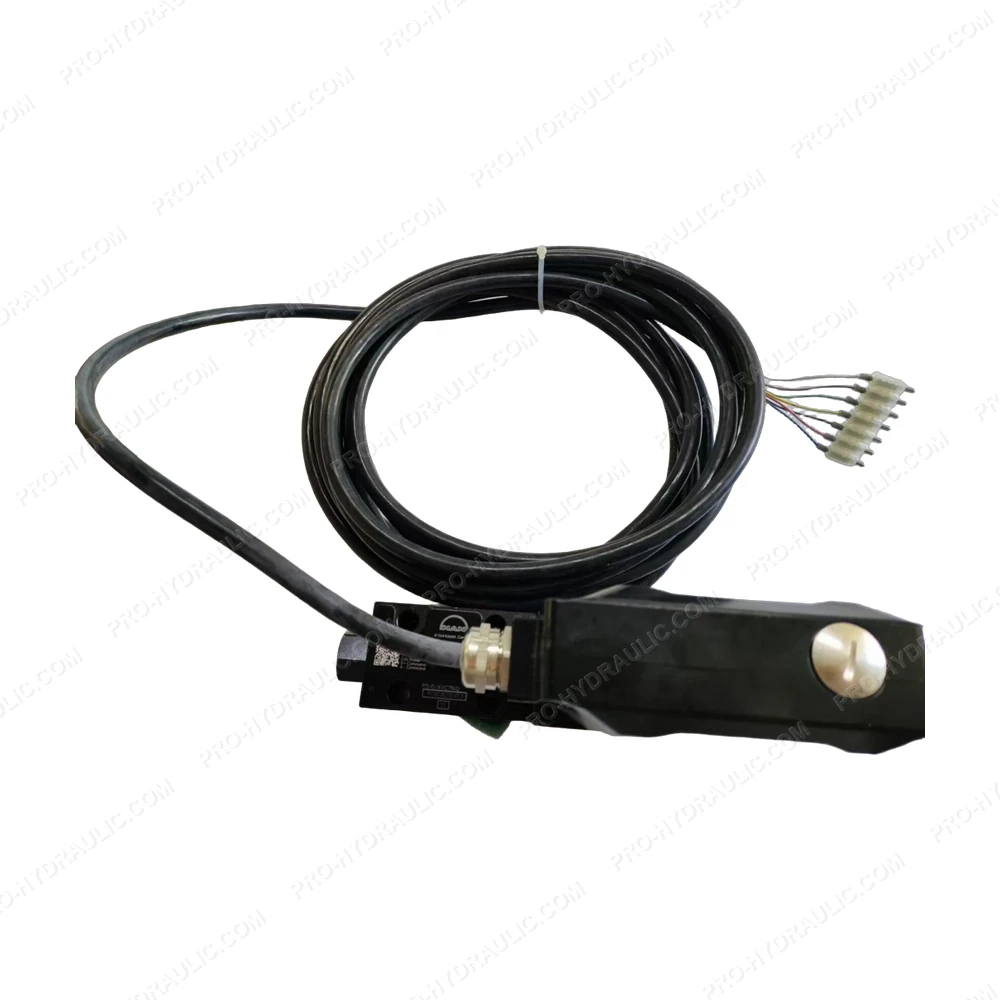

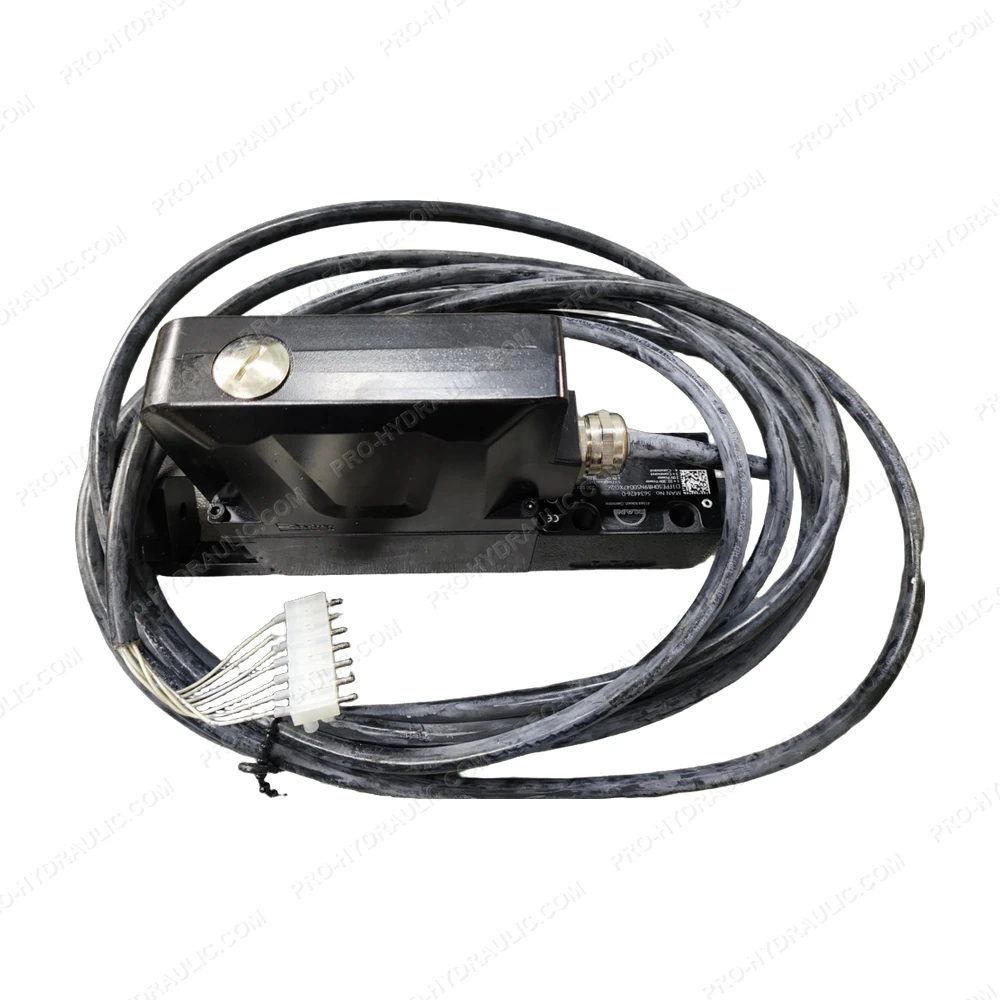

MAN D1FPE50HB9NS0047XG267 / 5634426-0 Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the MAN D1FPE50HB9NS0047XG267 / 5634426-0 Proportional Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
