Product Overview
The MARCO mTV modular S1105494147 is a precision-engineered modular dispensing valve designed for accurate, repeatable fluid and media dispensing in automated industrial processes. Operating on a pneumatically actuated, normally closed (NC) direct-acting principle, this valve delivers controlled shot volumes with minimal dead volume and fast cycle response. Its modular architecture allows integration into multi-valve manifolds and custom dispensing heads, making it a core component in high-throughput production lines where dosing accuracy, contamination control, and long service life are critical. The S1105494147 designation identifies the specific configuration within the MARCO mTV modular platform, ensuring exact replacement and system compatibility.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Modular Dispensing Valve (Process & Pneumatic Valve) |
| Model Designation | MARCO mTV modular S1105494147 |
| Actuation Type | Pneumatic, direct-acting, normally closed (NC) |
| Operating Pressure | Standard industrial grade (up to rated bar per media and air supply) |
| Mounting & Connection | Modular manifold interface / standard threaded ports |
| Seal & Body Material | Industrial-grade elastomer seals with chemically resistant body options |
| Response & Cycle Rate | Fast actuation suitable for high-speed dispensing cycles |
Engineering Features & Advantages
- Precision Metering: Optimized internal flow path and low dead volume deliver accurate, repeatable shot sizes for demanding dosing applications.
- Modular Architecture: The mTV platform enables rapid integration into multi-valve manifolds, reducing footprint and simplifying system scaling.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust seals and wear-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MARCO mTV modular S1105494147 OEM standards.
- Fast Cycle Response: Pneumatic direct-acting design supports high-speed production lines without compromising dosing accuracy.
Typical Industrial Applications
This modular dispensing valve is widely deployed in automated fluid handling and precision dosing systems, including plastic injection molding and mold release dispensing, adhesive and sealant application in automotive assembly, electronics and PCB conformal coating lines, and general process industry media dosing where accurate, repeatable valve actuation is essential. It is equally suited to CNC machine tool coolant and lubrication circuits and packaging machinery requiring controlled micro-dispensing.
PRODUCT IMAGES

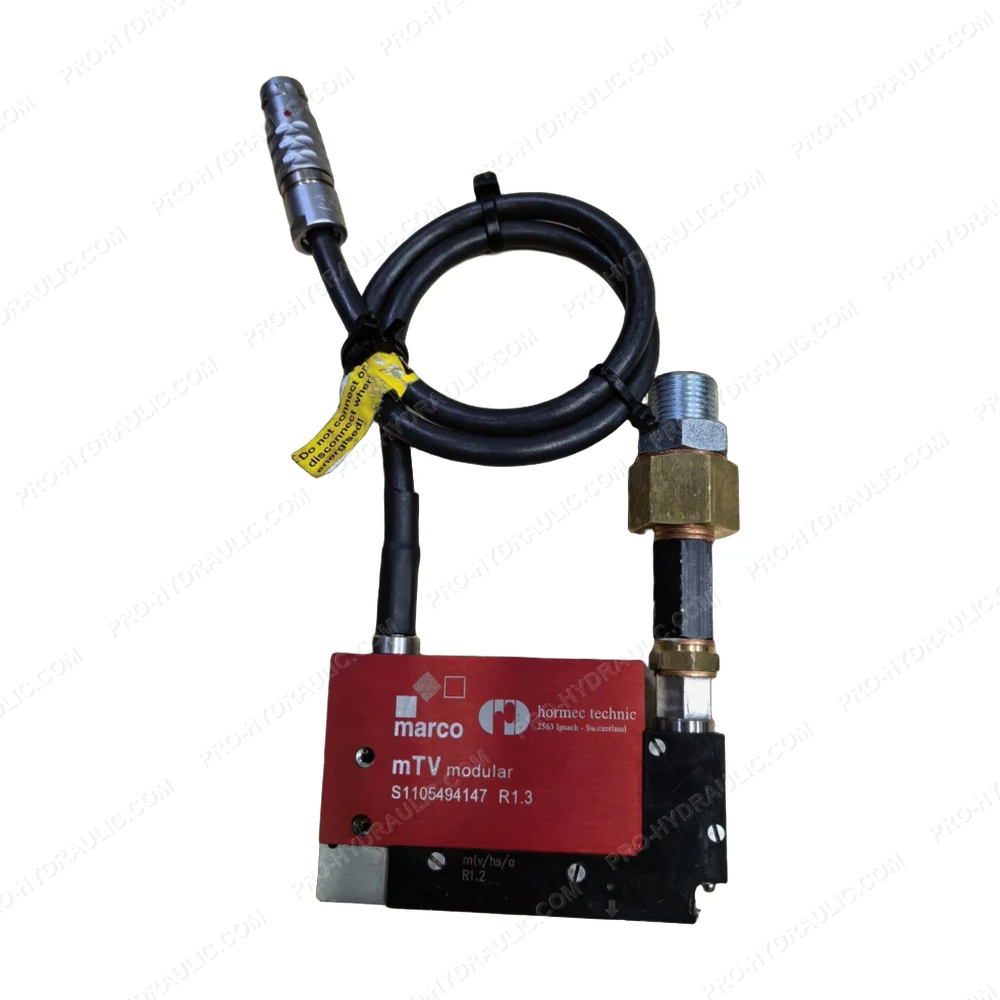

MARCO mTV modular S1105494147 Modular Dispensing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MARCO mTV modular S1105494147 Modular Directional Control Valve. This Italy-made 24V DC hydraulic component features a modular spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
