The MAXMA GM08/4-45403 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This 4-way, 3-position valve features a robust spool design that ensures reliable shifting and minimal internal leakage under continuous operating pressure.
MAXMA GM08/4-45403 Technical Specifications
| Manufacturer | MAXMA |
| Model | GM08/4-45403 |
| Valve Type | Directional Control Valve |
| Number of Ways/Positions | 4-way, 3-position |
| Actuation | Manual lever |
| Mounting Standard | ISO 4401 / CETOP 3 |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 40 L/min (10.5 gpm) |
| Spool Type | Closed center |
| Port Connections | NG6 (CETOP 3) |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20°C to +80°C |
| Filtration Requirement | ISO 4406 18/16/13 |
Key Engineering Features
- Precision-ground spool and bore for consistent, low-leak operation
- High-strength cast iron body for durability in high-pressure systems
- Manual lever actuation with detent positioning for reliable control
- Standard CETOP 3 interface for easy integration and replacement
- Hardened internal components for extended service life
Industrial Applications
- Mobile hydraulic systems (construction, agricultural machinery)
- Industrial power units and test stands
- Material handling and lifting equipment
- Presses and forming machinery
- Marine and offshore hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for MAXMA GM08/4-45403, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

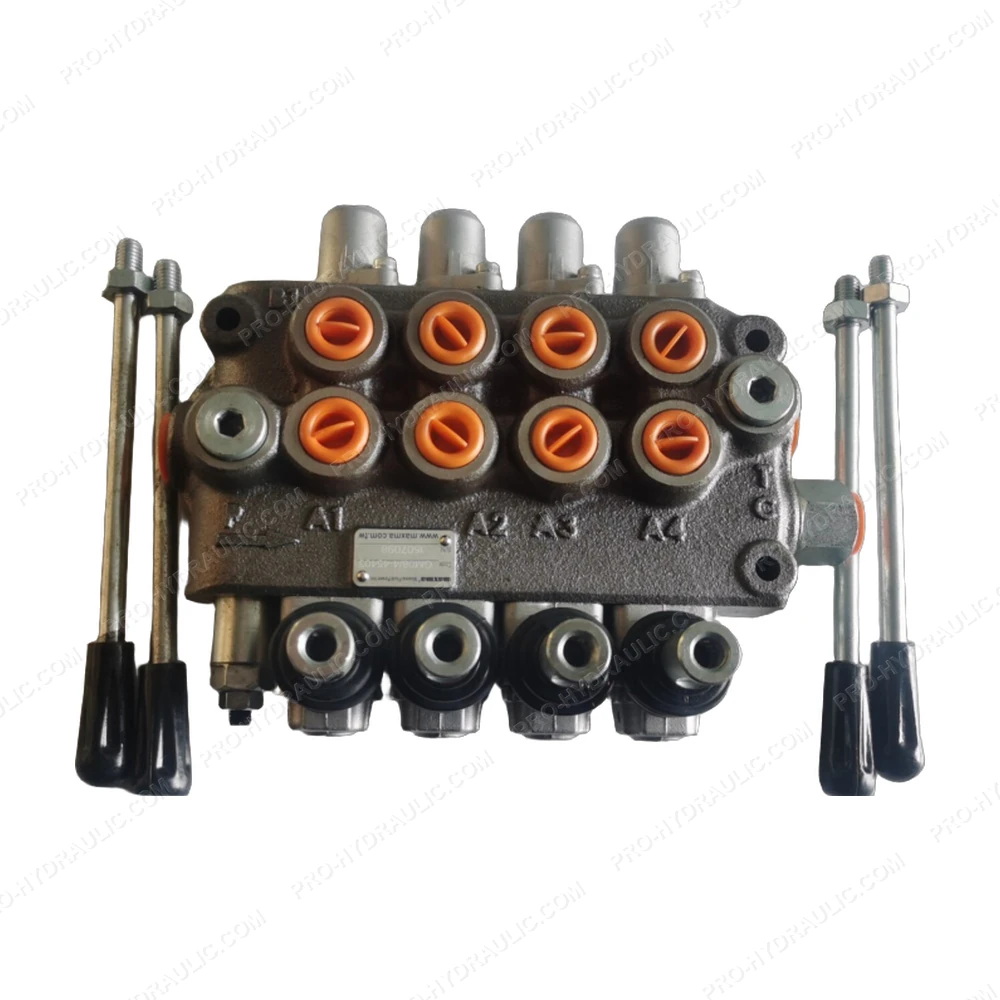

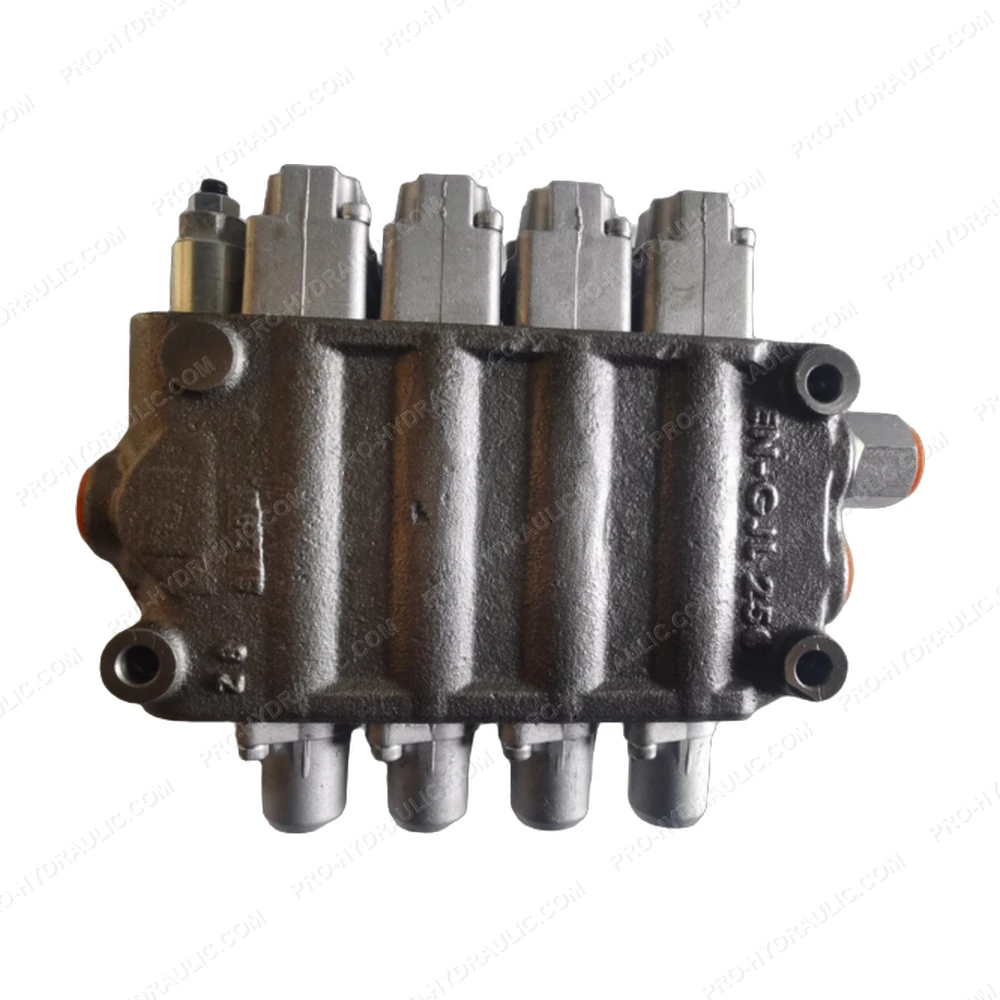

MAXMA GM08/4-45403 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the MAXMA GM08/4-45403 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
