The METAL WORK 7030022200 is a heavy-duty industrial pneumatic solenoid valve engineered for precise directional control of compressed air in automated industrial circuits. This 5/2-way valve features a robust spool-and-sleeve design with a wet-pin armature and encapsulated coil, ensuring rapid response times and long service life under continuous duty cycles. The valve body is constructed from high-strength anodized aluminum, providing excellent corrosion resistance and compatibility with lubricated and non-lubricated air supplies.
METAL WORK 7030022200 Technical Specifications
| Valve Type | 5/2-way solenoid valve, spool design |
| Actuation | Electrical solenoid, wet-pin armature |
| Port Size | 1/4″ NPT (or G1/4 depending on variant) |
| Operating Pressure | 2 to 10 bar (29 to 145 psi) |
| Flow Rate | 1200 l/min at 6 bar |
| Voltage | 24 V DC (other voltages available) |
| Power Consumption | 2.5 W |
| Body Material | Anodized aluminum |
| Seal Material | NBR (Buna-N) |
| Mounting | Inline or manifold, ISO 15407-1 / CETOP 3 |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Key Engineering Features
- Wet-pin armature design eliminates dynamic seals, reducing wear and extending cycle life.
- Encapsulated coil provides protection against moisture, dust, and mechanical impact.
- Manual override for easy testing and emergency operation.
- High flow capacity with low pressure drop for efficient system performance.
- Compact and lightweight construction simplifies installation in tight spaces.
- Compatible with a wide range of media including filtered compressed air and inert gases.
Industrial Applications
- Automated assembly and production lines
- Packaging machinery and material handling systems
- Food and beverage processing equipment
- Pharmaceutical and cleanroom environments
- Textile and printing machinery
- General pneumatic control panels and manifolds
For technical inquiries, dimensional drawings, or replacement support for METAL WORK 7030022200, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

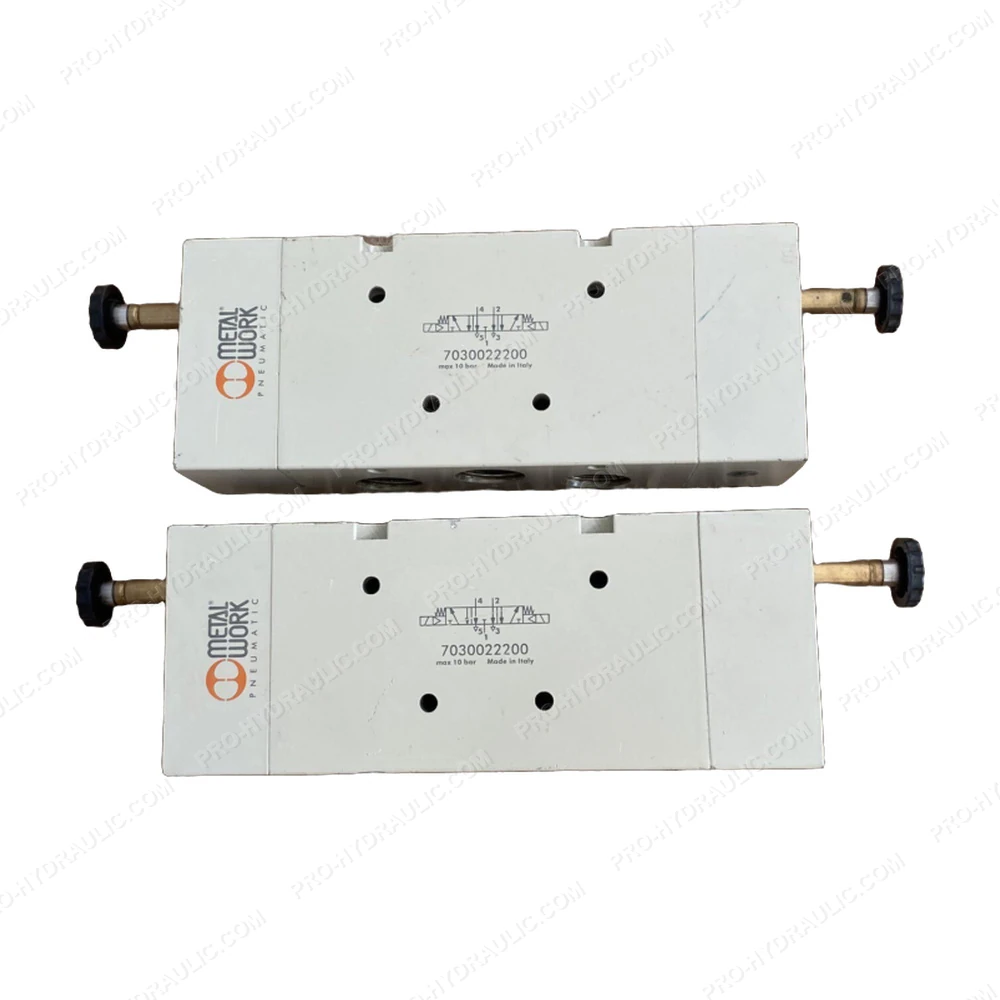

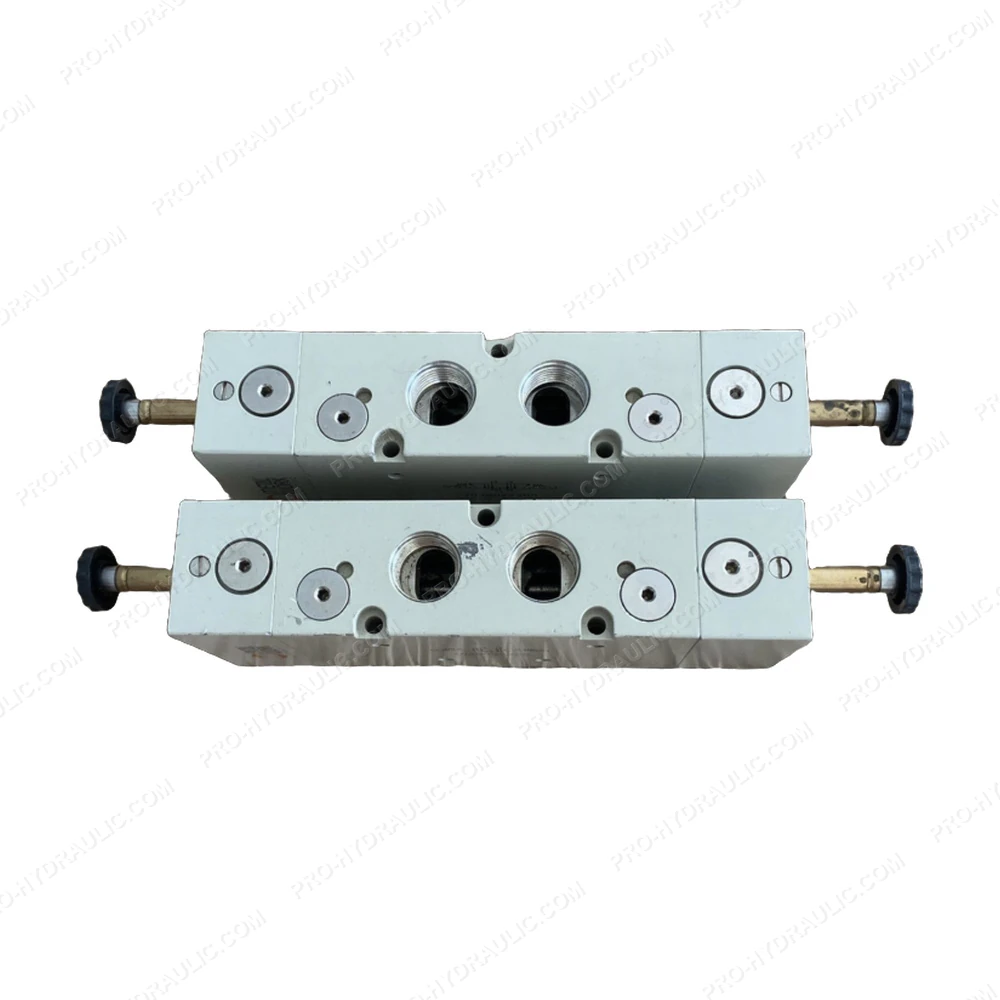

METAL WORK 7030022200 Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the METAL WORK 7030022200 Pneumatic Solenoid Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
