The MHA BK3-DN13-G1/2 is a heavy-duty industrial ball valve engineered for reliable isolation and tight shut-off in high-pressure hydraulic circuits. Featuring a DN13 nominal bore and G1/2 threaded ports, it provides full-flow capability with minimal pressure drop.
MHA BK3-DN13-G1/2 Technical Specifications
| Parameter | Specification |
|---|---|
| Type | 2-way ball valve, full bore |
| Nominal Diameter | DN13 |
| Port Connection | G1/2 (BSPP) female |
| Body Material | Steel, zinc-plated |
| Ball Material | Hard chrome-plated steel |
| Seal Material | NBR / PTFE |
| Max Operating Pressure | 500 bar (dependent on seal) |
| Temperature Range | -20 °C to +100 °C |
| Actuation | Manual lever handle |
Key Engineering Features
- High-pressure rated body for hydraulic service up to 500 bar
- Full-bore design minimizes pressure loss and turbulence
- Hard chrome-plated ball ensures low torque and long cycle life
- G1/2 threaded ports for direct installation in standard hydraulic lines
- Blow-out proof stem and anti-static design
Industrial Applications
- Hydraulic power units and test benches
- Mobile and industrial hydraulic systems
- High-pressure isolation and shut-off circuits
- Machine tool and press hydraulics
For technical inquiries, dimensional drawings, or replacement support for MHA BK3-DN13-G1/2, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

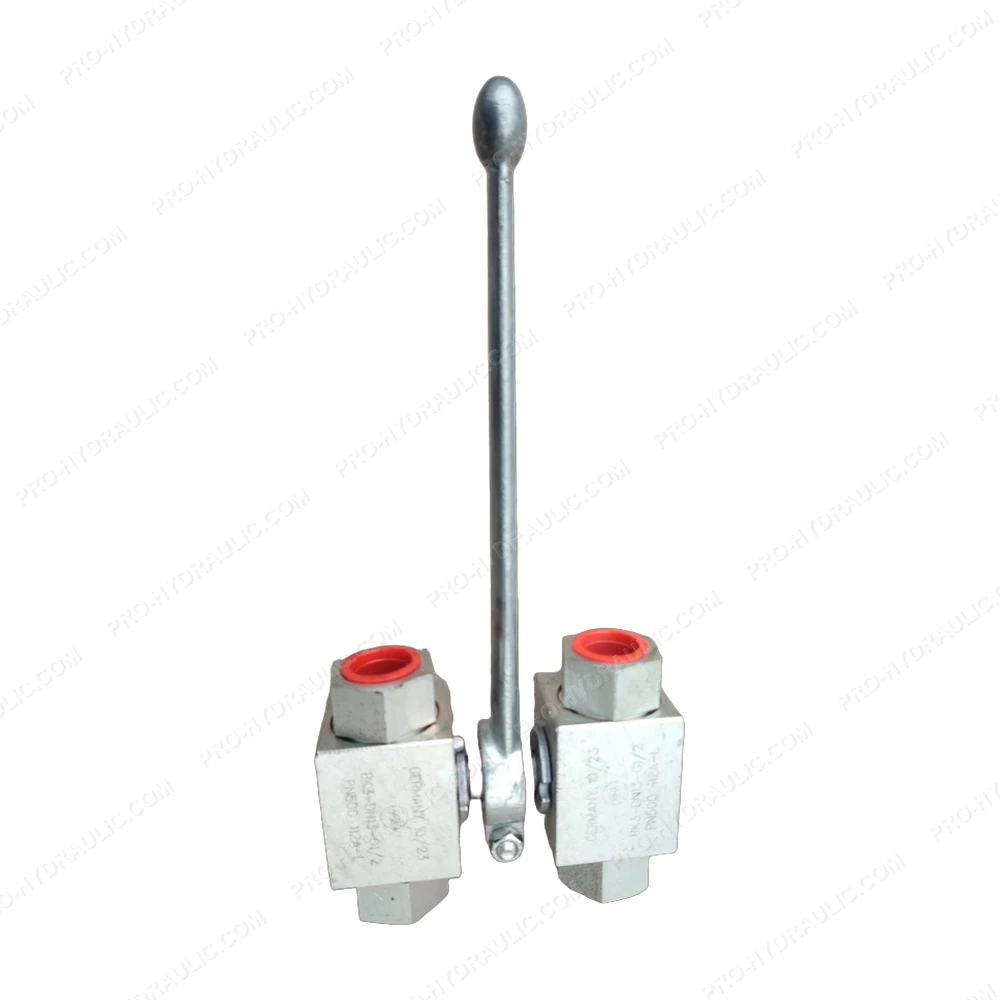

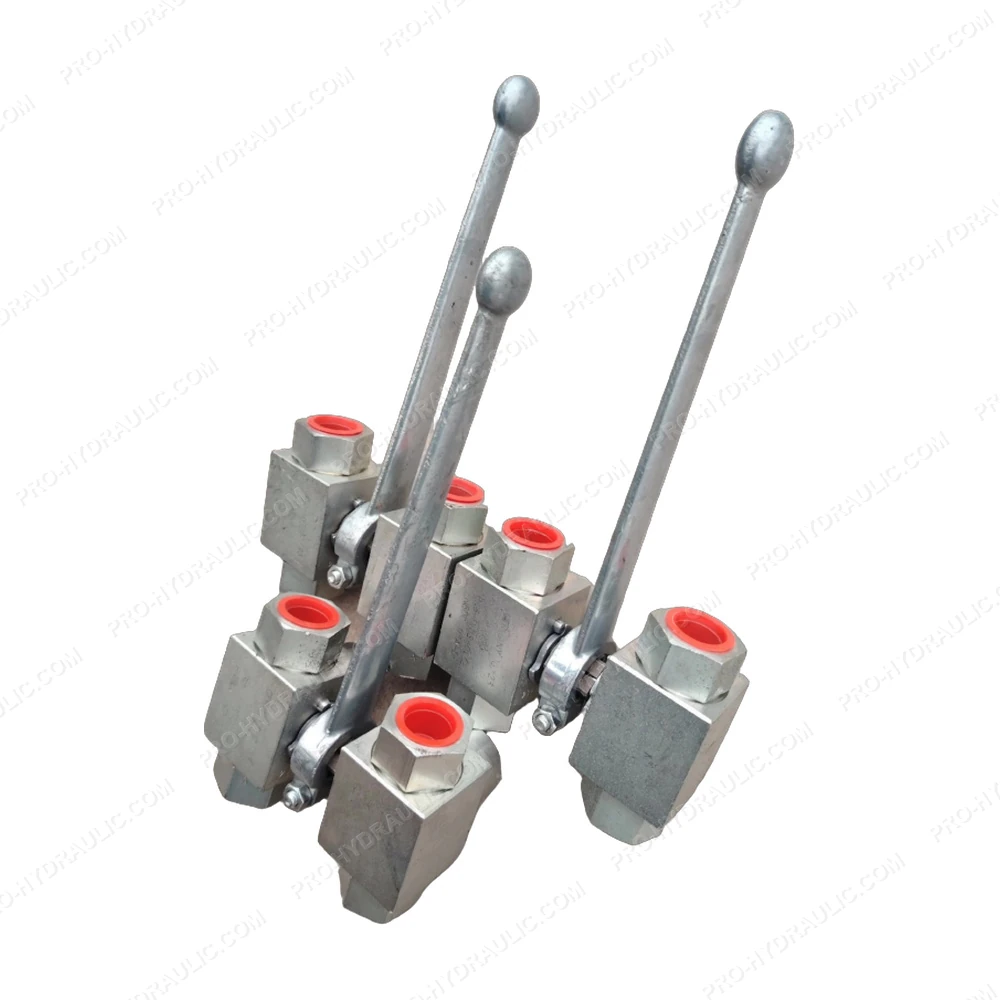

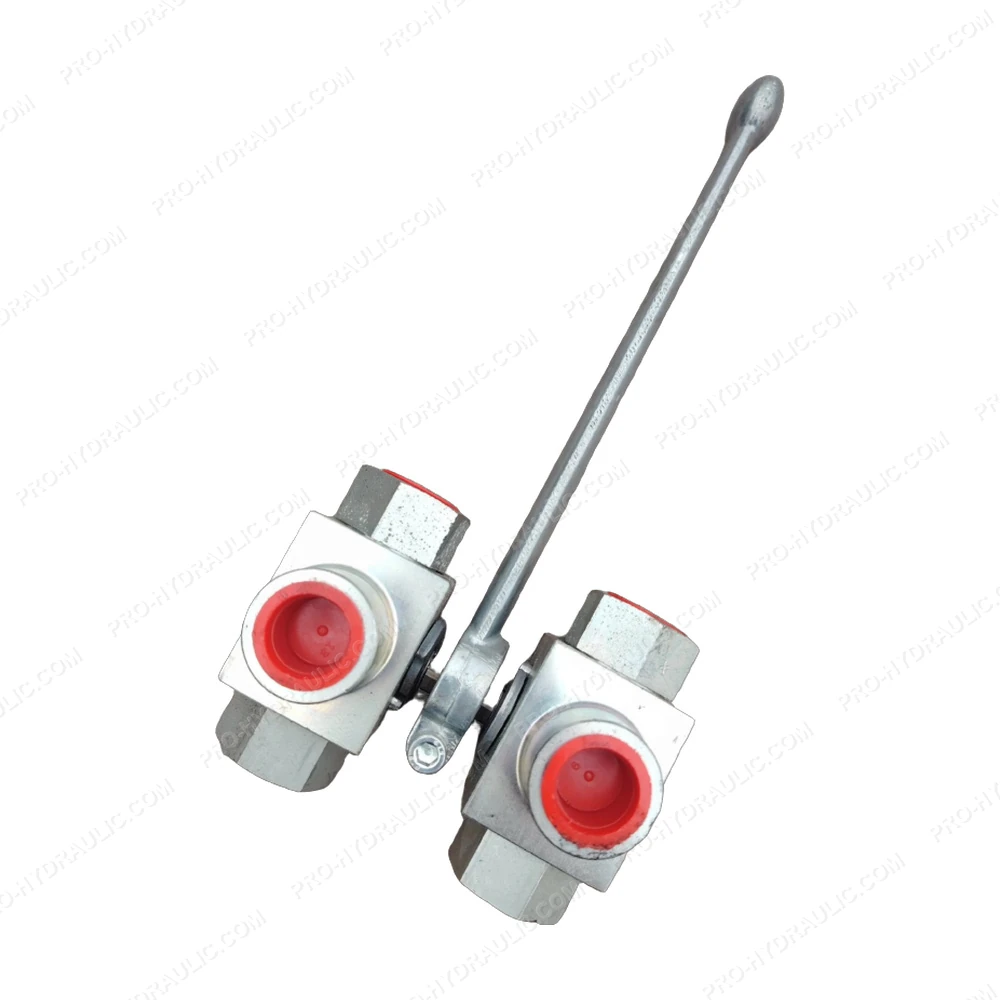

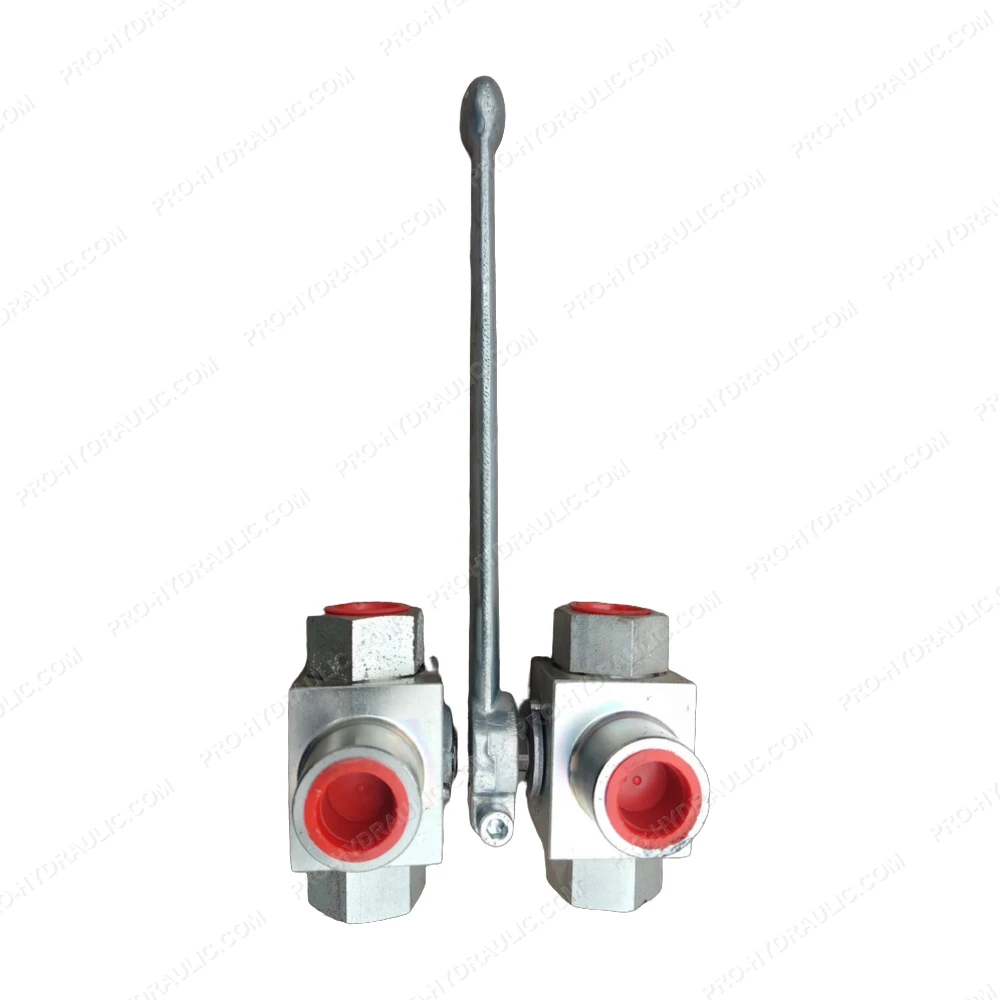

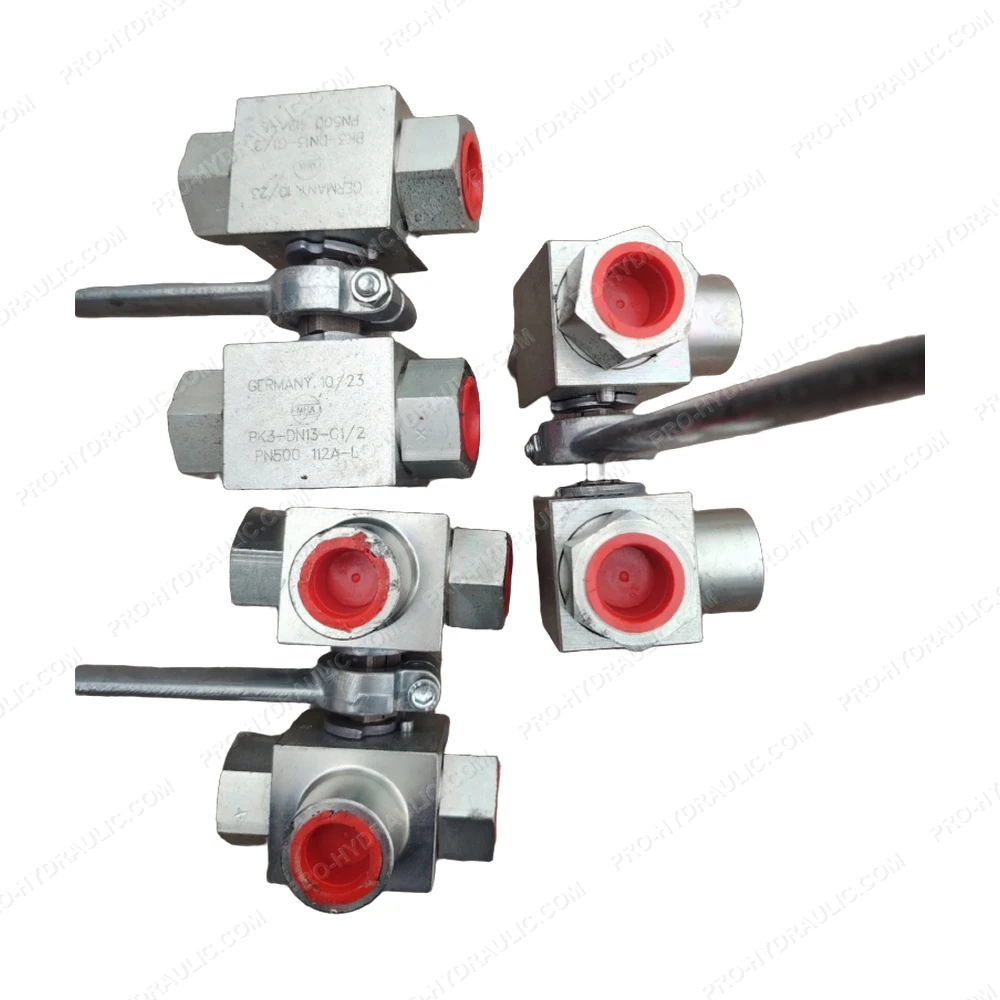

MHA BK3-DN13-G1/2 High Pressure Ball Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the MHA BK3-DN13-G1/2 High Pressure Ball Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
