The MHA BKH DN13 15L is a heavy-duty industrial high pressure ball valve engineered for reliable isolation and tight shut-off in hydraulic systems up to 500 bar. Featuring a robust steel or stainless steel body, the BKH series is designed for direct pipe mounting and panel installation, ensuring minimal pressure drop and long service life in demanding applications.
MHA BKH DN13 15L Technical Specifications
| Type | High Pressure Ball Valve |
| Nominal Diameter | DN13 |
| Connection Size | 15L (M22 x 1.5) |
| Body Material | Steel, zinc-nickel plated (standard) |
| Ball & Stem Material | Hard chrome plated steel |
| Seal Material | NBR (Buna-N) / FKM (Viton) optional |
| Max. Operating Pressure | 500 bar (7250 psi) |
| Temperature Range | -20°C to +100°C (NBR) / -20°C to +150°C (FKM) |
| Actuation | Manual lever handle (standard) |
| Mounting | Panel mount / inline |
| Standards | DIN 2353 / ISO 8434-1 |
Key Engineering Features
- Two-way ball valve with floating ball design for bubble-tight sealing.
- High pressure rating up to 500 bar for severe hydraulic circuits.
- 15L (M22 x 1.5) threaded ports for direct connection to standard hydraulic tubing.
- Blow-out proof stem and anti-static device for safe operation.
- Low operating torque with lever handle for manual actuation.
- Available with NBR or FKM seals for compatibility with various hydraulic fluids.
Industrial Applications
- Hydraulic power units and test stands.
- Mobile and industrial hydraulic systems.
- Oil and gas control panels.
- Chemical and petrochemical processing.
- Steel mills and heavy machinery.
- Offshore and marine equipment.
For technical inquiries, dimensional drawings, or replacement support for MHA BKH DN13 15L, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

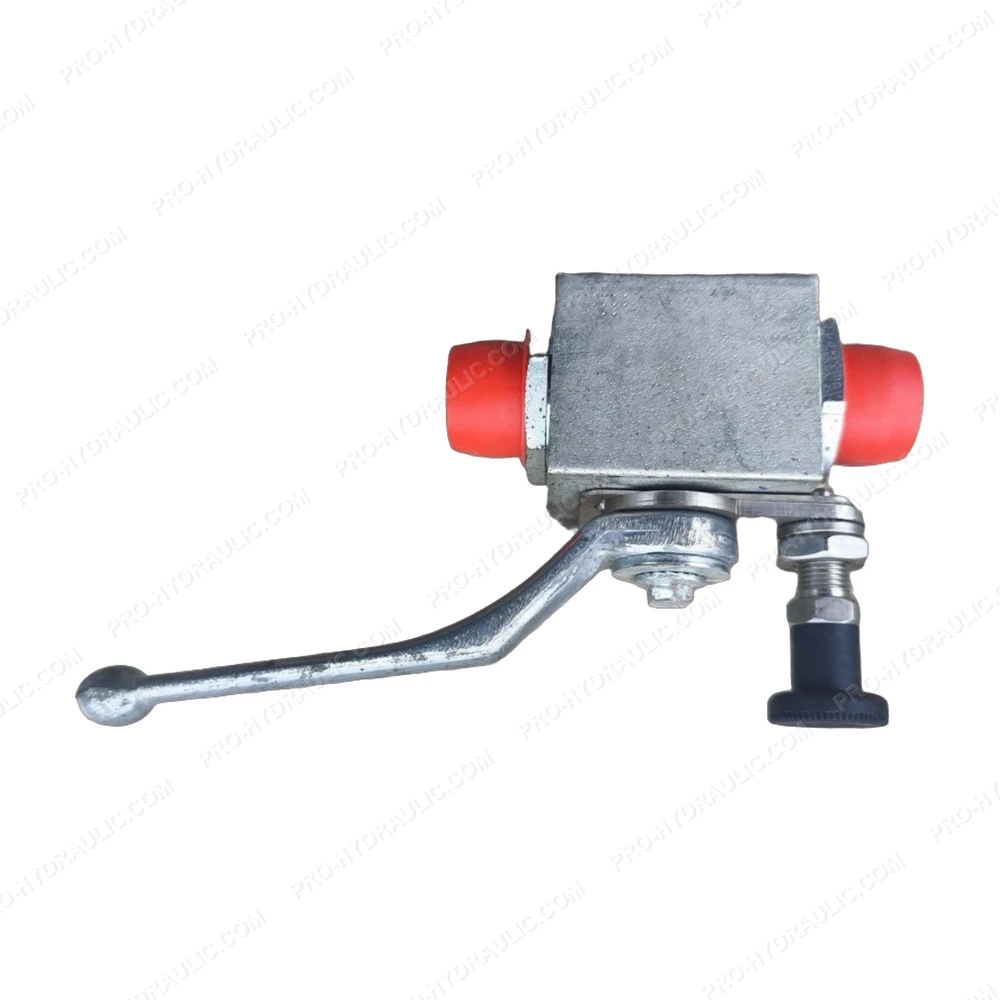

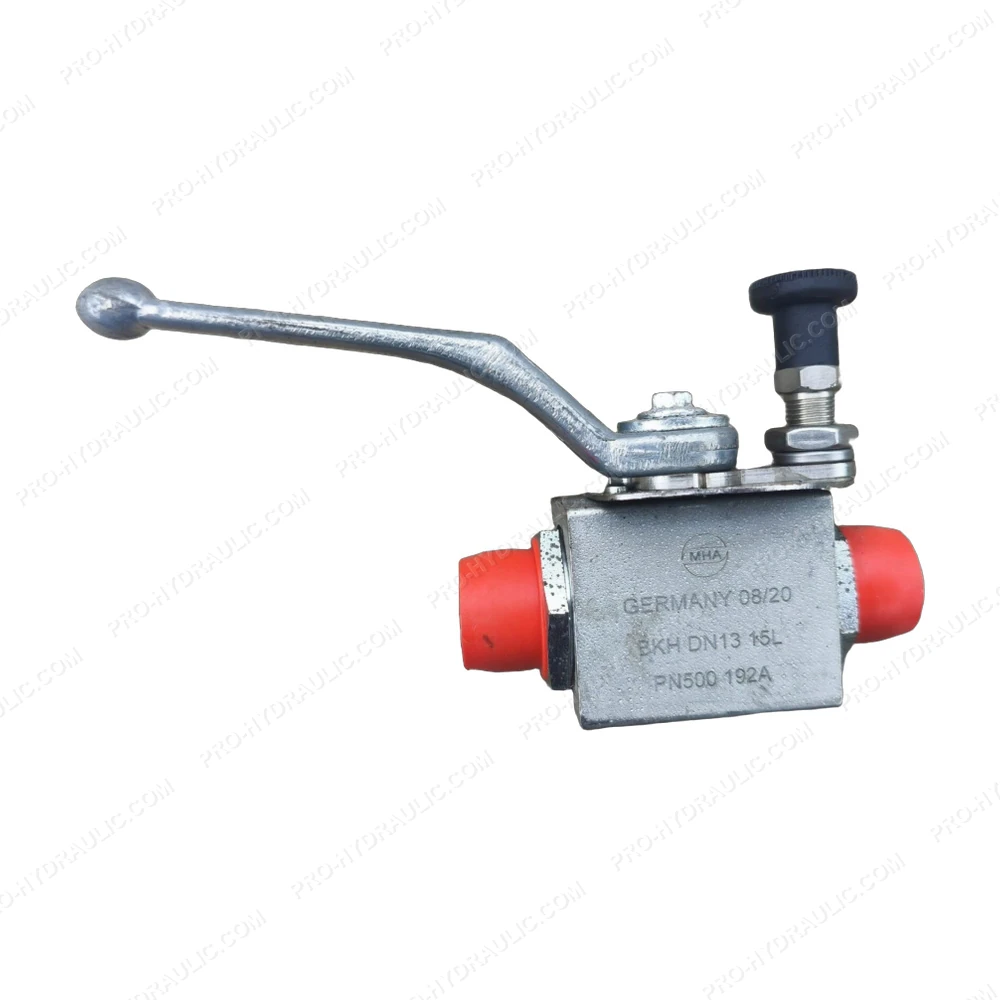

MHA BKH DN13 15L High Pressure Ball Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the MHA BKH DN13 15L High Pressure Ball Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
