Product Overview
The MHA BKH DN13 16S 442A is a high-pressure hydraulic ball valve engineered for positive shut-off and flow isolation in demanding industrial hydraulic circuits. Manufactured to the BKH series standard, this two-way ball valve features a robust forged steel body with a precision-ground chrome-plated ball and PTFE-based sealing seats, delivering bubble-tight sealing with minimal operating torque. The DN13 (nominal 1/2″ line size) configuration with 16S connection interface allows direct integration into high-pressure hydraulic power units, manifolds, and modular valve stacks. As a flow control and modular valve component, it serves as a reliable manual isolation point for maintenance, safety lockout, and circuit selection functions in systems operating at pressures up to 500 bar.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Ball Valve (Flow Control & Modular Valve) |
| Model Designation | MHA BKH DN13 16S 442A |
| Nominal Size | DN13 (1/2″ nominal bore) |
| Connection Interface | 16S (SAE-style high-pressure port, 442A configuration) |
| Operating Pressure | Up to 500 bar (7,250 psi) rated static working pressure |
| Body Material | Forged carbon steel, zinc-nickel plated for corrosion resistance |
| Sealing Element | PTFE ball seats with FKM O-ring stem seal |
| Actuation | Manual lever handle (standard), 90° quarter-turn operation |
| Mounting & Connection | Inline threaded / manifold interface per manufacturer standard |
| Temperature Range | -20°C to +80°C (standard seal configuration) |
Engineering Features & Advantages
- Precision Performance: Precision-lapped ball and seat geometry ensures bubble-tight shut-off with low operating torque, minimizing pressure drop across the valve in the open position and eliminating internal leakage in the closed position.
- High-Pressure Capability: Forged steel body construction rated for continuous service up to 500 bar, suitable for high-pressure hydraulic circuits where standard commercial ball valves would fail.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with corrosion-resistant plating and durable PTFE/FKM sealing for extended maintenance-free service life.
- Direct Fit Replacement: Precision-manufactured to original MHA specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a flow control and modular valve component, it serves as a reliable manual isolation point for maintenance, safety lockout, and circuit selection functions in systems operating at pressures up to 500 bar.
PRODUCT IMAGES

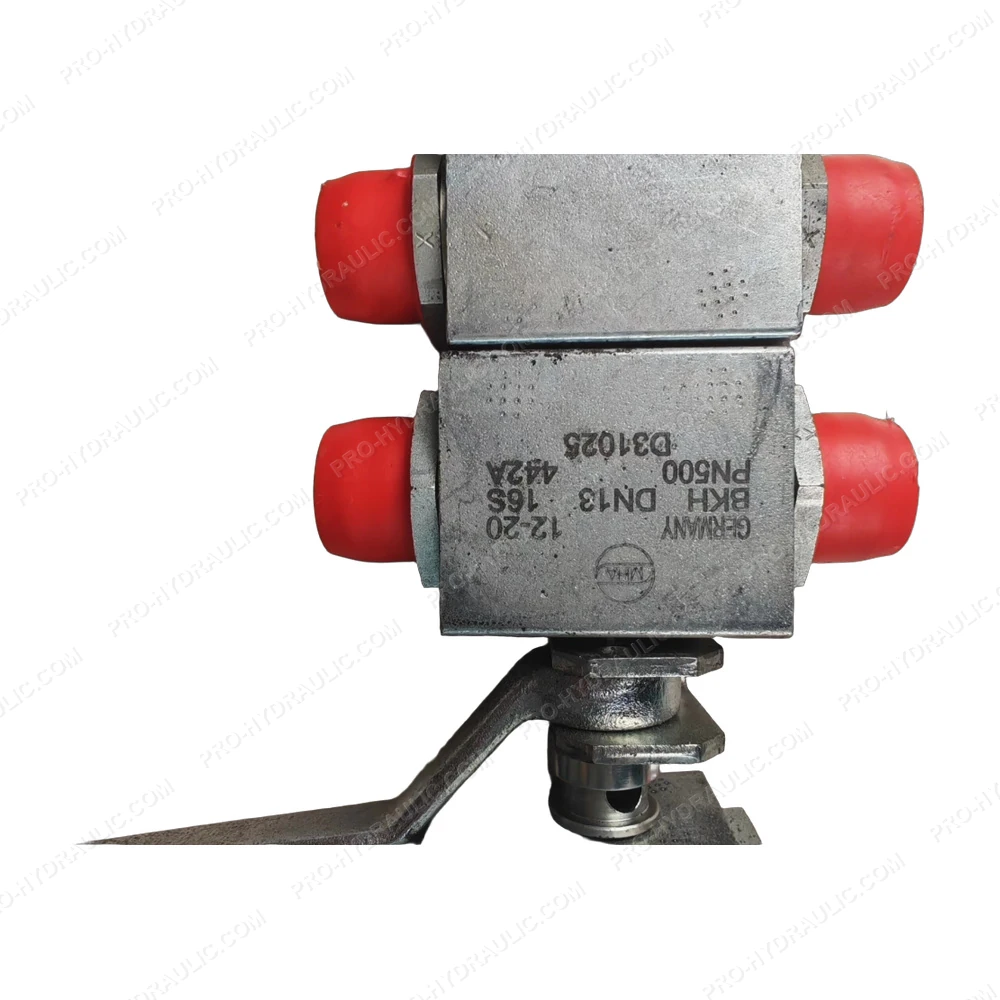

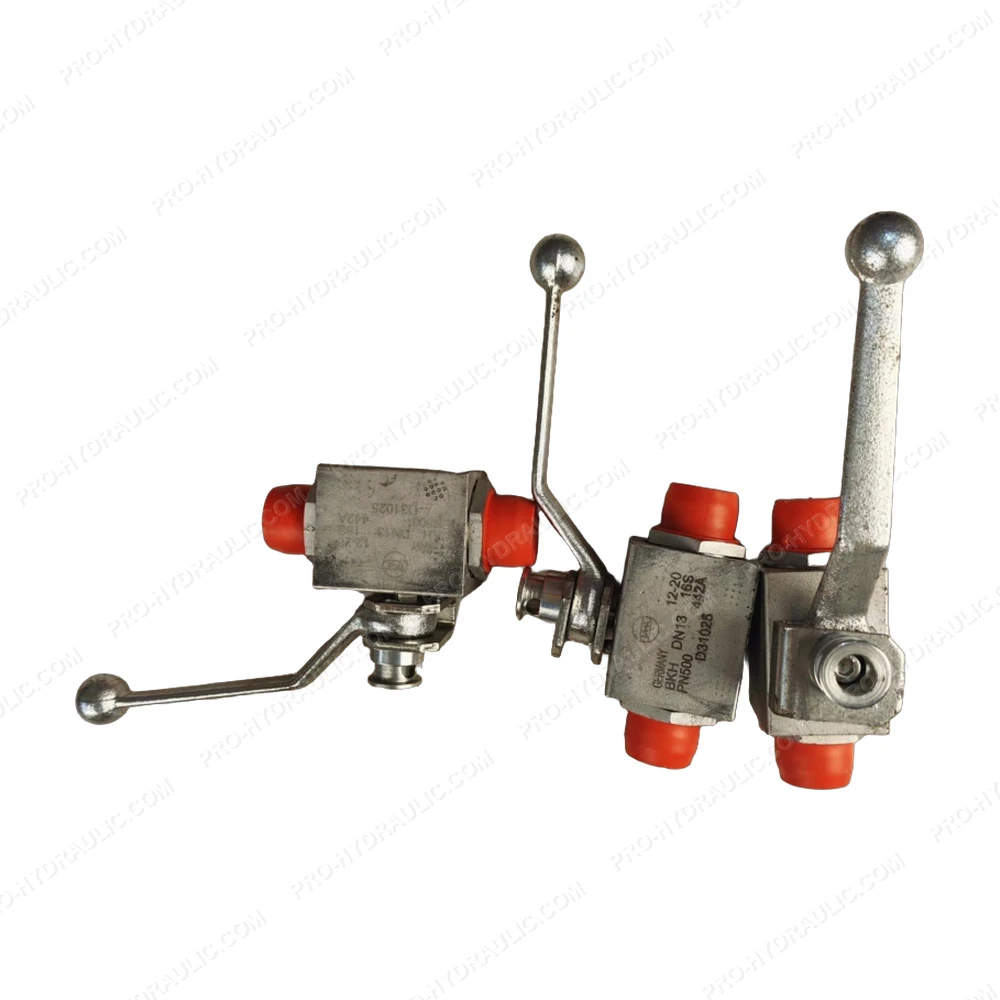

MHA BKH DN13 16S 442A High-Pressure Hydraulic Ball Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MHA BKH DN13 16S 442A High-Pressure Ball Valve. This Germany-made DN13 hydraulic component features a 2-way ball design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
