The MILTON ROY GM0120PP1MNN is a heavy-duty industrial metering pump engineered for accurate chemical dosing in continuous process applications. This positive displacement diaphragm pump provides precise volumetric control independent of discharge pressure, ensuring reliable injection of treatment chemicals, additives, and process fluids.
MILTON ROY GM0120PP1MNN Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Mechanically Actuated Diaphragm Metering Pump |
| Model Series | GM Series |
| Maximum Flow Rate | 0.5 GPH (1.9 L/h) |
| Maximum Discharge Pressure | 150 psi (10.3 bar) |
| Liquid End Material | PP (Polypropylene) |
| Diaphragm Material | PTFE-faced |
| Check Valve Type | Single ball, ceramic |
| Motor | 1/4 HP, TEFC, single phase |
| Control | Manual stroke adjustment, 0-100% |
| Port Connections | 1/4 in NPT |
Key Engineering Features
- Mechanically actuated diaphragm design eliminates leakage and contamination risks.
- Precise stroke adjustment allows accurate dosing from 0 to 100% capacity.
- Polypropylene liquid end provides excellent chemical resistance for aggressive fluids.
- PTFE-faced diaphragm ensures long service life and compatibility with a wide range of chemicals.
- Compact, rugged construction suitable for continuous duty in industrial environments.
Industrial Applications
- Water and wastewater treatment chemical dosing
- Boiler and cooling tower water treatment
- Chemical processing and additive injection
- Oil and gas production chemical injection
- Agricultural fertigation and pH control
For technical inquiries, dimensional drawings, or replacement support for MILTON ROY GM0120PP1MNN, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

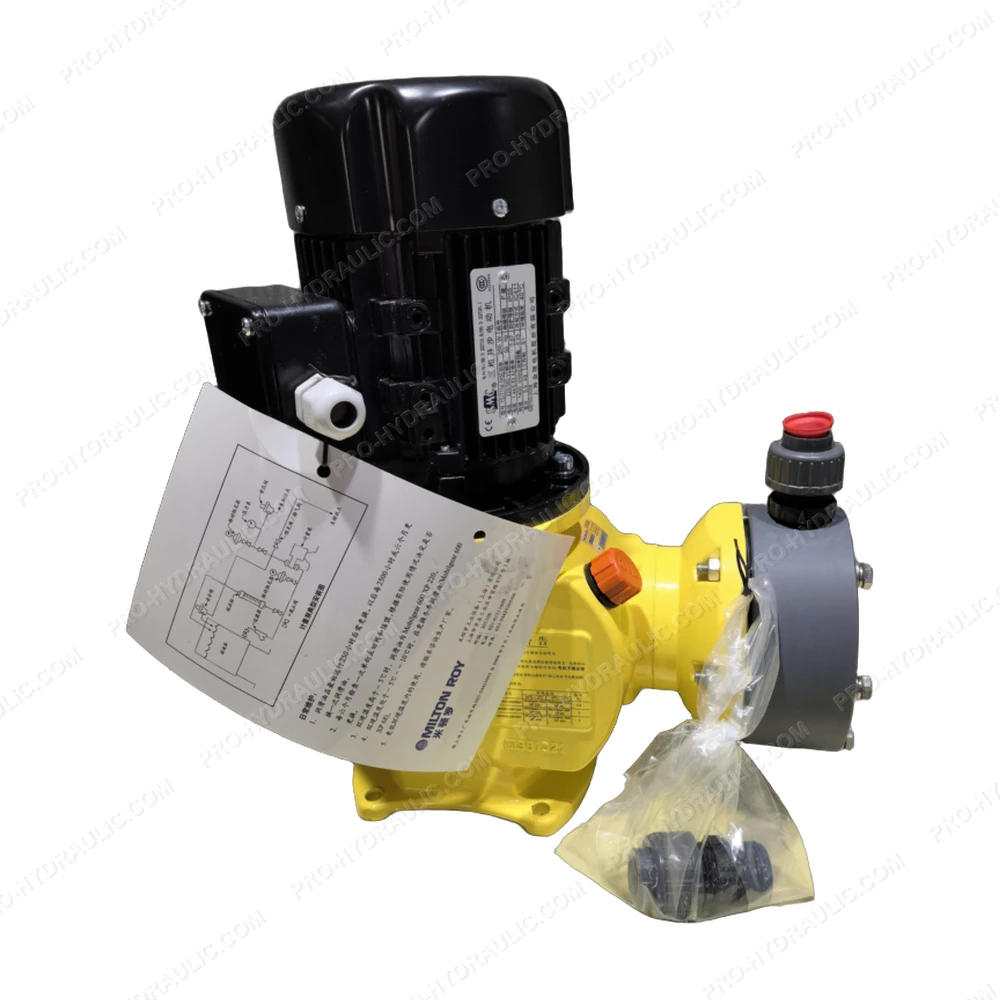

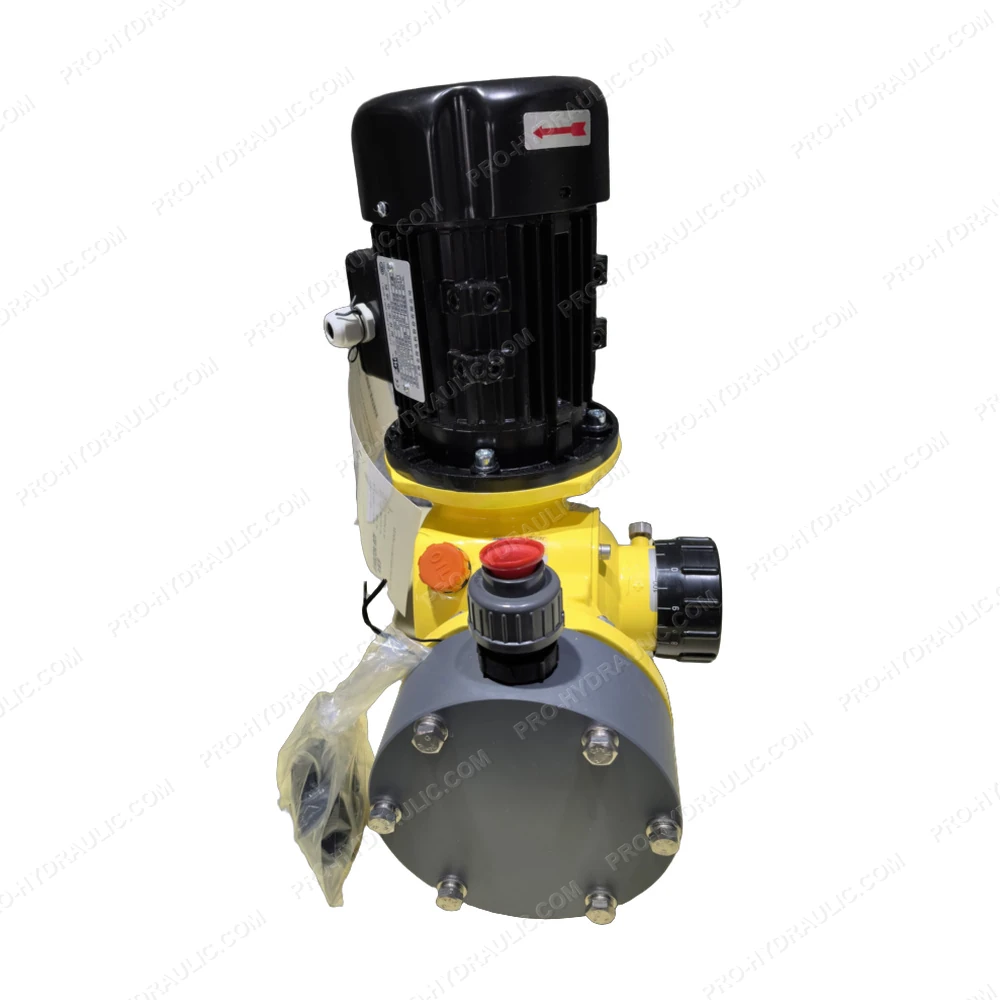

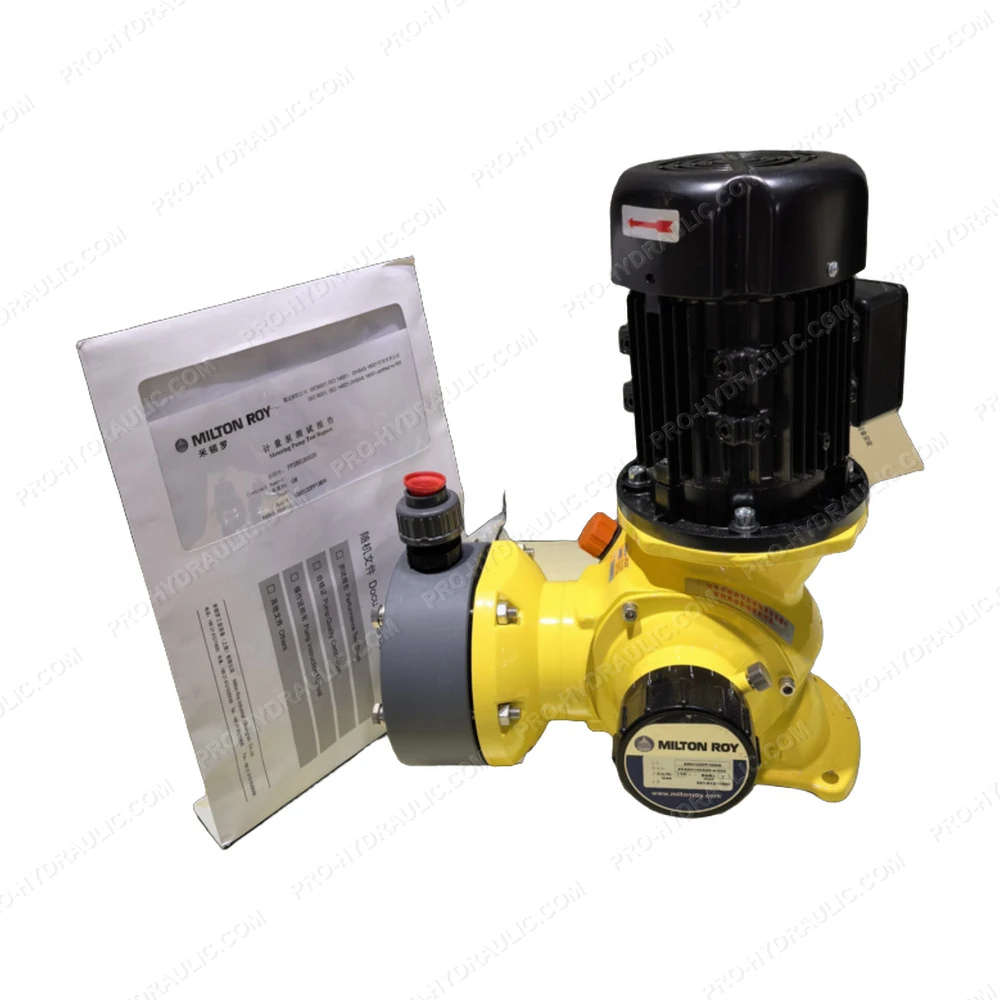

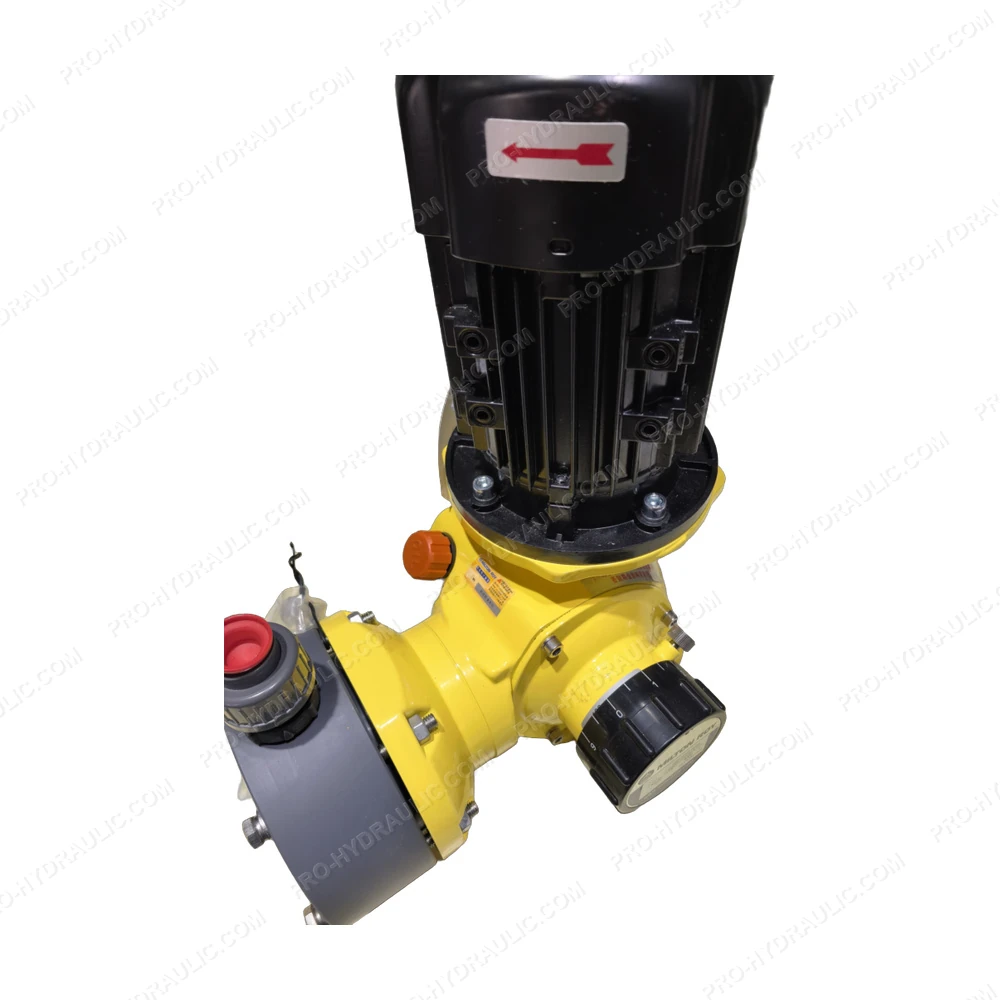

MILTON ROY GM0120PP1MNN Metering Pump
