Product Overview
The MINDMAN MVHA-3P is a pneumatically actuated solenoid valve from the MVHA series, engineered for precise directional control of compressed air and neutral gases in industrial automation systems. Manufactured by MINDMAN, a recognized brand in pneumatic control components, this 3-port, 2-position valve utilizes a balanced spool and sleeve design that ensures consistent shifting force and minimal leakage across the operating range. The MVHA-3P serves as a reliable interface between electrical control signals and pneumatic actuators, making it a core component in valve islands, manifold assemblies, and standalone pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | MVHA-3P |
| Valve Function | 3-Port, 2-Position (3/2), normally closed configuration |
| Operating Pressure | Standard pneumatic range (0.15 – 0.8 MPa / approx. 1.5 – 8 bar) |
| Actuation Type | Electrical solenoid pilot with spring return |
| Mounting & Connection | Manifold / sub-base mount with threaded port connections |
Engineering Features & Advantages
- Precision Performance: Balanced spool design delivers consistent shifting force and reliable sealing, minimizing internal leakage and ensuring accurate directional control of pneumatic flow.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with durable solenoid coils and wear-resistant spool and sleeve materials.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MINDMAN MVHA series specifications, allowing drop-in replacement without modification.
Typical Industrial Applications
The MINDMAN MVHA-3P is widely deployed in pneumatic automation systems, including plastic injection molding machines, packaging and assembly lines, CNC machine tool clamping circuits, and general factory automation valve manifolds where reliable 3/2 directional control of compressed air is required.
PRODUCT IMAGES

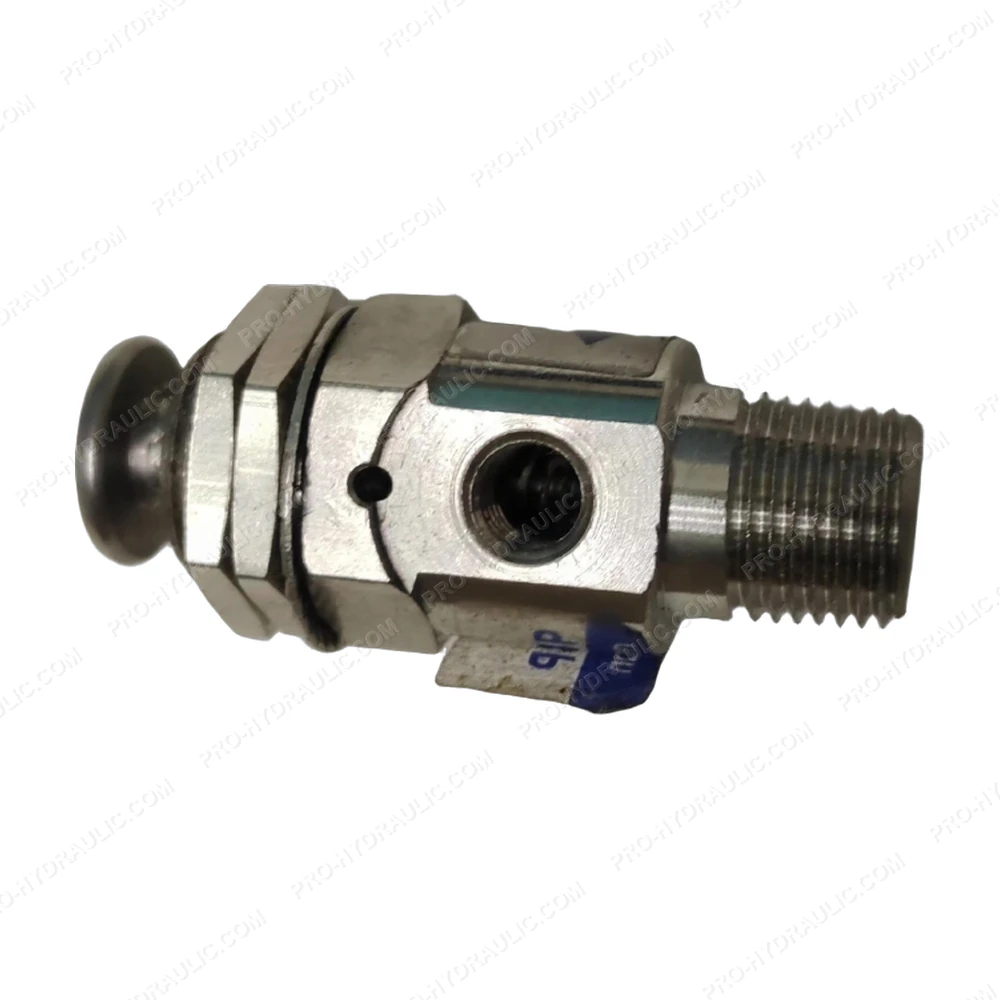

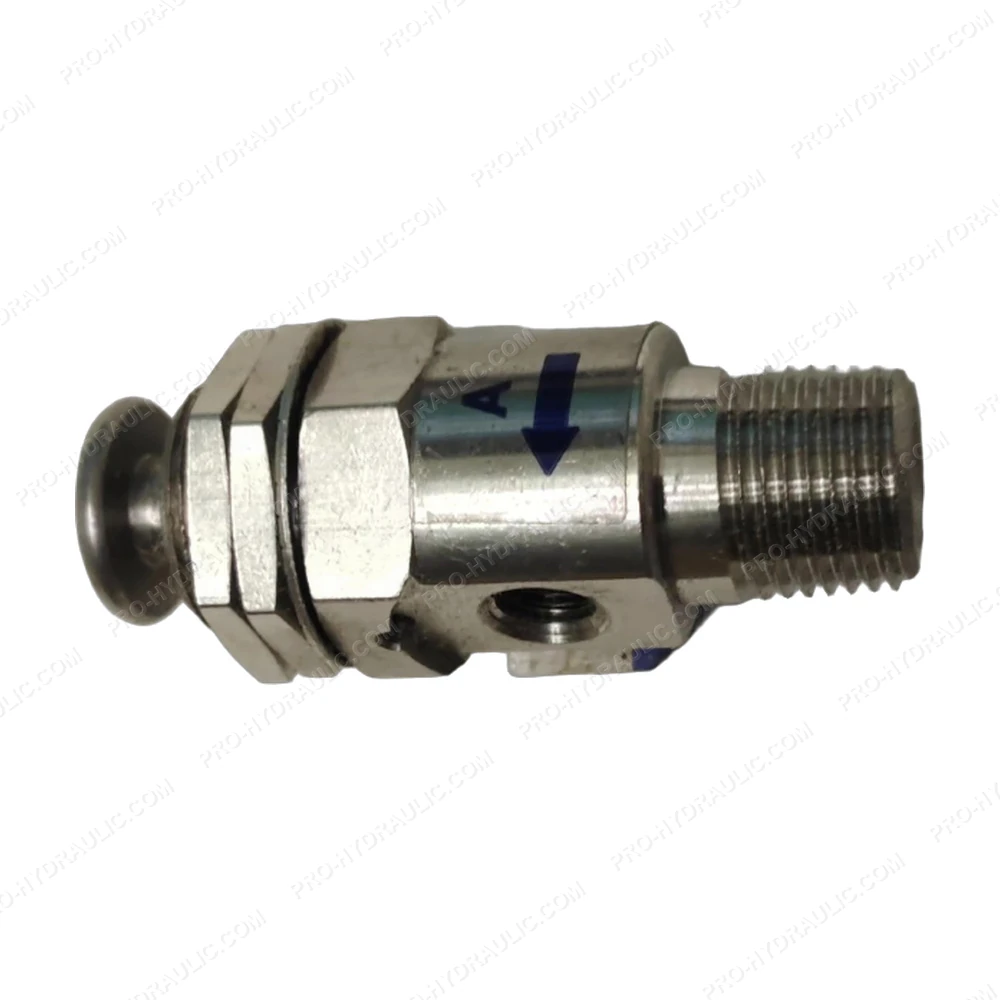

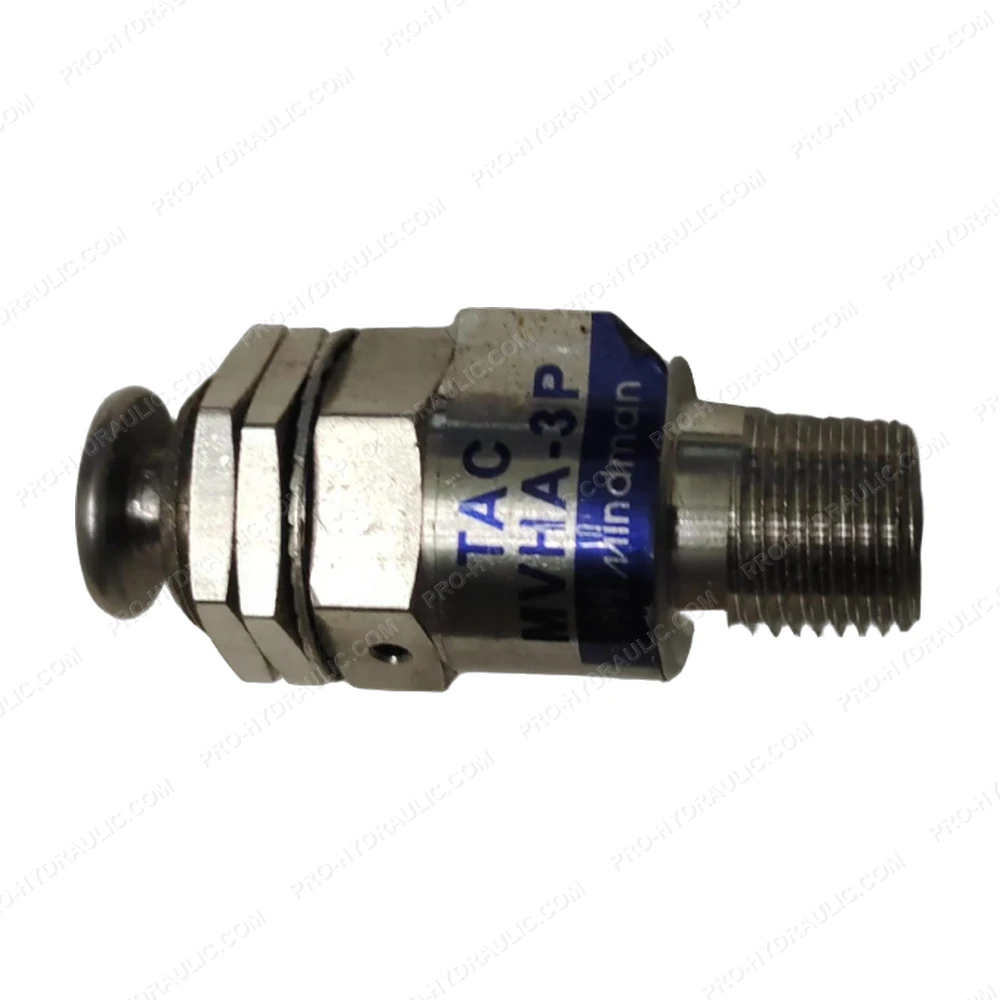

MINDMAN MVHA-3P Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MINDMAN MVHA-3P Solenoid Directional Valve. This Taiwan-made 3-position hydraulic component features a spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
