Product Overview
The MINIBOOSTER HC3-2.0-B-H-NG10 is a compact, high-performance hydraulic pressure intensifier designed and manufactured by MINIBOOSTER, a recognized specialist in hydraulic pressure intensification technology. Operating on a fully hydraulic, self-acting principle, this unit functions as a pressure control valve that automatically multiplies an existing low-pressure supply into a significantly higher output pressure without the need for electrical power or external control signals. With a nominal intensification ratio of 2.0 and an NG10 (CETOP 5 / ISO 4401 size 10) interface, the HC3-2.0-B-H-NG10 integrates directly into standard hydraulic manifolds and valve blocks, making it an ideal solution for clamping, pressing, and holding circuits where high force must be generated from a low-pressure system. As a pressure control component, it regulates and maintains intensified output pressure precisely, ensuring stable and repeatable performance in demanding industrial hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pressure Control Valve (Pressure Intensifier) |
| Model Designation | HC3-2.0-B-H-NG10 |
| Intensification Ratio | 2.0 (output pressure = 2 × input pressure) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, per MINIBOOSTER HC3 series data) |
| Mounting & Connection | NG10 / CETOP 5 / ISO 4401 size 10 subplate interface |
| Actuation Principle | Fully hydraulic, self-acting (no electrical or pneumatic signal required) |
| Sealing Configuration | “B” variant — standard industrial sealing for mineral-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The 2.0 intensification ratio delivers a controlled, repeatable pressure multiplication, allowing low-pressure circuits to achieve high clamping and holding forces with precise pressure regulation.
- Self-Acting Operation: Requires no external power supply or control electronics; the intensifier responds automatically to system pressure, simplifying circuit design and reducing installation cost.
- Compact NG10 Interface: The standardized NG10 / CETOP 5 mounting pattern enables direct manifold or subplate integration, minimizing footprint and piping in dense hydraulic power units.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust internal components engineered for long service life and stable pressure output.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MINIBOOSTER HC3 series standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The MINIBOOSTER HC3-2.0-B-H-NG10 is widely deployed in hydraulic clamping and holding circuits, plastic injection molding machines, metallurgical presses, CNC machine tool fixtures, and general industrial hydraulic systems where a compact, self-acting pressure intensifier is required to generate high force from a standard low-pressure supply. Its NG10 interface and 2.0 ratio make it particularly suited to
PRODUCT IMAGES

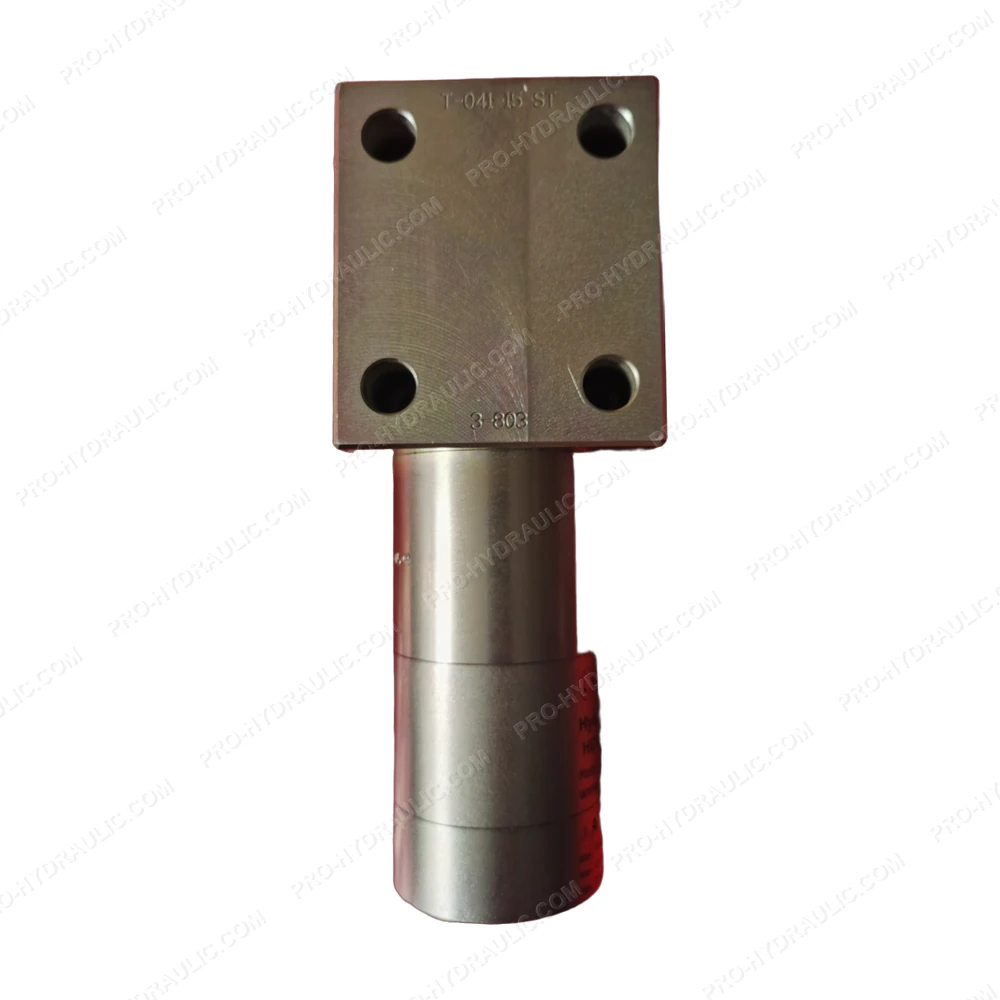

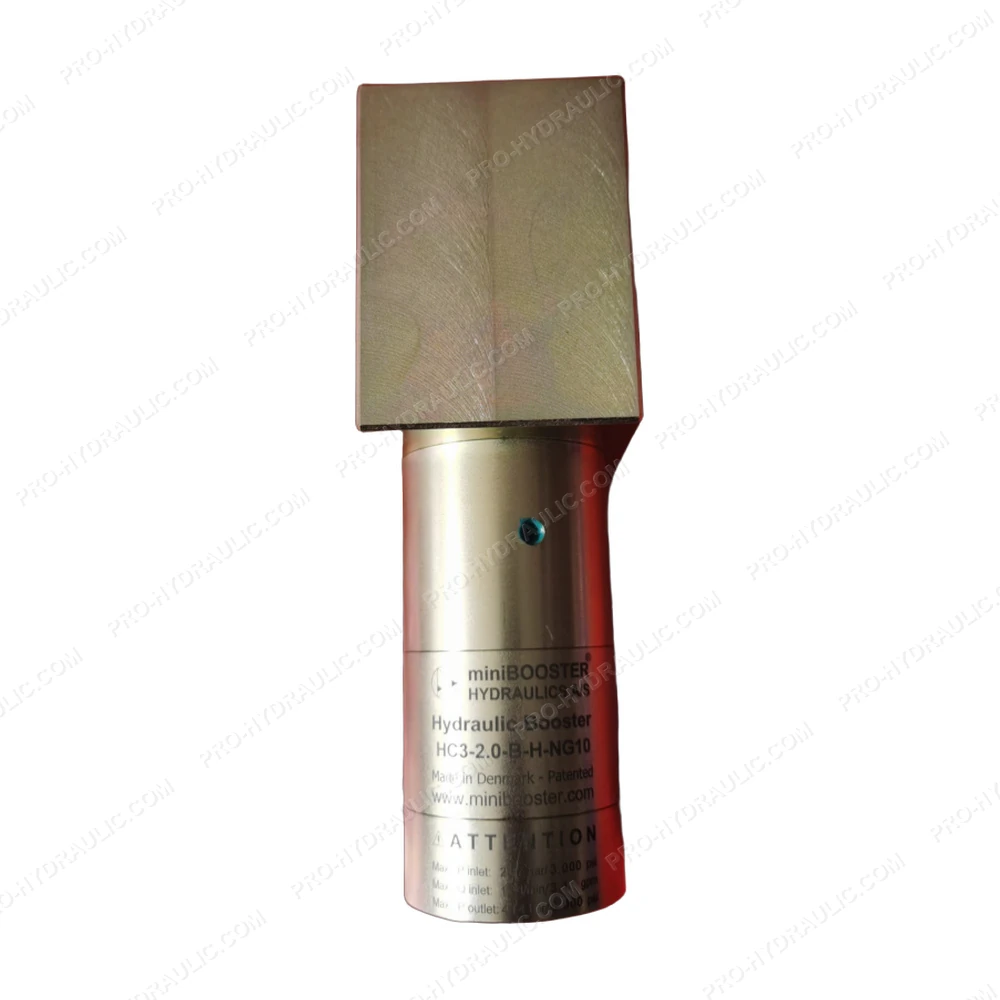

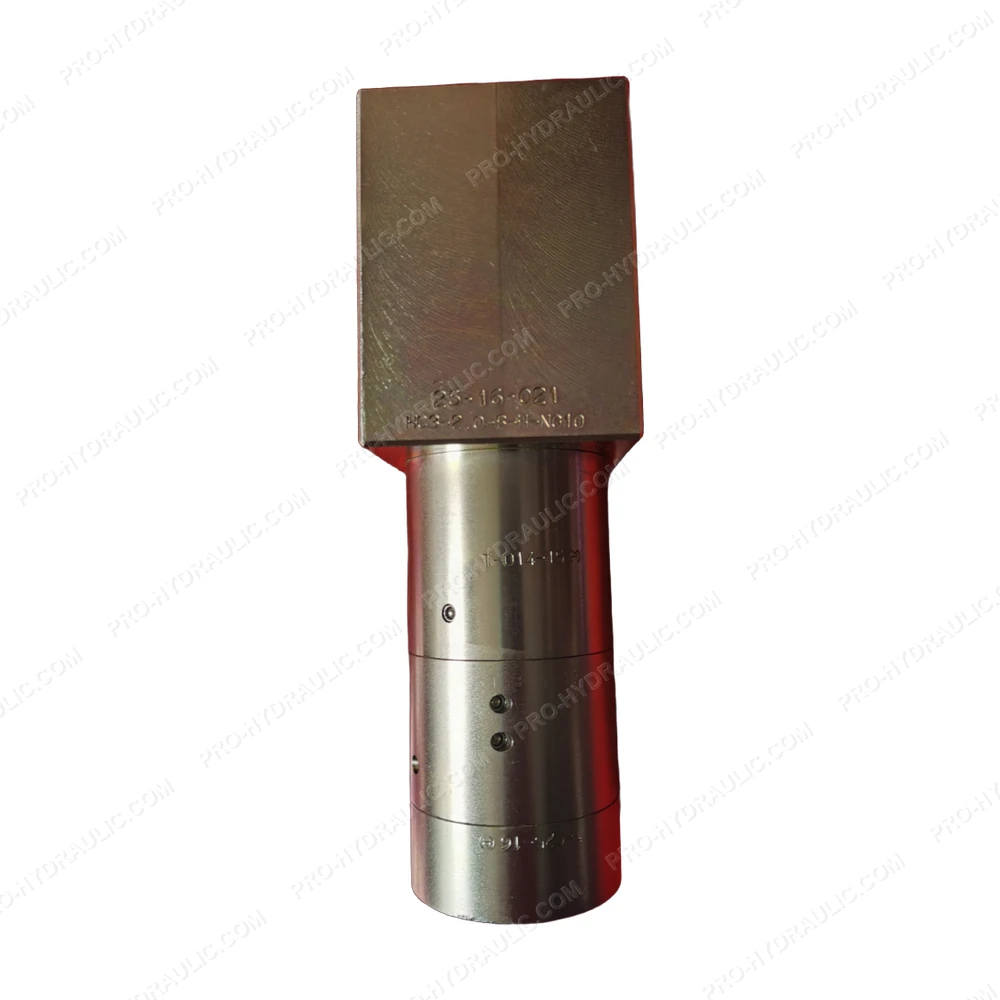

MINIBOOSTER HC3-2.0-B-H-NG10 Hydraulic Pressure Intensifier
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MINIBOOSTER HC3-2.0-B-H-NG10 Hydraulic Check Valve. This Denmark-made NG10 hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
