Product Overview
The MOOG 072-1203-10 is a high-performance, two-stage electrohydraulic servo valve engineered by Moog Inc., the global benchmark in precision motion control. Operating on a torque-motor, flapper-nozzle pilot stage that hydraulically actuates a spool-type second stage, this valve delivers infinitely variable, bidirectional flow control proportional to an electrical input current. Its closed-loop architecture provides exceptionally fast dynamic response, high resolution, and minimal hysteresis, making it the definitive control element for applications demanding micron-level positioning accuracy, velocity regulation, and force control within high-response industrial and aerospace-grade hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electrohydraulic Servo Valve (Two-Stage, Flapper-Nozzle Pilot) |
| Model Designation | MOOG 072-1203-10 |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar / 3,000 psi rated) |
| Mounting & Connection | Standard ISO 4401 / Moog Subplate Interface |
| Pilot Stage | Torque Motor with Dual Nozzle / Flapper Assembly |
| Second Stage | Four-Way, Critical-Center Spool with Position Feedback |
| Input Signal | Analog Current (Differential, typically ±10 mA to ±40 mA) |
| Flow Direction | Bidirectional, Proportional to Input Current |
| Dynamic Response | High Frequency Bandwidth (typically 100–200 Hz at 90° phase lag) |
| Hysteresis & Resolution | < 3% Hysteresis; Infinite Resolution |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68), Filtration ≤ 3 µm |
Engineering Features & Advantages
- Precision Performance: The torque-motor/flapper-nozzle pilot stage provides extremely high resolution and low threshold, enabling precise metering of spool position and thus accurate control of actuator velocity, position, and force with minimal deadband.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its closed-loop architecture provides exceptionally fast dynamic response, high resolution, and minimal hysteresis, making it the definitive control element for applications demanding micron-level positioning accuracy, velocity regulation, and force control within high-response industrial and aerospace-grade hydraulic systems.
PRODUCT IMAGES

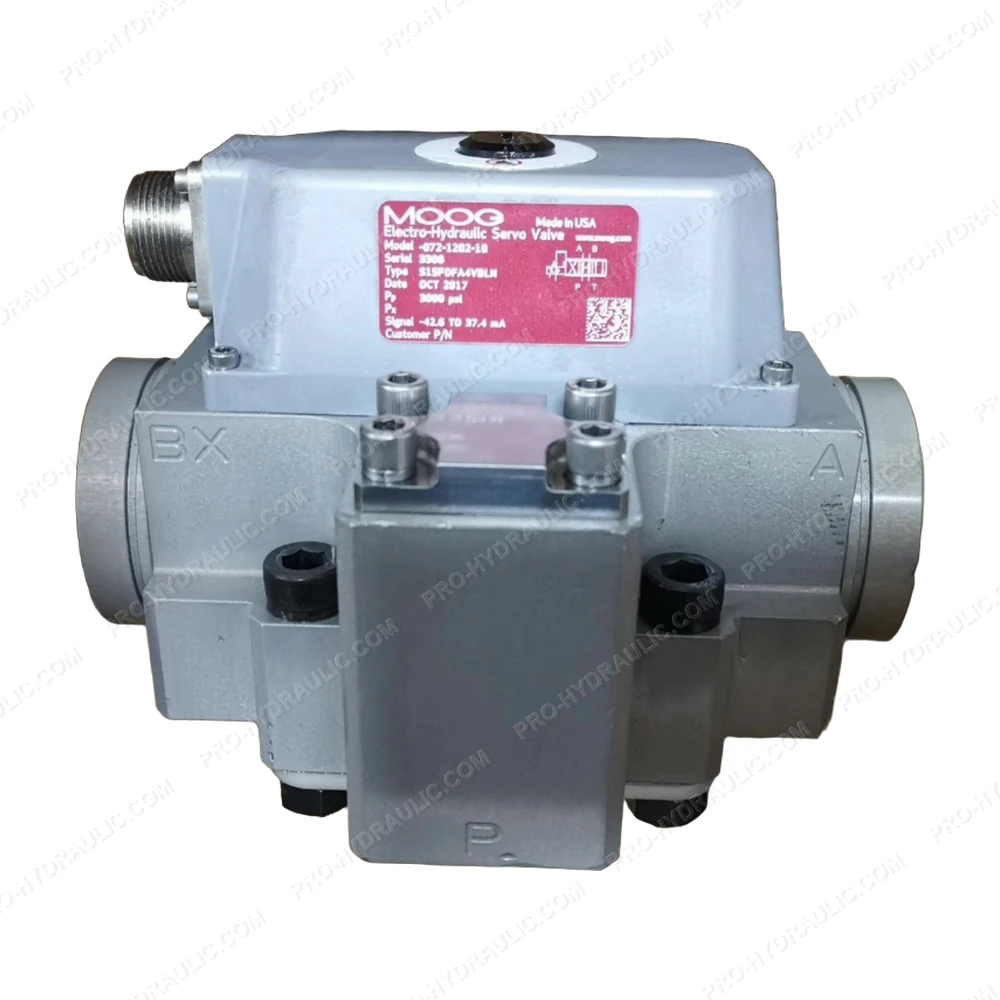

MOOG 072-1203-10 Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG 072-1203-10 Servo Valve. This USA-made high-performance hydraulic component features a two-stage design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
