Product Overview
The MOOG 072-1203-6 / S22KOFM4VBLN is a high-performance, two-stage electrohydraulic servo valve engineered by MOOG, the global benchmark in precision motion control. Operating on a mechanical force-feedback torque motor principle, this valve converts low-power electrical command signals into highly accurate hydraulic flow and pressure outputs. The S22KOFM4VBLN designation identifies a specific spool and flow configuration within MOOG’s S22 series, making it a direct-fit solution for closed-loop position, velocity, and force control systems. It serves as the critical control element in demanding industrial and aerospace-grade hydraulic circuits where dynamic response, resolution, and null stability are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Servo Valve (Two-Stage, Force Feedback) |
| Model Designation | MOOG 072-1203-6 / S22KOFM4VBLN |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar / 3000 psi rated) |
| Mounting & Connection | Standard ISO 4401 / MOOG Subplate Interface |
| Rated Flow | Nominal 5–40 L/min (dependent on pressure drop) |
| Stage Configuration | Two-stage with torque motor pilot and spool main stage |
| Feedback Mechanism | Mechanical force feedback (spring tube / feedback wire) |
| Electrical Interface | Standard MOOG polarity, 4-pin or 6-pin connector |
Engineering Features & Advantages
- Precision Performance: High-resolution spool positioning with minimal hysteresis and excellent null stability, ensuring accurate metering of hydraulic flow for closed-loop control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust torque motor construction and contamination-resistant pilot stage design.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM MOOG S22 series standards, including mounting pattern, port locations, and electrical connections.
- Dynamic Response: Fast step response and high frequency bandwidth suitable for demanding servo applications requiring rapid actuation.
- Proven MOOG Architecture: Field-proven two-stage force-feedback design delivers consistent performance over millions of cycles.
Typical Industrial Applications
This MOOG servo valve is widely deployed in high-precision motion control systems, including plastic injection molding machines (clamp and injection axis control), metallurgical presses and rolling mills, CNC machine tools and machining centers, flight simulators and aerospace test rigs, and marine steering and stabilizer systems. It is also commonly found in turbine control, material testing machines, and other applications requiring precise position, velocity, or force regulation.
PRODUCT IMAGES

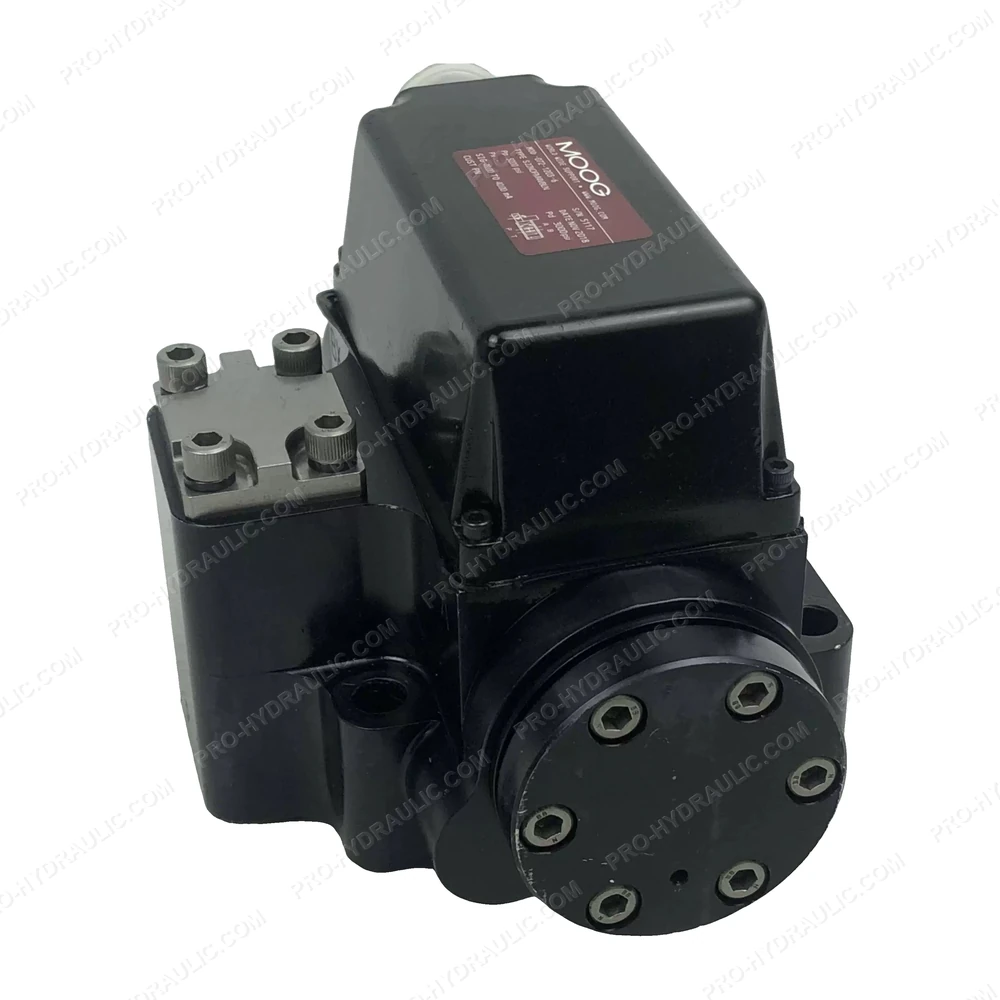

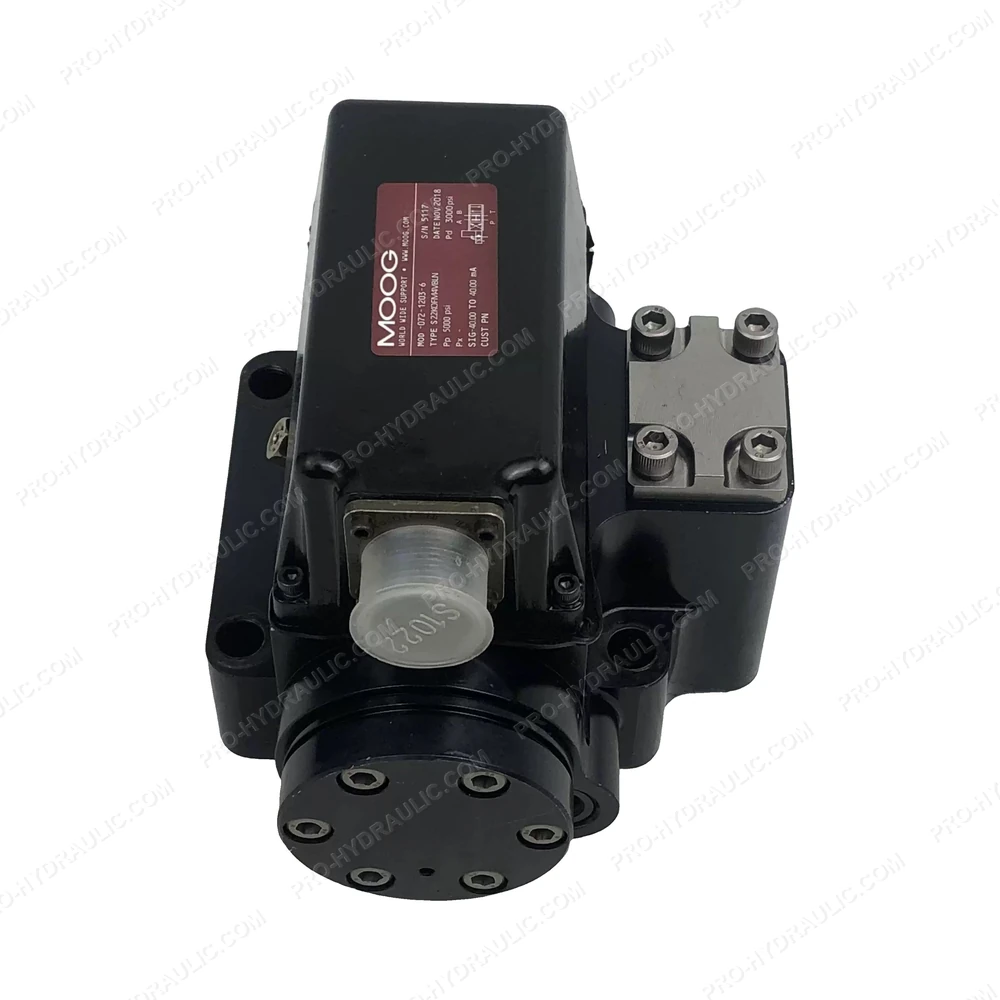

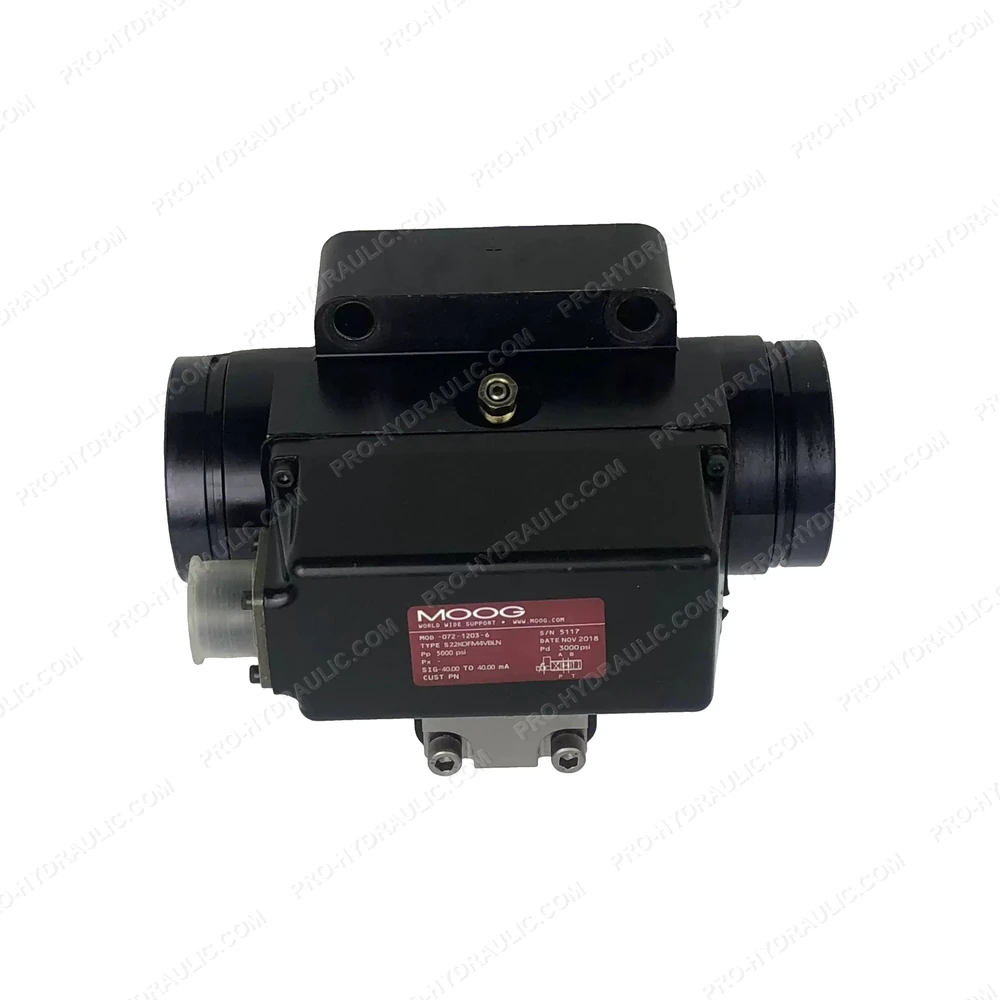

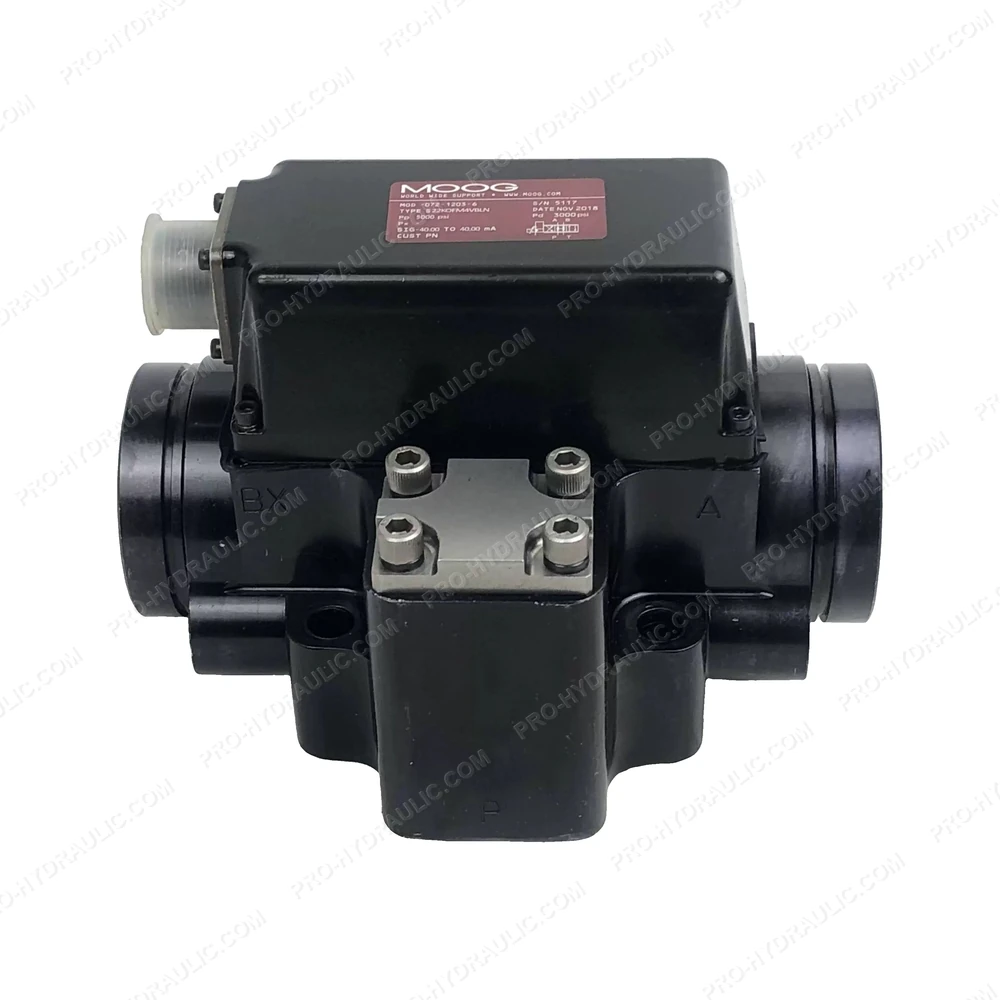

MOOG 072-1203-6 / S22KOFM4VBLN Servo Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG 072-1203-6 / S22KOFM4VBLN Servo Valve. This US-made hydraulic component features a precise spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
