Product Overview
The MOOG 072-2623 / S15FCFA4VBLN is a high-performance, two-stage electrohydraulic servo valve engineered by Moog, the global benchmark in precision motion control. This valve operates on a torque-motor, flapper-nozzle pilot stage that hydraulically actuates a precision-ground spool within the second stage, delivering infinitely variable flow control proportional to the electrical input signal. Designed for closed-loop position, velocity, and force control architectures, the S15FCFA4VBLN provides exceptional dynamic response, minimal hysteresis, and superior resolution, making it the definitive choice for demanding industrial and aerospace-grade motion control systems where accuracy and repeatability are non-negotiable.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Two-Stage Electrohydraulic Servo Valve (Flapper-Nozzle Pilot, Spool Second Stage) |
| Model Designation | MOOG 072-2623 / S15FCFA4VBLN |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar rated / 315 bar peak) |
| Rated Flow Capacity | Nominal 15–40 L/min at 70 bar valve pressure drop (model-dependent) |
| Pilot Stage Design | Torque motor with dual nozzle-flapper assembly |
| Second Stage Spool | Precision-ground, hardened steel spool with critical overlap geometry |
| Mounting & Connection | Standard ISO 4401 / Moog subplate interface with 4-way port configuration |
| Electrical Interface | Standard Moog valve connector with differential current input |
| Hysteresis & Resolution | < 3% hysteresis; infinite resolution |
| Dynamic Response | Phase lag < 90° at frequencies exceeding 100 Hz (application-dependent) |
Engineering Features & Advantages
- Precision Metering Performance: The torque-motor pilot stage delivers extremely fine spool positioning, enabling precise flow metering with minimal deadband and near-zero leakage in the null position for superior closed-loop control accuracy.
- High Dynamic Response: Optimized flapper-nozzle and spool geometry provide fast step response and high frequency bandwidth, essential for high-speed servo axes and oscillating load applications.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Designed for closed-loop position, velocity, and force control architectures, the S15FCFA4VBLN provides exceptional dynamic response, minimal hysteresis, and superior resolution, making it the definitive choice for demanding industrial and aerospace-grade motion control systems where accuracy and repeatability are non-negotiable.
PRODUCT IMAGES

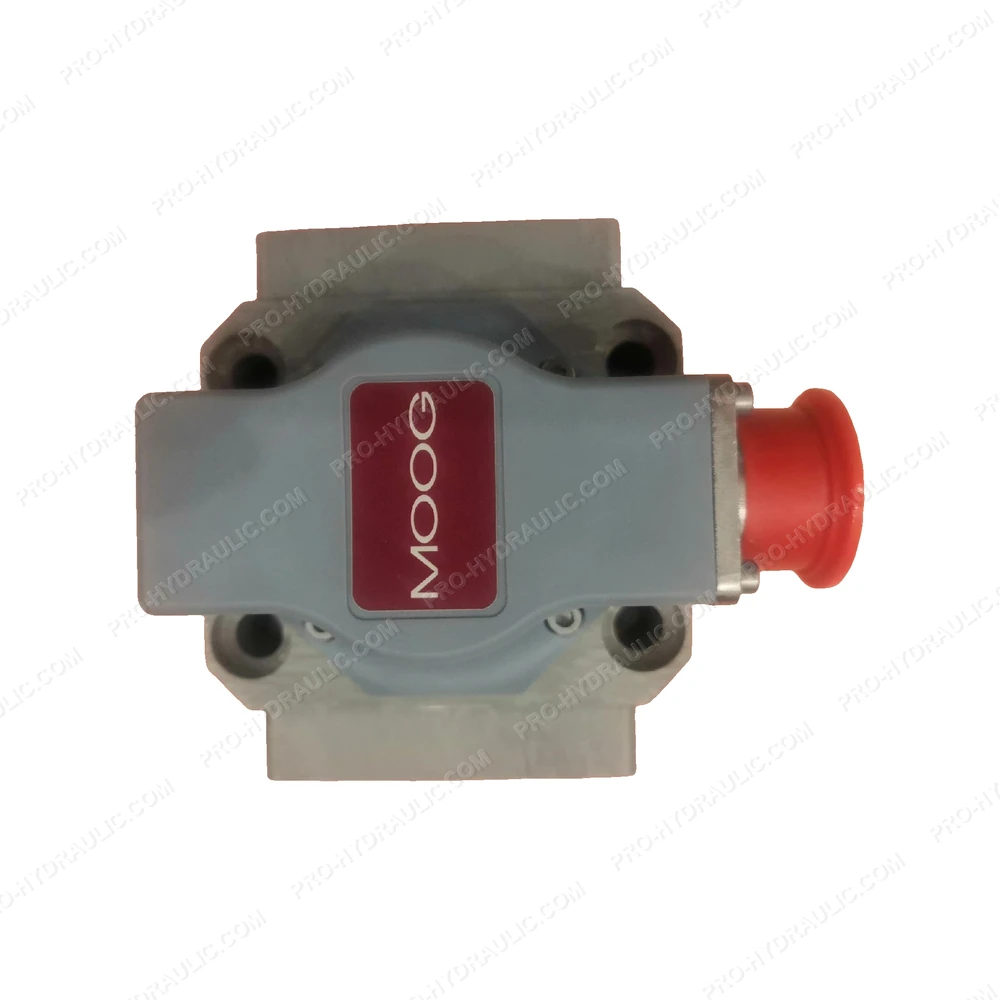

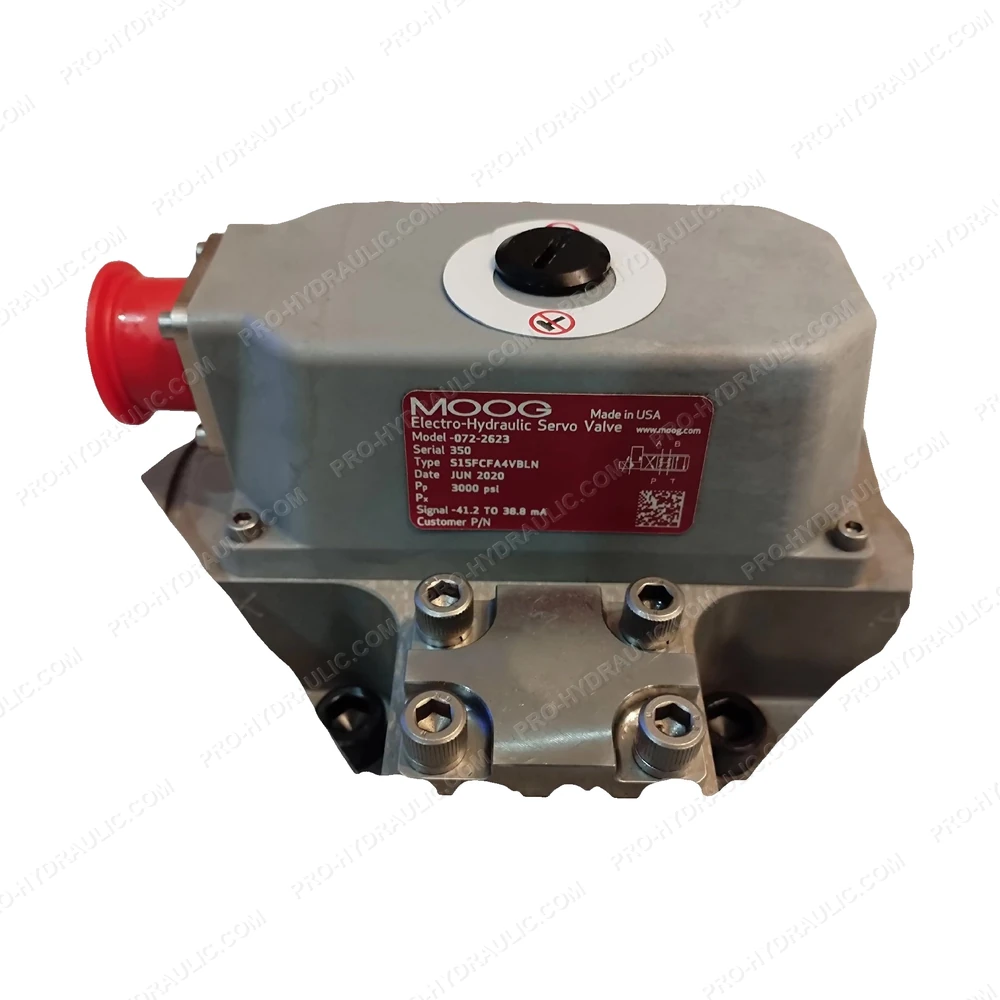

MOOG 072-2623 / S15FCFA4VBLN Servo Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG 072-2623 / S15FCFA4VBLN Servo Solenoid Valve. This US-made hydraulic component features a precise spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
