Product Overview
The MOOG 3761-001 is a high-performance, two-stage electrohydraulic servo valve engineered by Moog Inc., the global benchmark in precision motion control. Operating on a torque-motor, flapper-nozzle pilot stage that hydraulically actuates a robust spool-type output stage, this valve delivers infinitely variable, bidirectional flow control proportional to a low-power electrical input signal. As a critical control element in closed-loop hydraulic systems, the 3761-001 provides exceptional dynamic response, high resolution, and minimal hysteresis, making it the definitive choice for applications demanding micron-level positioning accuracy, precise velocity regulation, and superior force control in demanding industrial and aerospace-grade motion control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electrohydraulic Servo Valve (Two-Stage, Flapper-Nozzle Pilot) |
| Model Designation | MOOG 3761-001 |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar / 3000 psi rated) |
| Mounting & Connection | Standard ISO 4401 / Moog Interface, Subplate Mounting |
| Pilot Stage Design | Torque Motor with Dual Nozzle / Flapper Assembly |
| Output Stage | Four-Way, Critical-Center Spool with Position Feedback |
| Rated Flow Capacity | Nominal 5–40 L/min (dependent on pressure drop and spool configuration) |
| Input Signal Range | ±10 mA to ±300 mA (application-specific coil rating) |
| Hysteresis & Resolution | < 3% hysteresis, infinite resolution |
| Frequency Response | High dynamic bandwidth (typically > 100 Hz at 90° phase lag) |
| Fluid Compatibility | Mineral-based hydraulic oil, filtered to ISO 4406 cleanliness code 16/13 or better |
Engineering Features & Advantages
- Precision Metering & Control: The torque-motor driven flapper-nozzle pilot stage provides extremely fine spool positioning, enabling precise flow metering with virtually zero deadband and infinite resolution for critical closed-loop position, velocity, and force control.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original MOOG standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a critical control element in closed-loop hydraulic systems, the 3761-001 provides exceptional dynamic response, high resolution, and minimal hysteresis, making it the definitive choice for applications demanding micron-level positioning accuracy, precise velocity regulation, and superior force control in demanding industrial and aerospace-grade motion control architectures.
PRODUCT IMAGES

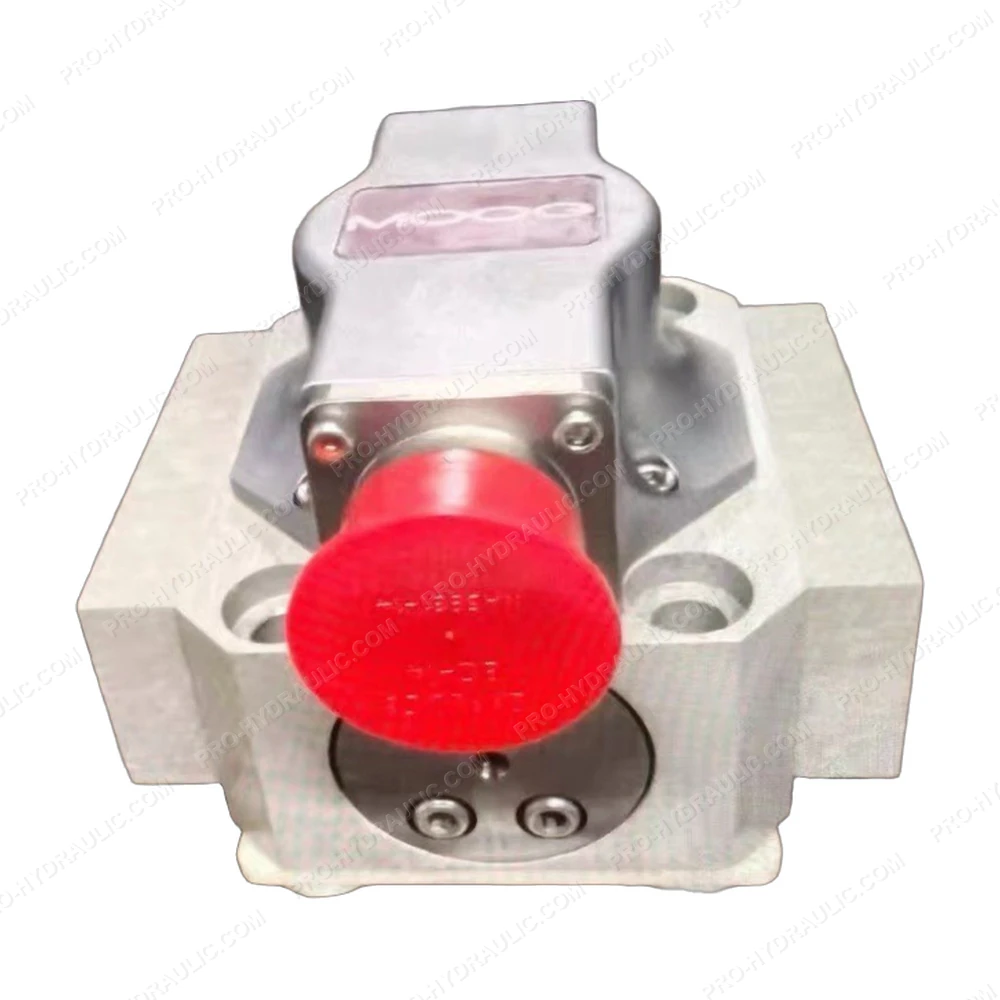

MOOG 3761-001 Servo Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine MOOG 3761-001 Servo Valve. This USA-made high-performance hydraulic component features a two-stage design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
